DS90UB933-Q1: Parallel YCbCr 10bit to MIPI-CSI2 conversion

Khang Le-Truong

Part Number: DS90UB933-Q1
Other Parts Discussed in Thread: DS90UB954-Q1, , DS90UB913A-Q1, DS90UB936-Q1

Dear Community,

From the previous discussion about converting LVDS signal from an FCB camera that I learnt unable to implement, I came up with another idea about using an intermediate LVDS receiver to convert the signal to parallel as recommended by the camera vendor : Thine THC63LVD104C (that pairs with the LVDS transmitter inside the camera). Our newer problem to solve : how to convert the parallel output of the Thine THC63LVD104C to a more popular interface such as MIPI-CSI2, HDMI or USB3.0.

I saw in a related discussion about converting 12bit parallel to MIPI-CSI2 serializer and I wonder if I could do similarly : FCB camera (LVDS Tx) --> (LVDS Rx) Thine THC63LVD104C (10-bit Parallel) --> DS90UB913A-Q1/ DS90UB933-Q1 --> DS90UB954-Q1/ DS90UB936-Q1 --> (MIPI-CSI2 Rx) Application Processor.

Thanks in advance and best regards,

Khang

over 1 year ago

0 Thomas Bejin over 1 year ago

TI__Mastermind 24971 points

Hi Kang,

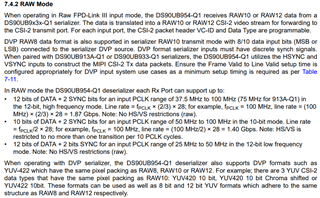

The UB933/UB913 accepts LVDS input into its DIN[11:0] pins.This is then converted to CSI data by the downstream CSI-2 deserializer. The below section of the UB954 datasheet helps to provide some additional background here.

Best,

Thomas

0 Khang Le-Truong over 1 year ago in reply to Thomas Bejin

Prodigy 10 points

Dear Thomas,

So if I understand correctly, it is feasible to implement the conversion from LVDS signals of the Thine THC63LVD104C to the MIPI-CSI2 signals for an Application Processor via a pair of UB933 (or UB913) and the UB954 with YCbCr 10bit format, right?

Thanks and best regards,

Khang

0 Thomas Bejin over 1 year ago in reply to Khang Le-Truong

TI__Mastermind 24971 points

Hi Khang,

The one thing which I'd hope to better understand is the video format here. In the FPD-Link deserializer the CSI-2 data code is added when converting from DVP to CSI-2.

Best,

Thomas
