DP83867CS: DP83867CS Ping Issue

Hi Kevin,

Thank you for going over the debug guide.

Based on the observation, it seems like the issue occur on the SGMII communication. If possible, could you share the register 0x0037 value you read on DP83867PHY?

If you are not able to see SGMII auto-negotiation complete through register 0x0037[1:0], please try MII loopback as next step with register 0x0000bit[14].

--

Regards,

Hillman Lin

Hi Hillman,

We got 0x000 while reading 0x0037.

Will check the MII loopback and let you know the update.

Thanks

Kevin

Hi Kevin,

I will wait for your update.

--

Regards,

Hillman Lin

Hi Hillman,

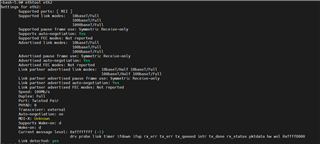

We tried writing 0x0000 for MII loopback, still we didn't got ping working.

We are getting very less amplitude waveform from the PHY. I attached image for your reference.

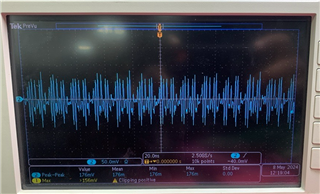

PHY SGMII Output (Pk-Pk - 176mV)

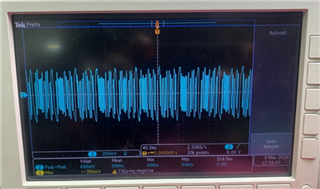

PHY SGMII Input (Pk-Pk - 696mV)

Thanks

Kevin

Hi Kevin,

May I ask for SGMII connection setup or schematic?

Based on the scope capture, SGMII output is not expected. 176mV is too small on the SGMII output.

If possible, may I also ask for the probe position on SGMII communication?

--

Regards,

Hillman Lin

Hi Hillman,

SGMII Connection is working now, it was due to dry solder issue in the PHY.

Thanks for the support.

Thanks

Kevin
