DS90UB971-Q1: IIC communication failure

hongli Liu
Part Number: DS90UB971-Q1
Tool/software:
Hi,
We use the TI971 , and the sensor cannot generate images at low temperatures of -40 ℃. After analysis, it was found that the SCL and SDA at the serial and sensor ends were constantly raised, but at this time, the deserializer TI9702 had a waveform. The waveform is shown in the following figure.

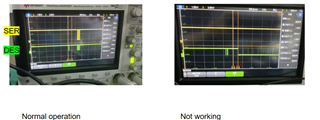

We also found that when we flie wires on the IIC, this abnormal phenomenon is changed, and the IIC waveform returns to normal. However, there may be occasional occurrences where the sensor has MIPI output but the MIPI on the deserializer board remains high.
Please assist in the analysis.
Thank you
over 1 year ago
0 Thomas Bejin over 1 year ago
TI__Mastermind 25711 points
Hi Hongli,
Do you have any details on the link bring-up script which is used here? Would recommend to check that the latest recommended method "B7 UB9702 - UB971 link bring up script" is used.
Best,
Thomas
0 hongli Liu over 1 year ago in reply to Thomas Bejin
Prodigy 60 points
Hi Thomas Bejin,
The configuration we are using is detailed in the attachment。Where can I find a detailed description of the "B7 UB9702-UB971 link bring up script" you mentioned？
Thanks!
Fullscreen TI9702_971_DMS_OV2311_1600x1300_MONO_RAW10_2Lane_25fps_fsync_LED_OFF_20240620_final.txt Download
