DS90UB913A-Q1: Repeater Application

Shuji Ishiwata

Mastermind 7815 points

Part Number: DS90UB913A-Q1
Other Parts Discussed in Thread: DS90UB934-Q1, DS90UB933-Q1

Tool/software:

Hi All,

I have a question about the configuration of DS90UB913A and DS90UB914A.

Is it possible to use DS90UB913A and DS90UB914A in a repeat configuration as per the DS90UB925 datasheet?

If it is possible, I am concerned that the PLL jitter will increase, but are there any other precautions I should take?

Best Regards,
Ishiwata

6 months ago

0 Thomas Bejin 6 months ago

TI__Mastermind 24861 points

Hi Ishiwata-san,

Thank you for your question. Do you have a block diagram for the requested application? Normally when replicating video streams, specific CSI-2 deserializers can replicate video to multiple CSI-2 ports.

Please see the below E2E - the feedback here should be relevant for you.

(3) DS90UB913A-Q1: Does ds90ub913 & ds90ub914 support repeater application? - Interface forum - Interface - TI E2E support forums

Best,

Thomas

0 Shuji Ishiwata 6 months ago in reply to Thomas Bejin

Mastermind 7815 points

Hi Thomas-san,

Thank you for your reply.

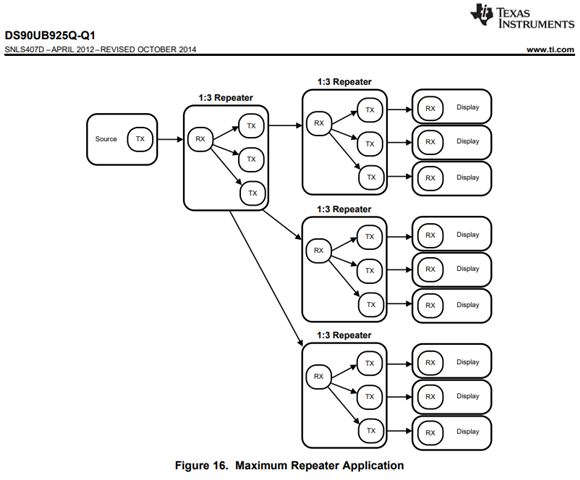

The block diagram is as follows.

What additional products are required to achieve cascading with the DS90UB913A and DS90UB914A?

Best Regards,
Ishiwata

0 Hamzeh Jaradat 6 months ago in reply to Shuji Ishiwata

TI__Guru** 107740 points

Hello Shuji,

I have seen in some applications this kind of a repeater is used without any issues. However, not 2 repeaters in series but just one. This is something that you may need to try if you have the design already.

0 Shuji Ishiwata 6 months ago in reply to Hamzeh Jaradat

Mastermind 7815 points

Hi Thomas-san,

Thank you for your reply.

If it cannot be used as a repeater, what device would be required to achieve this?
Please give me some advice.

Best Regards,
Ishiwata

0 Hamzeh Jaradat 6 months ago in reply to Shuji Ishiwata

TI__Guru** 107740 points

Hello Ishiwata-san,

Shuji Ishiwata said:
The block diagram is as follows.

You can use these devices as a repeater similar to the provided block diagram. However, we do recommend using the pair DS90UB933-Q1 - DS90UB934-Q1 for enhanced performance.
