AM26LS32AC: Parts from Mouser and Digikey do not work

AM26LS32AC: Output Signal Issue

Ryan Valentino
Prodigy 10 points
Part Number: AM26LS32AC


Hi,

I'm trying to use the AM26LS32ACDRG4 as a direct replacment for the DS26LS32ACM, however the output is not TTL. As per below  (AM26LS32ACDRG4  was connected in parallel to DS26LS32ACM)


Green -> Output from DS26LS32ACM (OUT A / PIN3)

Yellow-> Output from AM26LS32ACDRG4 (OUT A / PIN3)

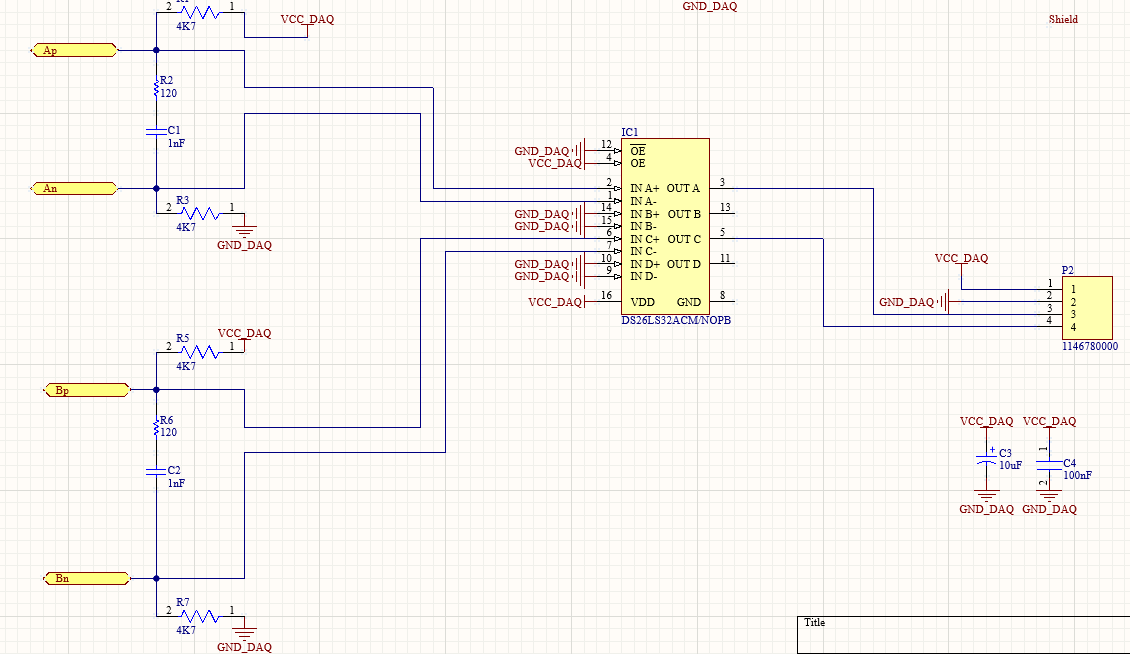

Schematic is as per below:


Any advice why I'm getting such output ?
