DP83TG720S-Q1: DP83TG720SWRHATQ1 cannot pass ping test

jeno.zhang

Hello,

The customer is using the DP83TG720SWRHATQ1 component. At the beginning of the test, the network was not recognized and the light did not turn on. After setting the core board (which communicates with the chip) to master mode, the customer can recognize the network port and the network port light is on, but it cannot pass the Ping test. The schematic diagram is shown in the attachment. Please help analyze the cause. Thanks.

04 ETH.PDF

3 months ago

0 Drew Miller1 3 months ago

TI__Mastermind 42088 points

Hi Jeno,

When the customer configures the PHY, are they following the master mode configuration detailed in the DP83TG720S-Q1 Open Alliance application note?

jeno.zhang said:
customer can recognize the network port and the network port light is on, but it cannot pass the Ping test.

Are you referring to LED_0 here?

In the case where link is up, but customer is unable to ping, is it possible to read back registers 0x639-0x63E? These are packet and error counter registers and can help us identify where the issue might be.

Thanks,

Drew

0 jeno.zhang 2 months ago in reply to Drew Miller1

Genius 3395 points

Hello Drew,

Can DP83TG720S-Q1 be set as Master through hardware configuration？

Thanks.

0 Drew Miller1 2 months ago in reply to jeno.zhang

TI__Mastermind 42088 points

Hi Jeno,

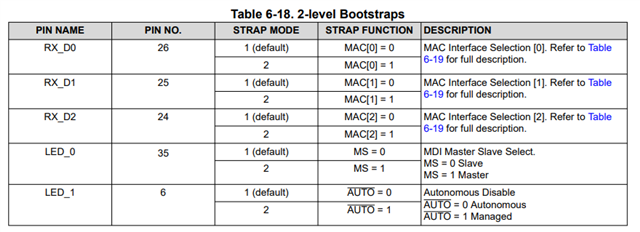

Yes, there is a strap for master mode.

Note that the master mode configuration involves configuration that is not handled by the strap configuration. We recommend writing the Open Alliance configuration to the PHY.

Thanks,

Drew
