SN65LVDS100 for MIPI HS

Charlie Maehira

Prodigy 145 points

Other Parts Discussed in Thread: SN65LVDS100

Hi,

I have a question regarding SN65LVDS100 from customer.

Customer would like to use SN65LVDS100 as buffer for MIPI HS signal to FPGA.

And they asked if SN65LVDS100 can receive the MIPI HS data .

According to the general information of MIPI HS as below I guess SN65LVDS100 can support that as Rx .

bit rate : 80Mpbs to 1.5Gbps

Tx singal level : 140mV swing ( Vcm=150mV) to 270mV( swing Vcm=250mV)

Would it be possible for you to tell us if the above understanding is correct ?

And if there is the other information that I have to confirm , please let us know.

over 11 years ago

0 Michael Peffers over 11 years ago

TI__Mastermind 20820 points

Hi Charlie,

The SN65LVDS100 has a common mode out put that ranges from 1.125-1.375V. So you cannot directly couple (DC) its outputs to your MIPI receiver if the common mode voltages you described above are what is required. You will need to AC couple the SN65LVDS100 outputs and reassert the desired common mode after the ac coupling caps. This application report summarizes such a technique: http://www.ti.com/lit/an/scaa059c/scaa059c.pdf. Please let me know if you have any additional questions.

Regards,

Mike

0 Charlie Maehira over 11 years ago in reply to Michael Peffers

Prodigy 145 points

Hi, Mike

Thank you very much for the quick response.
The customer would like to use SN65LVDS10 as Rx buffer against MIPI HS data to FPGA. ( please see the attachment )
So the next device of SN65LVDS10 is FPGA , not MIPI HS receiver.
Would it be possible for you to answer afresh with this updated information ?

Best Regards,

Charlie

3187.MIPI HS to SN65LVDS100.pptx

0 Charlie Maehira over 11 years ago in reply to Charlie Maehira

Prodigy 145 points

Hi,

Would you please give us the response for this as soon as possible?
I could not provide the clear answer to the customer while almost one week.

Best Regards,

Charlie

0 Michael Huang3 over 11 years ago in reply to Charlie Maehira

TI__Intellectual 2460 points

Hi,

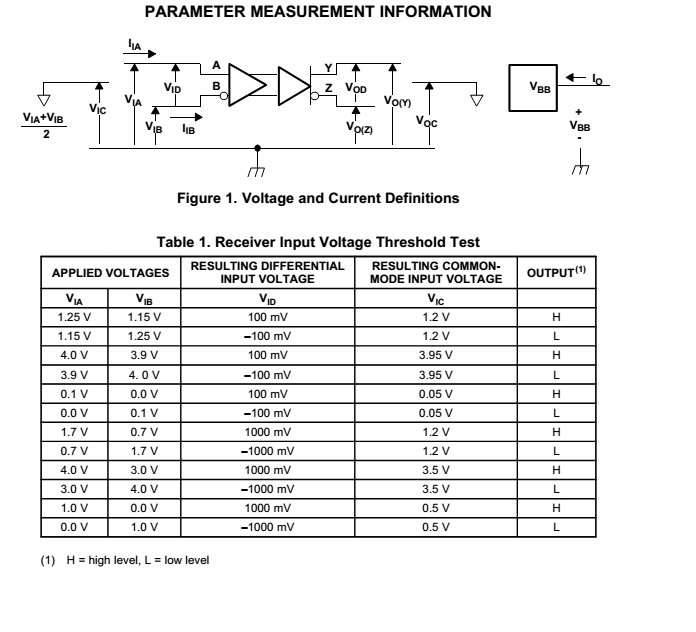

I think this will help you. You mean the pins of FPGA are set in LVDS input mode? OK, this part can output LVDS and can accept the MIPI HS output. the common mode voltage can be as low as 50mV.
