DP83867IS RX_CTRL

Ryuuichi machida

Hi,

Let me confirm about below.

I found following thread on E2E. According to this thread, it seems if user use mode 1 or 2 for strap setting of RX_CTRL, auto negotiation issue will happen.

>Yes you are right. The issue has been solved by strapping RX_CTRL to Mode-3.

https://e2e.ti.com/support/interface/ethernet/f/903/t/490569#pi239031350=2

Is my understanding correct ?

If so, even if user will set SGMII auto negtiation enable setting by using register(Add 0x0014[7]=1), does this negtiation issue will happen ?

Best Regards,

Machida

over 9 years ago

0 Rob Rodrigues over 9 years ago

TI__Mastermind 19780 points

Hi Machida-san,

Your understanding is correct.

If the user is unable to strap the RX_CTRL line to mode 3, value 0x170 should be written to register address 0x31 then auto-negotiation restarted.

Best Regards,

0 Ryuuichi machida over 9 years ago in reply to Rob Rodrigues

Guru 12765 points

Hi Rob-san,

Thank you for your reply.

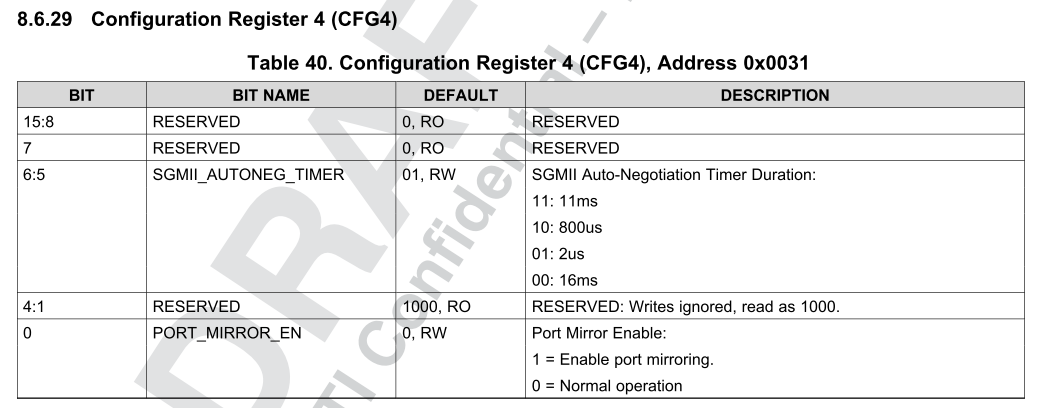

Did you indicate following register to restart auto-negotiation ?

bit 8 is reserved region, so could you confirm just in case ?

BR,

Machida

0 Rob Rodrigues over 9 years ago in reply to Ryuuichi machida

TI__Mastermind 19780 points

Hi Machida-san,

This is correct, the bit is reserved and it controls an internal timer. This is a work around for the case that RX_CTRL has not been strapped to the proper value.

Best Regards,

0 Ryuuichi machida over 9 years ago in reply to Rob Rodrigues

Guru 12765 points

Rob-san,

Thank you for your comment.
I understood about reserved bitfield.

On the other hand, we also have a question about waveform of SGMII.
This information is included customer info, so please communicate internally.

I will send email later.

BR,

Machida

0 Ryuuichi machida over 8 years ago in reply to Ryuuichi machida

Guru 12765 points

Hi Rob-san,

Sorry for going back previous question.

You said that "value 0x170 should be written to register address 0x31 then auto-negotiation restarted." at previous thread.

However, I would like you to confirm when this setting should be performed.

If there is the rule to set address 0x31, could you please tell it me ?

Best Regards,

Machida

0 Rob Rodrigues over 8 years ago in reply to Ryuuichi machida

TI__Mastermind 19780 points

Hi Machida-san,

Any time the PHY is powered on, or the RESET signal is asserted to the PHY, the PHY will lose its register settings and strap in the values on the pins.

Register 0x31 should be changed after the reset occurs, and auto-negotiation should be restarted.

Best Regards,
