TUSB214: TUSB214 EQ and BOOST setting

Kami Huang60

Genius 3830 points

Part Number: TUSB214

Dear Sir/Ms.

It looks like the TUSB214 can go to 5m.
What is the different of pre-channel and post-channel?

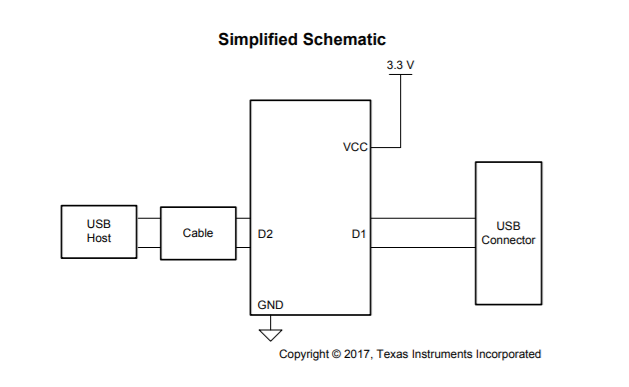

My customer's application is show in following fig.

Is it possible?

over 7 years ago

0 Michael.Walker over 7 years ago

TI__Mastermind 19720 points

The pre-channel path is the path the signal takes from the Host to the TUSB214. The post-Channel path is the path the signal takes from the TUSB214 to the device. Yes, the TUSB214 would work in that application.

0 Kami Huang60 over 7 years ago in reply to Michael.Walker

Genius 3830 points

Hello Michael,

I got it.

Thanks for your kindly help.

Best Regards,

Kami Huang

0 Kami Huang60 over 7 years ago in reply to Michael.Walker

Genius 3830 points

If my customer don't want I2C control, how does REQ be set?

0 Michael.Walker over 7 years ago in reply to Kami Huang60

TI__Mastermind 19720 points

Req is set with a pull down resistor to the EQ setting that you need. Below is the table for resistor values.

and the table below is the table for which EQ setting to use.

0 Kami Huang60 over 7 years ago in reply to Michael.Walker

Genius 3830 points

Hello Michael
Thanks for your kindly support.
