WEBENCH® Tools/LMH6526: Laser Diode Driver

Part Number: LMH6526

Tool/software: WEBENCH® Design Tools

Hello,

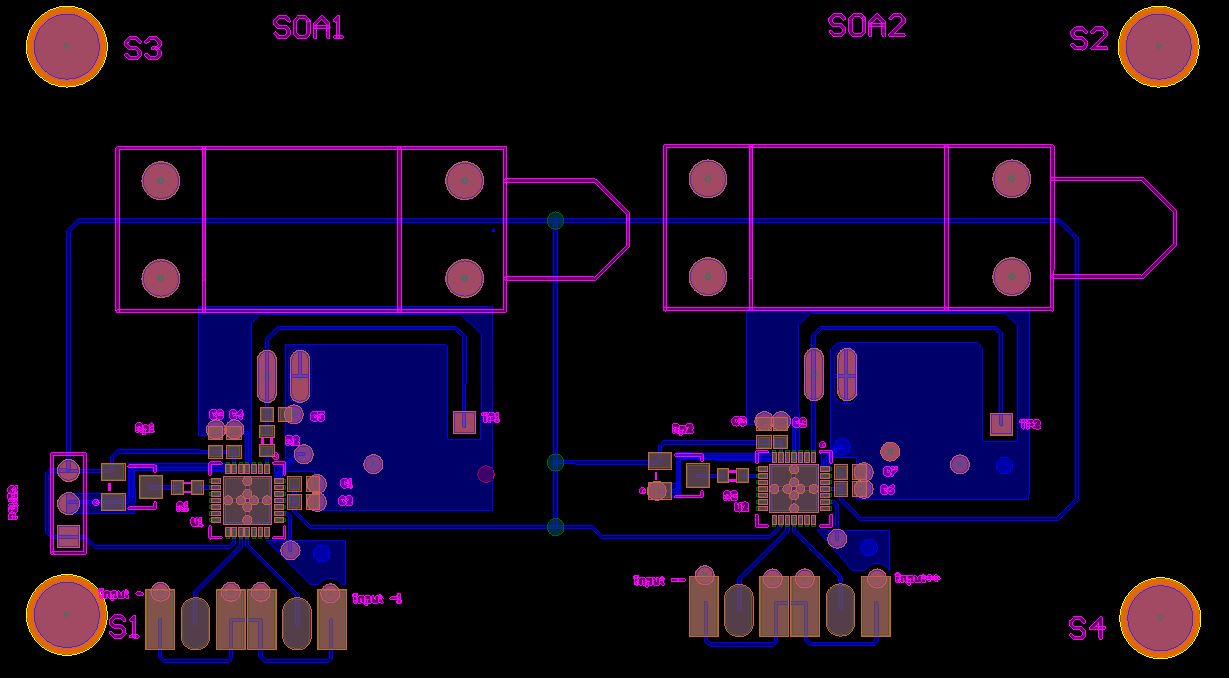

I designed an SOA driver using the LMH6526 as seen in the attachment. I generated a LVDS signal using the STS DG645. I have checked for short/ open circuit on the pcb and everything is as expected. i also measured the voltages and they are all great but the output shows nothing useful. Can some cross check and let me know if i am leaving something out. Attached is the pcb design as wel 1106.Schematic Prints.pdf3348.1106.Schematic Prints.pdf
