DS90UB913A-Q1: Unexpected behavior of serdes

na na78

Guru 16770 points

Part Number: DS90UB913A-Q1

DS90UB913A offers internal DC-balanced coding.

How to realize it?

How does DOUT come if zero value continues?

BestRegards

over 6 years ago

0 Palaniappan Manickam over 6 years ago

TI__Genius 10475 points

Hello,
The FPD-Link includes its own internal encoding mechanism so the data stream should appear encoded even if there are no transitions.

0 na na78 over 6 years ago in reply to Palaniappan Manickam

Guru 16770 points

The customer is asking us the way of DC-balance coding mechanism.

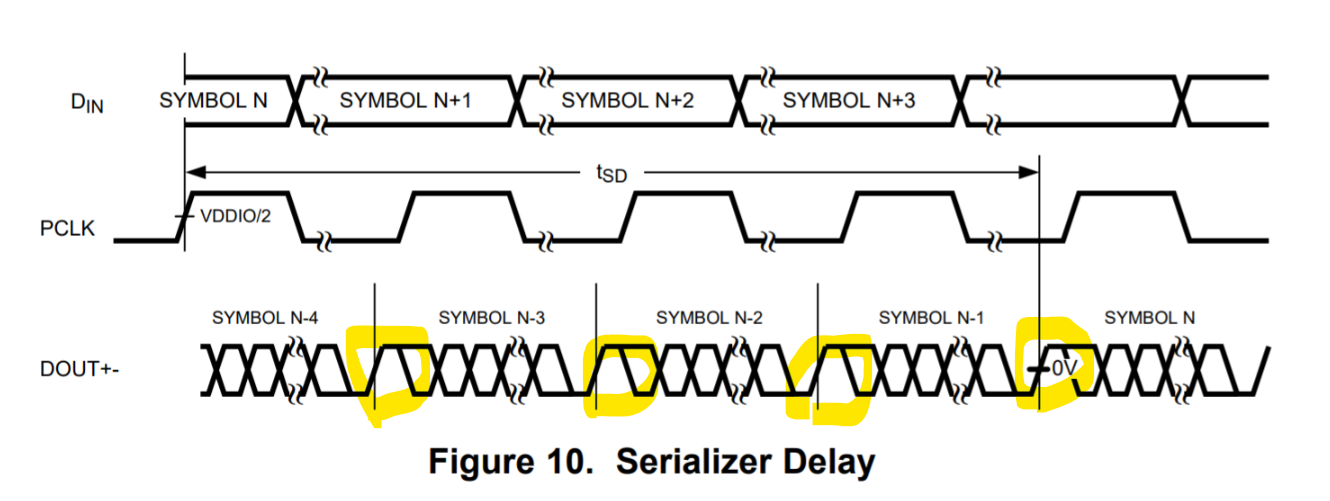

Is the following yellow circle contributed to guaranty of DC-balance ?

I appreciate if you could explain the mechanism as far as possible.

BestRegards

0 Vijaya Ceekala over 6 years ago in reply to na na78

TI__Intellectual 2930 points

This is correct. If the inputs are all zero, internally device scrambles , and adds clk transitions (CLK1, CL0, and DCA DCB bits...essentially highlighted by you in yellow

Regards
Vijay

0 na na78 over 6 years ago in reply to Vijaya Ceekala

Guru 16770 points

Hi Vijaya

Thank you for your reply.
I understand.

BestRegards
