SN75DP139: Reference Design Request

Benjaman Johnson

Prodigy 20 points

Part Number: SN75DP139

Hello,

I am having issues with the SN75DP139, and would like a review of my design and/or a copy of the reference design.

Thanks,

Ben

over 6 years ago

0 David (ASIC) Liu over 6 years ago

TI__Guru**** 176811 points

Ben

Please see attached DP139 EVM design, you can send a copy of your design to me and I will review it.

SN75DP139_HDMI_EVM_REV_B.pdf

Thanks

David

0 Benjaman Johnson over 6 years ago in reply to David (ASIC) Liu

Prodigy 20 points

David,

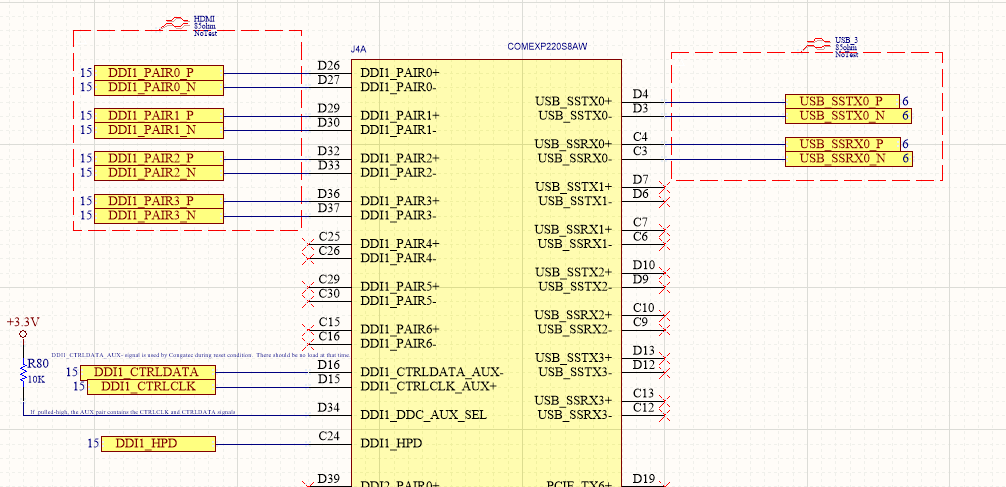

Thanks for the help. Here are the relevant schematic portions. We use a COM Express type 6 CPU module from Congatec, so some of the associated circuitry is on their board.

0 David (ASIC) Liu over 6 years ago in reply to Benjaman Johnson

TI__Guru**** 176811 points

Ben

The schematic looks ok, do you have any decoupling caps on the 3.3V supply, what particular issue are you seeing?

Thanks
David
