DP83867IR: Ethernet PHY doesn't work

Nicky Lim

Genius 3195 points

Part Number: DP83867IR

Hello,

Made a Ethernet interface with DP83867IRPAPR as attached schematic, but it doesn't work.

Could you check attached schematic and register setting, and let me know if there is any fault?

1. Schematic : K2E_1G_DP83867IRPAPR_SCH.PDF

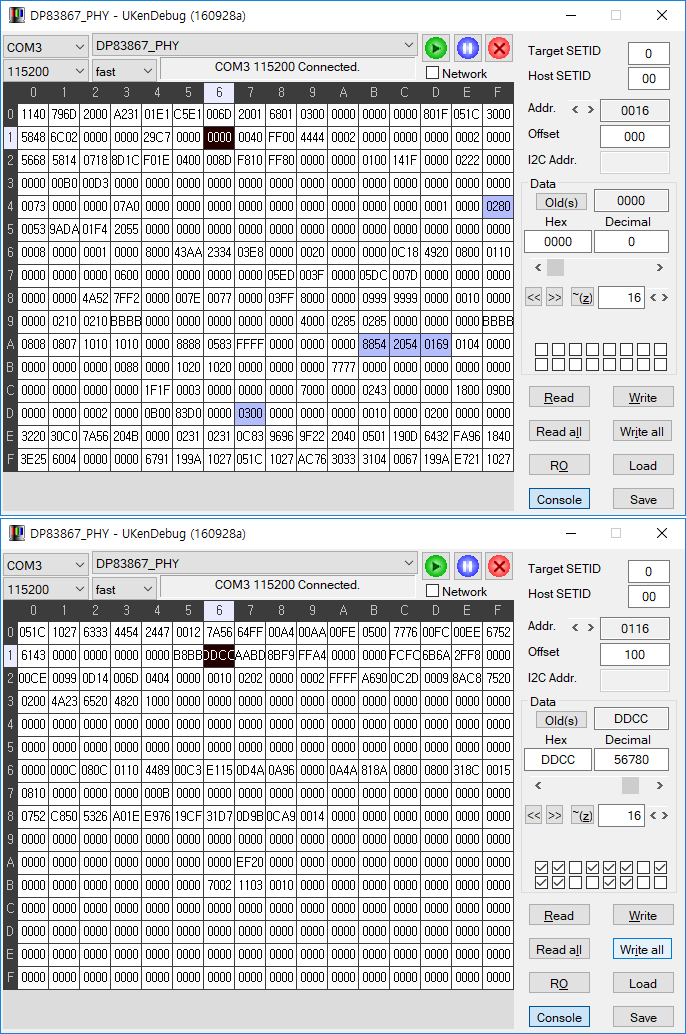

2. Register setting with 100M LAN Hub connection : DP83867-B.png

3. RTX_CLK, GTX_CLK : 25MHz measured. & CLK_OUT : 125MHz( TX CH A ) measured.

Regards,

Nicky

K2E_1G_DP83867IRPAPR_SCH.pdf

over 6 years ago

0 Geet Modi over 6 years ago

TI__Mastermind 26320 points

Hi Nicky,

On PHY 1, status register indicates "796D" means link is up. Register 0xF indicate link speed is "1000Base-T".

Please be more specific on what's not working : Data transfer and which direction ?? DId you try adjusting the Clock and Data skew ?

Regards,
Geet

0 Geet Modi over 6 years ago in reply to Geet Modi

TI__Mastermind 26320 points

Hi,

I am closing this thread. Incase you need further assistance on this topic, please open new thread and provide reference to this thread.

Regards,
Geet

0 Ben Hershey over 6 years ago

Prodigy 50 points

Nicky,

What is that UKenDebug software you are using? Is it something available online? It looks nice.

Regards,
Ben
