DP83867IR: Trouble getting the DP83867IRPAPT to pass ethernet certification at 1GB

Jonathan Geronga

Part Number: DP83867IR

Hi Team,

The customer is having trouble with getting the DP83867IRPAPT to pass ethernet certification at 1GB. They tested several chips from multiple lot codes and the only chip that passed certification testing and had the register that changed the output was one they removed from an evaluation board and soldered onto the board.
All the chips function fine, but won't pass certification at 1GB

Also, they write to the register and can read back what they wrote, but the output does not change.

Please let me know your inputs and if you have any questions with the customer.

Thanks,

Jonathan

over 5 years ago

0 Cecilia Reyes over 5 years ago

TI__Genius 9920 points

Hi Jonathan,

What time of certification are you doing? Do you mean IEEE Compliance? What exactly are they failing?

Can you share the process for how they are reading and writing to the registers?

Thanks,

Cecilia

0 Jonathan Geronga over 5 years ago in reply to Cecilia Reyes

TI__Expert 7930 points

Hi Cecilia,

Thank you very much for the response and for your support in this thread.
After discussing this with our customer, he sends me this document below for your reference regarding their testing:
ETH PHY.docx

Please let me know your inputs.

Regards,

Jonathan

0 Cecilia Reyes over 5 years ago in reply to Jonathan Geronga

TI__Genius 9920 points

Hi Jonathan,

It looks like it is for IEEE Compliance. They are passing peak voltage test.

Can you please share the schematic what results they are actually getting? They do not share the peak voltage measured.

Thanks,

Cecilia

0 Jonathan Geronga over 5 years ago in reply to Cecilia Reyes

TI__Expert 7930 points

Hi Cecilia,

I got an update from our customer.

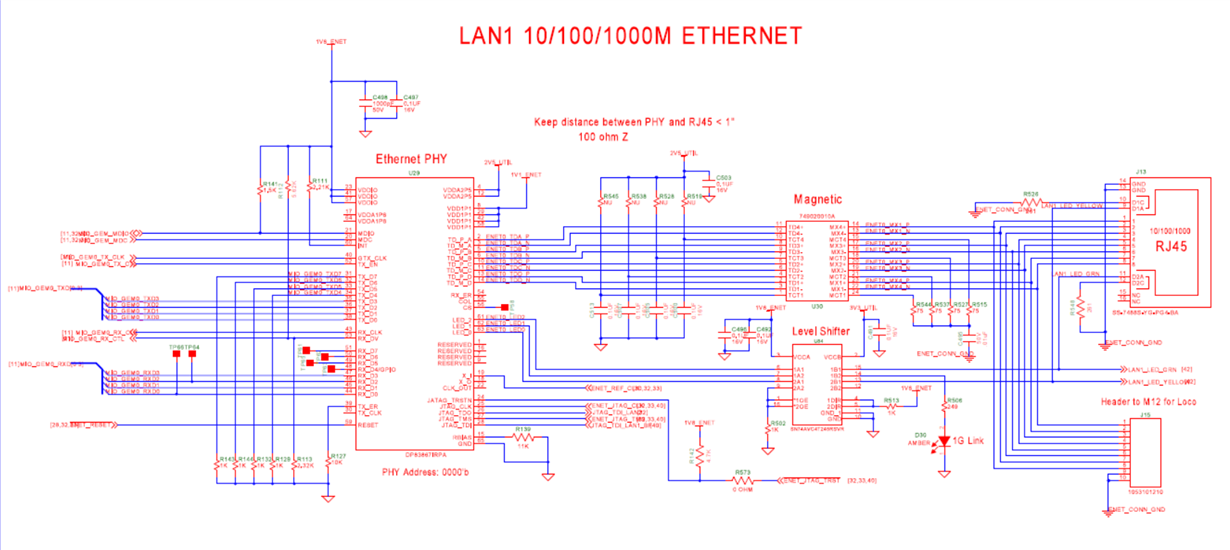

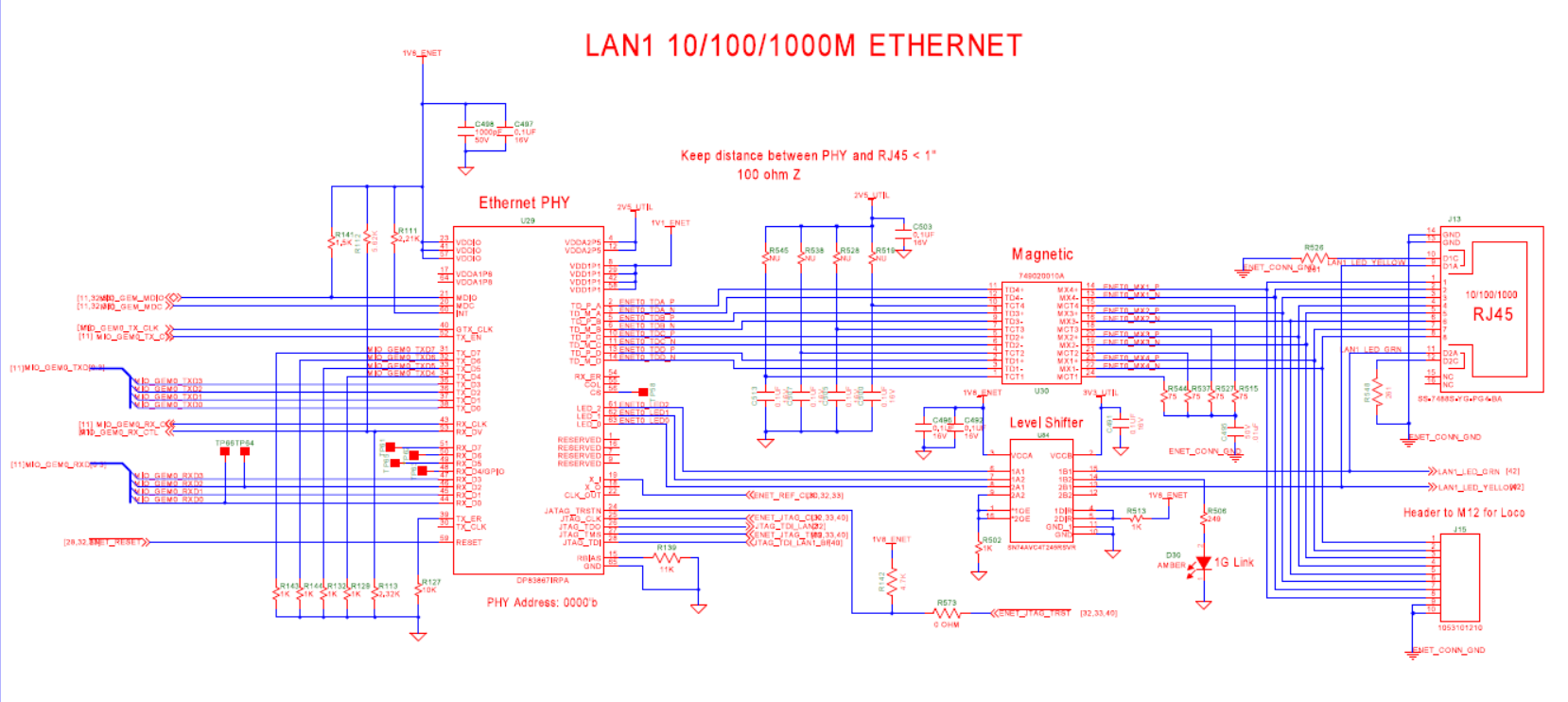

Please see below image and document for the Schematic and the test results:

TI_DP83867IR Peak failure.pdf

Please let me know your inputs.

Regards,

Jonathan Geronga
Texas Instruments Customer Support

0 Cecilia Reyes over 5 years ago in reply to Jonathan Geronga

TI__Genius 9920 points

Hi Jonathan

Is it possible to share a schematic of the PDF? The components and their values are tough to read on this image due to the quality.

Thanks so much

Cecilia

0 Jonathan Geronga over 5 years ago in reply to Cecilia Reyes

TI__Expert 7930 points

Hi Cecilia,

Thank you for your response.

I send you am e-mail for the PDF copy of the schematic of the customer since it has some confidential information.

Looking forward to your response after viewing the PDF.

Regards,

Jonathan

0 Cecilia Reyes over 5 years ago in reply to Jonathan Geronga

TI__Genius 9920 points

Hi Jonathan,

Thank you so much for sharing the schematic over email. I will review shortly and get back to you by end of day tuesday.

Thanks,

Cecilia

0 Cecilia Reyes over 5 years ago in reply to Cecilia Reyes

TI__Genius 9920 points

Hi Jonathan,

In your email I only see the test results unfortunately..can you please send the email again with the schematic? I see only one pdf sent over in my inbox.

Also, it looks like a similar e2e question was asked in regards to peak volt failure. Can you see if this is something your customer has confirmed and tested?
