SN74GTL2014: Temperature spec question

user4979999

Prodigy 690 points

Part Number: SN74GTL2014

Hi,

Please check customer questions, thanks.

From datasheet, there's only Tstg and operating temperature.

1. What's the Tjunction, max? is that the same as Tstg=150C?

2. What's the Tcase, max?

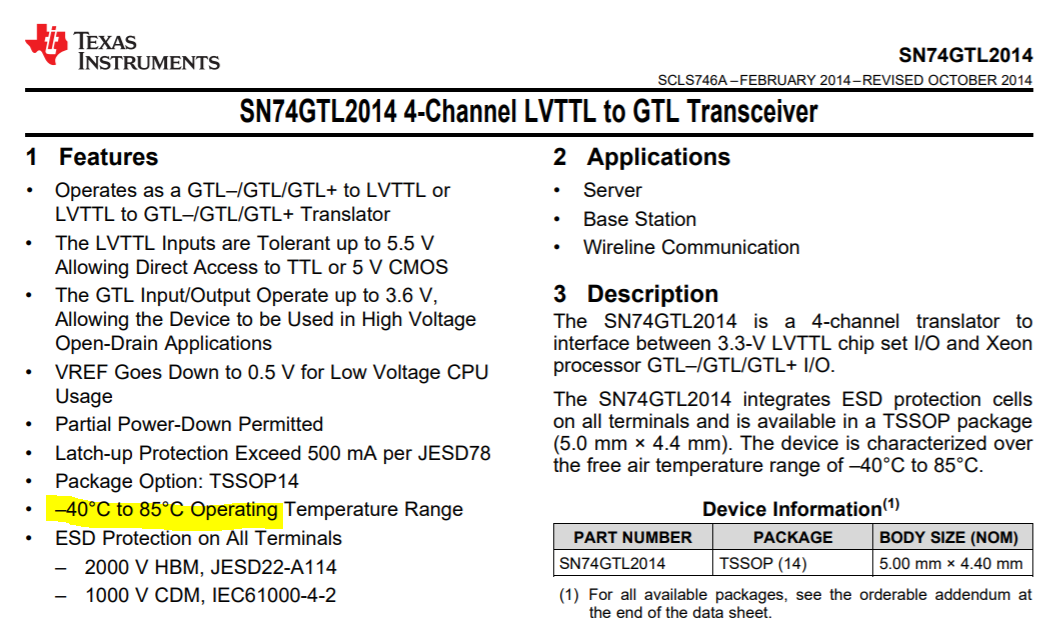

3. The operating temp is -40C~85C, does that mean the recommended ambient temp range?

Regards,

Lynn

over 5 years ago

0 Chad Crosby over 5 years ago

TI__Expert 6680 points

Hi Lynn,

I've posted the thermals table below for this device, I think the customer is asking for these values. As for question 3, that's correct. That is the recommended ambient temp.

Result- Theta JA-High K
136.8
Result-Theta JC, top
63.0
Result-Theta JB
78.6
Result- Psi JT
11.9
Result- Psi JB
77.9
Result-Theta JC, bottom
n/a

Thanks!

Chad Crosby

0 user4979999 over 5 years ago in reply to Chad Crosby

TI__Prodigy 690 points

Hi Chad,

Customer is not asking the value which already in datasheet. They wonder the maximum junction temp and the maximum case temp the device can handle. Datasheet didn't show the values. Can you help to check it? Thanks.

Regards,

Lynn
