AM2434: How to read my board's MAC address ?

This thread is about finding the MAC address of AM2434. This may help.

e2e.ti.com/.../am2432-mac-address-for-switch-mode

Hi Ashwani,

I didn't understand how to read my board's MAC address.

I see on  WireShark that my MAC is 28:B5:E8:CA:F6:C3 - how can I get it from within my code ?

I don't see anything on address 0x200 - just zeroes.

Regards,

Thanks

Eli

Hi,

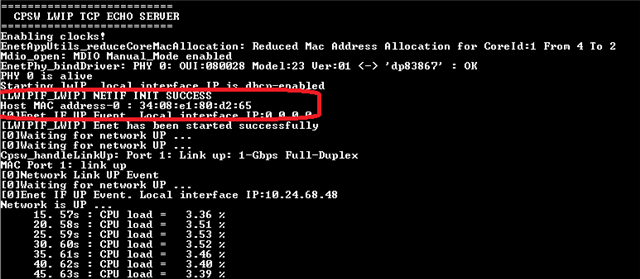

Below is the screenshot of CPSW_TCPSERVER SDK example output on UART.

Can you please move to the latest release and try on your side?

AM243x MCU+ SDK: Enet Lwip TCP Server Example on CPSW (ti.com)

Regards

Ashwani

Hi Ashwani,

Yes I see that the MAC is printed somehow.

Can you please tell me what is the SDK  function used to get the MAC ?

Thanks,

Regards,

Eli

Hi Ashwani,

Now that I know how to read the MAC , I've noticed that all our boards come with the same MAC.

What is the best way to write / burn new  MAC and  where in the code ?

Thanks,

Regards,

Eli

Hi Ashwani,

I've read all the documents you've mentioned .

I still don't understand how to change MAC from a  c function.

I though it would be possible to directedly write into MAC register of the am243x CPU:

#define CPSW_BASE_ADDR  ???

#define CPSW_SL1_MAC_LO_OFFSET  ???

#define CPSW_SL1_MAC_HI_OFFSET ???

#define CPSW_SL1_MAC_LO (*(volatile uint32_t *)(CPSW_BASE_ADDR + CPSW_SL1_MAC_LO_OFFSET))

#define CPSW_SL1_MAC_HI (*(volatile uint32_t *)(CPSW_BASE_ADDR + CPSW_SL1_MAC_HI_OFFSET))

void setMACAddress(uint8_t macAddr[6])

{

 CPSW_SL1_MAC_LO = (macAddr[0] << 0) |(macAddr[1] << 8) |(macAddr[2] << 16) |(macAddr[3] << 24);

CPSW_SL1_MAC_HI = (macAddr[4] << 0) | (macAddr[5] << 8);

printf("MAC Address set to: %02X:%02X:%02X:%02X:%02X:%02X\n", macAddr[0], macAddr[1], macAddr[2], macAddr[3], macAddr[4], macAddr[5]);

}//setMACAddress

Can you please help me find the exact addresses of

#define CPSW_BASE_ADDR  ???

#define CPSW_SL1_MAC_LO_OFFSET  ???

#define CPSW_SL1_MAC_HI_OFFSET ???

Thanks,

Regards,

Eli

Eli Mordel said:

I still don't understand how to change MAC from a  c function.

I would suggest you to move to latest SDK release (if possible) and use sysconfig feature to have custom MAC.

Regards

Ashwani

Hi Ashwani,

I saw that I can change the MAC via the syscofig.

At production line I have to assign a new unique MAC for each board.

I have "One Same" app.hs_fs file burned into board's FLASH for all my boards.

 When a certain board is connected to TCP - I'd like to store it's unique MAC  in it's internal FLASH then read and use it on power-up.

So I'm looking for a simple way to program the am243x MAC register. (At each board's power-up)

Thanks,

Regards,

Eli

Eli Mordel said:

So I'm looking for a simple way to program the am243x MAC register. (At each board's power-up)

I will check on this internally and get back to you.

Meanwhile you can check a related thread

 (+) AM2434: AM2434: Sitara custom MAC address - Arm-based microcontrollers forum - Arm-based microcontrollers - TI E2E support forums

Regards

Ashwani

Hi Ashwani,

Thanks,

Regards,

Eli

Hi Ashwani,

There is no EEPROM device on my board.

I can store the required MAC at the FLASH device I have.

I ask for a way to take the MAC from FLASH and write it into the am243x MAC register , at startup.

The previous articles show only how to read MAC - technique which I already use.

Now I have to write the MAC.

Thanks,

Regards,

Eli

Hello Eli,

Ashwani Goel said:

Can you please move to the latest release and try on your side?

As per my understanding code based on the above link, you don't need to write MAC data on a particular Register. Instead of this, you need to write in to mac buffer wich is availble in the EEPROM read function. So, I assume that the same buffer can be used by drivers to write in to MAC addresses Registers . So, here you need to read data from Flash and write in to mac buffer. This way seems works. Can you please try and see if this works ?

Regards,

Anil.

Hello Eli,

I assume that the reading functionality can be moved to SBL since SBL already uses the OSPI periperal, and flash again, you don't need to use them in your application.

So, already you have written MAC on external memory and read it from the SBL and write it on particular MSRAM memory.

In your Application, you need to allocate one memory location for MAC and the same can be written in to Mac buffers.

I am not the right expert on Ethernet drivers but I am trying to provide some suggestions and see which might be feasible for you.

Regards,

Anil.

Hi Eli,

If you can switch to SDK 9.2,

AM243x MCU+ SDK: Enet Migration Guide

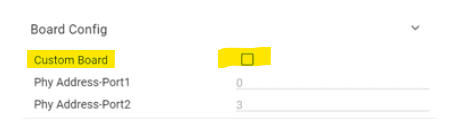

• your syscfg under Enet(CPSW or ICSS) under "Board Config"->"Custom Board".

• Make sure you save a copy of "ti_board_config.c" before doing that.

• Then you should create a custom source file called "board". The build system should detect this.

• After that you can just copy paste the source of "ti_board_config.c" into board.c.

• There you can rewrite the function "EnetBoard_getMacAddrList" to read MAC address from FLASH memory address instead of EEPROM memory address

Regards

Ashwani

Hello Eli,

Do you need any help ?

Is this issue resolved ?

Please let us know if you are stuck anywhere.

Regards,

Anil.

Hi Anil and Ashwani,

You've  suggested:

 "I assume that the same buffer can be used by drivers to write in to MAC addresses Registers . So, here you need to read data from Flash and write in to mac buffer. This way seems works."

I've tried that but then all LwIP initialization fails.

I suppose there's a MAC register  at the am243x which can be written at my main.c , maybe directedly or using some IOCTL call.

Thanks,

Regards,

Eli

Hi Eli,

Eli Mordel said:

I've tried that but then all LwIP initialization fails.

Just want to re-confirm did you move your code baseline to SDK 9.2 or still on SDK 8.6 ?

As we have improved custom board / MAC address support in SDK 9.2.

Regards

Ashwani

Hi Ashwani,

Now we are all using the ind_comms_sdk_am243x_09_01_00_03 because of the Ethercat support.

Please write a code example which sets a new MAC address to the am243x.

Thanks,

Regards,

Eli

Hi Eli,

Eli Mordel said:

ind_comms_sdk_am243x_09_01_00_03

Thanks for info.

On which port and which core, are you running EtherCAT device on AM243x?

Can you please draw a diagram what is running on ICSSG0, ICSSG1, CPSW?

For which port you want to set custom MAC address?

Regards

Ashwani

Eli

We will prioritize this thread over the DMA reset thread.

A few things I want to recap from discussions

1) AM64/AM24 does have a unique MAC ID per device that is programmed by our product engineering team (as highlighted by Rasty). This is predominantly used by ROM for ethernet port 0 , but can potentially be leveraged by customers too. Each customer has different preferences, some do not want this and provision their own using onboard flash or an on board EEPROM.

2) It is unclear which value you read and saw it be same across all boards. If this is the MAC ID programmed by TI , then this should've been unique per device. Will need to debug that.

3) If customers need more than the 1 MAC ID , or do not want to use the MAC ID in our OTP , they can a) use an onboard EEPROM b) use to program from the on board flash (which is what you are trying to do) c) use user configurable extended OTP to program  - you can find some helpful material on that on the following E2E FAQ

[FAQ] How to update IDs (USB & PCIe PID/VID, MAC ID) by programming extended OTP on AM6x - Processors forum - Processors - TI E2E support forums

For now we will focus on b) assuming that is your preferred route.

Hi Eli,

You can refer below code base, where we are reading MAC address from efuse.

So, you can try to read CSL_CTRL_MMR0_CFG0_BASE => MAC_ID0 and CSL_CTRL_MMR0_CFG0_BASE => MAC_ID1

int32_t EnetSoc_getEFusedMacAddrs(uint8_t macAddr[][ENET_MAC_ADDR_LEN],
                                  uint32_t *num)
{
#ifndef ENET_MAC_ADDR_HACK
    CSL_main_ctrl_mmr_cfg0Regs *mmrRegs;
    uint32_t val;

    if (*num >= 1U)
    {
        mmrRegs = (CSL_main_ctrl_mmr_cfg0Regs *)(uintptr_t)CSL_CTRL_MMR0_CFG0_BASE;

        val = CSL_REG32_RD(&mmrRegs->MAC_ID0);
        macAddr[0][5] = (uint8_t)((val & 0x000000FFU) >> 0U);
        macAddr[0][4] = (uint8_t)((val & 0x0000FF00U) >> 8U);
        macAddr[0][3] = (uint8_t)((val & 0x00FF0000U) >> 16U);
        macAddr[0][2] = (uint8_t)((val & 0xFF000000U) >> 24U);

        val = CSL_REG32_RD(&mmrRegs->MAC_ID1);
        macAddr[0][1] = (uint8_t)((val & 0x000000FFU) >> 0U);
        macAddr[0][0] = (uint8_t)((val & 0x0000FF00U) >> 8U);

        *num = 1U;
    }
#else
    macAddr[0][0] = 0xF4;
    macAddr[0][1] = 0x84;
    macAddr[0][2] = 0x4c;
    macAddr[0][3] = 0xf9;
    macAddr[0][4] = 0x4d;
    macAddr[0][5] = 0x29;
    *num = 1U;
#endif
    return ENET_SOK;
}

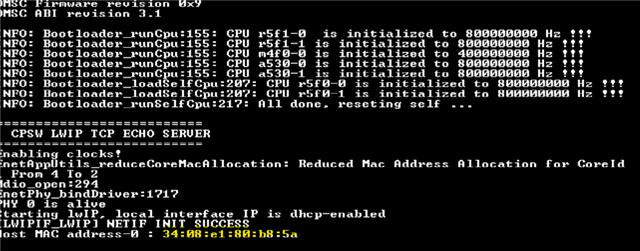

This will you MAC address displayed on UART during application

I tested it on 3-4 boards, its not same for all boards.

Let me know if you need further help.

Regards

Ashwani
