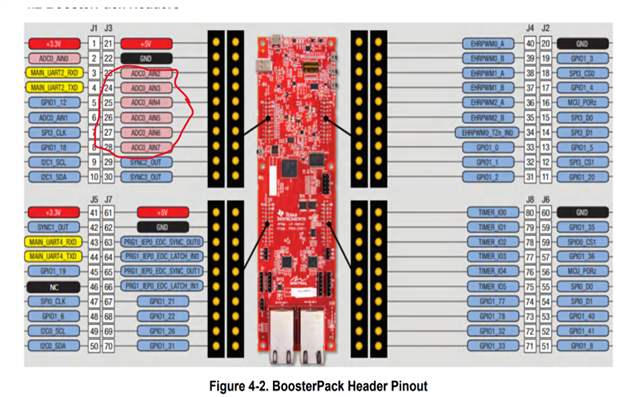

LP-AM243: LP-AM243 ETHERNET/IP CODESYS EXAMPLES PROGRAM FOR ANALOG INPUT & SPI ADS858S OR ANALOG INPUT PINS PIN 23,24,25,26,27,28.

Hi,

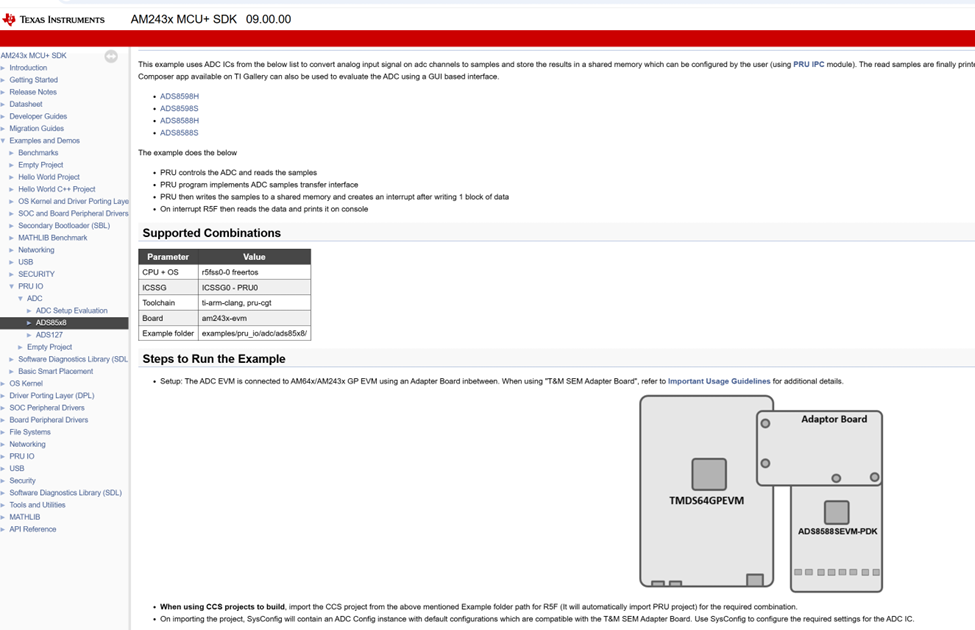

The ADC0_AIN pins are used for input signal to the on-board ADC (used in EXAMPLES_DRIVERS_ADC_SINGLESHOT SDK example), while the EXAMPLES_PRU_ADC_ADS85x8 uses the PRU core for interfacing an external ADC to LP-AM243x.

Will you be using the on-board ADC or an external ADC in your use case?

I have forwarded your query to our protocol expert for more comments.

Regards,

Nitika

Thanks, for quick respond:

My sensor is output 4-20MA, I need 8 channel

• If I used ADC single shot, can you help to modify the schematic: support 4-20mA

• If I use the external ADS8588S , I search :“The ADS8588S is a 16-bit, high-speed, 8-channel, simultaneous-sampling ADC suitable for industrial applications, and it can be configured to accept 4-20mA analog inputs through a programmable gain amplifier (PGA) with high input impedance.

Is this true?

Hi,

I have forwarded your query to our hardware expert, allow them some time to get back to you.

Regards

Nitika

Hi Thien,

Using the onboard ADC (single-channel):

- The AM243x ADC uses a single conversion circuit with an 8-input analog multiplexer, where only one of the 8 analog inputs is connected to the ADC before each acquisition. Therefore, the ADC analog inputs are measured sequentially rather than simultaneously.

- To support a 4-20 mA sensor signal, you will need to modify the schematic for each channel by adding a burden resistor and any necessary filtering or buffering to convert the current output to a measurable voltage to input into the ADC.

Using the External ADS8588S:

- The ADS8588S is a 16-bit ADC designed for industrial applications, and it offers 8-channel simultaneous sampling.

- It includes the programmable gain amplifier (PGA) and high input impedance, which makes it suitable for your 4-20 mA signals when used with a burden resistor to convert the current to voltage.

- Since you have mentioned the need for 8 channels, this option meets that need, it also avoids possible timing and synchronization issues of sequential sampling, and simplified signal conditioning.

Regards,

Karam

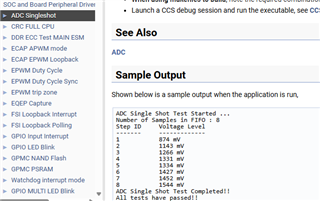

Hi , I tried to look for this program (used in EXAMPLES_DRIVERS_ADC_SINGLESHOT SDK example).

Only show the answer or Sample Output , I do not know what project to load. Can you send the link for this program Thanks,

Hi Thien,

You can view the ADC Single Shot files here: https://dev.ti.com/tirex/explore/node?node=A__AMBWKi8pESucFIvff9pzAg__com.ti.MCU_PLUS_SDK_AM243X__AROnekL__LATEST

You can download the MCU+ SDK files here: MCU-PLUS-SDK-AM243X Software development kit (SDK) | TI.com

Regards,

Karam

Hi Karam

I tried to run the programs but I have problems, can you help.

Thanks,

Hi Karam.

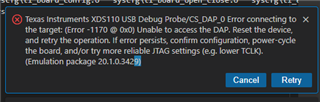

CS_DAP_0: Error connecting to the target: (Error -1170 @ 0x0) Unable to access the DAP. Reset the device, and retry the operation. If error persists, confirm configuration, power-cycle the board, and/or try more reliable JTAG settings (e.g. lower TCLK). (Emulation package 10.1.03429 ). Please check for this problems.

Thanks,

Hello Thien,

The error (Error -1170 @ 0x0), with suggestions to solve it, is documented in the following document: Debugging JTAG

Hope this helps.

Regards,

Karam

Hi Kram.

I checked at  Debugging JTAG  last night

I could not find how to solve this problems.  I need to solve this problems ASAP.  Please point me to the right location to solve .

Thanks again.

Hi Thien,

I have forwarded your question for further discussion; please expect some time for them to investigate the behavior you're seeing.

Regards,
Karam

Hi Karam.

I fixed  that problems (Error -1170 @ 0x0). the probmes frorm  power supply cables,

Now I have another problem:

System require to upgrade a new firmware.

Durring  the write firmware and it is not complete update the firmware

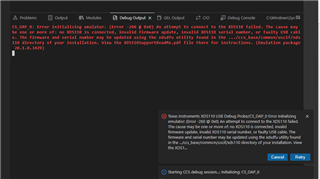

After Build all and debug , I have this problems

How to wire system to reconizge new firmware , board  and serial # .

Thanks,

Thien  Tran

Hi Thien,

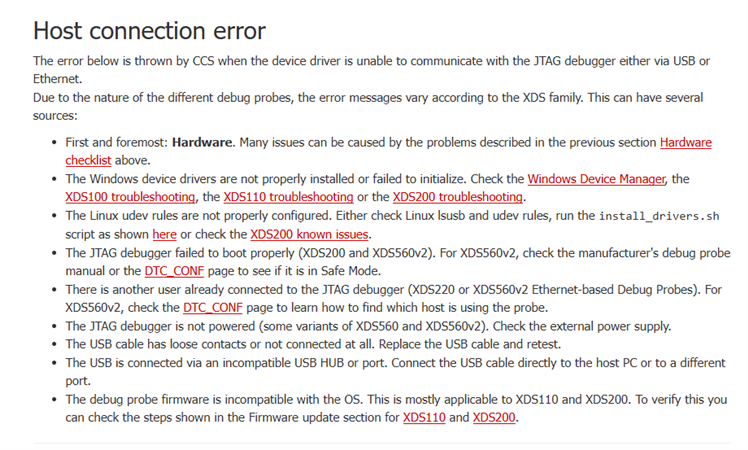

I can see the above error (code -260) is coming because device driver is unable to communicate with JTAG debugger. Please check the cable connection once.

How many devices are connected to single PC?

Please refer host-connection-error for details.

Regards,

Tushar

I am working on ethernet/ip project use am243 EVM, I purchase the  SPI ads8588 DAC, Can I use this program for Ethernet /IP or  I need to modify this programs.

and how to create  and EDS files for Codesys Ethernet/ip
