AM263P4: Off-chip Trace Configuration In non-Dev Bootmode #2

Kier

Mastermind 9110 points

Part Number: AM263P4

Tool/software:

Hello,

Further to the related question and the document https://www.ti.com/lit/an/spradp0/spradp0.pdf where it says...

If I use sbl_ospi.release.tiimage from SDK 10.1.x or I rebuild our SBL with a copy of hsmRtImg.h from SDK 10.1.x, then I can use a QSPI 1S or OSPI 8S boot mode to load an application that can use the TRACE port. Is that correct please?

In your CMM script for AM263P4, it says:

&sbl=TRUE() ; When running in QSPI Bootmode

If you set this to false and therefore use DevBoot mode, there is no HSMRt loaded which means the TRACE port is locked. In other words, DevBoot mode cannot be used and sbl should never be set to false in this script. Is that correct?

Shaunak Deshpande, Nilabh Anand, Aakash Kedia. Sorry but I'n a bit of a hurry with this. Pls can you respond today?

Thank you very much.

4 months ago

0 Shaunak Deshpande 4 months ago

TI__Genius 16452 points

Hi Kier,

Kier said:
If I use sbl_ospi.release.tiimage from SDK 10.1.x or I rebuild our SBL with a copy of hsmRtImg.h from SDK 10.1.x, then I can use a QSPI 1S or OSPI 8S boot mode to load an application that can use the TRACE port. Is that correct please?

The v10.01 SDK contains the updated hsmRtImg. This should ideally work. Are you facing any issues running with QSPI/OSPI bootmodes? As long as the flash supports the boot mode and the correct hsmRtImg is used (Which allows trace accesses), it should work.

Kier said:
DevBoot mode cannot be used and sbl should never be set to false in this script. Is that correct?

We have not tested the scripts with Dev Bootmode. In case of DEV Boot mode, the trace port will be locked, you are right. We tested it with an TI-Internal bootmode in which SBL is bypassed and with QSPI/OSPI boot modes only (SBL Null + Loading the appimage via UART).

Regards,
Shaunak

0 Kier 4 months ago in reply to Shaunak Deshpande

Mastermind 9110 points

Hi Shaunak,

Thank you!

I just managed to get an output on the TRC_CLK pin. It is a sine wave rather than a square wave and is at 83.3MHz. Does that sound correct to you please?

0 Shaunak Deshpande 4 months ago in reply to Kier

TI__Genius 16452 points

Hi Kier,

Our HW expert might be able to help verify this, I haven't tried probing this TRC_CLK pin and unfortunately I do not have the setup for this right now. Brennan Hartigan, can you please help with the above question.

Regards,
Shaunak

0 Kier 4 months ago in reply to Shaunak Deshpande

Mastermind 9110 points

Hi Shaunak,

Shaunak Deshpande said:
Are you facing any issues running with QSPI/OSPI bootmodes?

I think it's working now with null SBL from SDK 10.1, QSPI 1S mode and your script in the App Note.

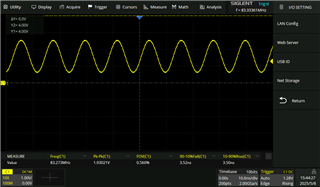

Here's the output for the blinky project:

I guess that shows the TRC_CLK is fundamentally working even if its shape is unusual.

Many thanks for your help on this. It's a big leg up for our debugging.

0 Aakash Kedia 4 months ago in reply to Kier

TI__Mastermind 26145 points

Hi Kier,

For Dev Boot Mode as well, the device can be used for its trace support. The requirement is to load the HSM Run Time via Dev boot mode. Here is the steps for supporting the same - https://software-dl.ti.com/mcu-plus-sdk/esd/AM263PX/latest/exports/docs/api_guide_am263px/ADDITIONAL_DETAILS_PAGE.html#EVM_SOC_INIT_NOBOOT_MODE

Best Regards,
Aakash

0 Kier 4 months ago in reply to Aakash Kedia

Mastermind 9110 points

Hi Aakash,

Thanks for that, I'll make a note of it. I can see why using the NULL SBL is preferential now since this will be executed by default at power on.

0 Kier 4 months ago in reply to Kier

Mastermind 9110 points

Hi Brennan Hartigan, I guess this is an observation problem. If I lower the frequency then I get a squarer wave. I suppose then that all the odd harmonics are filtered out and am left with the 83.3MHz fundamental when I look at it with the scope. Perhaps the bandwidth on the scope is not high enough but need to check when I'm back in the office.

0 Brennan Hartigan 4 months ago in reply to Kier

TI__Genius 10674 points

Hi Kier,

Thanks for the update from your side. Please check the BW on your scope and let me know if that is the case.

Regards,

Brennan
