how to program the TM4C1231E6PZ, which sdk and example need to use.

manoj kumar

Prodigy 40 points

Part Number: TM4C1231E6PZ
Other Parts Discussed in Thread: UNIFLASH, EK-TM4C123GXL, TM4C123GH6PM

Tool/software:

Hi TI,

Please tell me How to program the TM4c1231e6pz using code composer studio.

What are the steps need to follow.

Thanks & regards,
manoj.

4 months ago

0 Charles Tsai 4 months ago

TI__Guru**** 191486 points

Hi,

You can use either CCS or Uniflash. Below is an example using Uniflash which is a standalone programmer tool.

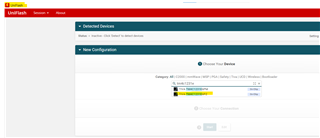

In Uniflash, first select your part number.

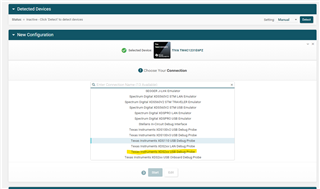

Next select whichever supported debug probe. See below. For example, I select XDS200.

Finally, the Program tab, provide the binary image file that you want to program and then hit "Load Image"

0 manoj kumar 4 months ago in reply to Charles Tsai

Prodigy 40 points

Thanks for the input, I need to develop a firmware using this controller. so which example i need to take.

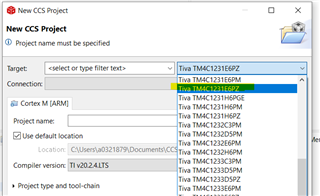

In ccs on create project, under Board name if i give this part number (TM4C1231E6PZ) no device or no boards are found is what i'm getting the error.

So, let me know how to develop/create a project in ccs with this series.

Thanks & regards,

manoj.

0 Charles Tsai 4 months ago in reply to manoj kumar

TI__Guru**** 191486 points

manoj kumar said:
n ccs on create project, under Board name if i give this part number (TM4C1231E6PZ) no device or no boards are found is what i'm getting the error.

I can see it.

In any case, the easiest way to start development for your project is to reference an existing TM4C123 example which you can find under C:\ti\TivaWare_C_Series-2.2.0.295\examples\boards\ek-tm4c123gxl assuming you have downloaded TivaWare SDK from https://www.ti.com/tool/SW-TM4C

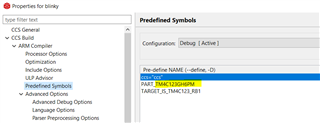

Import any one of the examples into your workspace and modify for your application. These examples were developed for EK-TM4C123GXL LaunchPad which uses the TM4C123GH6PM MCU. You will need to modify the project property to PART_TM4C1231E6PZ. See below.

0 manoj kumar 4 months ago in reply to Charles Tsai

Prodigy 40 points

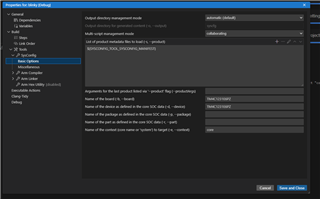

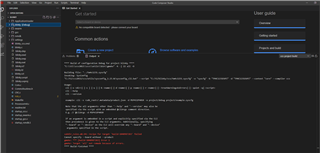

I'm getting this error once after creating the sys configuration (.syscfg) file and building the project leads to this error. How to fix this error. The mentioned board name under the properties sys config basic options is also correct but it says cannot specify board what it mean can you explain this behaviour.

Let me know how to fix this issue.

Thanks & Regards,

Manoj.

0 manoj kumar 4 months ago in reply to Charles Tsai

Prodigy 40 points

As you mentioned here "You will need to modify the project property to PART_TM4C1231E6PZ. See below."

The example will be on EK-TM4C123GXL Evalution kit, if i need to run the same example on TM4c1231E6PZ controller board i need to modify only the project property thats it right?

Thanks & regards,

Manoj.

0 Charles Tsai 4 months ago in reply to manoj kumar

TI__Guru**** 191486 points

Hi,

I think I just answered in this post. https://e2e.ti.com/support/microcontrollers/arm-based-microcontrollers-group/arm-based-microcontrollers/f/arm-based-microcontrollers-forum/1512921/tm4c1231e6pz-missing-arguments---board-or---device-error-for-newly-created-syscfg-file

In your other post, you were using CCS12. I will recommend you stay with CCS12 as well.
