TMS570LC4357-EP: F021 Driver Usage

shuo liu

Dear Ti Team

First, I downloaded the FAPI_TEST_LC4357 project from the forum.

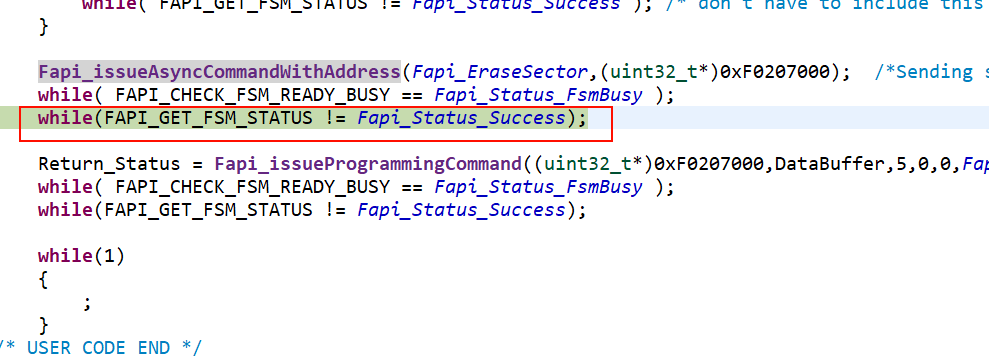

I created a new project and placed all header files and source files for FAPI_TEST_LC4357 into the new project. The compilation succeeded, but the program failed to run, getting stuck at the following location:

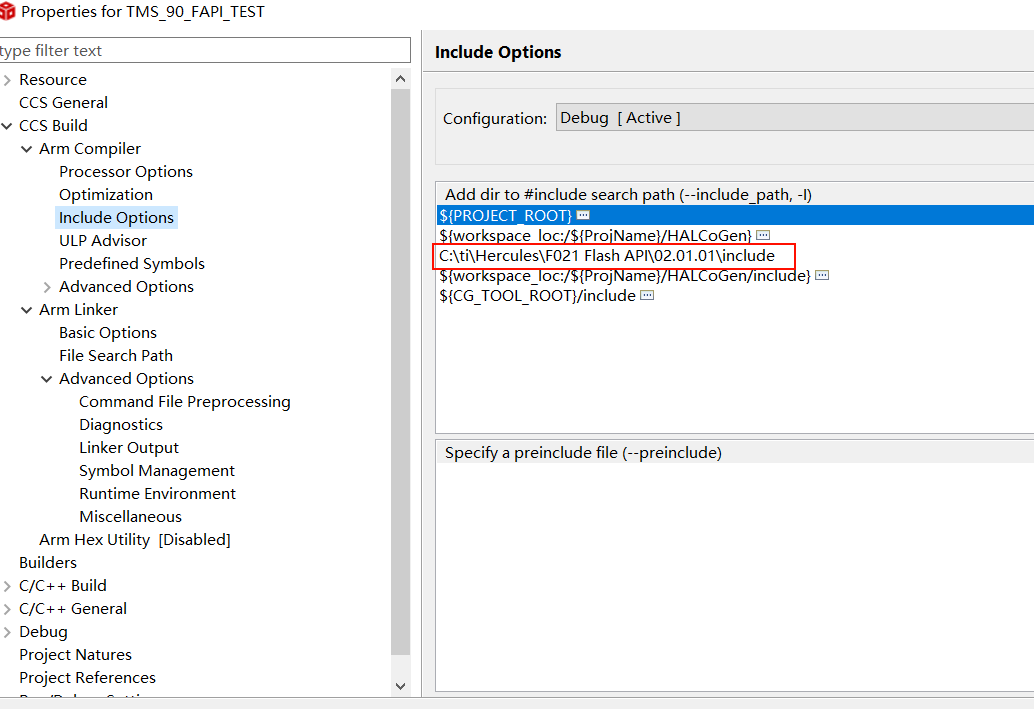

My project configuration is as follows:

I spent a lot of time comparing the settings of the two projects but didn't find any significant differences.

Finally, I've attached my code. Could you please help analyze what the cause of the problem is?

TMS_90_FAPI_TEST.rar

Note: The board used is the TMS570LC4357HDK.

14 days ago

0 jagadish gundavarapu 13 days ago

TI__Guru 74696 points

Hi Shuo,

In below FAQ, you can find tested examples on FAPI in LC4357. Please do compare your configuration and code with these highlighted projects once.

(+) [FAQ] TMS570LC4357: Examples and Demos for Hercules Controllers (E.g. TMS570x, RM57x and RM46x etc) - Arm-based microcontrollers forum - Arm-based microcontrollers - TI E2E support forums

--
Thanks & regards,
Jagadish.

0 shuo liu 13 days ago in reply to jagadish gundavarapu

Prodigy 50 points

I placed the header files and source files marked with arrows directly into the newly created project directory. Does this mean code issues can essentially be ruled out, and I only need to identify configuration differences between the two projects?

0 jagadish gundavarapu 12 days ago in reply to shuo liu

TI__Guru 74696 points

Hi Shuo,

I verified your project seems like your settings are correct. However, i don't have board with me now to directly test your project.

Meanwhile could you please test my already tested below projects once from your end?

7838.FAPI_TEST_LC4357.zip

2543.FAPI_TEST_LC4357_desktop.zip

--
Thanks & regards,
Jagadish.

0 shuo liu 12 days ago in reply to jagadish gundavarapu

Prodigy 50 points

Hi，gundavarapu

Thank you for helping me verify my project settings.

I tested your project and it passed, but I encountered issues when porting it to my own project. I'm not sure if I missed something. When conditions permit, could you please verify it using my program to pinpoint the exact problem? I appreciate your help!

0 shuo liu 12 days ago in reply to shuo liu

Prodigy 50 points

Additionally, I have another piece of information: when I placed the header files and source files from my own project （TMS_90_FAPI_TEST.rar ） into your code project（2543.FAPI_TEST_LC4357_desktop.zip）, it executed normally. This has left me quite puzzled.

0 jagadish gundavarapu 9 days ago in reply to shuo liu

TI__Guru 74696 points

Hi Shuo,

Please attach not working code also. And also, i will suggest you compare linker cmd files on the both the codes.

--
Thanks & regards,
Jagadish.

0 shuo liu 9 days ago in reply to jagadish gundavarapu

Prodigy 50 points

Hi，gundavarapu

When I first asked the question, I had already attached the code.

Alternatively, you can click the attachment in my previous message to download it, as shown below.

Thank you

0 shuo liu 7 days ago in reply to jagadish gundavarapu

Prodigy 50 points

Hi，gundavarapu

I created another project that copies the F021 API to RAM for execution.

I made the following settings:

1. enable gio、sci1 driver.

2. Set RAM with execute permissions.

3. Modify the link file and copy the F021 API to RAM.

4. Erase sector 14 of bank 0

Executing the program, the issue persists where it gets stuck at while(FAPI_GET_FSM_STATUS != Fapi_Status_Success).

5. Erase sector 0 of bank 1

When running the program, it remains stuck at the line `while(FAPI_GET_FSM_STATUS != Fapi_Status_Success)`.

Finally, I have attached the program code. Could you please confirm as soon as possible whether there are any issues with the program or project configuration?

TMS_93_FAPI_RAM_RUN_TEST.rar

0 jagadish gundavarapu 7 days ago in reply to shuo liu

TI__Guru 74696 points

Hi Shuo,

I verified your code and i don't see any issues with your code.

The only concern for me is this:

You are using below flash library for your application right?

Could you please change this to below one and see the behavior:

--
Thanks & regards,
Jagadish.

0 shuo liu 2 days ago in reply to jagadish gundavarapu

Prodigy 50 points

Hi，gundavarapu

In fact, I tried many link libraries, and finally I discovered where the problem lay.

The library I am using is: F021_API_CortexR4_BE_L2FMC_V3D16_NDS.lib

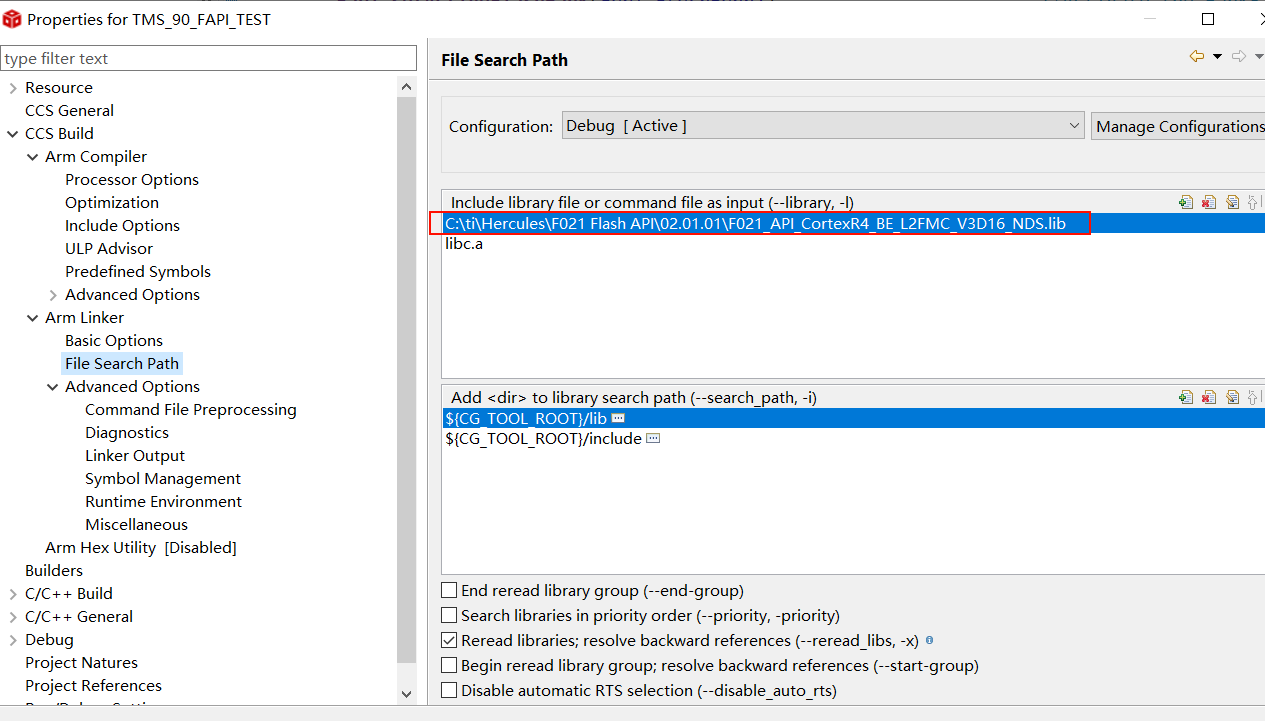

After that, I also tried other libraries, directly modifying the location shown in the figure below:

Upon reviewing the map file, I discovered none of my modifications took effect. The reason was that I had placed F021_API_CortexR4_BE_L2FMC_V3D16_NDS.lib in the project root directory. CCS appears to link it by default, rendering the File Search Path setting ineffective. Later, I deleted F021_API_CortexR4_BE_L2FMC_V3D16_NDS.lib and copied F021_API_CortexR4_BE_L2FMC.lib to the project root directory. Upon checking the map file again, I found the linked library was now: F021_API_CortexR4_BE_L2FMC.lib.

Functionality has been verified and is operating normally.

Thank you for helping to verify the issue. Wishing you all the best.
