• Error: Programming error 0x1 • Verify Address Failed: 0xXX

Dear Sai

1. Yes your understanding is correct. Only change is "LM Flash programer" works some times.

2. We are using EK-TM4C123GXL.

3. Since same binary works some times we have not tried different binary.

Connections are 0/3.3V , TDO , TDI , TMS , TCK.

It is GND of 3.3V supply. We are only connecting GND.

Hi Amit

We do not have RST pin connection in our design. Can you please elaborate ?

Narendra.

Hi Amit

RST pin does not toggle during programming operation also Voltage is stable.

Narendra.

Hello Narendra,

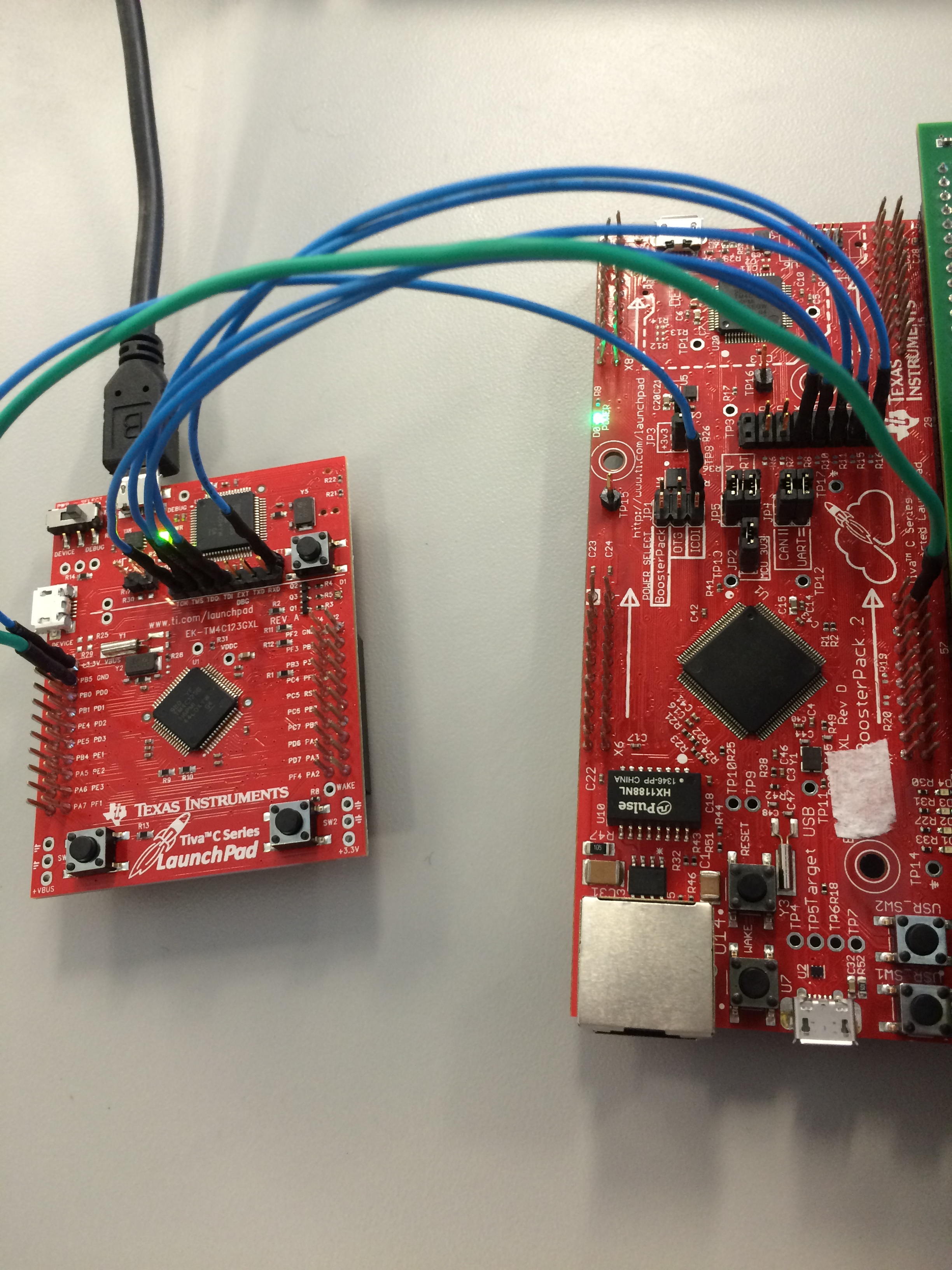

I have attached a snapshot of the board. I am using a EK-TM4C123GXL to debug a EK-TM4C1294XL. The changes that you should note

1. The header on the EK-TM4C123GXL close to R17 has been removed to power down the main MCU

2. The TCK, TMS, TDI, TDO, RST and GND from the EK-TM4C123GXL has been taken to the other board

3. While TCK, TMS, RST and GND are connected as is on both the boards, TDI from the EK-TM4C123GXL is to be connected to TDI Pin on the TM4C129 Board's Main TM4C129 MCU and same for TDO.

Using this method I can download a large project (almost 512K+ onto the TM4C129 board), verify the contents and execute the code.

Regards

Amit

Hello Amit

I have attached few snapshot for your reference.

I am using a EK-TM4C123GXL to debug a EK-TM4C1294XL. The changes that you should note

1. The header on the EK-TM4C123GXL close to R17 has been removed to power down the main MCU

We also do not use this header.

2. The TCK, TMS, TDI, TDO, RST and GND from the EK-TM4C123GXL has been taken to the other board

As I explained you earlier, we have not used RST connection.

I have attached snapshot of circuit. Shall I connect RST to output of U2 pin 6 ?. This pin is directly connected to Pin 63 of TM4C123GH6PZ.

3. While TCK, TMS, RST and GND are connected as is on both the boards, TDI from the EK-TM4C123GXL is to be connected to TDI Pin on the TM4C129 Board's Main TM4C129 MCU and same for TDO.

One thing I have noted – You have taken 3.3V & GND from J3 header. We are not using 3.3V from EK-TM4C123GXL & only taking GND from J3.

We supply 5V to our board & generate 3.3V on board Refer diagram..

Our target board.

Dear Amit

We have not loaded CCS on the laptop. We have tried using 2 / 3 different laptops with different operating system as well as on one of them CCS is loaded.

Does it have any relation with already running software when we power on ?

Is there any specific method which will disable or pause running software .

Narendra

Dear Amit

I have not understood your answer. ?

Flash programer TI problem.pdf

Dear Amit

There are no other wires. We are using only 4 wires. All other wires are open from both ends. I do not think it is because of cross talk.

Hi Amit

I tried installing Uniflash - But I have not found Icon created on my PC !! Does it work on WIN 8 ?

Dear Amit

UNIFLASH is not seen in start program list & also it is not seen in installed program list in control panel - Add/Remove program.

Hi Amit

Sure I will check on other forum. But now what shall be our next step to resolve the problem ?

Narendra Lagoo

Hi Amit

I was away for a while.

Actually initially we were using single wires connected directly - same as you have used in your test set up. ( As seen in photo). Then we thought it may be cause of problem & we switched to ribbon cable.

Is there any other test we can do ? Is it possible to monitor some waveforms & may find some clue ?

Regards

Narendra.
