Hi,

We need to connect two MSP430's(MSP430FR6989) in our application and we want to
program the Slave MSP through Master MSP through JTAG. I could not figure out the hardware connection.

Can anyone please explain?

Best Regards

over 7 years ago

0 Ling Zhu2 over 7 years ago

TI__Genius 9570 points

Hi,

Theoretically, you can connect GPIO pins from Master MSP to JTAG pin of Slave MSP. And you have to write software to simulate the JTAG timing.

Regards,
Ling

0 Vishal Chilur Gangadharappa over 7 years ago in reply to Ling Zhu2

Intellectual 260 points

can we connect any GPIO pin or is there any specific pin for that.

0 Ling Zhu2 over 7 years ago in reply to Vishal Chilur Gangadharappa

TI__Genius 9570 points

Any GPIO.

0 Vishal Chilur Gangadharappa over 7 years ago in reply to Ling Zhu2

Intellectual 260 points

I am using this exmple www.ti.com/.../slau265j.pdf but it is for MSP430f5437, I tried changing the code but that is not enough, is there any file I can download from TI website to program jtag with MSP430FR6989.

0 Ling Zhu2 over 7 years ago in reply to Vishal Chilur Gangadharappa

TI__Genius 9570 points

0 Vishal Chilur Gangadharappa over 7 years ago in reply to Ling Zhu2

Intellectual 260 points

I have used the code you reffered and made some changes required for FR6989 but I am still getting this compile time error.

0 Ling Zhu2 over 7 years ago in reply to Vishal Chilur Gangadharappa

TI__Genius 9570 points

0 Vishal Chilur Gangadharappa over 7 years ago in reply to Ling Zhu2

Intellectual 260 points

These files are included I am still getting error.

0 Ling Zhu2 over 7 years ago in reply to Vishal Chilur Gangadharappa

TI__Genius 9570 points

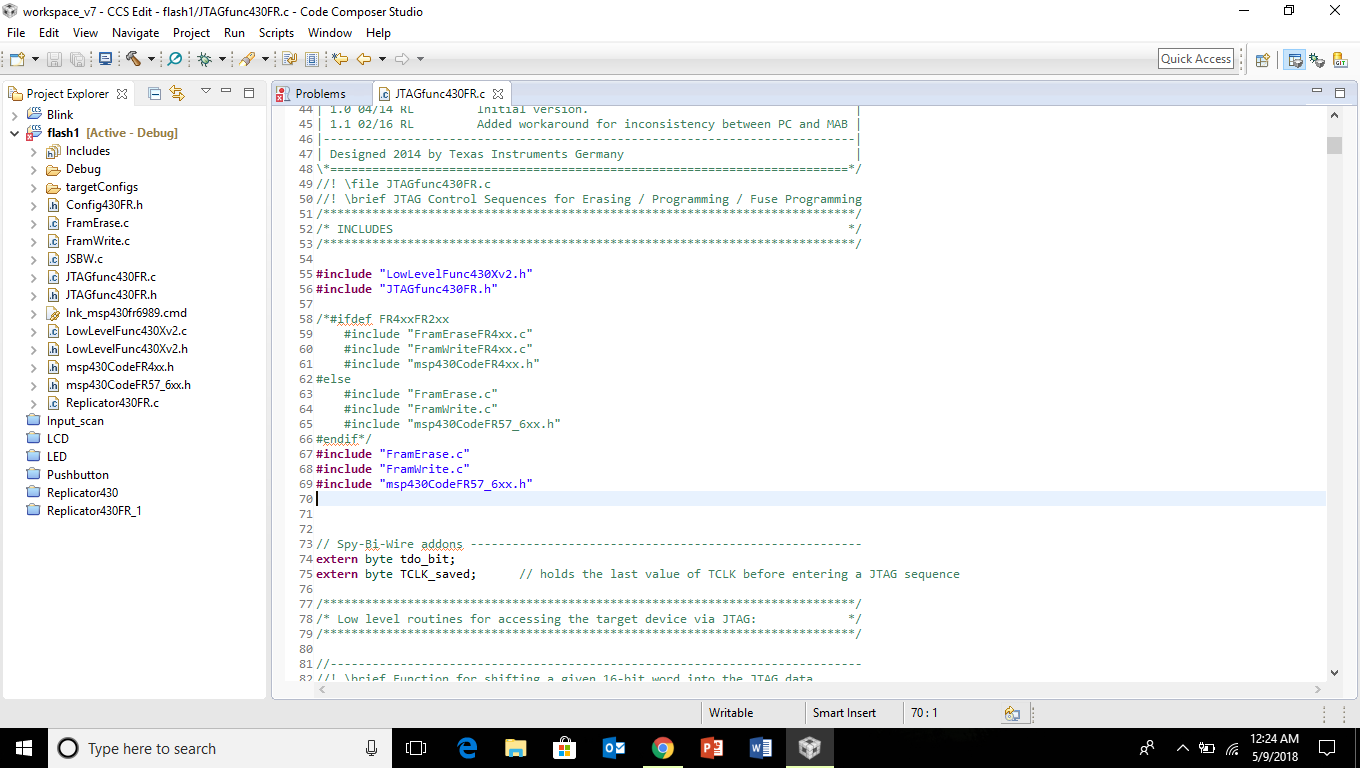

Either include "" or include "", not both.

You included all the files, that's why you got redefine error.

0 Vishal Chilur Gangadharappa over 7 years ago in reply to Ling Zhu2

Intellectual 260 points

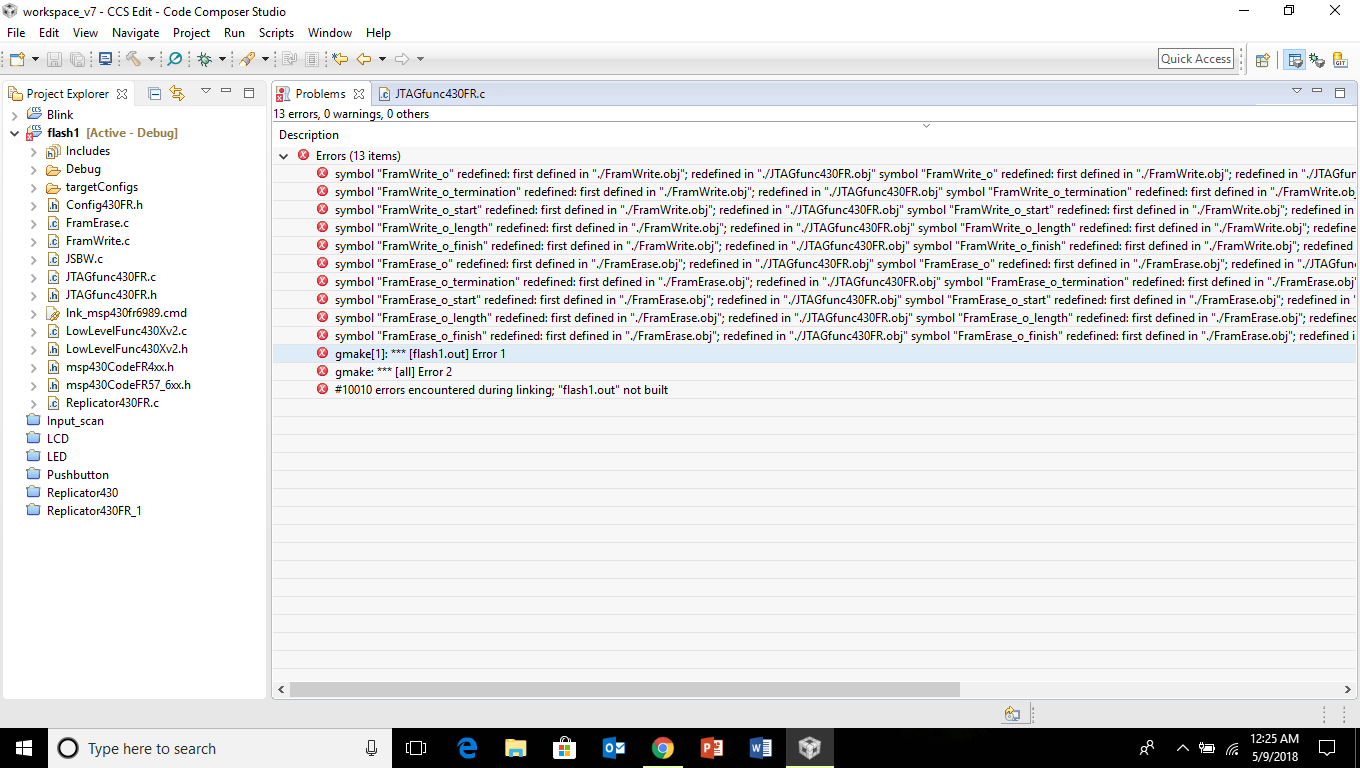

I am sorry, did you mean I only have to include files required for FR6989 series coz I tried doing that and still got errors.

0 Ling Zhu2 over 7 years ago in reply to Vishal Chilur Gangadharappa

TI__Genius 9570 points

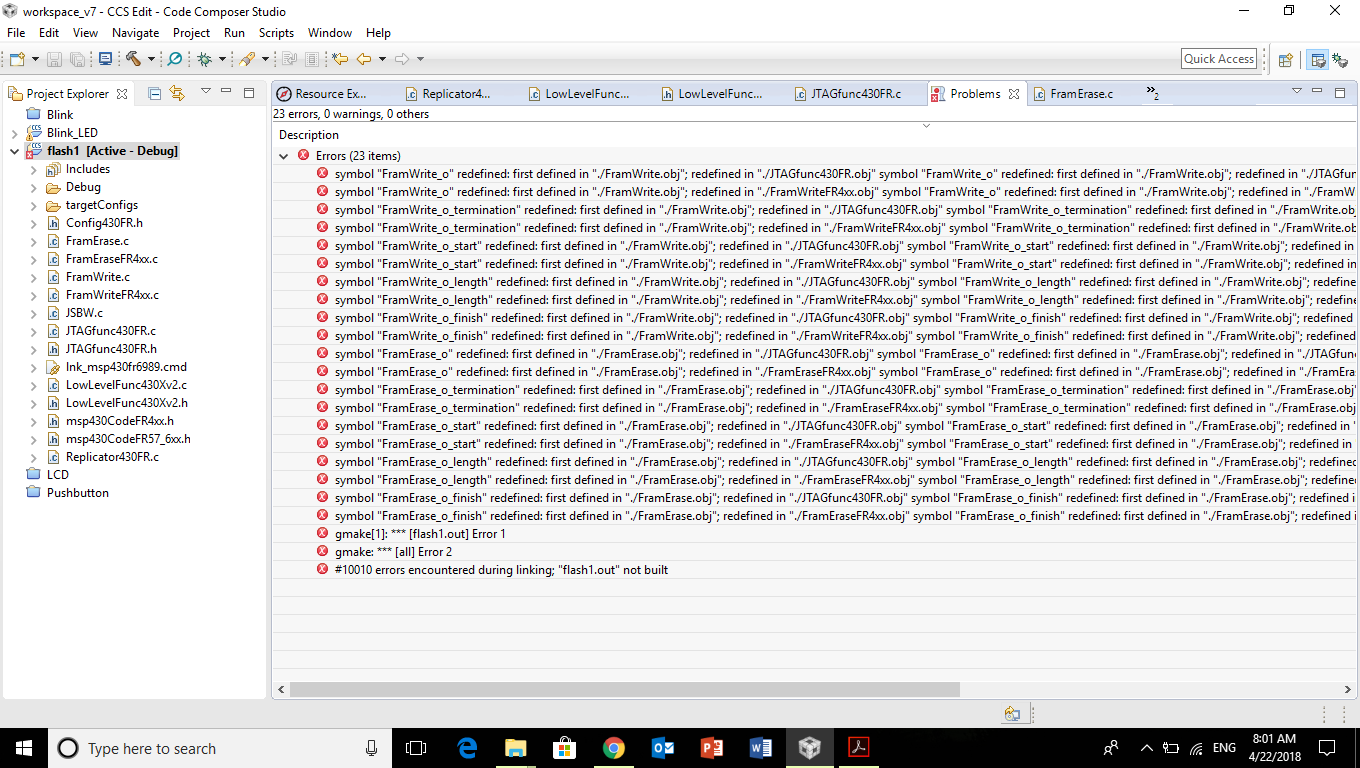

What error did you get? Can you capture a screenshot?

0 Vishal Chilur Gangadharappa over 7 years ago in reply to Ling Zhu2

Intellectual 260 points

0 Ling Zhu2 over 7 years ago in reply to Vishal Chilur Gangadharappa

TI__Genius 9570 points

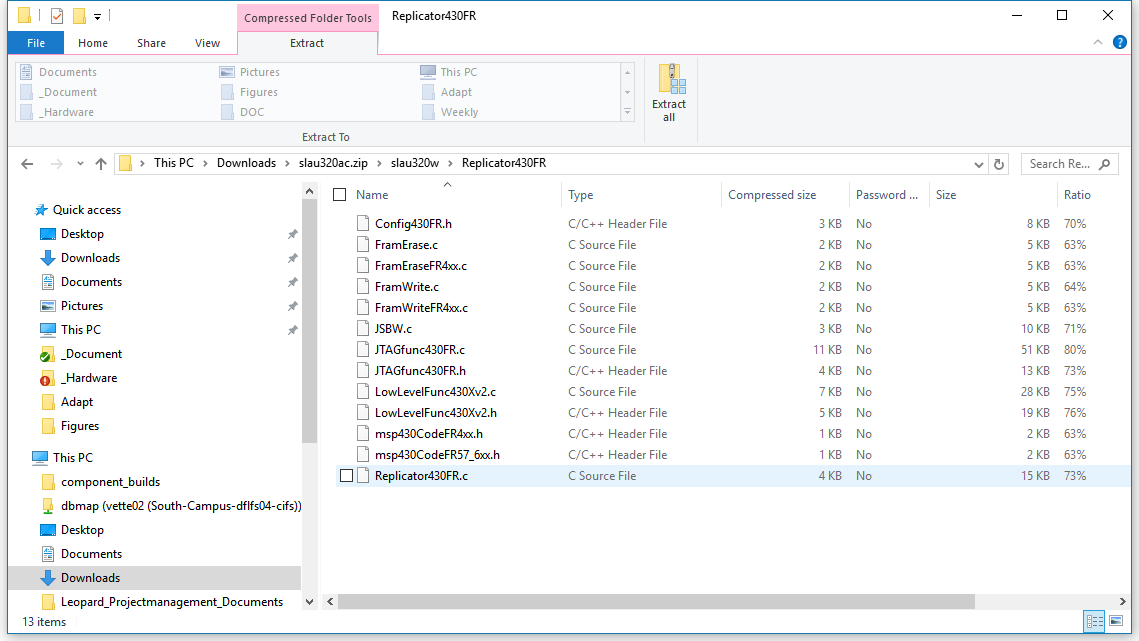

Just import example project to CCS.

0 Vishal Chilur Gangadharappa over 7 years ago in reply to Ling Zhu2

Intellectual 260 points

That is what I did but this exmple doesn't have those files like FramErase.c but still included in JTAgfunc430FR.c is that ok to use them.

0 Ling Zhu2 over 7 years ago in reply to Vishal Chilur Gangadharappa

TI__Genius 9570 points

Yes
