Hi,
We had issues of peak ripple current with DRV110EVM Evaluation module (valve load ).
we are observed the peak current at the time of valve on condition ,valve on/off & off/on conditions.
Please waveform details as below.

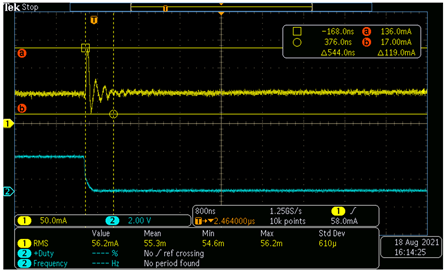

case 1:(Peak current waveform 1)
Setting with DREV110EM module:
1. Hold current set to 50mA @ 200K POT R5
2.Peak current set to 220mA @ 270k POT R4.
3.PWM frequency set to 200k @ 20KHZ POT R6.
observation: Valve current peak to peak ripple is more during valve on condition ,off-on /on-off condition.
Please let me know any clarification required further .
and do the needful as soon as possible.
Regards,
Moorthi sekar
ph:7019605896/8971634695
Mail id:moorthi_sekar@baxter.com
case2: peak current waveform 2
