DRV8412 C2 KIT - Running the stepper motor in standalone mode

Tibor

Other Parts Discussed in Thread: CONTROLSUITE

Hi All,

I've had no problem to run the GUI however when I try to run the standalone version of the example code provided the motor wouldn't turn.

I've set the EnableFlag to true and I can hear the motor noise but nothing else happens.

I've tried build level 2 and 3 but makes no difference.

There must be something else needs to be set which I'm not aware of.

Regards

Tibor

Stepper.c

Fullscreen

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
/* ==============================================================================
System Name:    Stepper
File Name:      Steper.C
Description:    Primary system file for the Real Implementation of Stepper
                Motor
Originator:     Digital control systems Group - Texas Instruments
Note: In this software, the default inverter is supposed to be DRV8412 kit.
=====================================================================================
 History: 07-28-2010    Version 1.0: Initial Release
=================================================================================  */
// Include header files used in the main function
#include "PeripheralHeaderIncludes.h"
#include "IQmathLib.h"
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

/* ==============================================================================
System Name:  	Stepper

File Name:	  	Steper.C

Description:	Primary system file for the Real Implementation of Stepper
          		Motor

Originator:		Digital control systems Group - Texas Instruments

Note: In this software, the default inverter is supposed to be DRV8412 kit.
=====================================================================================
 History: 07-28-2010	Version 1.0: Initial Release
=================================================================================  */

// Include header files used in the main function

#include "PeripheralHeaderIncludes.h"
#include "IQmathLib.h"
#include "Stepper.h"
#include "Stepper-Settings.h"
#include <math.h>


// Prototype statements for functions found within this file.
interrupt void MainISR(void);
void DeviceInit();
void MemCopy();
void InitFlash();
// State Machine function prototypes
//------------------------------------
// Alpha states
void A0(void);	//state A0
void B0(void);	//state B0
void C0(void);	//state C0

// A branch states
void A1(void);	//state A1
void A2(void);	//state A2
void A3(void);	//state A3

// B branch states
void B1(void);	//state B1
void B2(void);	//state B2
void B3(void);	//state B3

// C branch states
void C1(void);	//state C1
void C2(void);	//state C2
void C3(void);	//state C3

// Variable declarations
void (*Alpha_State_Ptr)(void);	// Base States pointer
void (*A_Task_Ptr)(void);		// State pointer A branch
void (*B_Task_Ptr)(void);		// State pointer B branch
void (*C_Task_Ptr)(void);		// State pointer C branch

// Used for running BackGround in flash, and ISR in RAM
extern Uint16 *RamfuncsLoadStart, *RamfuncsLoadEnd, *RamfuncsRunStart;


int16	VTimer0[4];			// Virtual Timers slaved off CPU Timer 0 (A events)
int16	VTimer1[4]; 		// Virtual Timers slaved off CPU Timer 1 (B events)
int16	VTimer2[4]; 		// Virtual Timers slaved off CPU Timer 2 (C events)
int16	SerialCommsTimer;

// Global variables used in this system

_iq  SpeedRef = _IQ(1.0);			// Speed reference (pu)
_iq VRef = _IQ(0.0625);				// Voltage reference (pu)
_iq IRef = _IQ(0.25);				// Current reference (pu)
_iq IFdbk1;							// Phase 1 current feedback (pu)
_iq IFdbk1a;							// Phase 1 current feedback (pu)
_iq IFdbk1b;							// Phase 1 current feedback (pu)
_iq IFdbk2;							// Phase 2 current feedback (pu)
_iq IFdbk2c;							// Phase 2 current feedback (pu)
_iq IFdbk2d;							// Phase 2 current feedback (pu)
Uint16 Rotation1 = 1;				// Phase 1 PWM direction
Uint16 Rotation2 = 1;				// Phase 2 PWM direction

float32 T = 0.001/ISR_FREQUENCY;    // Samping period (sec), see parameter.h

Uint32 IsrTicker = 0;
Uint16 BackTicker = 0;

int16 PwmDacCh1=0;
int16 PwmDacCh2=0;

int16 DlogCh1 = 0;
int16 DlogCh2 = 0;
int16 DlogCh3 = 0;
int16 DlogCh4 = 0;

#if (BUILDLEVEL==LEVEL1)
Uint16 DRV_RESET = 1;
#else
Uint16 DRV_RESET = 0;
#endif

volatile Uint16 EnableFlag = FALSE;
Uint16 RunMotor = FALSE;

//not used for this project.  Save for future use
//Uint16 SpeedLoopPrescaler = 10;      // Speed loop prescaler
//Uint16 SpeedLoopCount = 1;           // Speed loop counter

//not used for this project.  Save for future use
// Instance a QEP interface driver
//QEP qep1 = QEP_DEFAULTS;

// Instance PID regulators to regulate the current, and speed
PIDREG3 pid1_i = PIDREG3_DEFAULTS;
PIDREG3 pid2_i = PIDREG3_DEFAULTS;
//not used for this project.  Save for future use
//PIDREG3 pid1_spd = PIDREG3_DEFAULTS;

// Instance a PWM driver instance
PWMGEN pwm1 = PWMGEN_DEFAULTS;
PWMGEN pwm2 = PWMGEN_DEFAULTS;

// Instance a PWM DAC driver instance
PWMDAC pwmdac1 = PWMDAC_DEFAULTS;
PWMDAC pwmdac2 = PWMDAC_DEFAULTS;

// Instance a ramp controller to smoothly ramp the frequency
RMPCNTL rc1 = RMPCNTL_DEFAULTS;

//	Instance a ramp generator to simulate an Anglele
RAMPGEN rg1 = RAMPGEN_DEFAULTS;

// Instance a speed calculator based on QEP
//not used for this project.  Save for future use
//SPEED_MEAS_QEP speed1 = SPEED_MEAS_QEP_DEFAULTS;

// Instance a SIN table
SINCOSTBL st1;

// Create an instance of DATALOG Module
DLOG_4CH dlog = DLOG_4CH_DEFAULTS;




void main(void)
{

	DeviceInit();	// Device Life support & GPIO

// Only used if running from FLASH
// Note that the variable FLASH is defined by the compiler

#ifdef FLASH
// Copy time critical code and Flash setup code to RAM
// The  RamfuncsLoadStart, RamfuncsLoadEnd, and RamfuncsRunStart
// symbols are created by the linker. Refer to the linker files.
	MemCopy(&RamfuncsLoadStart, &RamfuncsLoadEnd, &RamfuncsRunStart);

// Call Flash Initialization to setup flash waitstates
// This function must reside in RAM
	InitFlash();	// Call the flash wrapper init function
#endif //(FLASH)

   // Waiting for enable flag set
   while (EnableFlag==FALSE)
    {
      BackTicker++;
    }

// Timing sync for slow background tasks
// Timer period definitions found in device specific PeripheralHeaderIncludes.h
	CpuTimer0Regs.PRD.all =  mSec1;		// A tasks
	CpuTimer1Regs.PRD.all =  mSec5;		// B tasks
	CpuTimer2Regs.PRD.all =  mSec50;	// C tasks

// Tasks State-machine init
	Alpha_State_Ptr = &A0;
	A_Task_Ptr = &A1;
	B_Task_Ptr = &B1;
	C_Task_Ptr = &C1;

// Initialize PWM module
    pwm1.PeriodMax = SYSTEM_FREQUENCY*1000000*T/2;  // Prescaler X1 (T1), ISR period = T x 1
	PWM_INIT_MACRO(pwm1)

    pwm2.PeriodMax = SYSTEM_FREQUENCY*1000000*T/2;  // Prescaler X1 (T1), ISR period = T x 1
	PWM_INIT_MACRO(pwm2)

// Initialize PWMDAC module
	pwmdac1.PeriodMax = 500;   // @60Mhz: 1500->20kHz, 1000-> 30kHz, 500->60kHz
    pwmdac1.PwmDacInPointer0 = &PwmDacCh1;
    pwmdac1.PwmDacInPointer1 = &PwmDacCh2;

	PWMDAC_INIT_MACRO(pwmdac1)

// Initialize DATALOG module
    dlog.iptr1 = &DlogCh1;
    dlog.iptr2 = &DlogCh2;
	dlog.iptr3 = &DlogCh3;
    dlog.iptr4 = &DlogCh4;
    dlog.trig_value = 0x1;
    dlog.size = 0x00c8;
    dlog.prescalar = 5;
    dlog.init(&dlog);

// Initialize ADC module
    ADC_MACRO_INIT()

//not used for this project.  Save for future use
// Initialize QEP module
//    qep1.LineEncoder = 2048;
//    qep1.MechScaler = _IQ30(0.25/qep1.LineEncoder);
//    qep1.PolePairs = POLES/2;
//    qep1.CalibratedAngle = 0;
//    QEP_INIT_MACRO(qep1)

//not used for this project.  Save for future use
// Initialize the Speed module for QEP based speed calculation
//    speed1.K1 = _IQ21(1/(BASE_FREQ*T));
//    speed1.K2 = _IQ(1/(1+T*2*PI*5));  // Low-pass cut-off frequency
//    speed1.K3 = _IQ(1)-speed1.K2;
//    speed1.BaseRpm = 120*(BASE_FREQ/POLES);

// Initialize the RAMPGEN module
    rg1.StepAngleMax = _IQ(BASE_FREQ*T);

// Initialize the PID_REG3 module for I
	pid1_i.Kp = _IQ(2.16);			//for 24V DC bus
	pid1_i.Ki = _IQ(T*128.1);
	pid1_i.Kd = _IQ(0/T);
	pid1_i.Kc = _IQ(0.006);
    pid1_i.OutMax = _IQ(0.95);
    pid1_i.OutMin = _IQ(-0.95);

	pid2_i.Kp = _IQ(2.16);			//for 24V DC bus
	pid2_i.Ki = _IQ(T*128.1);
	pid2_i.Kd = _IQ(0/T);
	pid2_i.Kc = _IQ(0.006);
    pid2_i.OutMax = _IQ(0.95);
    pid2_i.OutMin = _IQ(-0.95);

//not used for this project.  Save for future use
// Initialize the PID_REG3 module for speed
//    pid1_spd.Kp = _IQ(1.0);
//	pid1_spd.Ki = _IQ(T*SpeedLoopPrescaler/0.3);
//	pid1_spd.Kd = _IQ(0/(T*SpeedLoopPrescaler));
// 	pid1_spd.Kc = _IQ(0.2);
//    pid1_spd.OutMax = _IQ(0.95);
//    pid1_spd.OutMin = _IQ(-0.95);

//Initialize the SINCOSTBL object
	//512 is max resolution of of table
	//2^9 = 512
    st1.AngleShift = 9-MICROSTEPS;

// Reassign ISRs.

	EALLOW;	// This is needed to write to EALLOW protected registers
	PieVectTable.EPWM1_INT = &MainISR;
	EDIS;

// Enable PIE group 3 interrupt 1 for EPWM1_INT
    PieCtrlRegs.PIEIER3.bit.INTx1 = 1;

// Enable CNT_zero interrupt using EPWM1 Time-base
    EPwm1Regs.ETSEL.bit.INTEN = 1;   // Enable EPWM1INT generation
    EPwm1Regs.ETSEL.bit.INTSEL = 1;  // Enable interrupt CNT_zero event
    EPwm1Regs.ETPS.bit.INTPRD = 1;   // Generate interrupt on the 1st event
	EPwm1Regs.ETCLR.bit.INT = 1;     // Enable more interrupts

// Enable CPU INT3 for EPWM1_INT:
	IER |= M_INT3;
// Enable global Interrupts and higher priority real-time debug events:
	EINT;   // Enable Global interrupt INTM
	ERTM;	// Enable Global realtime interrupt DBGM

// IDLE loop. Just sit and loop forever:
	for(;;)  //infinite loop
	{
		// State machine entry & exit point
		//===========================================================
		(*Alpha_State_Ptr)();	// jump to an Alpha state (A0,B0,...)
		//===========================================================

		//Put the DRV chip in RESET if we want the power stage inactive
		if(DRV_RESET)
		{
		GpioDataRegs.GPACLEAR.bit.GPIO19 = 1;
		GpioDataRegs.GPBCLEAR.bit.GPIO32 = 1;
		}
		else
		{
		GpioDataRegs.GPASET.bit.GPIO19 = 1;
		GpioDataRegs.GPBSET.bit.GPIO32 = 1;
		}

	}
} //END MAIN CODE



//=================================================================================
//	STATE-MACHINE SEQUENCING AND SYNCRONIZATION FOR SLOW BACKGROUND TASKS
//=================================================================================

//--------------------------------- FRAMEWORK -------------------------------------
void A0(void)
{
	// loop rate synchronizer for A-tasks
	if(CpuTimer0Regs.TCR.bit.TIF == 1)
	{
		CpuTimer0Regs.TCR.bit.TIF = 1;	// clear flag

		//-----------------------------------------------------------
		(*A_Task_Ptr)();		// jump to an A Task (A1,A2,A3,...)
		//-----------------------------------------------------------

		VTimer0[0]++;			// virtual timer 0, instance 0 (spare)
		SerialCommsTimer++;
	}

	Alpha_State_Ptr = &B0;		// Comment out to allow only A tasks
}

void B0(void)
{
	// loop rate synchronizer for B-tasks
	if(CpuTimer1Regs.TCR.bit.TIF == 1)
	{
		CpuTimer1Regs.TCR.bit.TIF = 1;				// clear flag

		//-----------------------------------------------------------
		(*B_Task_Ptr)();		// jump to a B Task (B1,B2,B3,...)
		//-----------------------------------------------------------
		VTimer1[0]++;			// virtual timer 1, instance 0 (spare)
	}

	Alpha_State_Ptr = &C0;		// Allow C state tasks
}

void C0(void)
{
	// loop rate synchronizer for C-tasks
	if(CpuTimer2Regs.TCR.bit.TIF == 1)
	{
		CpuTimer2Regs.TCR.bit.TIF = 1;				// clear flag

		//-----------------------------------------------------------
		(*C_Task_Ptr)();		// jump to a C Task (C1,C2,C3,...)
		//-----------------------------------------------------------
		VTimer2[0]++;			//virtual timer 2, instance 0 (spare)
	}

	Alpha_State_Ptr = &A0;	// Back to State A0
}


//=================================================================================
//	A - TASKS (executed in every 1 msec)
//=================================================================================
//--------------------------------------------------------
void A1(void) // SPARE (not used)
//--------------------------------------------------------
{
	if (EnableFlag == FALSE)
	{
		RunMotor = FALSE;

		EALLOW;
	 	EPwm1Regs.TZFRC.bit.OST=1;
		EPwm2Regs.TZFRC.bit.OST=1;
	 	EDIS;
	}
	else if((EnableFlag == TRUE) && (RunMotor == FALSE))
	{
			// Initialize the RAMPGEN module
			rg1.Freq=0;
			rg1.Out=0;
			rg1.Angle=0;
			rc1.TargetValue=0;
			rc1.SetpointValue=0;

			pid1_i.Err=0;
			pid1_i.Fdb=0;
			pid1_i.Out=0;
			pid1_i.Ud=0;
			pid1_i.Up=0;
			pid1_i.Ui=0;
			pid1_i.Up1=0;

			pid2_i.Err=0;
			pid2_i.Fdb=0;
			pid2_i.Out=0;
			pid2_i.Ud=0;
			pid2_i.Up=0;
			pid2_i.Ui=0;
			pid2_i.Up1=0;

			RunMotor = TRUE;

			EALLOW;
				EPwm1Regs.TZCLR.bit.OST=1;
				EPwm2Regs.TZCLR.bit.OST=1;
			EDIS;


	}
	//-------------------
	//the next time CpuTimer0 'counter' reaches Period value go to A2
	A_Task_Ptr = &A2;
	//-------------------
}

//-----------------------------------------------------------------
void A2(void) // SPARE (not used)
//-----------------------------------------------------------------
{

	//-------------------
	//the next time CpuTimer0 'counter' reaches Period value go to A3
	A_Task_Ptr = &A3;
	//-------------------
}

//-----------------------------------------
void A3(void) // SPARE (not used)
//-----------------------------------------
{

	//-----------------
	//the next time CpuTimer0 'counter' reaches Period value go to A1
	A_Task_Ptr = &A1;
	//-----------------
}



//=================================================================================
//	B - TASKS (executed in every 5 msec)
//=================================================================================

//----------------------------------- USER ----------------------------------------

//----------------------------------------
void B1(void) // Toggle GPIO-00
//----------------------------------------
{

	//-----------------
	//the next time CpuTimer1 'counter' reaches Period value go to B2
	B_Task_Ptr = &B2;
	//-----------------
}

//----------------------------------------
void B2(void) //  SPARE
//----------------------------------------
{

	//-----------------
	//the next time CpuTimer1 'counter' reaches Period value go to B3
	B_Task_Ptr = &B3;
	//-----------------
}

//----------------------------------------
void B3(void) //  SPARE
//----------------------------------------
{

	//-----------------
	//the next time CpuTimer1 'counter' reaches Period value go to B1
	B_Task_Ptr = &B1;
	//-----------------
}


//=================================================================================
//	C - TASKS (executed in every 50 msec)
//=================================================================================

//--------------------------------- USER ------------------------------------------

//----------------------------------------
void C1(void) 	// Toggle GPIO-34
//----------------------------------------
{

	GpioDataRegs.GPBTOGGLE.bit.GPIO34 = 1;	// Blink LED
	//-----------------
	//the next time CpuTimer2 'counter' reaches Period value go to C2
	C_Task_Ptr = &C2;
	//-----------------

}

//----------------------------------------
void C2(void) //  SPARE
//----------------------------------------
{

	//-----------------
	//the next time CpuTimer2 'counter' reaches Period value go to C3
	C_Task_Ptr = &C3;
	//-----------------
}


//-----------------------------------------
void C3(void) //  SPARE
//-----------------------------------------
{

	//-----------------
	//the next time CpuTimer2 'counter' reaches Period value go to C1
	C_Task_Ptr = &C1;
	//-----------------
}




// MainISR
interrupt void MainISR(void)
{
_iq Aout,Bout;

// Verifying the ISR
    IsrTicker++;

if(RunMotor)
	{
// =============================== LEVEL 1 ======================================
//	  Checks target independent modules, duty cycle waveforms and PWM update
//	  Keep the motor disconnected at this level
// ==============================================================================

#if (BUILDLEVEL==LEVEL1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RMP module and call the ramp control macro
// ------------------------------------------------------------------------------
    rc1.TargetValue = SpeedRef;
	RC_MACRO(rc1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RAMP GEN module and call the ramp generator macro
// ------------------------------------------------------------------------------
    rg1.Freq = rc1.SetpointValue;
    RG_MACRO(rg1)

// ------------------------------------------------------------------------------
//  Connect inputs of the SINCOSTBL module and call the sin table macro
// ------------------------------------------------------------------------------
    st1.Angle = (Uint16)(rg1.Out >> (GLOBAL_Q - MICROSTEPS));
    SINCOSTBL_MACRO(st1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PWM_DRV module and call the PWM signal generation macro
// ------------------------------------------------------------------------------
    Aout = _IQmpy(VRef,st1.CosOut);
    pwm1.MfuncC1 = (int16)_IQtoIQ15(_IQabs(Aout)); // MfuncC1 is in Q15
	PWM_MACRO(pwm1)							   	   // Calculate the new PWM compare values

	if(Aout < 0)
	  {
	  Rotation1 = 0;
	  }
	else
	  {
	  Rotation1 = 1;
	  }

	if(Rotation1==0)
	  {
	  EPwm1Regs.AQCSFRC.bit.CSFB = 0;		//Forcing Disabled on EPWM1B
	  EPwm1Regs.AQCSFRC.bit.CSFA = 1;		//EPWM1A forced low
	  }
	else if(Rotation1 == 1)
	  {
	  EPwm1Regs.AQCSFRC.bit.CSFA = 0;		//Forcing Disabled on EPWM1A
	  EPwm1Regs.AQCSFRC.bit.CSFB = 1;		//EPWM1B forced low
	  }
	else
	  {
	  EPwm1Regs.AQCSFRC.bit.CSFA = 1;		//EPWM1A forced low
	  EPwm1Regs.AQCSFRC.bit.CSFB = 1;		//EPWM1B forced low
	  }
	EPwm1Regs.CMPA.half.CMPA=pwm1.PWM1out;

    Bout = _IQmpy(VRef,st1.SinOut);
    pwm2.MfuncC1 = (int16)_IQtoIQ15(_IQabs(Bout)); // MfuncC1 is in Q15
	PWM_MACRO(pwm2)							   	   // Calculate the new PWM compare values

	if(Bout < 0)
	  {
	  Rotation2 = 0;
	  }
	else
	  {
	  Rotation2 = 1;
	  }

	if(Rotation2==0)
	  {
	  EPwm2Regs.AQCSFRC.bit.CSFB = 0;		//Forcing Disabled on EPWM2B
	  EPwm2Regs.AQCSFRC.bit.CSFA = 1;		//EPWM2A forced low
	  }
	else if(Rotation2 == 1)
	  {
	  EPwm2Regs.AQCSFRC.bit.CSFA = 0;		//Forcing Disabled on EPWM2A
	  EPwm2Regs.AQCSFRC.bit.CSFB = 1;		//EPWM2B forced low
	  }
	else
	  {
	  EPwm2Regs.AQCSFRC.bit.CSFA = 1;		//EPWM2A forced low
	  EPwm2Regs.AQCSFRC.bit.CSFB = 1;		//EPWM2B forced low
	  }
	EPwm2Regs.CMPA.half.CMPA=pwm2.PWM1out;

// ------------------------------------------------------------------------------
//    Connect inputs of the PWMDAC module
// ------------------------------------------------------------------------------
    PwmDacCh1 = (int16)_IQtoIQ15(Aout);
    PwmDacCh2 = (int16)_IQtoIQ15(Bout);

// ------------------------------------------------------------------------------
//    Connect inputs of the DATALOG module
// ------------------------------------------------------------------------------
    DlogCh1 = (int16)_IQtoIQ15(Aout);
    DlogCh2 = (int16)_IQtoIQ15(Bout);
    DlogCh3 = (int16)_IQtoIQ15(rg1.Out);
    DlogCh4 = (int16)_IQtoIQ15(rc1.SetpointValue);

#endif // (BUILDLEVEL==LEVEL1)

// =============================== LEVEL 2 ======================================
//	  Level 2 verifies the analog-to-digital conversion, offset compensation
// ==============================================================================

#if (BUILDLEVEL==LEVEL2)

// ------------------------------------------------------------------------------
//  Connect inputs of the RMP module and call the ramp control macro
// ------------------------------------------------------------------------------
    rc1.TargetValue = SpeedRef;
	RC_MACRO(rc1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RAMP GEN module and call the ramp generator macro
// ------------------------------------------------------------------------------
    rg1.Freq = rc1.SetpointValue;
    RG_MACRO(rg1)

// ------------------------------------------------------------------------------
//  Connect inputs of the SINCOSTBL module and call the sin table macro
// ------------------------------------------------------------------------------
    st1.Angle = (Uint16)(rg1.Out >> (GLOBAL_Q - MICROSTEPS));
    SINCOSTBL_MACRO(st1)

// ------------------------------------------------------------------------------
//  Measure phase currents, subtract the offset and normalize from (-0.5,+0.5) to (-1,+1).
// ------------------------------------------------------------------------------
    IFdbk1b=_IQ15toIQ((AdcResult.ADCRESULT1<<3)-_IQ15(0.5))<<1;
	IFdbk1a=_IQ15toIQ((AdcResult.ADCRESULT0<<3)-_IQ15(0.5))<<1;
	IFdbk1 = (IFdbk1a - IFdbk1b) >> 1;

    IFdbk2d=_IQ15toIQ((AdcResult.ADCRESULT4<<3)-_IQ15(0.5))<<1;
	IFdbk2c=_IQ15toIQ((AdcResult.ADCRESULT3<<3)-_IQ15(0.5))<<1;
	IFdbk2 = (IFdbk2c - IFdbk2d) >> 1;

// ------------------------------------------------------------------------------
//  Connect inputs of the PWM_DRV module and call the PWM signal generation macro
// ------------------------------------------------------------------------------
    Aout = _IQmpy(VRef,st1.CosOut);
    pwm1.MfuncC1 = (int16)_IQtoIQ15(_IQabs(Aout)); // MfuncC1 is in Q15
	PWM_MACRO(pwm1)							   	   // Calculate the new PWM compare values

	if(Aout < 0)
	  {
	  Rotation1 = 0;
	  }
	else
	  {
	  Rotation1 = 1;
	  }

	if(Rotation1==0)
	  {
	  EPwm1Regs.AQCSFRC.bit.CSFB = 0;		//Forcing Disabled on EPWM1B
	  EPwm1Regs.AQCSFRC.bit.CSFA = 1;		//EPWM1A forced low
	  }
	else if(Rotation1 == 1)
	  {
	  EPwm1Regs.AQCSFRC.bit.CSFA = 0;		//Forcing Disabled on EPWM1A
	  EPwm1Regs.AQCSFRC.bit.CSFB = 1;		//EPWM1B forced low
	  }
	else
	  {
	  EPwm1Regs.AQCSFRC.bit.CSFA = 1;		//EPWM1A forced low
	  EPwm1Regs.AQCSFRC.bit.CSFB = 1;		//EPWM1B forced low
	  }
	EPwm1Regs.CMPA.half.CMPA=pwm1.PWM1out;

    Bout = _IQmpy(VRef,st1.SinOut);
    pwm2.MfuncC1 = (int16)_IQtoIQ15(_IQabs(Bout)); // MfuncC1 is in Q15
	PWM_MACRO(pwm2)							   	   // Calculate the new PWM compare values

	if(Bout < 0)
	  {
	  Rotation2 = 0;
	  }
	else
	  {
	  Rotation2 = 1;
	  }

	if(Rotation2==0)
	  {
	  EPwm2Regs.AQCSFRC.bit.CSFB = 0;		//Forcing Disabled on EPWM2B
	  EPwm2Regs.AQCSFRC.bit.CSFA = 1;		//EPWM2A forced low
	  }
	else if(Rotation2 == 1)
	  {
	  EPwm2Regs.AQCSFRC.bit.CSFA = 0;		//Forcing Disabled on EPWM2A
	  EPwm2Regs.AQCSFRC.bit.CSFB = 1;		//EPWM2B forced low
	  }
	else
	  {
	  EPwm2Regs.AQCSFRC.bit.CSFA = 1;		//EPWM2A forced low
	  EPwm2Regs.AQCSFRC.bit.CSFB = 1;		//EPWM2B forced low
	  }
	EPwm2Regs.CMPA.half.CMPA=pwm2.PWM1out;

// ------------------------------------------------------------------------------
//    Connect inputs of the PWMDAC module
// ------------------------------------------------------------------------------
    PwmDacCh1 = (int16)_IQtoIQ15(IFdbk1);
    PwmDacCh2 = (int16)_IQtoIQ15(IFdbk2);

// ------------------------------------------------------------------------------
//    Connect inputs of the DATALOG module
// ------------------------------------------------------------------------------
    DlogCh1 = (int16)_IQtoIQ15(Aout);
    DlogCh2 = (int16)_IQtoIQ15(IFdbk1);
    DlogCh3 = (int16)_IQtoIQ15(Bout);
    DlogCh4 = (int16)_IQtoIQ15(IFdbk2);

#endif // (BUILDLEVEL==LEVEL2)

// =============================== LEVEL 3 ======================================
//	Level 3 verifies the current regulation performed by PID
// ==============================================================================

#if (BUILDLEVEL==LEVEL3)

// ------------------------------------------------------------------------------
//  Connect inputs of the RMP module and call the ramp control macro
// ------------------------------------------------------------------------------
    rc1.TargetValue = SpeedRef;
	RC_MACRO(rc1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RAMP GEN module and call the ramp generator macro
// ------------------------------------------------------------------------------
    rg1.Freq = rc1.SetpointValue;
    RG_MACRO(rg1)

// ------------------------------------------------------------------------------
//  Connect inputs of the SINCOSTBL module and call the sin table macro
// ------------------------------------------------------------------------------
    st1.Angle = (Uint16)(rg1.Out >> (GLOBAL_Q - MICROSTEPS));
    SINCOSTBL_MACRO(st1)

// ------------------------------------------------------------------------------
//  Measure phase currents, subtract the offset and normalize from (-0.5,+0.5) to (-1,+1).
// ------------------------------------------------------------------------------
    IFdbk1b=_IQ15toIQ((AdcResult.ADCRESULT1<<3)-_IQ15(0.5))<<1;
	IFdbk1a=_IQ15toIQ((AdcResult.ADCRESULT0<<3)-_IQ15(0.5))<<1;
	IFdbk1 = (IFdbk1a - IFdbk1b) >> 1;

    IFdbk2d=_IQ15toIQ((AdcResult.ADCRESULT4<<3)-_IQ15(0.5))<<1;
	IFdbk2c=_IQ15toIQ((AdcResult.ADCRESULT3<<3)-_IQ15(0.5))<<1;
	IFdbk2 = (IFdbk2c - IFdbk2d) >> 1;

// ------------------------------------------------------------------------------
//  Connect inputs of the PID_REG3 module and call the PID controller macro
// ------------------------------------------------------------------------------
    Aout = _IQmpy(IRef,st1.CosOut);
    pid1_i.Ref = Aout;
	pid1_i.Fdb = IFdbk1;
	PID_MACRO(pid1_i)

    Bout = _IQmpy(IRef,st1.SinOut);
    pid2_i.Ref = Bout;
	pid2_i.Fdb = IFdbk2;
	PID_MACRO(pid2_i)

// ------------------------------------------------------------------------------
//  Connect inputs of the PWM_DRV module and call the PWM signal generation macro
// ------------------------------------------------------------------------------
    pwm1.MfuncC1 = (int16)_IQtoIQ15(_IQabs(pid1_i.Out)); // MfuncC1 is in Q15
	PWM_MACRO(pwm1)							   	   // Calculate the new PWM compare values

	if(pid1_i.Out < 0)
	  {
	  Rotation1 = 0;
	  }
	else
	  {
	  Rotation1 = 1;
	  }

	if(Rotation1==0)
	  {
	  EPwm1Regs.AQCSFRC.bit.CSFB = 0;		//Forcing Disabled on EPWM1B
	  EPwm1Regs.AQCSFRC.bit.CSFA = 1;		//EPWM1A forced low
	  }
	else if(Rotation1 == 1)
	  {
	  EPwm1Regs.AQCSFRC.bit.CSFA = 0;		//Forcing Disabled on EPWM1A
	  EPwm1Regs.AQCSFRC.bit.CSFB = 1;		//EPWM1B forced low
	  }
	else
	  {
	  EPwm1Regs.AQCSFRC.bit.CSFA = 1;		//EPWM1A forced low
	  EPwm1Regs.AQCSFRC.bit.CSFB = 1;		//EPWM1B forced low
	  }
	EPwm1Regs.CMPA.half.CMPA=pwm1.PWM1out;

    pwm2.MfuncC1 = (int16)_IQtoIQ15(_IQabs(pid2_i.Out)); // MfuncC1 is in Q15
	PWM_MACRO(pwm2)							   	   // Calculate the new PWM compare values

	if(pid2_i.Out < 0)
	  {
	  Rotation2 = 0;
	  }
	else
	  {
	  Rotation2 = 1;
	  }

	if(Rotation2==0)
	  {
	  EPwm2Regs.AQCSFRC.bit.CSFB = 0;		//Forcing Disabled on EPWM2B
	  EPwm2Regs.AQCSFRC.bit.CSFA = 1;		//EPWM2A forced low
	  }
	else if(Rotation2 == 1)
	  {
	  EPwm2Regs.AQCSFRC.bit.CSFA = 0;		//Forcing Disabled on EPWM2A
	  EPwm2Regs.AQCSFRC.bit.CSFB = 1;		//EPWM2B forced low
	  }
	else
	  {
	  EPwm2Regs.AQCSFRC.bit.CSFA = 1;		//EPWM2A forced low
	  EPwm2Regs.AQCSFRC.bit.CSFB = 1;		//EPWM2B forced low
	  }
	EPwm2Regs.CMPA.half.CMPA=pwm2.PWM1out;

// ------------------------------------------------------------------------------
//    Connect inputs of the PWMDAC module
// ------------------------------------------------------------------------------
    PwmDacCh1 = (int16)_IQtoIQ15(IFdbk1);
    PwmDacCh2 = (int16)_IQtoIQ15(IFdbk1);

// ------------------------------------------------------------------------------
//    Connect inputs of the DATALOG module
// ------------------------------------------------------------------------------
    DlogCh1 = (int16)_IQtoIQ15(pid1_i.Ref);
    DlogCh2 = (int16)_IQtoIQ15(pid1_i.Fdb);
    DlogCh3 = (int16)_IQtoIQ15(pid2_i.Ref);
    DlogCh4 = (int16)_IQtoIQ15(pid2_i.Fdb);

#endif // (BUILDLEVEL==LEVEL3)
	}//end if(RunMotor)

// ------------------------------------------------------------------------------
//    Call the PWMDAC update macro.
// ------------------------------------------------------------------------------
	PWMDAC_MACRO(pwmdac1)

// ------------------------------------------------------------------------------
//    Call the DATALOG update function.
// ------------------------------------------------------------------------------
    dlog.update(&dlog);


#if (DSP2803x_DEVICE_H==1)||(DSP280x_DEVICE_H==1)
// Enable more interrupts from this timer
	EPwm1Regs.ETCLR.bit.INT = 1;

// Acknowledge interrupt to recieve more interrupts from PIE group 3
	PieCtrlRegs.PIEACK.all = PIEACK_GROUP3;
#endif

}

//===========================================================================
// No more.
//===========================================================================

over 9 years ago

0 Rick Duncan over 9 years ago

TI__Guru** 114905 points

Hi Tibor,

Unfortunately, I am not familiar with this code and documentation.
Can you point me to the documentation that describes running the standalone version of the example code?

Thanks.

0 Tibor over 9 years ago in reply to Rick Duncan

Prodigy 140 points

Hi Rick,

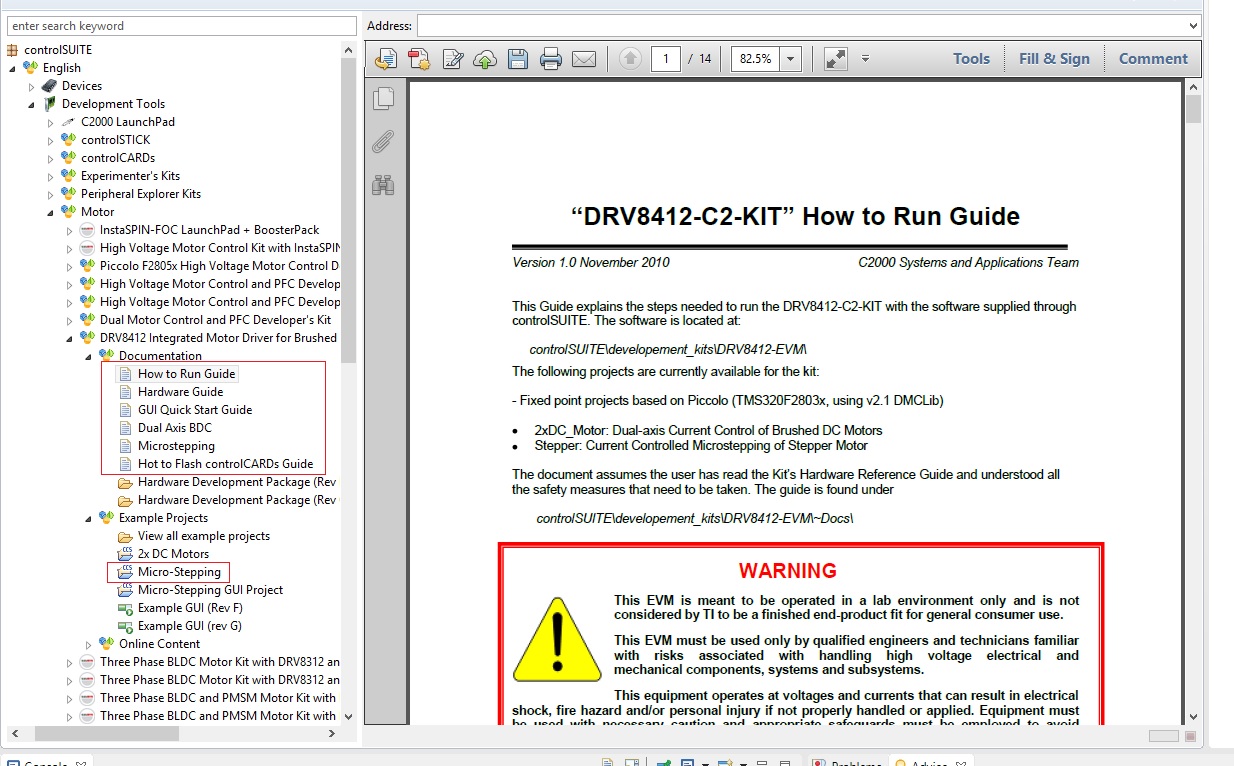

All the information I have comes from the ControlSuite module in CCS.

There is no specific "how to" for the Micro Stepping project. There is a document however for the GUI version.

Kind Regards

Tibor

0 Rick Duncan over 9 years ago in reply to Tibor

TI__Guru** 114905 points

Hi Tibor,

Thanks for the info. Did you set the SpeedRef(Q24) value? This is listed on page 12 of the Microstepping document ("Level 1 Incremental Build").

When you say run standalone, do you mean without CCS also? At best, the code appears to require CCS.

0 Tibor over 9 years ago in reply to Rick Duncan

Prodigy 140 points

Hi Rick,

I did change the SpeedRef (default is 0.0) and the motor started spinning.

I've also managed to get stepper.c run standalone with no XDS100v1 interaction.
Modifications were:
Stepper-Settings.h
- Change BUILD LEVEL to LEVEL3 or LEVEL2
- Change MICROSTEP_64 or MICROSTEP_128 (motor provided in the kit runs better)

Stepper.c
- Change SpeedRef (eg. 127.0 from 0.0 )
- Change EnableFlag to TRUE

Link in DSP2803x_CodeStartBranch.asm (Located in the GUI_project folder)

After downloading the code remove power and set SW3 to OFF position (switch goes up, releasing TRSTn)
Powering up the the mainboard should result the card boot from FLASH and execute the code and the motor start spinning.

However I still don't quiet understand how the asm code make its way trough the linker and gets compiled in. It's probably basic knowledge in the toolchain workflow and belongs to the CCS thread.

Thanks for helping me out Rick,

Tibor

0 Rick Duncan over 9 years ago in reply to Tibor

TI__Guru** 114905 points

Hi Tibor,

You are welcome. Glad to hear you have it running.

As you mentioned, the Code Composer Studio forum is the best place to discuss the operation of CCS.

0 Paul JayHoon Kim over 8 years ago in reply to Tibor

Prodigy 120 points

Hi Tibor,

How do you adjust speed of motor run ?
I've applied same as you above. But the motor runs same low speed though I change SpeedRef.
What did you to change to vary the speed of motor in the Stepper project source file ?

Thanks,

Motor drivers

Motor drivers forum

DRV8412 C2 KIT - Running the stepper motor in standalone mode
