UCC256301: Question about UCC256301 SIMPLIS Model.

Bob Lee62837

Mastermind 7230 points

Part Number: UCC256301

Dear Benjamin Lough,

Since question was about SIMPLIS, here post was.

We are using the SIMPLIS model, but there is only a transient model.
Is there no AC analysis model?

Is there any way to calculation formulas AC analysis other than offering with SIMPLIS?

Are there any calculation formulas for AC analysis, transfer functions?

This question is same customer.
e2e.ti.com/.../679086

Best regard.
Bob Lee.

over 7 years ago

0 Benjamin Lough over 7 years ago

TI__Mastermind 27085 points

Hi Bob,

Thanks for your interest in UCC256301. We do not have an AC analysis model for this controller at the moment unfortunately. We do have a design calculator which can help calculate power stage design parameters. The calculator can be found here:.

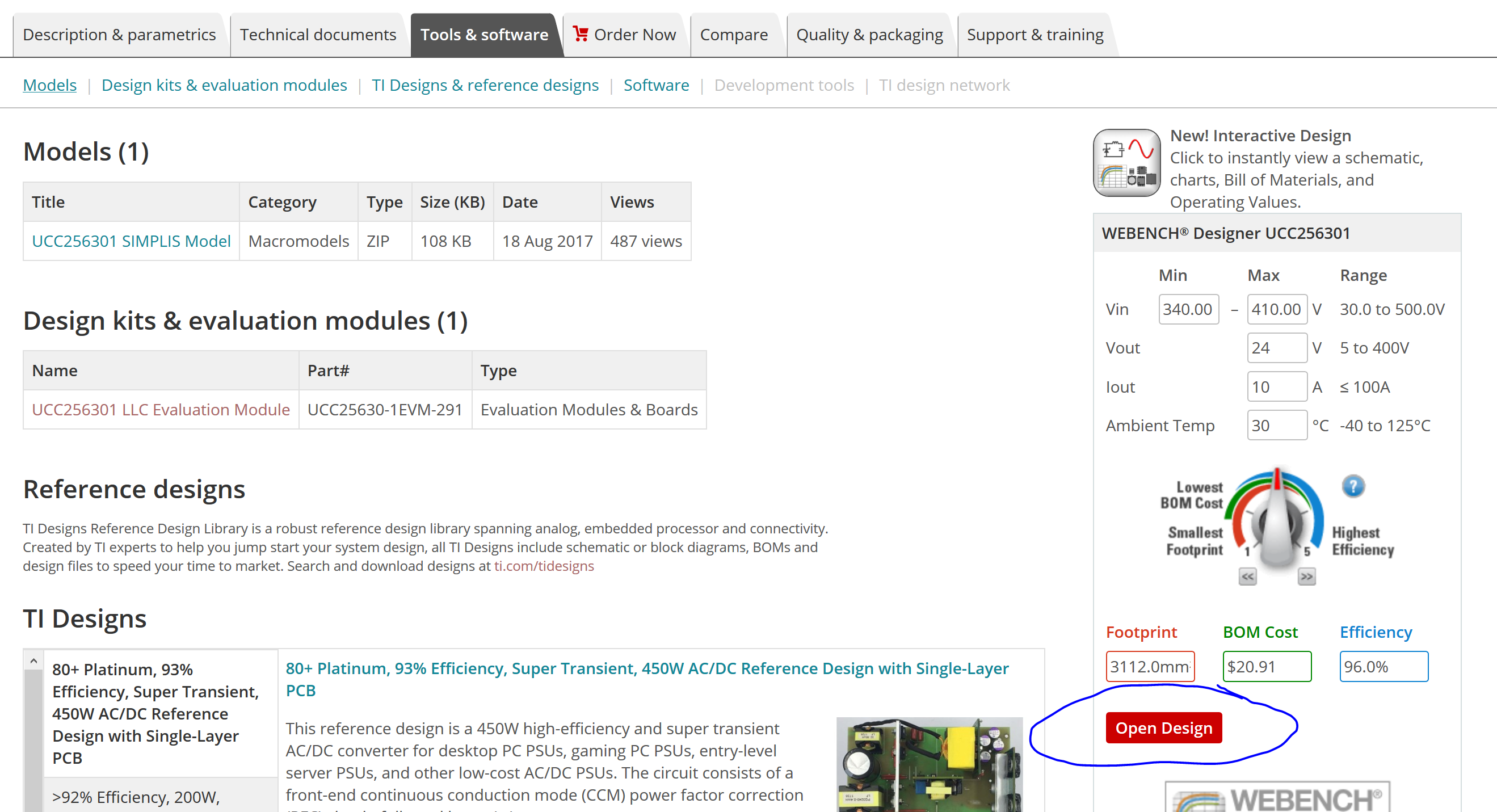

There is also a webench model available. The webench model is able to show some data at different operating points of the converter. The link for the webench model is on the right side of the UCC256301 tools/software page:

Best Regards,

Ben Lough

0 Bob Lee62837 over 7 years ago in reply to Benjamin Lough

Mastermind 7230 points

Dear Benjamin Lough,

Thank you very much for reply.

In the data sheet 6.3.1 Hybrid Hysteretic Control item description
『Comparing with traditional frequency control, it changes the power stage transfer function from a 2nd order system to a 1st order system, so that it is very easy to compensate.』

Q1
In the datasheet description 1st order system,but is there this formula?

Q2
Is there measurement data of the evaluation board when there is no formula?

Best regard.
Bob Lee.

0 Benjamin Lough over 7 years ago in reply to Bob Lee62837

TI__Mastermind 27085 points

Hi Bob,

We do not have the power stage fomula derivation at this time. We are planning to have an application note addressing compensation at a later date.

There is loop measurement data on the UCC25630-1EVM. You can find the data in section 9.9 of the user guide:www.ti.com/.../sluubq8b.pdf.

Best Regards,
Ben Lough

0 Bob Lee62837 over 7 years ago in reply to Benjamin Lough

Mastermind 7230 points

Dear Benjamin Lough,

Thank you very much for reply.
I would like to wait application notes.

Best regard.
Bob Lee.

0 Bob Lee62837 over 7 years ago in reply to Bob Lee62837

Mastermind 7230 points

Dear Benjamin Lough,

Thank you very much for your support about this post.
I am extremely grateful.

With additional I have a request and question.

From my customer there was a message that it can not be used without calculation formulas for AC analysis.

Question
There was this article,but what do you think about this content?
『Simplified Equivalent Circuit Model of Series Resonant Converter』

Request
Is there anything else as a calculation formula for AC analysis?
Is there anything else that can be submitted as a calculation formula for AC analysis?

Best regard.
Bob Lee.

0 Benjamin Lough over 7 years ago in reply to Bob Lee62837

TI__Mastermind 27085 points

Hi Bob,

The "Simplified Equivalent Circuit Model of Series Resonant Converter" is applicable to direct frequency control but this would not accurately represent hybrid hysteretic control unfortunately.

Could you email me your customer's design requirements? Have they selected a power stage for their LLC yet?

My email is ben.lough@ti.com

Best Regards,
Ben Lough

0 Bob Lee62837 over 7 years ago in reply to Benjamin Lough

Mastermind 7230 points

Dear Benjamin Lough,

Thank you very much for your answer.
I replied your E-mail address.

Could you check question?

Best regard.
Bob Lee.

0 Benjamin Lough over 7 years ago in reply to Bob Lee62837

TI__Mastermind 27085 points

Hi Bob,

I replied to your email. Let me know if your customer has any follow up questions.

Best Regards,
Ben Lough

0 Bob Lee62837 over 7 years ago in reply to Benjamin Lough

Mastermind 7230 points

Dear Benjamin Lough,

Thank you very much for quick reply.

I also sent your E-mail address about the question of the AC analysis of the other day
Could you check it?

Best regard.
Bob Lee.

0 Bob Lee62837 over 7 years ago in reply to Bob Lee62837

Mastermind 7230 points

Dear Benjamin Lough,

Thank you very much for reply.

I have emailed an additional question.

Could you check it?

Best regard.
Bob Lee.

0 Bob Lee62837 over 7 years ago in reply to Bob Lee62837

Mastermind 7230 points

Dear Benjamin Lough,

Thank you very much for your answer.
I really appreciate what your answer.

I have emailed an addtional question.

Could you check it?

Best regard.
Bob Lee.
