TDA4VM: SBL CANNOT BOOT DioApp Success

Hi,

I am able to run the dio_app from SDK7.3 on the EVM, below are the logs.

1. Can you please try the image from the attachment? See if these work for you? Open the MCU UART 2nd instance on the board to view the logs.

BOOT_dio_app.zip

2. Can you also send me your build commands for application and SBL? Also do send me what files do you copy in the SD card.

SBL Revision: 01.00.10.00 (May  5 2021 - 13:39:13)
TIFS  ver: 21.1.1--v2021.01a (Terrific Lla
Sample Application - STARTS !!!

DIO MCAL Version Info
---------------------
Vendor ID           : 44
Module ID           : 120
SW Major Version    : 1
SW Minor Version    : 3
SW Patch Version    : 2

Test A. Write and Read Channel
------------------------------
Channels written
Channel read DIO_PinLevel[0] = 0
Channel read DIO_PinLevel[1] = 1
Channel read DIO_PinLevel[2] = 0
DIO Service API Read-back Channel Succeeds !!!
Main Domain Channels written
Channel read DIO_PinLevel[0] = 0
Channel read DIO_PinLevel[1] = 1
Channel read DIO_PinLevel[2] = 0
DIO Service API Read-back Channel Main Domain Succeeds !!!

DIO Test A :Service API: Write/Read Channel completed

Test B. Write and Read Channel Group
------------------------------------
DIO Service Read/Write Channel Group Read-back Succeeds !!!

DIO Test B : Service API : Write/Read Channel Group completed

Test C. Write and Read Port
---------------------------
DIO Service API Read-Back Port succeeds !!!
DIO Service API Read-Back Port Main Domain succeeds !!!

DIO Test C : Service API: Write/Read Port completed

Test D. Flip Channel
----------------------
Pin Value Before Flip: 0
Pin Value After Flip: 1

DIO Test D : Service API: Flip Channel completed
Pin Value Before Flip: 1
Pin Value After Flip: 0

DIO Test D : Service API: Flip Channel Main Domain completed

Test E. Dio_RegisterReadback
----------------------
DIO register readback compare Passed!!
DIO register readback compare Main Domain Passed!!

DIO Test E : Service API: Register Read-back completed
DIO Stack Usage: 1140 bytes

----------------------------------

DioApp: Sample Application - Completes successfully !!!

Regards,

Karan

Hi Karan,

1, As you say, I use your image, I still can not boot Dio:

SBL Revision: 01.00.10.00 (May 5 2021 - 13:39:13)

TIFS ver: 21.1.1--v2021.01a (Terrific Lla

2, I use "make -j BOARD=j721e_evm CORE=mcu1_0 BUILD_PROFILE=release sbl_mmcsd_img" to build SBL;

I use "make -s dio_app BOARD=j721e_evm SOC=j721e BUILD_PROFILE=release CORE=mcu1_0 BUILD_OS_TYPE=barametal" to build SBL;

This is my image that copy to SD.

mytest.rar

Hello,

The SBL May5 2021, this one is that you send me. May 24 is myself.

Yeah, you can boot my test app but I can not. This is strange . I have checked my boot setting, it's OK.

And I also use mcusw for test, it can be boot by SBL, see logs below . I don't why this is OK but DioApp is failed.

Can you send me the whole files that in your SD ? I try to replace every files in my SD and see what happens.

And I found in the SDK build , the default instruction is Thumb.  This is OK? If I want to change to ARM instruction to build PDK and example, How can I build ?

SBL Revision: 01.00.10.00 (May 24 2021 - 14:19:57)

TIFS ver: 21.1.1--v2021.01a (Terrific Lla
SCISERVER Board Configuration header population... PASSED
Sciclient_setBoardConfigHeader... PASSED
Efuse xlated: VD 2 to 800 mV (OppVid: 0x37, Slave:0x48, Res:0x0)
Successfully set voltage to 800 mV for Slave:0x48, Res:0x0
Initlialzing PLLs ...done.
InitlialzingClocks ...done.
Initlialzing DDR ...
done.
Initializing GTC ...done.
Begin parsing user application
Calling Sciclient_procBootRequestProcessor, ProcId 0x20...
Calling Sciclient_procBootRequestProcessor, ProcId 0x21...
Calling Sciclient_procBootRequestProcessor, ProcId 0x1...
Calling Sciclient_procBootRequestProcessor, ProcId 0x2...
Calling Sciclient_procBootRequestProcessor, ProcId 0x6...
Calling Sciclient_procBootRequestProcessor, ProcId 0x7...
Calling Sciclient_procBootRequestProcessor, ProcId 0x8...
Calling Scicli
ent_procBootRequestProcessor, ProcId 0x9...
Calling Sciclient_procBootRequestProcessor, ProcId 0x3...
Calling Sciclient_procBootRequestProcessor, ProcId 0x4...
Calling Sciclient_procBootRequestProcessor, ProcId 0x30...

Searching for X509 certificate ...not found
Switching core id 4, proc_id 0x1 to split mode...
Calling Sciclient_procBootGetProcessorState, ProcId 0x1...
Sciclient_procBootSetProcessorCfg, ProcId 0x1, enabling split mode...
Calling Sciclient_procBootGetProcessorState, ProcId 0x1...
Enabling MCU TCMs after reset for core 4
Sciclient_procBootSetProcessorCfg update TCM enable/disable settings...
Copying 0x40 bytes to 0x41010000
Copying 0xdb0 bytes to 0x41010100
Copying 0x28 bytes to 0x4101
0eb0
Copying 0x10 bytes to 0x41010ed8
Copying 0x1f630 bytes to 0x41ca5260

Copying 0x429c bytes to 0x41cc8f80
Copying 0x8e8 bytes to 0x41cce320
Copying 0x2000 bytes to 0x41ce0000
Copying 0xf200 bytes to 0x41ce2100
Copying 0x1900 bytes to 0x41cf1300
Copying 0x1400 bytes to 0x41cf2c00
Copying 0x1400 bytes to 0x41cf4000
Copying 0x1400 bytes to 0x41cf5400
Copying 0x1400 bytes to 0x41cf6800
Copying 0x200 bytes to 0x41cf8600
Copying 0x200 bytes to 0x41cf8800
Copying 0x200 bytes to 0x41cf8a00
Setting entry point for core 4 @0x41010000
Sciclient_procBootReleasePr
ocessor, ProcId 0x20...
Sciclient_procBootReleaseProcessor, ProcId 0x21...
Sciclient_procBootReleaseProcessor, ProcId 0x1...
Sciclient_procBootReleaseProcessor, ProcId 0x2...
Sciclient_procBootReleaseProcessor, ProcId 0x6...
Sciclient_procBootReleaseProcessor, ProcId 0x7...
Sciclient_procBootReleaseProcessor, ProcId 0x8...
Sciclient_procBootReleaseProcessor, ProcId 0x9...
Sciclient_procBootReleaseProcessor, ProcId 0x3...
Sciclient_procBootReleaseProcessor, ProcId 0x4...
Scicli
ent_procBootReleaseProcessor, ProcId 0x30...
Start Boot MCU1_0 and MCU1_1 in the SBL end !
MCU1_0 evmEntry: 0x41010000
Calling Sciclient_procBootRequestProcessor, ProcId 0x1...
Sciclient_procBootSetProcessorCfg...BBBBBB
Sciclient_procBootSetProcessorCfg, ProcId 0x1, EntryPoint 0x41010000...
Sciclient_pmSetModuleClkFreq, DevId 0xfa @ 1000000000Hz...
Start Boot MCU1_CPU0_ID !
Copying first 128 bytes from app to MCU ATCM @ 0x0 for core 4
MCU1_1 evmEntry: 0xfffffffe
Calling Sciclient_pr
ocBootRequestProcessor, ProcId 0x2...
Sciclient_procBootSetProcessorCfg...BBBBBB
Skipping Sciclient_procBootSetProcessorCfg for ProcId 0x2, EntryPoint 0xfffffffe...
Start Boot MCU1_CPU1_ID !
Sciclient_procBootReleaseProcessor, ProcId 0x2...
Start the App - Branch to start of ATCM (0x0)!

Starting Sciserver..... PASSED

MCU R5F App started at 0 usecs

Hi,

The three images I had sent you were the only images in my SD card.

Default SDK settings are thumb mode to give more compact code and thus giving better cache performance, changing that will not be a trivial change and builds might break.

Are you able to boot other apps and just not the Dio app?

Regards,

Karan

Hi Karan,

Yeah, I can boot MCUSW, and it works OK.

I try to find the differences, Dioapplication use DDR memory.

Not  sure is this the reason, do you have some suggestion to debug with CCS ?

Thank you!

Hi,

You can do a couple of things:

1. Add a breakpoint in SBL before jumping to the application. By breakpoint I mean, add a while(some_volatile_variable) loop.

2. Add a breakpoint in the Dio app at the first instatement in main().

After doing one of the two, connect CCS (without GEL files) and connect to MCU R5F. Then load symbols and see what state is the MCU R5F in. Also you can open memory browser and see if DDR is accessible or not. All this will work if MCU R5F is not crashed already.

See https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1003421/faq-tda4vm-debugging-remote-core-firmware-using-ccs for some more details. The FAQ focuses on how to debug firmware when core is loaded from u-boot or SPL but the above mentioned details are also mentioned in the FAQ, on how to add the while() loop.

Regards,

Karan

Hi Karan,

OK, I have a try. Thanks.

You mentioned "you can open memory browser and see if DDR is accessible or not", which memory register I can check If I config sucess or not ?

Thank you

Hi,

You can just look at the DDR region you are using for the application. You would have that mentioned in the Linker file or Map file. Let me know if you need help in identifying it from the linker/map file.

Regards,

Karan

Hi Karan,

Great, need your help is better.

Thank you

Hi,

I just looked at the mcusw/binary/dio_app/bin/j721e_evm/dio_app_mcu1_0_release.xer5f.map to see the DDR region being used. There is a region by the name DDR0_MCU1_0 which starts at 0x97000000, you can put that address in the memory browser.

But add the while() loop first in the app and recompile.

Regards,

Karan

Hi Karan,

I debug the dio_app code, I found it crash in __mpu_init function.

Below log.docx file is the detail information that I save from the step by step run.

Not sure why this happened . Wait for your response.

j721e_evm.rar is the bin and map.

Other question:

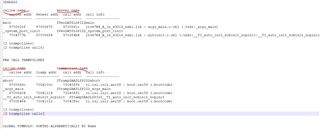

What's the mean for veneer and trampoline, and what's the difference between them  ?

Thank you.

j721e_evm.rar

0385.Log.docx

Hi,

Some re-confirmations:

Karan Saxena said:

BOOT_dio_app.zip

1. Can you please re-confirm that these SD card binaries did not work for you?

2. You are running this on the TDA4 EVM and not a custom board?

3. What is the revision of your EVM and the SoC?

Regards,

Karan

Hi Karan,

Thank you for your support. I slove this issue. It's the DDR issue.

Thank you again.
