TDA4VM: how to configure CPSW9G vlan

Hi,

You want instructions on how to configure the VLAN or are you looking for a configuration that solves your problem ? Or both ?

Regards

Vineet

hi Vineet

 I am looking for the configuration that solves my problem

thanks

Hi,

Sorry for the delay.

I will try and provide you a configuration by Monday with the code changes.

Regards

Vineet

Hi

Vineet Roy

Could you please provide the reference code for VLAN configuration (VLAN ID directly trunk to port5/host without any processing)?

Thank you

Hi,

Sorry for the delay. I am working on a VLAN and ALE configuration guide, should cover all these aspects.

Regards

Vineet

Hi

Vineet Roy

Can you provide it today?We urgently need to wait for this verification, which has been delayed for nearly two weeks.

Thank you

Hi,

Thanks for providing the context.

I will try out the changes myself today and provide it tomorrow.

Regards

Vineet

Hi

Vineet Roy

Thank you for your help and I look forward to your reply tomorrow.

Hi

Vineet Roy

Please check the attachment, which includes my test phenomenon and the desired requirements

Thank you

port4_lanid400.rarport4_lanid300.rarCPSW9G-VlanTest.docx

Hi,

The requirements in the document are different from the embedded picture. It doesn't talk about VLAN forwarding.

Which configuration is required ?

Regards

Vineet

Hi

Vineet Roy

In my Word document, these tests are failed cases, we want to configure TRUNK mode to directly forward packets with VlanID，

Hi,

You basically want

1. VID x on Port 4 and VID y on Port 5 to go to A72

2. Packets should be received with their VID intact.

Correct ?

Regards

Vineet

Hi

Vineet Roy

Yes, that's right, normally we only need to configure and use port5.

Thank you

Hi

Vineet Roy

Can configuration be provided today?We are waiting for your result and verification. Thank you very much

Hi,

I am working on it. I have some issues with the configuration which I am debugging. I will share the patch with you even if it doesn't work today so you can start integrating.

Regards

Vineet

Hi

Vineet Roy

Please kindly provide us with the latest debugging patch and the result (success or failure) today. If the debugging fails, please explain the failure place so that we can continue debugging at the weekend

Thank you

Hi,

Please find 3 patches which add a static VLAN (70) configuration for A72. (BC, MC and directed Unicast) Packets with VLAN of 70 are forwarded to the host as seen from statistics.

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/791/0001_2D00_Static_2D00_Multicast_2D00_configuration_2D00_for_2D00_Linux.patch

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/791/0002_2D00_Added_2D00_VLAN_2D00_ID_2D00_70.patch

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/791/0003_2D00_Added_2D00_VLAN_2D00_ID_2D00_of_2D00_70_2D00_to_2D00_ALE.patch

Bug :

1. The filter is not tied to any port and seems to work for all ports

2. I am not able to see the packets on Linux VLAN interface (probably a configuration issue at my end)

Regards

Vineet

Hi

Vineet Roy

Thank you very much, we will verify the method you provided.  it can be seen from your description that BUG2 may have an effect.

Hi,

It's now working at my end. Both bugs are fixed

Try this patch on top of the other 3

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/791/0004_2D00_Enabling_2D00_strict_2D00_port_2D00_check.patch

I have tried with this pcap on my PC and it is received by A72

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/791/UDP_5F00_VLAN.pcap

Regards

Vineet

Hi

Vineet Roy

Which version of SDK is your patch modified on? I compared the source code of 7.2 and 7.3 versions, which seems to be inconsistent with patch.

Hi,

Patch is written for SDK 7.3, but the changes are really small and can be ported to 7.2 as well.

I have written a user guide for configuring ALE which provides more explanation

Regards

Vineet

Hi

Vineet Roy

Thanks for the patch (I actually only referenced VLAN-related configurations and did not make any changes to Policer's configuration).

The basic functionality is now implemented, but there are still some problems in the integration test:

1) the original network port (eth0) without VlanID cannot ping with each other.

2) The VlanID port on A72 must be pinging to the outside before it can be connected.

These two problems need help to solve again.

Thank you

Hi,

See replies inline

ludy said:

1) the original network port (eth0) without VlanID cannot ping with each other.

I didn't understand the problem. Are you saying that Linux CPSW 9G interface cannot ping another device on the network ? This should work out of the box. What exactly is the issue here ? Are packets not being received on Host port without VLAN ? Can you provide more details.

ludy said:

2) The VlanID port on A72 must be pinging to the outside before it can be connected.

This is a known issue, Broadcast frames (ARP) cannot reach A72 because they have to be duplicated on the Host port and this feature will only be supported in SDK 8.0. The workaround is to add a static entry in the ARP table

Regards

Vineet

Hi

Vineet Roy

1) the original network port (eth0) without VlanID cannot ping with each other.

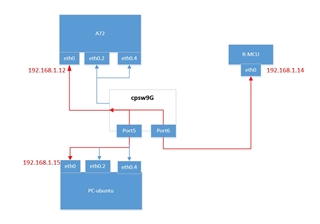

As shown in the figure, the port (eth0) on A72 without VlanID cannot be ping-connected with the outside world (the red channel in the figure is blocked). It is OK to have VlanID 2,4. we need to resolve the problem of network connectivity without vlanID (eth0).

Thank you

Hi,

ludy said:

we need to resolve the problem of network connectivity without vlanID (eth0).

Can you break down the problem with statistics ?

1. So what happens when packets from R-MCU reach port 6, are they forwarded to Host ?

2. What about the other way ? Are packets from A72 reaching the external interface ?

3. Do you have any ALE configuration set for Port 6 ? Can you clear that and try ?

Please dump statistics using this script and then paste here.

PS : Disable Port 5 so we only see traffic from Port 6.

Regards

Vineet
