AM625: Does a Watchdog Timer (RTI) Timeout Drive RESETSTATn low?
Hello TI team,
Can you help us know how we can rout watch dog timeouts to ESM module?
We see that watchdog driver is in the kernel as below and the ESM module is in u-boot.
Can you help us where and how we can configure watch dog with ESM so that watch dog can interrupt to MCU ESM module?
Hello Hong Guan,
we have ported the ESM glue logic in the below files and below is the git diff
1)
diff --git a/arch/arm/dts/k3-am62a7-r5-sk.dts b/arch/arm/dts/k3-am62a7-r5-sk.dts
index 1baba79795..7c9ecc52bc 100644
--- a/arch/arm/dts/k3-am62a7-r5-sk.dts
+++ b/arch/arm/dts/k3-am62a7-r5-sk.dts
@@ -5,7 +5,7 @@
*/
#include "k3-am62a7-sk.dts"
-#include "k3-am62a-ddr-1866mhz-32bit.dtsi"
+#include "k3-am62a-magna-ddr-1600mhz-32bit.dtsi"
#include "k3-am62a-ddr.dtsi"
#include "k3-am62a7-sk-u-boot.dtsi"
@@ -100,6 +100,27 @@
};
};
+&cbass_main {
+ main_esm: esm@420000 {
+ compatible = "ti,j721e-esm";
+ reg = <0x0 0x420000 0x0 0x1000>;
+ ti,esm-pins = <160>, <161>;
+ u-boot,dm-spl;
+ };
+};
+
+&cbass_mcu {
+ u-boot,dm-spl;
+ mcu_esm: esm@4100000 {
+ compatible = "ti,j721e-esm";
+ reg = <0x0 0x4100000 0x0 0x1000>;
+ ti,esm-pins = <0>, <1>;
+ u-boot,dm-spl;
+ };
+};
2)
diff --git a/arch/arm/dts/k3-am62a7-sk.dts b/arch/arm/dts/k3-am62a7-sk.dts
index 859a04ff0b..6fa6099d4f 100644
--- a/arch/arm/dts/k3-am62a7-sk.dts
+++ b/arch/arm/dts/k3-am62a7-sk.dts
+&cbass_main {
+ main_esm: esm@420000 {
+ compatible = "ti,j721e-esm";
+ reg = <0x0 0x420000 0x0 0x1000>;
+ ti,esm-pins = <160>, <161>;
+ u-boot,dm-spl;
+ };
+};
+
+&cbass_mcu {
+ u-boot,dm-spl;
+ mcu_esm: esm@4100000 {
+ compatible = "ti,j721e-esm";
+ reg = <0x0 0x4100000 0x0 0x1000>;
+ ti,esm-pins = <0>, <1>;
+ u-boot,dm-spl;
+ };
+};
3)
diff --git a/arch/arm/mach-k3/am62a7_init.c b/arch/arm/mach-k3/am62a7_init.c
index 926585725a..710016341e 100644
--- a/arch/arm/mach-k3/am62a7_init.c
+++ b/arch/arm/mach-k3/am62a7_init.c
@@ -15,6 +15,9 @@
#include <dm/uclass-internal.h>
#include <dm/pinctrl.h>
+#define CTRLMMR_MCU_RST_CTRL 0x04518170
+#define RST_CTRL_ESM_ERROR_RST_EN_Z_MASK (~BIT(17))
+
#if defined(CONFIG_SPL_BUILD)
struct fwl_data cbass_main_fwls[] = {
@@ -93,6 +96,17 @@ static void setup_qos(void)
}
#endif
+
+static __maybe_unused void enable_mcu_esm_reset(void)
+{
+ printf("U-boot-Anil-Print");
+ /* Set CTRLMMR_MCU_RST_CTRL:MCU_ESM_ERROR_RST_EN_Z to '0' (low active) */
+ u32 stat = readl(CTRLMMR_MCU_RST_CTRL);
+
+ stat &= RST_CTRL_ESM_ERROR_RST_EN_Z_MASK;
+ writel(stat, CTRLMMR_MCU_RST_CTRL);
+}
+
void board_init_f(ulong dummy)
{
struct udevice *dev;
@@ -177,6 +191,21 @@ void board_init_f(ulong dummy)
/* Output System Firmware version info */
k3_sysfw_print_ver();
+ if (IS_ENABLED(CONFIG_ESM_K3)) {
+ /* Probe/configure ESM0 */
+ ret = uclass_get_device_by_name(UCLASS_MISC, "esm@420000", &dev);
+ if (ret)
+ printf("esm main init failed: %d\n", ret);
+
+ /* Probe/configure MCUESM */
+ ret = uclass_get_device_by_name(UCLASS_MISC, "esm@4100000", &dev);
+ if (ret)
+ printf("esm mcu init failed: %d\n", ret);
+
+ printf("Inside if (IS_ENABLED(CONFIG_ESM_K3)) Anil enable mcu reset");
+ enable_mcu_esm_reset();
+ }
+
/* Disable ROM configured firewalls right after loading sysfw */
remove_fwl_configs(cbass_main_fwls, ARRAY_SIZE(cbass_main_fwls));
4)
am62a-arm64-linux/.config:1150:CONFIG_ESM_K3=y
The files used
u-boot-SPL-file :Linux/build/ti-processor-sdk-linux-am62axx-evm-08.06.00.45/board-support/u-boot_build/a53/spl/u-boot-spl.bin
Uboot:inux/build/ti-processor-sdk-linux-am62axx-evm-08.06.00.45/board-support/u-boot_build/a53/u-boot-dtb.bin -->u-boot.img

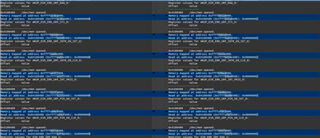

After Porting the ESM glue Logic i read before and after ESM related registers and we see there is no change WKUP_ESM0 related register PFA of the files with all the register read values before and after the watchdog
Before watchdog expire
WDT_STATUS
/dev/mem opened.
Memory mapped at address 0xffff8cd81000.
Read at address 0x0E000098 (0xffff8cd81098): 0x00000000
after watchdog expired
WDT_STATUS
/dev/mem opened.
Memory mapped at address 0xffffb398b000.
Read at address 0x0E000098 (0xffffb398b098): 0x00000032
we observed only main ESM related registers changing here j =6
ESM_ERR_GRP_RAW_6
ESM_ERR_GRP_STS_6
ESM_ERR_GRP_INTR_EN_SET_6
ESM_ERR_GRP_INTR_EN_CLR_6
ESM_ERR_GRP_INT_PRIO_6
ESM_ERR_GRP_PIN_EN_SET_6
ESM_ERR_GRP_PIN_EN_CLR_6
only BIT(0) of all register of ESM0 main and no WKUP_ESM0 related registers are getting updated i have attached the devmem read of all the register related to same
the below are the register base adresses before watchdog timer WDT_STATUS /dev/mem opened. Memory mapped at address 0xffff8cd81000. Read at address 0x0E000098 (0xffff8cd81098): 0x00000000 Register values for ESM0: Offset Value ------------------- 0x0x4 0x/dev/mem opened. Memory mapped at address 0xffff80284000. Read at address 0x00420004 (0xffff80284004): 0x00000107 0x0x8 0x/dev/mem opened. Memory mapped at address 0xffff915af000. Read at address 0x00420008 (0xffff915af008): 0x00000000 0x0xC 0x/dev/mem opened. Memory mapped at address 0xffff9e077000. Read at address 0x0042000C (0xffff9e07700c): 0x00000000 0x0x10 0x/dev/mem opened. Memory mapped at address 0xffff95807000. Read at address 0x00420010 (0xffff95807010): 0x00000000 0x0x14 0x/dev/mem opened. Memory mapped at address 0xffff8a618000. Read at address 0x00420014 (0xffff8a618014): 0x00000000 0x0x18 0x/dev/mem opened. Memory mapped at address 0xffff98ccf000. Read at address 0x00420018 (0xffff98ccf018): 0x00000000 0x0x1C 0x/dev/mem opened. Memory mapped at address 0xffff94898000. Read at address 0x0042001C (0xffff9489801c): 0x00000000 0x0x20 0x/dev/mem opened. Memory mapped at address 0xffffb530c000. Read at address 0x00420020 (0xffffb530c020): 0xFFFFFFFF 0x0x24 0x/dev/mem opened. Memory mapped at address 0xffff9f998000. Read at address 0x00420024 (0xffff9f998024): 0xFFFFFFFF 0x0x28 0x/dev/mem opened. Memory mapped at address 0xffff857f0000. Read at address 0x00420028 (0xffff857f0028): 0x00000000 0x0x2C 0x/dev/mem opened. Memory mapped at address 0xffffbadc1000. Read at address 0x0042002C (0xffffbadc102c): 0x00000000 0x0x30 0x/dev/mem opened. Memory mapped at address 0xffffb287a000. Read at address 0x00420030 (0xffffb287a030): 0x00000000 0x0x40 0x/dev/mem opened. Memory mapped at address 0xffffafd66000. Read at address 0x00420040 (0xffffafd66040): 0x00000000 0x0x44 0x/dev/mem opened. Memory mapped at address 0xffffbae39000. Read at address 0x00420044 (0xffffbae39044): 0x00000001 0x0x48 0x/dev/mem opened. Memory mapped at address 0xffffba891000. Read at address 0x00420048 (0xffffba891048): 0x00030D40 0x0x4C 0x/dev/mem opened. Memory mapped at address 0xffff8e436000. Read at address 0x0042004C (0xffff8e43604c): 0x00030D40 0x0x50 0x/dev/mem opened. Memory mapped at address 0xffff9c2f0000. Read at address 0x00420050 (0xffff9c2f0050): 0x000186A0 0x0x54 0x/dev/mem opened. Memory mapped at address 0xffffb6c42000. Read at address 0x00420054 (0xffffb6c42054): 0x000186A0 0x0x58 0x/dev/mem opened. Memory mapped at address 0xffffacf1a000. Read at address 0x00420058 (0xffffacf1a058): 0x000186A0 0x0x5C 0x/dev/mem opened. Memory mapped at address 0xffff97b43000. Read at address 0x0042005C (0xffff97b4305c): 0x000186A0 0x0x400 0x/dev/mem opened. Memory mapped at address 0xffff91b59000. Read at address 0x00420400 (0xffff91b59400): 0x00060080 0x0x404 0x/dev/mem opened. Memory mapped at address 0xffff80da2000. Read at address 0x00420404 (0xffff80da2404): 0x00000000 0x0x408 0x/dev/mem opened. Memory mapped at address 0xffffbc146000. Read at address 0x00420408 (0xffffbc146408): 0x00000000 0x0x40C 0x/dev/mem opened. Memory mapped at address 0xffff8d8fa000. Read at address 0x0042040C (0xffff8d8fa40c): 0x00000000 0x0x410 0x/dev/mem opened. Memory mapped at address 0xffffb291a000. Read at address 0x00420410 (0xffffb291a410): 0x00000000 0x0x414 0x/dev/mem opened. Memory mapped at address 0xffffb9da9000. Read at address 0x00420414 (0xffffb9da9414): 0x00000000 0x0x418 0x/dev/mem opened. Memory mapped at address 0xffffb8455000. Read at address 0x00420418 (0xffffb8455418): 0x00000000 Register values for WKUP_ESM0: Offset Value ------------------- 0x0x4 0x/dev/mem opened. Memory mapped at address 0xffffb5413000. Read at address 0x04100004 (0xffffb5413004): 0x00000103 0x0x8 0x/dev/mem opened. Memory mapped at address 0xffff8a3c5000. Read at address 0x04100008 (0xffff8a3c5008): 0x00000000 0x0xC 0x/dev/mem opened. Memory mapped at address 0xffffae3b5000. Read at address 0x0410000C (0xffffae3b500c): 0x00000000 0x0x10 0x/dev/mem opened. Memory mapped at address 0xffffba6f5000. Read at address 0x04100010 (0xffffba6f5010): 0x00000000 0x0x14 0x/dev/mem opened. Memory mapped at address 0xffff7fd06000. Read at address 0x04100014 (0xffff7fd06014): 0x00000000 0x0x18 0x/dev/mem opened. Memory mapped at address 0xffffa894e000. Read at address 0x04100018 (0xffffa894e018): 0x00000000 0x0x1C 0x/dev/mem opened. Memory mapped at address 0xffffb79ef000. Read at address 0x0410001C (0xffffb79ef01c): 0x00000000 0x0x20 0x/dev/mem opened. Memory mapped at address 0xffff81e49000. Read at address 0x04100020 (0xffff81e49020): 0xFFFFFFFF 0x0x24 0x/dev/mem opened. Memory mapped at address 0xffff8a6e4000. Read at address 0x04100024 (0xffff8a6e4024): 0xFFFFFFFF 0x0x28 0x/dev/mem opened. Memory mapped at address 0xffff94e55000. Read at address 0x04100028 (0xffff94e55028): 0x00000000 0x0x2C 0x/dev/mem opened. Memory mapped at address 0xffffb40f8000. Read at address 0x0410002C (0xffffb40f802c): 0x00000000 0x0x30 0x/dev/mem opened. Memory mapped at address 0xffffbeb43000. Read at address 0x04100030 (0xffffbeb43030): 0x00000000 0x0x40 0x/dev/mem opened. Memory mapped at address 0xffff93358000. Read at address 0x04100040 (0xffff93358040): 0x00000000 0x0x44 0x/dev/mem opened. Memory mapped at address 0xffffae62c000. Read at address 0x04100044 (0xffffae62c044): 0x00000001 0x0x48 0x/dev/mem opened. Memory mapped at address 0xffffa0d83000. Read at address 0x04100048 (0xffffa0d83048): 0x00030D40 0x0x4C 0x/dev/mem opened. Memory mapped at address 0xffff8e0ef000. Read at address 0x0410004C (0xffff8e0ef04c): 0x00030D40 0x0x50 0x/dev/mem opened. Memory mapped at address 0xffffb9baf000. Read at address 0x04100050 (0xffffb9baf050): 0x000186A0 0x0x54 0x/dev/mem opened. Memory mapped at address 0xffff8db30000. Read at address 0x04100054 (0xffff8db30054): 0x000186A0 0x0x58 0x/dev/mem opened. Memory mapped at address 0xffff865ed000. Read at address 0x04100058 (0xffff865ed058): 0x000186A0 0x0x5C 0x/dev/mem opened. Memory mapped at address 0xffffb8441000. Read at address 0x0410005C (0xffffb844105c): 0x000186A0 0x0x400 0x/dev/mem opened. Memory mapped at address 0xffff89264000. Read at address 0x04100400 (0xffff89264400): 0x00000000 0x0x404 0x/dev/mem opened. Memory mapped at address 0xffffbe407000. Read at address 0x04100404 (0xffffbe407404): 0x00000000 0x0x408 0x/dev/mem opened. Memory mapped at address 0xffffad68f000. Read at address 0x04100408 (0xffffad68f408): 0x00000000 0x0x40C 0x/dev/mem opened. Memory mapped at address 0xffff929b7000. Read at address 0x0410040C (0xffff929b740c): 0x00000000 0x0x410 0x/dev/mem opened. Memory mapped at address 0xffff8c457000. Read at address 0x04100410 (0xffff8c457410): 0x00000000 0x0x414 0x/dev/mem opened. Memory mapped at address 0xffffb97ae000. Read at address 0x04100414 (0xffffb97ae414): 0x00000000 0x0x418 0x/dev/mem opened. Memory mapped at address 0xffff91dd4000. Read at address 0x04100418 (0xffff91dd4418): 0x00000000 Register values for ESM_ERR_GRP_RAW_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff901e3000. Read at address 0x00420400 (0xffff901e3400): 0x00060080 Register values for ESM_ERR_GRP_STS_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffffba820000. Read at address 0x00420400 (0xffffba820400): 0x00060080 Register values for ESM_ERR_GRP_INTR_EN_SET_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff82d26000. Read at address 0x00420400 (0xffff82d26400): 0x00060080 Register values for ESM_ERR_GRP_INTR_EN_CLR_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff9120c000. Read at address 0x00420400 (0xffff9120c400): 0x00060080 Register values for ESM_ERR_GRP_INT_PRIO_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff8c4f1000. Read at address 0x00420400 (0xffff8c4f1400): 0x00060080 Register values for ESM_ERR_GRP_PIN_EN_SET_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff8222e000. Read at address 0x00420400 (0xffff8222e400): 0x00060080 Register values for ESM_ERR_GRP_PIN_EN_CLR_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff940ea000. Read at address 0x00420400 (0xffff940ea400): 0x00060080 Register values for WKUP_ESM_ERR_GRP_RAW_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffffa36d5000. Read at address 0x04100400 (0xffffa36d5400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffffb4c5e000. Read at address 0x04100400 (0xffffb4c5e400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffff93988000. Read at address 0x04100400 (0xffff93988400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffffb1eae000. Read at address 0x04100400 (0xffffb1eae400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffff87e6e000. Read at address 0x04100400 (0xffff87e6e400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffffb7924000. Read at address 0x04100400 (0xffffb7924400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffffa9031000. Read at address 0x04100400 (0xffffa9031400): 0x00000000 Register values for ESM_ERR_GRP_RAW_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffffae533000. Read at address 0x00420420 (0xffffae533420): 0x00000000 Register values for ESM_ERR_GRP_STS_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffff867c6000. Read at address 0x00420420 (0xffff867c6420): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffffac447000. Read at address 0x00420420 (0xffffac447420): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffff8c8a2000. Read at address 0x00420420 (0xffff8c8a2420): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffff9c810000. Read at address 0x00420420 (0xffff9c810420): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffffabc3c000. Read at address 0x00420420 (0xffffabc3c420): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffffad2ab000. Read at address 0x00420420 (0xffffad2ab420): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffffb4200000. Read at address 0x04100420 (0xffffb4200420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_STS_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffff82764000. Read at address 0x04100420 (0xffff82764420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffff882a2000. Read at address 0x04100420 (0xffff882a2420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffffa86cd000. Read at address 0x04100420 (0xffffa86cd420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffffa7bb8000. Read at address 0x04100420 (0xffffa7bb8420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffff919f0000. Read at address 0x04100420 (0xffff919f0420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffffa0196000. Read at address 0x04100420 (0xffffa0196420): 0xFFC00000 Register values for ESM_ERR_GRP_RAW_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffffbdae5000. Read at address 0x00420440 (0xffffbdae5440): 0x00000000 Register values for ESM_ERR_GRP_STS_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffffb6a1d000. Read at address 0x00420440 (0xffffb6a1d440): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffff837cb000. Read at address 0x00420440 (0xffff837cb440): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffff84caa000. Read at address 0x00420440 (0xffff84caa440): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffff8a55a000. Read at address 0x00420440 (0xffff8a55a440): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffff92302000. Read at address 0x00420440 (0xffff92302440): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffffb6308000. Read at address 0x00420440 (0xffffb6308440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffffbbfb0000. Read at address 0x04100440 (0xffffbbfb0440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffff94c9f000. Read at address 0x04100440 (0xffff94c9f440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffff94918000. Read at address 0x04100440 (0xffff94918440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffff8d935000. Read at address 0x04100440 (0xffff8d935440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffffa7816000. Read at address 0x04100440 (0xffffa7816440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffffb68d1000. Read at address 0x04100440 (0xffffb68d1440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffff90c4f000. Read at address 0x04100440 (0xffff90c4f440): 0x00000000 Register values for ESM_ERR_GRP_RAW_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffffb5d8b000. Read at address 0x00420460 (0xffffb5d8b460): 0x00000000 Register values for ESM_ERR_GRP_STS_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff851e7000. Read at address 0x00420460 (0xffff851e7460): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff9e2df000. Read at address 0x00420460 (0xffff9e2df460): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff96471000. Read at address 0x00420460 (0xffff96471460): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff8bd11000. Read at address 0x00420460 (0xffff8bd11460): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffffb70ff000. Read at address 0x00420460 (0xffffb70ff460): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff8bbd1000. Read at address 0x00420460 (0xffff8bbd1460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffff9b6c8000. Read at address 0x04100460 (0xffff9b6c8460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffb2106000. Read at address 0x04100460 (0xffffb2106460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffa6465000. Read at address 0x04100460 (0xffffa6465460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffa6bf9000. Read at address 0x04100460 (0xffffa6bf9460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffff81414000. Read at address 0x04100460 (0xffff81414460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffff83200000. Read at address 0x04100460 (0xffff83200460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffa9d62000. Read at address 0x04100460 (0xffffa9d62460): 0x00000000 Register values for ESM_ERR_GRP_RAW_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffff8481e000. Read at address 0x00420480 (0xffff8481e480): 0x0000007F Register values for ESM_ERR_GRP_STS_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffb188a000. Read at address 0x00420480 (0xffffb188a480): 0x0000007F Register values for ESM_ERR_GRP_INTR_EN_SET_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffb3059000. Read at address 0x00420480 (0xffffb3059480): 0x0000007F Register values for ESM_ERR_GRP_INTR_EN_CLR_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffa875b000. Read at address 0x00420480 (0xffffa875b480): 0x0000007F Register values for ESM_ERR_GRP_INT_PRIO_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffbc224000. Read at address 0x00420480 (0xffffbc224480): 0x0000007F Register values for ESM_ERR_GRP_PIN_EN_SET_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffa5635000. Read at address 0x00420480 (0xffffa5635480): 0x0000007F Register values for ESM_ERR_GRP_PIN_EN_CLR_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffff92df8000. Read at address 0x00420480 (0xffff92df8480): 0x0000007F Register values for WKUP_ESM_ERR_GRP_RAW_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffffbc109000. Read at address 0x04100480 (0xffffbc109480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffffa4ae4000. Read at address 0x04100480 (0xffffa4ae4480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffffb5d17000. Read at address 0x04100480 (0xffffb5d17480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffff9cd18000. Read at address 0x04100480 (0xffff9cd18480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffffbc270000. Read at address 0x04100480 (0xffffbc270480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffff968ae000. Read at address 0x04100480 (0xffff968ae480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffff8c578000. Read at address 0x04100480 (0xffff8c578480): 0x00000000 Register values for ESM_ERR_GRP_RAW_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff8ae66000. Read at address 0x004204A0 (0xffff8ae664a0): 0x00000000 Register values for ESM_ERR_GRP_STS_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff88ccf000. Read at address 0x004204A0 (0xffff88ccf4a0): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff92822000. Read at address 0x004204A0 (0xffff928224a0): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff8892c000. Read at address 0x004204A0 (0xffff8892c4a0): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff92cd1000. Read at address 0x004204A0 (0xffff92cd14a0): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff932c8000. Read at address 0x004204A0 (0xffff932c84a0): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffffb0e0d000. Read at address 0x004204A0 (0xffffb0e0d4a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffffb7fe4000. Read at address 0x041004A0 (0xffffb7fe44a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffff96720000. Read at address 0x041004A0 (0xffff967204a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffffa2c4f000. Read at address 0x041004A0 (0xffffa2c4f4a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffff951f0000. Read at address 0x041004A0 (0xffff951f04a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffffb3e8e000. Read at address 0x041004A0 (0xffffb3e8e4a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffffa9c99000. Read at address 0x041004A0 (0xffffa9c994a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffff90cf5000. Read at address 0x041004A0 (0xffff90cf54a0): 0x00000000 Register values for ESM_ERR_GRP_RAW_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffff89dae000. Read at address 0x004204C0 (0xffff89dae4c0): 0x00000000 Register values for ESM_ERR_GRP_STS_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffffa13fe000. Read at address 0x004204C0 (0xffffa13fe4c0): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffffb7276000. Read at address 0x004204C0 (0xffffb72764c0): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffff9ae96000. Read at address 0x004204C0 (0xffff9ae964c0): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffff9eee7000. Read at address 0x004204C0 (0xffff9eee74c0): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffff8fd1b000. Read at address 0x004204C0 (0xffff8fd1b4c0): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffffab4dd000. Read at address 0x004204C0 (0xffffab4dd4c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff90562000. Read at address 0x041004C0 (0xffff905624c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffffa8187000. Read at address 0x041004C0 (0xffffa81874c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff955fb000. Read at address 0x041004C0 (0xffff955fb4c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff89f81000. Read at address 0x041004C0 (0xffff89f814c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff98b16000. Read at address 0x041004C0 (0xffff98b164c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff8ad36000. Read at address 0x041004C0 (0xffff8ad364c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff80e7e000. Read at address 0x041004C0 (0xffff80e7e4c0): 0x00000000
the below are the output of base address after watchdog timer expired WDT_STATUS /dev/mem opened. Memory mapped at address 0xffffb398b000. Read at address 0x0E000098 (0xffffb398b098): 0x00000032 Register values for ESM0: Offset Value ------------------- 0x0x4 0x/dev/mem opened. Memory mapped at address 0xffffb00ff000. Read at address 0x00420004 (0xffffb00ff004): 0x00000107 0x0x8 0x/dev/mem opened. Memory mapped at address 0xffffb44b8000. Read at address 0x00420008 (0xffffb44b8008): 0x00000000 0x0xC 0x/dev/mem opened. Memory mapped at address 0xffff88f19000. Read at address 0x0042000C (0xffff88f1900c): 0x00000000 0x0x10 0x/dev/mem opened. Memory mapped at address 0xffffb864c000. Read at address 0x00420010 (0xffffb864c010): 0x00000000 0x0x14 0x/dev/mem opened. Memory mapped at address 0xffff9bba1000. Read at address 0x00420014 (0xffff9bba1014): 0x00000000 0x0x18 0x/dev/mem opened. Memory mapped at address 0xffff8c009000. Read at address 0x00420018 (0xffff8c009018): 0x00000000 0x0x1C 0x/dev/mem opened. Memory mapped at address 0xffffb958f000. Read at address 0x0042001C (0xffffb958f01c): 0x00000000 0x0x20 0x/dev/mem opened. Memory mapped at address 0xffff876b2000. Read at address 0x00420020 (0xffff876b2020): 0xFFFFFFFF 0x0x24 0x/dev/mem opened. Memory mapped at address 0xffff82921000. Read at address 0x00420024 (0xffff82921024): 0xFFFFFFFF 0x0x28 0x/dev/mem opened. Memory mapped at address 0xffffa2aa2000. Read at address 0x00420028 (0xffffa2aa2028): 0x00000000 0x0x2C 0x/dev/mem opened. Memory mapped at address 0xffff9d6b8000. Read at address 0x0042002C (0xffff9d6b802c): 0x00000000 0x0x30 0x/dev/mem opened. Memory mapped at address 0xffff9267d000. Read at address 0x00420030 (0xffff9267d030): 0x00000000 0x0x40 0x/dev/mem opened. Memory mapped at address 0xffffa3e57000. Read at address 0x00420040 (0xffffa3e57040): 0x00000000 0x0x44 0x/dev/mem opened. Memory mapped at address 0xffffa5f97000. Read at address 0x00420044 (0xffffa5f97044): 0x00000001 0x0x48 0x/dev/mem opened. Memory mapped at address 0xffffb299f000. Read at address 0x00420048 (0xffffb299f048): 0x00030D40 0x0x4C 0x/dev/mem opened. Memory mapped at address 0xffffa778e000. Read at address 0x0042004C (0xffffa778e04c): 0x00030D40 0x0x50 0x/dev/mem opened. Memory mapped at address 0xffffa3e79000. Read at address 0x00420050 (0xffffa3e79050): 0x000186A0 0x0x54 0x/dev/mem opened. Memory mapped at address 0xffffb9d7c000. Read at address 0x00420054 (0xffffb9d7c054): 0x000186A0 0x0x58 0x/dev/mem opened. Memory mapped at address 0xffff88054000. Read at address 0x00420058 (0xffff88054058): 0x000186A0 0x0x5C 0x/dev/mem opened. Memory mapped at address 0xffff8f91a000. Read at address 0x0042005C (0xffff8f91a05c): 0x000186A0 0x0x400 0x/dev/mem opened. Memory mapped at address 0xffff8a5f5000. Read at address 0x00420400 (0xffff8a5f5400): 0x00060080 0x0x404 0x/dev/mem opened. Memory mapped at address 0xffff99990000. Read at address 0x00420404 (0xffff99990404): 0x00000000 0x0x408 0x/dev/mem opened. Memory mapped at address 0xffff95b5a000. Read at address 0x00420408 (0xffff95b5a408): 0x00000000 0x0x40C 0x/dev/mem opened. Memory mapped at address 0xffffbf667000. Read at address 0x0042040C (0xffffbf66740c): 0x00000000 0x0x410 0x/dev/mem opened. Memory mapped at address 0xffffb938c000. Read at address 0x00420410 (0xffffb938c410): 0x00000000 0x0x414 0x/dev/mem opened. Memory mapped at address 0xffff964f0000. Read at address 0x00420414 (0xffff964f0414): 0x00000000 0x0x418 0x/dev/mem opened. Memory mapped at address 0xffff8e092000. Read at address 0x00420418 (0xffff8e092418): 0x00000000 Register values for WKUP_ESM0: Offset Value ------------------- 0x0x4 0x/dev/mem opened. Memory mapped at address 0xffffa2cca000. Read at address 0x04100004 (0xffffa2cca004): 0x00000103 0x0x8 0x/dev/mem opened. Memory mapped at address 0xffffa1ea1000. Read at address 0x04100008 (0xffffa1ea1008): 0x00000000 0x0xC 0x/dev/mem opened. Memory mapped at address 0xffffb8aae000. Read at address 0x0410000C (0xffffb8aae00c): 0x00000000 0x0x10 0x/dev/mem opened. Memory mapped at address 0xffffbadd8000. Read at address 0x04100010 (0xffffbadd8010): 0x00000000 0x0x14 0x/dev/mem opened. Memory mapped at address 0xffff8cf9e000. Read at address 0x04100014 (0xffff8cf9e014): 0x00000000 0x0x18 0x/dev/mem opened. Memory mapped at address 0xffffb2b60000. Read at address 0x04100018 (0xffffb2b60018): 0x00000000 0x0x1C 0x/dev/mem opened. Memory mapped at address 0xffffa0ccd000. Read at address 0x0410001C (0xffffa0ccd01c): 0x00000000 0x0x20 0x/dev/mem opened. Memory mapped at address 0xffffa9424000. Read at address 0x04100020 (0xffffa9424020): 0xFFFFFFFF 0x0x24 0x/dev/mem opened. Memory mapped at address 0xffffa2505000. Read at address 0x04100024 (0xffffa2505024): 0xFFFFFFFF 0x0x28 0x/dev/mem opened. Memory mapped at address 0xffffa14af000. Read at address 0x04100028 (0xffffa14af028): 0x00000000 0x0x2C 0x/dev/mem opened. Memory mapped at address 0xffffb3332000. Read at address 0x0410002C (0xffffb333202c): 0x00000000 0x0x30 0x/dev/mem opened. Memory mapped at address 0xffffafada000. Read at address 0x04100030 (0xffffafada030): 0x00000000 0x0x40 0x/dev/mem opened. Memory mapped at address 0xffffa013a000. Read at address 0x04100040 (0xffffa013a040): 0x00000000 0x0x44 0x/dev/mem opened. Memory mapped at address 0xffffac445000. Read at address 0x04100044 (0xffffac445044): 0x00000001 0x0x48 0x/dev/mem opened. Memory mapped at address 0xffffb6117000. Read at address 0x04100048 (0xffffb6117048): 0x00030D40 0x0x4C 0x/dev/mem opened. Memory mapped at address 0xffffa710a000. Read at address 0x0410004C (0xffffa710a04c): 0x00030D40 0x0x50 0x/dev/mem opened. Memory mapped at address 0xffff98cb1000. Read at address 0x04100050 (0xffff98cb1050): 0x000186A0 0x0x54 0x/dev/mem opened. Memory mapped at address 0xffffaf225000. Read at address 0x04100054 (0xffffaf225054): 0x000186A0 0x0x58 0x/dev/mem opened. Memory mapped at address 0xffffb325a000. Read at address 0x04100058 (0xffffb325a058): 0x000186A0 0x0x5C 0x/dev/mem opened. Memory mapped at address 0xffffa9a2b000. Read at address 0x0410005C (0xffffa9a2b05c): 0x000186A0 0x0x400 0x/dev/mem opened. Memory mapped at address 0xffff85f0e000. Read at address 0x04100400 (0xffff85f0e400): 0x00000000 0x0x404 0x/dev/mem opened. Memory mapped at address 0xffff84c46000. Read at address 0x04100404 (0xffff84c46404): 0x00000000 0x0x408 0x/dev/mem opened. Memory mapped at address 0xffff93c81000. Read at address 0x04100408 (0xffff93c81408): 0x00000000 0x0x40C 0x/dev/mem opened. Memory mapped at address 0xffffaaa7a000. Read at address 0x0410040C (0xffffaaa7a40c): 0x00000000 0x0x410 0x/dev/mem opened. Memory mapped at address 0xffffbd7ae000. Read at address 0x04100410 (0xffffbd7ae410): 0x00000000 0x0x414 0x/dev/mem opened. Memory mapped at address 0xffffb6f2e000. Read at address 0x04100414 (0xffffb6f2e414): 0x00000000 0x0x418 0x/dev/mem opened. Memory mapped at address 0xffff9b726000. Read at address 0x04100418 (0xffff9b726418): 0x00000000 Register values for ESM_ERR_GRP_RAW_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff965ac000. Read at address 0x00420400 (0xffff965ac400): 0x00060080 Register values for ESM_ERR_GRP_STS_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffffa9b07000. Read at address 0x00420400 (0xffffa9b07400): 0x00060080 Register values for ESM_ERR_GRP_INTR_EN_SET_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff9eea2000. Read at address 0x00420400 (0xffff9eea2400): 0x00060080 Register values for ESM_ERR_GRP_INTR_EN_CLR_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff92960000. Read at address 0x00420400 (0xffff92960400): 0x00060080 Register values for ESM_ERR_GRP_INT_PRIO_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffffb8d16000. Read at address 0x00420400 (0xffffb8d16400): 0x00060080 Register values for ESM_ERR_GRP_PIN_EN_SET_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff9630a000. Read at address 0x00420400 (0xffff9630a400): 0x00060080 Register values for ESM_ERR_GRP_PIN_EN_CLR_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff87b23000. Read at address 0x00420400 (0xffff87b23400): 0x00060080 Register values for WKUP_ESM_ERR_GRP_RAW_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffff9b97b000. Read at address 0x04100400 (0xffff9b97b400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffffb454a000. Read at address 0x04100400 (0xffffb454a400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffff9b12b000. Read at address 0x04100400 (0xffff9b12b400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffff9c7e6000. Read at address 0x04100400 (0xffff9c7e6400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffffbd2d0000. Read at address 0x04100400 (0xffffbd2d0400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffff83550000. Read at address 0x04100400 (0xffff83550400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffffa5636000. Read at address 0x04100400 (0xffffa5636400): 0x00000000 Register values for ESM_ERR_GRP_RAW_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffffa489a000. Read at address 0x00420420 (0xffffa489a420): 0x00000000 Register values for ESM_ERR_GRP_STS_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffffbd63c000. Read at address 0x00420420 (0xffffbd63c420): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffff8a34b000. Read at address 0x00420420 (0xffff8a34b420): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffffb0c9e000. Read at address 0x00420420 (0xffffb0c9e420): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffffb9dba000. Read at address 0x00420420 (0xffffb9dba420): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffffb2e44000. Read at address 0x00420420 (0xffffb2e44420): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffff9c2e5000. Read at address 0x00420420 (0xffff9c2e5420): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffff92c95000. Read at address 0x04100420 (0xffff92c95420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_STS_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffffaa1ed000. Read at address 0x04100420 (0xffffaa1ed420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffff8a2cf000. Read at address 0x04100420 (0xffff8a2cf420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffffb0c0c000. Read at address 0x04100420 (0xffffb0c0c420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffff95e42000. Read at address 0x04100420 (0xffff95e42420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffff9b590000. Read at address 0x04100420 (0xffff9b590420): 0xFFC00000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffffbe982000. Read at address 0x04100420 (0xffffbe982420): 0xFFC00000 Register values for ESM_ERR_GRP_RAW_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffffb1b2b000. Read at address 0x00420440 (0xffffb1b2b440): 0x00000000 Register values for ESM_ERR_GRP_STS_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffff86f51000. Read at address 0x00420440 (0xffff86f51440): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffffa6a45000. Read at address 0x00420440 (0xffffa6a45440): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffff87c4c000. Read at address 0x00420440 (0xffff87c4c440): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffff852f0000. Read at address 0x00420440 (0xffff852f0440): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffffadd91000. Read at address 0x00420440 (0xffffadd91440): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffff9e4ae000. Read at address 0x00420440 (0xffff9e4ae440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffffa0f5a000. Read at address 0x04100440 (0xffffa0f5a440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffffb933a000. Read at address 0x04100440 (0xffffb933a440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffffb13be000. Read at address 0x04100440 (0xffffb13be440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffffbcf3e000. Read at address 0x04100440 (0xffffbcf3e440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffff9985c000. Read at address 0x04100440 (0xffff9985c440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffffa04f4000. Read at address 0x04100440 (0xffffa04f4440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffff89280000. Read at address 0x04100440 (0xffff89280440): 0x00000000 Register values for ESM_ERR_GRP_RAW_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffffb4668000. Read at address 0x00420460 (0xffffb4668460): 0x00000000 Register values for ESM_ERR_GRP_STS_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff926b6000. Read at address 0x00420460 (0xffff926b6460): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffffbb5cb000. Read at address 0x00420460 (0xffffbb5cb460): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffffb93b0000. Read at address 0x00420460 (0xffffb93b0460): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff8f846000. Read at address 0x00420460 (0xffff8f846460): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffffaa830000. Read at address 0x00420460 (0xffffaa830460): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff83cf5000. Read at address 0x00420460 (0xffff83cf5460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffa5a13000. Read at address 0x04100460 (0xffffa5a13460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffbaed2000. Read at address 0x04100460 (0xffffbaed2460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffb69e4000. Read at address 0x04100460 (0xffffb69e4460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffbc48d000. Read at address 0x04100460 (0xffffbc48d460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffbcdad000. Read at address 0x04100460 (0xffffbcdad460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffff87b3f000. Read at address 0x04100460 (0xffff87b3f460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffbe904000. Read at address 0x04100460 (0xffffbe904460): 0x00000000 Register values for ESM_ERR_GRP_RAW_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffff8bd95000. Read at address 0x00420480 (0xffff8bd95480): 0x0000007F Register values for ESM_ERR_GRP_STS_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffa55f3000. Read at address 0x00420480 (0xffffa55f3480): 0x0000007F Register values for ESM_ERR_GRP_INTR_EN_SET_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffff9efd6000. Read at address 0x00420480 (0xffff9efd6480): 0x0000007F Register values for ESM_ERR_GRP_INTR_EN_CLR_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffbb1b4000. Read at address 0x00420480 (0xffffbb1b4480): 0x0000007F Register values for ESM_ERR_GRP_INT_PRIO_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffad0ad000. Read at address 0x00420480 (0xffffad0ad480): 0x0000007F Register values for ESM_ERR_GRP_PIN_EN_SET_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffff922c9000. Read at address 0x00420480 (0xffff922c9480): 0x0000007F Register values for ESM_ERR_GRP_PIN_EN_CLR_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffff8de7a000. Read at address 0x00420480 (0xffff8de7a480): 0x0000007F Register values for WKUP_ESM_ERR_GRP_RAW_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffff852d5000. Read at address 0x04100480 (0xffff852d5480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffff82feb000. Read at address 0x04100480 (0xffff82feb480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffffa91f6000. Read at address 0x04100480 (0xffffa91f6480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffff8aba6000. Read at address 0x04100480 (0xffff8aba6480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffffb1a7a000. Read at address 0x04100480 (0xffffb1a7a480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffff8424b000. Read at address 0x04100480 (0xffff8424b480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffffac354000. Read at address 0x04100480 (0xffffac354480): 0x00000000 Register values for ESM_ERR_GRP_RAW_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffffb53e1000. Read at address 0x004204A0 (0xffffb53e14a0): 0x00000000 Register values for ESM_ERR_GRP_STS_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff84dde000. Read at address 0x004204A0 (0xffff84dde4a0): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff980b5000. Read at address 0x004204A0 (0xffff980b54a0): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffffb9c9b000. Read at address 0x004204A0 (0xffffb9c9b4a0): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffffb8a4c000. Read at address 0x004204A0 (0xffffb8a4c4a0): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff9eb17000. Read at address 0x004204A0 (0xffff9eb174a0): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff985cd000. Read at address 0x004204A0 (0xffff985cd4a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffffa2b5e000. Read at address 0x041004A0 (0xffffa2b5e4a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffff81d12000. Read at address 0x041004A0 (0xffff81d124a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffff8f9fe000. Read at address 0x041004A0 (0xffff8f9fe4a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffffab480000. Read at address 0x041004A0 (0xffffab4804a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffff98a2a000. Read at address 0x041004A0 (0xffff98a2a4a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffffb3656000. Read at address 0x041004A0 (0xffffb36564a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffff8acdf000. Read at address 0x041004A0 (0xffff8acdf4a0): 0x00000000 Register values for ESM_ERR_GRP_RAW_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffffa10b0000. Read at address 0x004204C0 (0xffffa10b04c0): 0x00000001 Register values for ESM_ERR_GRP_STS_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffff9befd000. Read at address 0x004204C0 (0xffff9befd4c0): 0x00000001 Register values for ESM_ERR_GRP_INTR_EN_SET_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffff8d2c8000. Read at address 0x004204C0 (0xffff8d2c84c0): 0x00000001 Register values for ESM_ERR_GRP_INTR_EN_CLR_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffff917e8000. Read at address 0x004204C0 (0xffff917e84c0): 0x00000001 Register values for ESM_ERR_GRP_INT_PRIO_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffff9a4db000. Read at address 0x004204C0 (0xffff9a4db4c0): 0x00000001 Register values for ESM_ERR_GRP_PIN_EN_SET_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffff9746d000. Read at address 0x004204C0 (0xffff9746d4c0): 0x00000001 Register values for ESM_ERR_GRP_PIN_EN_CLR_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffffa02ab000. Read at address 0x004204C0 (0xffffa02ab4c0): 0x00000001 Register values for WKUP_ESM_ERR_GRP_RAW_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffffa015e000. Read at address 0x041004C0 (0xffffa015e4c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffffa88c6000. Read at address 0x041004C0 (0xffffa88c64c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffffa9594000. Read at address 0x041004C0 (0xffffa95944c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffffa42cd000. Read at address 0x041004C0 (0xffffa42cd4c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff9fa0f000. Read at address 0x041004C0 (0xffff9fa0f4c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff9a880000. Read at address 0x041004C0 (0xffff9a8804c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff84eb2000. Read at address 0x041004C0 (0xffff84eb24c0): 0x00000000
Is this expected for main ESM trigger? if yes
Can you please suggest additional changes required if any for MCU ESM to trigger
Best Regards,
Anil Kumar M
Hello Hong Guan ,
After referring the to AM62A TRM with the reference provided
2. AM62A TRM
10.1.1 ESM Connectivity
10.4.1.9 ESM0_INTERRUPT_MAP
Table 10-13. ESM0_INTERRUPT_MAP Memory Map
=> ESM0_ESM_PLS_EVENT_IN_192 192 RTI0_INTR_WWD_0
we modified the dts notes for AM62A requirement depending on the Interrupt ID for AM62A as highlighted in dts changes.
in K3 u-boot-2021.01+gitAUTOINC+2ee8efd654-g2ee8efd654/arch/arm/dts/k3-am62a7-sk.dts and u-boot-2021.01+gitAUTOINC+2ee8efd654-g2ee8efd654/arch/arm/dts/k3-am62a7-r5-sk.dts
&cbass_main {
main_esm: esm@420000 {
compatible = "ti,j721e-esm";
reg = <0x0 0x420000 0x0 0x1000>;
ti,esm-pins = <192>, <193>;
u-boot,dm-spl;
};
};
&cbass_mcu {
u-boot,dm-spl;
mcu_esm: esm@4100000 {
compatible = "ti,j721e-esm";
reg = <0x0 0x4100000 0x0 0x1000>;
ti,esm-pins = <30>, <195>;
u-boot,dm-spl;
};
};

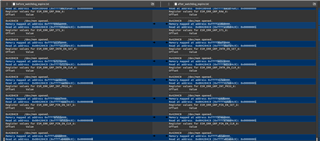

Below are the logs for read values of RTI watchdog and ESM registers before and after the watch dog timeout
Before:
root@am62axx-evm:~# ./ESM_test_all.sh WDT_STATUS /dev/mem opened. Memory mapped at address 0xffffa1871000. Read at address 0x0E000098 (0xffffa1871098): 0x00000000 WKUP_MMR0_RST_CTRL Register /dev/mem opened. Memory mapped at address 0xffff9e128000. Read at address 0x43018170 (0xffff9e128170): 0x000200FF WKUP_MMR1_RST_CTRL Register /dev/mem opened. Memory mapped at address 0xffffa371b000. Read at address 0x04518170 (0xffffa371b170): 0x00400FFF WKUP_MMR0_LOCK2_KICK0 Register /dev/mem opened. Memory mapped at address 0xffff841c1000. Read at address 0x43009008 (0xffff841c1008): 0x68EF3491 WKUP_MMR0_LOCK2_KICK1 Register /dev/mem opened. Memory mapped at address 0xffff9466c000. Read at address 0x4300900C (0xffff9466c00c): 0xD172BC5A WKUP_MMR0_WKUP_WWD0_CLKSEL Register /dev/mem opened. Memory mapped at address 0xffffa6912000. Read at address 0x43008380 (0xffffa6912380): 0x00000000 RTI4_WWDRXNCTRL Register /dev/mem opened. Memory mapped at address 0xffffa770d000. Read at address 0x0E0000A4 (0xffffa770d0a4): 0x00000005 RTI4_DWDPRLD Register /dev/mem opened. Memory mapped at address 0xffff7fee4000. Read at address 0x0E000094 (0xffff7fee4094): 0x00000FFF RTI4_DWDCTRL Register /dev/mem opened. Memory mapped at address 0xffff8e6bf000. Read at address 0x0E000090 (0xffff8e6bf090): 0x5312ACED ======================================================ESM Registers=========================================================== Register values for ESM_ERR_GRP_RAW_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffff999cc000. Read at address 0x00420400 (0xffff999cc400): 0x00000000 Register values for ESM_ERR_GRP_STS_0: Offset Value ------------------- 0x420404 /dev/mem opened. Memory mapped at address 0xffff97f75000. Read at address 0x00420404 (0xffff97f75404): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_0: Offset Value ------------------- 0x420408 /dev/mem opened. Memory mapped at address 0xffff96eee000. Read at address 0x00420408 (0xffff96eee408): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_0: Offset Value ------------------- 0x42040C /dev/mem opened. Memory mapped at address 0xffff87896000. Read at address 0x0042040C (0xffff8789640c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_0: Offset Value ------------------- 0x420410 /dev/mem opened. Memory mapped at address 0xffff84eaa000. Read at address 0x00420410 (0xffff84eaa410): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_0: Offset Value ------------------- 0x420414 /dev/mem opened. Memory mapped at address 0xffff834b0000. Read at address 0x00420414 (0xffff834b0414): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_0: Offset Value ------------------- 0x420418 /dev/mem opened. Memory mapped at address 0xffffb6980000. Read at address 0x00420418 (0xffffb6980418): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffff97b68000. Read at address 0x04100400 (0xffff97b68400): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_0: Offset Value ------------------- 0x4100404 /dev/mem opened. Memory mapped at address 0xffffacd94000. Read at address 0x04100404 (0xffffacd94404): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_0: Offset Value ------------------- 0x4100408 /dev/mem opened. Memory mapped at address 0xffff933fd000. Read at address 0x04100408 (0xffff933fd408): 0x40000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_0: Offset Value ------------------- 0x410040C /dev/mem opened. Memory mapped at address 0xffff9c228000. Read at address 0x0410040C (0xffff9c22840c): 0x40000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_0: Offset Value ------------------- 0x4100410 /dev/mem opened. Memory mapped at address 0xffff98cab000. Read at address 0x04100410 (0xffff98cab410): 0x40000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_0: Offset Value ------------------- 0x4100414 /dev/mem opened. Memory mapped at address 0xffff80f27000. Read at address 0x04100414 (0xffff80f27414): 0x40000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_0: Offset Value ------------------- 0x4100418 /dev/mem opened. Memory mapped at address 0xffff86e33000. Read at address 0x04100418 (0xffff86e33418): 0x40000000 Register values for ESM_ERR_GRP_RAW_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffff9265d000. Read at address 0x00420420 (0xffff9265d420): 0x00000000 Register values for ESM_ERR_GRP_STS_1: Offset Value ------------------- 0x420424 /dev/mem opened. Memory mapped at address 0xffff979b3000. Read at address 0x00420424 (0xffff979b3424): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_1: Offset Value ------------------- 0x420428 /dev/mem opened. Memory mapped at address 0xffffab7ad000. Read at address 0x00420428 (0xffffab7ad428): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_1: Offset Value ------------------- 0x42042C /dev/mem opened. Memory mapped at address 0xffff9d679000. Read at address 0x0042042C (0xffff9d67942c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_1: Offset Value ------------------- 0x420430 /dev/mem opened. Memory mapped at address 0xffffbe282000. Read at address 0x00420430 (0xffffbe282430): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_1: Offset Value ------------------- 0x420434 /dev/mem opened. Memory mapped at address 0xffffb2b85000. Read at address 0x00420434 (0xffffb2b85434): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_1: Offset Value ------------------- 0x420438 /dev/mem opened. Memory mapped at address 0xffffa6f87000. Read at address 0x00420438 (0xffffa6f87438): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffff8db0a000. Read at address 0x04100420 (0xffff8db0a420): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_1: Offset Value ------------------- 0x4100424 /dev/mem opened. Memory mapped at address 0xffff8b0aa000. Read at address 0x04100424 (0xffff8b0aa424): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_1: Offset Value ------------------- 0x4100428 /dev/mem opened. Memory mapped at address 0xffff947e1000. Read at address 0x04100428 (0xffff947e1428): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_1: Offset Value ------------------- 0x410042C /dev/mem opened. Memory mapped at address 0xffff908f9000. Read at address 0x0410042C (0xffff908f942c): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_1: Offset Value ------------------- 0x4100430 /dev/mem opened. Memory mapped at address 0xffffa1512000. Read at address 0x04100430 (0xffffa1512430): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_1: Offset Value ------------------- 0x4100434 /dev/mem opened. Memory mapped at address 0xffff9957b000. Read at address 0x04100434 (0xffff9957b434): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_1: Offset Value ------------------- 0x4100438 /dev/mem opened. Memory mapped at address 0xffffbf1bb000. Read at address 0x04100438 (0xffffbf1bb438): 0x00000000 Register values for ESM_ERR_GRP_RAW_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffffa4304000. Read at address 0x00420440 (0xffffa4304440): 0x00000000 Register values for ESM_ERR_GRP_STS_2: Offset Value ------------------- 0x420444 /dev/mem opened. Memory mapped at address 0xffffa1ea5000. Read at address 0x00420444 (0xffffa1ea5444): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_2: Offset Value ------------------- 0x420448 /dev/mem opened. Memory mapped at address 0xffff8ac85000. Read at address 0x00420448 (0xffff8ac85448): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_2: Offset Value ------------------- 0x42044C /dev/mem opened. Memory mapped at address 0xffffa9185000. Read at address 0x0042044C (0xffffa918544c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_2: Offset Value ------------------- 0x420450 /dev/mem opened. Memory mapped at address 0xffffa2c14000. Read at address 0x00420450 (0xffffa2c14450): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_2: Offset Value ------------------- 0x420454 /dev/mem opened. Memory mapped at address 0xffff9c392000. Read at address 0x00420454 (0xffff9c392454): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_2: Offset Value ------------------- 0x420458 /dev/mem opened. Memory mapped at address 0xffffa1364000. Read at address 0x00420458 (0xffffa1364458): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffffb1b4b000. Read at address 0x04100440 (0xffffb1b4b440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_2: Offset Value ------------------- 0x4100444 /dev/mem opened. Memory mapped at address 0xffff9321b000. Read at address 0x04100444 (0xffff9321b444): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_2: Offset Value ------------------- 0x4100448 /dev/mem opened. Memory mapped at address 0xffffadb8b000. Read at address 0x04100448 (0xffffadb8b448): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_2: Offset Value ------------------- 0x410044C /dev/mem opened. Memory mapped at address 0xffffbbcdf000. Read at address 0x0410044C (0xffffbbcdf44c): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_2: Offset Value ------------------- 0x4100450 /dev/mem opened. Memory mapped at address 0xffffa2c24000. Read at address 0x04100450 (0xffffa2c24450): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_2: Offset Value ------------------- 0x4100454 /dev/mem opened. Memory mapped at address 0xffffb99fc000. Read at address 0x04100454 (0xffffb99fc454): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_2: Offset Value ------------------- 0x4100458 /dev/mem opened. Memory mapped at address 0xffffb6d26000. Read at address 0x04100458 (0xffffb6d26458): 0x00000000 Register values for ESM_ERR_GRP_RAW_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff801f8000. Read at address 0x00420460 (0xffff801f8460): 0x00000000 Register values for ESM_ERR_GRP_STS_3: Offset Value ------------------- 0x420464 /dev/mem opened. Memory mapped at address 0xffff9ca23000. Read at address 0x00420464 (0xffff9ca23464): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_3: Offset Value ------------------- 0x420468 /dev/mem opened. Memory mapped at address 0xffff8acb6000. Read at address 0x00420468 (0xffff8acb6468): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_3: Offset Value ------------------- 0x42046C /dev/mem opened. Memory mapped at address 0xffff9b0f3000. Read at address 0x0042046C (0xffff9b0f346c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_3: Offset Value ------------------- 0x420470 /dev/mem opened. Memory mapped at address 0xffffa963a000. Read at address 0x00420470 (0xffffa963a470): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_3: Offset Value ------------------- 0x420474 /dev/mem opened. Memory mapped at address 0xffff8bafc000. Read at address 0x00420474 (0xffff8bafc474): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_3: Offset Value ------------------- 0x420478 /dev/mem opened. Memory mapped at address 0xffff9890f000. Read at address 0x00420478 (0xffff9890f478): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffff9ece7000. Read at address 0x04100460 (0xffff9ece7460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_3: Offset Value ------------------- 0x4100464 /dev/mem opened. Memory mapped at address 0xffffb8dae000. Read at address 0x04100464 (0xffffb8dae464): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_3: Offset Value ------------------- 0x4100468 /dev/mem opened. Memory mapped at address 0xffffa27f0000. Read at address 0x04100468 (0xffffa27f0468): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_3: Offset Value ------------------- 0x410046C /dev/mem opened. Memory mapped at address 0xffff8fdae000. Read at address 0x0410046C (0xffff8fdae46c): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_3: Offset Value ------------------- 0x4100470 /dev/mem opened. Memory mapped at address 0xffffb2280000. Read at address 0x04100470 (0xffffb2280470): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_3: Offset Value ------------------- 0x4100474 /dev/mem opened. Memory mapped at address 0xffff8a851000. Read at address 0x04100474 (0xffff8a851474): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_3: Offset Value ------------------- 0x4100478 /dev/mem opened. Memory mapped at address 0xffffba55b000. Read at address 0x04100478 (0xffffba55b478): 0x00000000 Register values for ESM_ERR_GRP_RAW_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffb23e7000. Read at address 0x00420480 (0xffffb23e7480): 0x00000000 Register values for ESM_ERR_GRP_STS_4: Offset Value ------------------- 0x420484 /dev/mem opened. Memory mapped at address 0xffff9d6b2000. Read at address 0x00420484 (0xffff9d6b2484): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_4: Offset Value ------------------- 0x420488 /dev/mem opened. Memory mapped at address 0xffff809dc000. Read at address 0x00420488 (0xffff809dc488): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_4: Offset Value ------------------- 0x42048C /dev/mem opened. Memory mapped at address 0xffffa6cdd000. Read at address 0x0042048C (0xffffa6cdd48c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_4: Offset Value ------------------- 0x420490 /dev/mem opened. Memory mapped at address 0xffff847ca000. Read at address 0x00420490 (0xffff847ca490): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_4: Offset Value ------------------- 0x420494 /dev/mem opened. Memory mapped at address 0xffffa0cd9000. Read at address 0x00420494 (0xffffa0cd9494): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_4: Offset Value ------------------- 0x420498 /dev/mem opened. Memory mapped at address 0xffffa7cca000. Read at address 0x00420498 (0xffffa7cca498): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffff807bb000. Read at address 0x04100480 (0xffff807bb480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_4: Offset Value ------------------- 0x4100484 /dev/mem opened. Memory mapped at address 0xffff8fe86000. Read at address 0x04100484 (0xffff8fe86484): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_4: Offset Value ------------------- 0x4100488 /dev/mem opened. Memory mapped at address 0xffff8acdb000. Read at address 0x04100488 (0xffff8acdb488): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_4: Offset Value ------------------- 0x410048C /dev/mem opened. Memory mapped at address 0xffffa5827000. Read at address 0x0410048C (0xffffa582748c): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_4: Offset Value ------------------- 0x4100490 /dev/mem opened. Memory mapped at address 0xffff9503b000. Read at address 0x04100490 (0xffff9503b490): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_4: Offset Value ------------------- 0x4100494 /dev/mem opened. Memory mapped at address 0xffff8c736000. Read at address 0x04100494 (0xffff8c736494): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_4: Offset Value ------------------- 0x4100498 /dev/mem opened. Memory mapped at address 0xffffa7e62000. Read at address 0x04100498 (0xffffa7e62498): 0x00000000 Register values for ESM_ERR_GRP_RAW_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff85c94000. Read at address 0x004204A0 (0xffff85c944a0): 0x00000000 Register values for ESM_ERR_GRP_STS_5: Offset Value ------------------- 0x4204A4 /dev/mem opened. Memory mapped at address 0xffff9848e000. Read at address 0x004204A4 (0xffff9848e4a4): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_5: Offset Value ------------------- 0x4204A8 /dev/mem opened. Memory mapped at address 0xffffb235a000. Read at address 0x004204A8 (0xffffb235a4a8): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_5: Offset Value ------------------- 0x4204AC /dev/mem opened. Memory mapped at address 0xffffb3115000. Read at address 0x004204AC (0xffffb31154ac): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_5: Offset Value ------------------- 0x4204B0 /dev/mem opened. Memory mapped at address 0xffffb9f26000. Read at address 0x004204B0 (0xffffb9f264b0): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_5: Offset Value ------------------- 0x4204B4 /dev/mem opened. Memory mapped at address 0xffff87f92000. Read at address 0x004204B4 (0xffff87f924b4): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_5: Offset Value ------------------- 0x4204B8 /dev/mem opened. Memory mapped at address 0xffff89dad000. Read at address 0x004204B8 (0xffff89dad4b8): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffffb3eb8000. Read at address 0x041004A0 (0xffffb3eb84a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_5: Offset Value ------------------- 0x41004A4 /dev/mem opened. Memory mapped at address 0xffffaa88c000. Read at address 0x041004A4 (0xffffaa88c4a4): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_5: Offset Value ------------------- 0x41004A8 /dev/mem opened. Memory mapped at address 0xffff96667000. Read at address 0x041004A8 (0xffff966674a8): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_5: Offset Value ------------------- 0x41004AC /dev/mem opened. Memory mapped at address 0xffff9afed000. Read at address 0x041004AC (0xffff9afed4ac): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_5: Offset Value ------------------- 0x41004B0 /dev/mem opened. Memory mapped at address 0xffff8ef57000. Read at address 0x041004B0 (0xffff8ef574b0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_5: Offset Value ------------------- 0x41004B4 /dev/mem opened. Memory mapped at address 0xffff815a9000. Read at address 0x041004B4 (0xffff815a94b4): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_5: Offset Value ------------------- 0x41004B8 /dev/mem opened. Memory mapped at address 0xffffbba60000. Read at address 0x041004B8 (0xffffbba604b8): 0x00000000 Register values for ESM_ERR_GRP_RAW_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffffb1c47000. Read at address 0x004204C0 (0xffffb1c474c0): 0x00000000 Register values for ESM_ERR_GRP_STS_6: Offset Value ------------------- 0x4204C4 /dev/mem opened. Memory mapped at address 0xffff95d14000. Read at address 0x004204C4 (0xffff95d144c4): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_6: Offset Value ------------------- 0x4204C8 /dev/mem opened. Memory mapped at address 0xffff96839000. Read at address 0x004204C8 (0xffff968394c8): 0x00000003 Register values for ESM_ERR_GRP_INTR_EN_CLR_6: Offset Value ------------------- 0x4204CC /dev/mem opened. Memory mapped at address 0xffff9c03f000. Read at address 0x004204CC (0xffff9c03f4cc): 0x00000003 Register values for ESM_ERR_GRP_INT_PRIO_6: Offset Value ------------------- 0x4204D0 /dev/mem opened. Memory mapped at address 0xffffb0379000. Read at address 0x004204D0 (0xffffb03794d0): 0x00000003 Register values for ESM_ERR_GRP_PIN_EN_SET_6: Offset Value ------------------- 0x4204D4 /dev/mem opened. Memory mapped at address 0xffff9f9e7000. Read at address 0x004204D4 (0xffff9f9e74d4): 0x00000003 Register values for ESM_ERR_GRP_PIN_EN_CLR_6: Offset Value ------------------- 0x4204D8 /dev/mem opened. Memory mapped at address 0xffff8e6c1000. Read at address 0x004204D8 (0xffff8e6c14d8): 0x00000003 Register values for WKUP_ESM_ERR_GRP_RAW_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffff85f0a000. Read at address 0x041004C0 (0xffff85f0a4c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_6: Offset Value ------------------- 0x41004C4 /dev/mem opened. Memory mapped at address 0xffffa52e5000. Read at address 0x041004C4 (0xffffa52e54c4): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_6: Offset Value ------------------- 0x41004C8 /dev/mem opened. Memory mapped at address 0xffff91212000. Read at address 0x041004C8 (0xffff912124c8): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_6: Offset Value ------------------- 0x41004CC /dev/mem opened. Memory mapped at address 0xffffb086e000. Read at address 0x041004CC (0xffffb086e4cc): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_6: Offset Value ------------------- 0x41004D0 /dev/mem opened. Memory mapped at address 0xffffa777a000. Read at address 0x041004D0 (0xffffa777a4d0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_6: Offset Value ------------------- 0x41004D4 /dev/mem opened. Memory mapped at address 0xffffbadd3000. Read at address 0x041004D4 (0xffffbadd34d4): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_6: Offset Value ------------------- 0x41004D8 /dev/mem opened. Memory mapped at address 0xffffb271d000. Read at address 0x041004D8 (0xffffb271d4d8): 0x00000000
root@am62axx-evm:~# ./ESM_test_all.sh WDT_STATUS /dev/mem opened. Memory mapped at address 0xffffb6b70000. Read at address 0x0E000098 (0xffffb6b70098): 0x00000032 WKUP_MMR0_RST_CTRL Register /dev/mem opened. Memory mapped at address 0xffffa774b000. Read at address 0x43018170 (0xffffa774b170): 0x000200FF WKUP_MMR1_RST_CTRL Register /dev/mem opened. Memory mapped at address 0xffff9e06e000. Read at address 0x04518170 (0xffff9e06e170): 0x00400FFF WKUP_MMR0_LOCK2_KICK0 Register /dev/mem opened. Memory mapped at address 0xffff9ab55000. Read at address 0x43009008 (0xffff9ab55008): 0x68EF3491 WKUP_MMR0_LOCK2_KICK1 Register /dev/mem opened. Memory mapped at address 0xffffa49c6000. Read at address 0x4300900C (0xffffa49c600c): 0xD172BC5A WKUP_MMR0_WKUP_WWD0_CLKSEL Register /dev/mem opened. Memory mapped at address 0xffffa45e1000. Read at address 0x43008380 (0xffffa45e1380): 0x00000000 RTI4_WWDRXNCTRL Register /dev/mem opened. Memory mapped at address 0xffff9fa6d000. Read at address 0x0E0000A4 (0xffff9fa6d0a4): 0x0000000A RTI4_DWDPRLD Register /dev/mem opened. Memory mapped at address 0xffffadd9c000. Read at address 0x0E000094 (0xffffadd9c094): 0x00000FFF RTI4_DWDCTRL Register /dev/mem opened. Memory mapped at address 0xffffb177d000. Read at address 0x0E000090 (0xffffb177d090): 0xA98559DA ======================================================ESM Registers=========================================================== Register values for ESM_ERR_GRP_RAW_0: Offset Value ------------------- 0x420400 /dev/mem opened. Memory mapped at address 0xffffa78a9000. Read at address 0x00420400 (0xffffa78a9400): 0x00000000 Register values for ESM_ERR_GRP_STS_0: Offset Value ------------------- 0x420404 /dev/mem opened. Memory mapped at address 0xffff97831000. Read at address 0x00420404 (0xffff97831404): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_0: Offset Value ------------------- 0x420408 /dev/mem opened. Memory mapped at address 0xffff8102d000. Read at address 0x00420408 (0xffff8102d408): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_0: Offset Value ------------------- 0x42040C /dev/mem opened. Memory mapped at address 0xffffbe2c3000. Read at address 0x0042040C (0xffffbe2c340c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_0: Offset Value ------------------- 0x420410 /dev/mem opened. Memory mapped at address 0xffff8fd20000. Read at address 0x00420410 (0xffff8fd20410): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_0: Offset Value ------------------- 0x420414 /dev/mem opened. Memory mapped at address 0xffffbaeb3000. Read at address 0x00420414 (0xffffbaeb3414): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_0: Offset Value ------------------- 0x420418 /dev/mem opened. Memory mapped at address 0xffff9d5e2000. Read at address 0x00420418 (0xffff9d5e2418): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_0: Offset Value ------------------- 0x4100400 /dev/mem opened. Memory mapped at address 0xffff9689c000. Read at address 0x04100400 (0xffff9689c400): 0x00000002 Register values for WKUP_ESM_ERR_GRP_STS_0: Offset Value ------------------- 0x4100404 /dev/mem opened. Memory mapped at address 0xffffb6678000. Read at address 0x04100404 (0xffffb6678404): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_0: Offset Value ------------------- 0x4100408 /dev/mem opened. Memory mapped at address 0xffffa4712000. Read at address 0x04100408 (0xffffa4712408): 0x40000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_0: Offset Value ------------------- 0x410040C /dev/mem opened. Memory mapped at address 0xffff8500a000. Read at address 0x0410040C (0xffff8500a40c): 0x40000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_0: Offset Value ------------------- 0x4100410 /dev/mem opened. Memory mapped at address 0xffff86b9e000. Read at address 0x04100410 (0xffff86b9e410): 0x40000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_0: Offset Value ------------------- 0x4100414 /dev/mem opened. Memory mapped at address 0xffff9d191000. Read at address 0x04100414 (0xffff9d191414): 0x40000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_0: Offset Value ------------------- 0x4100418 /dev/mem opened. Memory mapped at address 0xffffa47ec000. Read at address 0x04100418 (0xffffa47ec418): 0x40000000 Register values for ESM_ERR_GRP_RAW_1: Offset Value ------------------- 0x420420 /dev/mem opened. Memory mapped at address 0xffff883da000. Read at address 0x00420420 (0xffff883da420): 0x00000000 Register values for ESM_ERR_GRP_STS_1: Offset Value ------------------- 0x420424 /dev/mem opened. Memory mapped at address 0xffff8a69a000. Read at address 0x00420424 (0xffff8a69a424): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_1: Offset Value ------------------- 0x420428 /dev/mem opened. Memory mapped at address 0xffffb0a77000. Read at address 0x00420428 (0xffffb0a77428): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_1: Offset Value ------------------- 0x42042C /dev/mem opened. Memory mapped at address 0xffff89bd8000. Read at address 0x0042042C (0xffff89bd842c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_1: Offset Value ------------------- 0x420430 /dev/mem opened. Memory mapped at address 0xffffaf341000. Read at address 0x00420430 (0xffffaf341430): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_1: Offset Value ------------------- 0x420434 /dev/mem opened. Memory mapped at address 0xffff90a1d000. Read at address 0x00420434 (0xffff90a1d434): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_1: Offset Value ------------------- 0x420438 /dev/mem opened. Memory mapped at address 0xffff8504a000. Read at address 0x00420438 (0xffff8504a438): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_1: Offset Value ------------------- 0x4100420 /dev/mem opened. Memory mapped at address 0xffffabcfd000. Read at address 0x04100420 (0xffffabcfd420): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_1: Offset Value ------------------- 0x4100424 /dev/mem opened. Memory mapped at address 0xffff896d5000. Read at address 0x04100424 (0xffff896d5424): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_1: Offset Value ------------------- 0x4100428 /dev/mem opened. Memory mapped at address 0xffffa62cd000. Read at address 0x04100428 (0xffffa62cd428): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_1: Offset Value ------------------- 0x410042C /dev/mem opened. Memory mapped at address 0xffffb8def000. Read at address 0x0410042C (0xffffb8def42c): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_1: Offset Value ------------------- 0x4100430 /dev/mem opened. Memory mapped at address 0xffff9a415000. Read at address 0x04100430 (0xffff9a415430): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_1: Offset Value ------------------- 0x4100434 /dev/mem opened. Memory mapped at address 0xffffada8e000. Read at address 0x04100434 (0xffffada8e434): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_1: Offset Value ------------------- 0x4100438 /dev/mem opened. Memory mapped at address 0xffff8dd3c000. Read at address 0x04100438 (0xffff8dd3c438): 0x00000000 Register values for ESM_ERR_GRP_RAW_2: Offset Value ------------------- 0x420440 /dev/mem opened. Memory mapped at address 0xffffa63f1000. Read at address 0x00420440 (0xffffa63f1440): 0x00000000 Register values for ESM_ERR_GRP_STS_2: Offset Value ------------------- 0x420444 /dev/mem opened. Memory mapped at address 0xffffb4ef5000. Read at address 0x00420444 (0xffffb4ef5444): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_2: Offset Value ------------------- 0x420448 /dev/mem opened. Memory mapped at address 0xffff94a5e000. Read at address 0x00420448 (0xffff94a5e448): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_2: Offset Value ------------------- 0x42044C /dev/mem opened. Memory mapped at address 0xffffba3b6000. Read at address 0x0042044C (0xffffba3b644c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_2: Offset Value ------------------- 0x420450 /dev/mem opened. Memory mapped at address 0xffffb4c74000. Read at address 0x00420450 (0xffffb4c74450): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_2: Offset Value ------------------- 0x420454 /dev/mem opened. Memory mapped at address 0xffff8f8e0000. Read at address 0x00420454 (0xffff8f8e0454): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_2: Offset Value ------------------- 0x420458 /dev/mem opened. Memory mapped at address 0xffff8ae2c000. Read at address 0x00420458 (0xffff8ae2c458): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_2: Offset Value ------------------- 0x4100440 /dev/mem opened. Memory mapped at address 0xffff899b4000. Read at address 0x04100440 (0xffff899b4440): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_2: Offset Value ------------------- 0x4100444 /dev/mem opened. Memory mapped at address 0xffffa32bc000. Read at address 0x04100444 (0xffffa32bc444): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_2: Offset Value ------------------- 0x4100448 /dev/mem opened. Memory mapped at address 0xffffbd192000. Read at address 0x04100448 (0xffffbd192448): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_2: Offset Value ------------------- 0x410044C /dev/mem opened. Memory mapped at address 0xffffbce17000. Read at address 0x0410044C (0xffffbce1744c): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_2: Offset Value ------------------- 0x4100450 /dev/mem opened. Memory mapped at address 0xffffbcefc000. Read at address 0x04100450 (0xffffbcefc450): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_2: Offset Value ------------------- 0x4100454 /dev/mem opened. Memory mapped at address 0xffff94037000. Read at address 0x04100454 (0xffff94037454): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_2: Offset Value ------------------- 0x4100458 /dev/mem opened. Memory mapped at address 0xffff92288000. Read at address 0x04100458 (0xffff92288458): 0x00000000 Register values for ESM_ERR_GRP_RAW_3: Offset Value ------------------- 0x420460 /dev/mem opened. Memory mapped at address 0xffff97b36000. Read at address 0x00420460 (0xffff97b36460): 0x00000000 Register values for ESM_ERR_GRP_STS_3: Offset Value ------------------- 0x420464 /dev/mem opened. Memory mapped at address 0xffffb4f54000. Read at address 0x00420464 (0xffffb4f54464): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_3: Offset Value ------------------- 0x420468 /dev/mem opened. Memory mapped at address 0xffff8e470000. Read at address 0x00420468 (0xffff8e470468): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_3: Offset Value ------------------- 0x42046C /dev/mem opened. Memory mapped at address 0xffffbd81c000. Read at address 0x0042046C (0xffffbd81c46c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_3: Offset Value ------------------- 0x420470 /dev/mem opened. Memory mapped at address 0xffffb6804000. Read at address 0x00420470 (0xffffb6804470): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_3: Offset Value ------------------- 0x420474 /dev/mem opened. Memory mapped at address 0xffffbce0c000. Read at address 0x00420474 (0xffffbce0c474): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_3: Offset Value ------------------- 0x420478 /dev/mem opened. Memory mapped at address 0xffff88f31000. Read at address 0x00420478 (0xffff88f31478): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_3: Offset Value ------------------- 0x4100460 /dev/mem opened. Memory mapped at address 0xffffa0a6e000. Read at address 0x04100460 (0xffffa0a6e460): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_3: Offset Value ------------------- 0x4100464 /dev/mem opened. Memory mapped at address 0xffff8c047000. Read at address 0x04100464 (0xffff8c047464): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_3: Offset Value ------------------- 0x4100468 /dev/mem opened. Memory mapped at address 0xffffac49f000. Read at address 0x04100468 (0xffffac49f468): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_3: Offset Value ------------------- 0x410046C /dev/mem opened. Memory mapped at address 0xffff95848000. Read at address 0x0410046C (0xffff9584846c): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_3: Offset Value ------------------- 0x4100470 /dev/mem opened. Memory mapped at address 0xffff8c250000. Read at address 0x04100470 (0xffff8c250470): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_3: Offset Value ------------------- 0x4100474 /dev/mem opened. Memory mapped at address 0xffff91800000. Read at address 0x04100474 (0xffff91800474): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_3: Offset Value ------------------- 0x4100478 /dev/mem opened. Memory mapped at address 0xffffb6a24000. Read at address 0x04100478 (0xffffb6a24478): 0x00000000 Register values for ESM_ERR_GRP_RAW_4: Offset Value ------------------- 0x420480 /dev/mem opened. Memory mapped at address 0xffffa3d06000. Read at address 0x00420480 (0xffffa3d06480): 0x00000000 Register values for ESM_ERR_GRP_STS_4: Offset Value ------------------- 0x420484 /dev/mem opened. Memory mapped at address 0xffffb287b000. Read at address 0x00420484 (0xffffb287b484): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_4: Offset Value ------------------- 0x420488 /dev/mem opened. Memory mapped at address 0xffff96ebb000. Read at address 0x00420488 (0xffff96ebb488): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_4: Offset Value ------------------- 0x42048C /dev/mem opened. Memory mapped at address 0xffff95339000. Read at address 0x0042048C (0xffff9533948c): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_4: Offset Value ------------------- 0x420490 /dev/mem opened. Memory mapped at address 0xffff81f63000. Read at address 0x00420490 (0xffff81f63490): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_4: Offset Value ------------------- 0x420494 /dev/mem opened. Memory mapped at address 0xffff94832000. Read at address 0x00420494 (0xffff94832494): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_4: Offset Value ------------------- 0x420498 /dev/mem opened. Memory mapped at address 0xffff9f914000. Read at address 0x00420498 (0xffff9f914498): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_4: Offset Value ------------------- 0x4100480 /dev/mem opened. Memory mapped at address 0xffff8e57c000. Read at address 0x04100480 (0xffff8e57c480): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_4: Offset Value ------------------- 0x4100484 /dev/mem opened. Memory mapped at address 0xffff90fa9000. Read at address 0x04100484 (0xffff90fa9484): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_4: Offset Value ------------------- 0x4100488 /dev/mem opened. Memory mapped at address 0xffffa12a9000. Read at address 0x04100488 (0xffffa12a9488): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_4: Offset Value ------------------- 0x410048C /dev/mem opened. Memory mapped at address 0xffffb94eb000. Read at address 0x0410048C (0xffffb94eb48c): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_4: Offset Value ------------------- 0x4100490 /dev/mem opened. Memory mapped at address 0xffffadab0000. Read at address 0x04100490 (0xffffadab0490): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_4: Offset Value ------------------- 0x4100494 /dev/mem opened. Memory mapped at address 0xffff83506000. Read at address 0x04100494 (0xffff83506494): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_4: Offset Value ------------------- 0x4100498 /dev/mem opened. Memory mapped at address 0xffff9391c000. Read at address 0x04100498 (0xffff9391c498): 0x00000000 Register values for ESM_ERR_GRP_RAW_5: Offset Value ------------------- 0x4204A0 /dev/mem opened. Memory mapped at address 0xffff93f67000. Read at address 0x004204A0 (0xffff93f674a0): 0x00000000 Register values for ESM_ERR_GRP_STS_5: Offset Value ------------------- 0x4204A4 /dev/mem opened. Memory mapped at address 0xffffa9bac000. Read at address 0x004204A4 (0xffffa9bac4a4): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_SET_5: Offset Value ------------------- 0x4204A8 /dev/mem opened. Memory mapped at address 0xffffbec5e000. Read at address 0x004204A8 (0xffffbec5e4a8): 0x00000000 Register values for ESM_ERR_GRP_INTR_EN_CLR_5: Offset Value ------------------- 0x4204AC /dev/mem opened. Memory mapped at address 0xffffb7c5a000. Read at address 0x004204AC (0xffffb7c5a4ac): 0x00000000 Register values for ESM_ERR_GRP_INT_PRIO_5: Offset Value ------------------- 0x4204B0 /dev/mem opened. Memory mapped at address 0xffff97815000. Read at address 0x004204B0 (0xffff978154b0): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_SET_5: Offset Value ------------------- 0x4204B4 /dev/mem opened. Memory mapped at address 0xffff8ec5a000. Read at address 0x004204B4 (0xffff8ec5a4b4): 0x00000000 Register values for ESM_ERR_GRP_PIN_EN_CLR_5: Offset Value ------------------- 0x4204B8 /dev/mem opened. Memory mapped at address 0xffffb9382000. Read at address 0x004204B8 (0xffffb93824b8): 0x00000000 Register values for WKUP_ESM_ERR_GRP_RAW_5: Offset Value ------------------- 0x41004A0 /dev/mem opened. Memory mapped at address 0xffff9ca63000. Read at address 0x041004A0 (0xffff9ca634a0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_5: Offset Value ------------------- 0x41004A4 /dev/mem opened. Memory mapped at address 0xffffbc21c000. Read at address 0x041004A4 (0xffffbc21c4a4): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_5: Offset Value ------------------- 0x41004A8 /dev/mem opened. Memory mapped at address 0xffff93bf2000. Read at address 0x041004A8 (0xffff93bf24a8): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_5: Offset Value ------------------- 0x41004AC /dev/mem opened. Memory mapped at address 0xffffb9f1e000. Read at address 0x041004AC (0xffffb9f1e4ac): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_5: Offset Value ------------------- 0x41004B0 /dev/mem opened. Memory mapped at address 0xffffb1026000. Read at address 0x041004B0 (0xffffb10264b0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_5: Offset Value ------------------- 0x41004B4 /dev/mem opened. Memory mapped at address 0xffff917d0000. Read at address 0x041004B4 (0xffff917d04b4): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_5: Offset Value ------------------- 0x41004B8 /dev/mem opened. Memory mapped at address 0xffff8b4fe000. Read at address 0x041004B8 (0xffff8b4fe4b8): 0x00000000 Register values for ESM_ERR_GRP_RAW_6: Offset Value ------------------- 0x4204C0 /dev/mem opened. Memory mapped at address 0xffffab604000. Read at address 0x004204C0 (0xffffab6044c0): 0x00000001 Register values for ESM_ERR_GRP_STS_6: Offset Value ------------------- 0x4204C4 /dev/mem opened. Memory mapped at address 0xffffa35c8000. Read at address 0x004204C4 (0xffffa35c84c4): 0x00000001 Register values for ESM_ERR_GRP_INTR_EN_SET_6: Offset Value ------------------- 0x4204C8 /dev/mem opened. Memory mapped at address 0xffffb97e4000. Read at address 0x004204C8 (0xffffb97e44c8): 0x00000003 Register values for ESM_ERR_GRP_INTR_EN_CLR_6: Offset Value ------------------- 0x4204CC /dev/mem opened. Memory mapped at address 0xffffb10cf000. Read at address 0x004204CC (0xffffb10cf4cc): 0x00000003 Register values for ESM_ERR_GRP_INT_PRIO_6: Offset Value ------------------- 0x4204D0 /dev/mem opened. Memory mapped at address 0xffff80335000. Read at address 0x004204D0 (0xffff803354d0): 0x00000003 Register values for ESM_ERR_GRP_PIN_EN_SET_6: Offset Value ------------------- 0x4204D4 /dev/mem opened. Memory mapped at address 0xffffab9e7000. Read at address 0x004204D4 (0xffffab9e74d4): 0x00000003 Register values for ESM_ERR_GRP_PIN_EN_CLR_6: Offset Value ------------------- 0x4204D8 /dev/mem opened. Memory mapped at address 0xffffb0199000. Read at address 0x004204D8 (0xffffb01994d8): 0x00000003 Register values for WKUP_ESM_ERR_GRP_RAW_6: Offset Value ------------------- 0x41004C0 /dev/mem opened. Memory mapped at address 0xffffaab93000. Read at address 0x041004C0 (0xffffaab934c0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_STS_6: Offset Value ------------------- 0x41004C4 /dev/mem opened. Memory mapped at address 0xffff8d133000. Read at address 0x041004C4 (0xffff8d1334c4): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_SET_6: Offset Value ------------------- 0x41004C8 /dev/mem opened. Memory mapped at address 0xffffa63f1000. Read at address 0x041004C8 (0xffffa63f14c8): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INTR_EN_CLR_6: Offset Value ------------------- 0x41004CC /dev/mem opened. Memory mapped at address 0xffff99f48000. Read at address 0x041004CC (0xffff99f484cc): 0x00000000 Register values for WKUP_ESM_ERR_GRP_INT_PRIO_6: Offset Value ------------------- 0x41004D0 /dev/mem opened. Memory mapped at address 0xffffac49f000. Read at address 0x041004D0 (0xffffac49f4d0): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_SET_6: Offset Value ------------------- 0x41004D4 /dev/mem opened. Memory mapped at address 0xffff8f30d000. Read at address 0x041004D4 (0xffff8f30d4d4): 0x00000000 Register values for WKUP_ESM_ERR_GRP_PIN_EN_CLR_6: Offset Value ------------------- 0x41004D8 /dev/mem opened. Memory mapped at address 0xffffb07cc000. Read at address 0x041004D8 (0xffffb07cc4d8): 0x00000000
2)ESM_ERR_*
Still the device reset does not Occur once the Watchdog timeout happens
I have also shared the script used to read all the registers
#!/bin/sh
echo "WDT_STATUS"
devmem2 0x0E000098
#!/bin/bash
# Read and display the content of WKUP_MMR0_RST_CTRL Register
echo "WKUP_MMR0_RST_CTRL Register"
devmem2 0x43018170
# Read and display the content of WKUP_MMR1_RST_CTRL Register
echo "WKUP_MMR1_RST_CTRL Register"
devmem2 0x04518170
# Read and display the content of WKUP_MMR0_LOCK2_KICK0 Register
echo "WKUP_MMR0_LOCK2_KICK0 Register"
devmem2 0x43009008
# Read and display the content of WKUP_MMR0_LOCK2_KICK1 Register
echo "WKUP_MMR0_LOCK2_KICK1 Register"
devmem2 0x4300900C
# Read and display the content of WKUP_MMR0_WKUP_WWD0_CLKSEL Register
echo "WKUP_MMR0_WKUP_WWD0_CLKSEL Register"
devmem2 0x43008380
# Read and display the content of RTI4_WWDRXNCTRL Register
echo "RTI4_WWDRXNCTRL Register"
devmem2 0xe0000a4
# Read and display the content of RTI4_DWDPRLD Register
echo "RTI4_DWDPRLD Register"
devmem2 0xe000094
# Read and display the content of RTI4_DWDCTRL Register
echo "RTI4_DWDCTRL Register"
devmem2 0xe000090
echo "======================================================ESM Registers==========================================================="
# Base addresses
BASE_ADDR_ESM0=0x00420000
BASE_ADDR_WKUP_ESM0=0x04100000
# Loop through j values (0h to 6h)
for j in 0 1 2 3 4 5 6; do
OFFSET=$((0x400 + (j * 0x20)))
ADDR_ESM0=$(printf "0x%X" $((BASE_ADDR_ESM0 + OFFSET)))
ADDR_WKUP_ESM0=$(printf "0x%X" $((BASE_ADDR_WKUP_ESM0 + OFFSET)))
for register in "ESM_ERR_GRP_RAW" "ESM_ERR_GRP_STS" "ESM_ERR_GRP_INTR_EN_SET" \
"ESM_ERR_GRP_INTR_EN_CLR" "ESM_ERR_GRP_INT_PRIO" \
"ESM_ERR_GRP_PIN_EN_SET" "ESM_ERR_GRP_PIN_EN_CLR" \
"WKUP_ESM_ERR_GRP_RAW" "WKUP_ESM_ERR_GRP_STS" \
"WKUP_ESM_ERR_GRP_INTR_EN_SET" "WKUP_ESM_ERR_GRP_INTR_EN_CLR" \
"WKUP_ESM_ERR_GRP_INT_PRIO" "WKUP_ESM_ERR_GRP_PIN_EN_SET" \
"WKUP_ESM_ERR_GRP_PIN_EN_CLR"; do
echo "Register values for ${register}_${j}:"
echo "Offset Value"
echo "-------------------"
case "$register" in
"ESM_ERR_GRP_RAW")
ADDR=$ADDR_ESM0
;;
"ESM_ERR_GRP_STS")
ADDR=$ADDR_ESM0
;;
"ESM_ERR_GRP_INTR_EN_SET")
ADDR=$ADDR_ESM0
;;
"ESM_ERR_GRP_INTR_EN_CLR")
ADDR=$ADDR_ESM0
;;
"ESM_ERR_GRP_INT_PRIO")
ADDR=$ADDR_ESM0
;;
"ESM_ERR_GRP_PIN_EN_SET")
ADDR=$ADDR_ESM0
;;
"ESM_ERR_GRP_PIN_EN_CLR")
ADDR=$ADDR_ESM0
;;
"WKUP_ESM_ERR_GRP_RAW")
ADDR=$ADDR_WKUP_ESM0
;;
"WKUP_ESM_ERR_GRP_STS")
ADDR=$ADDR_WKUP_ESM0
;;
"WKUP_ESM_ERR_GRP_INTR_EN_SET")
ADDR=$ADDR_WKUP_ESM0
;;
"WKUP_ESM_ERR_GRP_INTR_EN_CLR")
ADDR=$ADDR_WKUP_ESM0
;;
"WKUP_ESM_ERR_GRP_INT_PRIO")
ADDR=$ADDR_WKUP_ESM0
;;
"WKUP_ESM_ERR_GRP_PIN_EN_SET")
ADDR=$ADDR_WKUP_ESM0
;;
"WKUP_ESM_ERR_GRP_PIN_EN_CLR")
ADDR=$ADDR_WKUP_ESM0
;;
esac
echo "$ADDR $(devmem2 $ADDR)"
done
done
Anil Kumar M
Hello Hong Guan,
we have few question on the same
1). If we consider the MCU ESM is triggered from the registers WKUP_ESM_ERR_*_*_ as shown in above meld diff changes in previous conversation
how do we catch the MCU interrupt for using it to triggering internal safety app ,than redirecting it to output interrupt trigger pin PMIC
2).The ESM related registers
a).ESM_ERR_*
we observe that bit 0 is getting updated but what does each bit represent here
Example
Register values for ESM_ERR_GRP_RAW_6:
Offset Value
-------------------
0x4204C0 /dev/mem opened.
Memory mapped at address 0xffff87b99000.
Read at address 0x004204C0 (0xffff87b994c0): 0x00000001
b).WKUP_ESM_ERR_ *
we observe that bit 1 is getting updated but what does each bit represent here
Example
Register values for WKUP_ESM_ERR_GRP_RAW_0:
Offset Value
-------------------
0x4100400 /dev/mem opened.
Memory mapped at address 0xffffb7afb000.
Read at address 0x04100400 (0xffffb7afb400): 0x00000002
I am also trying the U-boot method suggested in previous reply ,along with the kernel filesystem test application
Best ,
Anil Kumar M
Hi Hong Guan,
We have few questions
1) Is this expected behavior of register when the watchdog timeout with resepect to Main ESM and MCU ESM ?
IF YES,
2). If we consider the MCU ESM is triggered from the registers WKUP_ESM_ERR_*_*_ as shown in above meld diff changes in previous conversation, How do we catch the MCU interrupt for using it to triggering internal safety app ,than redirecting it to output interrupt trigger pin PMIC ?
3).The ESM related registers
a).ESM_ERR_*
We observe that bit 0 is getting updated but what does each bit represent here ?
Example
Register values for ESM_ERR_GRP_RAW_6:
Offset Value
-------------------
0x4204C0 /dev/mem opened.
Memory mapped at address 0xffff87b99000.
Read at address 0x004204C0 (0xffff87b994c0): 0x00000001
b).WKUP_ESM_ERR_ *
we observe that bit 1 is getting updated but what does each bit represent here ?
Example
Register values for WKUP_ESM_ERR_GRP_RAW_0:
Offset Value
-------------------
0x4100400 /dev/mem opened.
Memory mapped at address 0xffffb7afb000.
Read at address 0x04100400 (0xffffb7afb400): 0x00000002
