AM3352: Checkpoint for HW changes when using external RTC Chip (RX-8025T)

Hello injae hwang

Thank you for the query.

Please refer to the Errata related to the I2C interface and take care of the recommendations.

I will review the inputs.

Please expect delay in response.

Regards,

Sreenivasa

Thank you for your reply.

It's okay if it's delayed I'll be waiting for the reply.

Hello injae hwang

Thank you for the note and appreciated.

Regards,

Sreenivasa

Hello injae hwang

I have a few queries

1. Is this an existing design that you are updating

2. Would the RTC sit on-board

3. Do you have an I2C interface in mind that you would want to interface with the RTC

Regards,

Sreenivasa

1. The attached circuit diagram is the existing design (before the update).

2. The RTC IC will be installed on the motherboard.

3.  the attached circuit diagram
     delete [I2C_2_SDA(I/O_EXPANDER)] and [I2C_2_SCL(I/O_EXPANDER)] and apply RX-8025T IC.

When apply numbers 1, 2, 3, remove the 32.768 crystal of AM3352, and remove the pin No.27 Backup Battery of TPS65910.

The backup battery applies to the RX-8025T IC.

I wonder if it will work normally if I design a circuit like this.

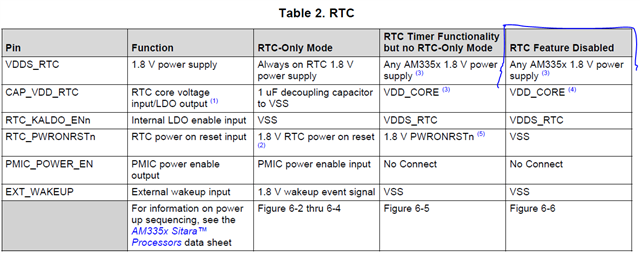

[VDDS_RTC] power is not applied to the D7 pin on the AM3352 when the backup battery power of the TPS65910 is removed. I asked because I thought it wouldn't work normally in this case.

Jay

1323.Circuit diagram.pdf

Hello injae hwang

Thank you for the note and inputs.

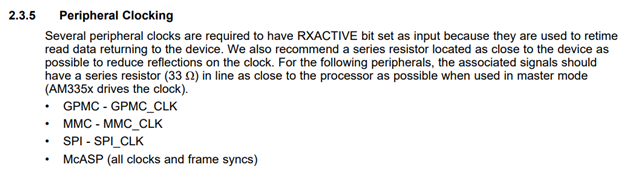

I embedded the comments i shared into the PDF for completeness and also included some suggestion that i came across while reviewing for RTC changes for performance improvement based on the schematics checklist.

We have an FAQ that provides links to the commonly used collaterals as below:

https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1189177/faq-am3351-am3352-am3354-am3356-am3357-am3358-am3359-custom-board-design-collaterals-to-get-started

Regards,

Sreenivasa
