AM62P: the DPI interface

h p

Part Number: AM62P

Hi TI Experts,

We want to output YUV DATA to external CVBS Encoder by using AM62P DPI Interface, I saw the two LSBs are ignored and only bits[9-2] are effectively for BT.656 Mode, and the four LSBs are ignored and only bits[9-2]、bits[19-12] are effectively for BT.1120_16-bit Mode in TRM.

We want to know the following questons,

1.Does the AM62P support the Y,C divided mode when outputing YUV data(like below pictures)?

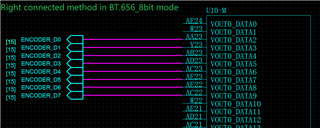

2.Does the data line of AM62P must follow the reference connneted method(only bits [9-2] are effectively used in BT.656_8-bit mode and only bits [19-12] are effectively used in BT.656_16-bit mode)? My understand is belowm, is right?

Regards,

Hang

over 1 year ago

0 Krunal Bhargav34 over 1 year ago

TI__Mastermind 44735 points

Hi,

Let me confirm internally and get back to you.

Regards,
Krunal

0 Krunal Bhargav34 over 1 year ago in reply to Krunal Bhargav34

TI__Mastermind 44735 points

Hi,

Q1. I am not sure what you are asking about? It's either RGB or YUV and for YUV, it's only BT656 or BT1120.

Q2. Yes, your understand is correct.

Regards,
Krunal

0 h p over 1 year ago in reply to Krunal Bhargav34

Prodigy 110 points

Hi Expert,

Q1. I am not sure what you are asking about? It's either RGB or YUV and for YUV, it's only BT656 or BT1120.

---Actually, I want to confirm whether the AM62P DPI interface bits [9-2] are used for Outputing Y Data and bits [19-12] are used for Outputing C Data in BT.1120 mode?

And in BT.656 mode, only bits [9-2] can be used, and can only the YC composite Data be output ?

Regards,

Hang

0 Krunal Bhargav34 over 1 year ago in reply to h p

TI__Mastermind 44735 points

Hi Hang,

Yes, your understanding is correct.

Regards,
Krunal

0 h p over 1 year ago in reply to Krunal Bhargav34

Prodigy 110 points

Hi Expert,

Thanks for your reply;

Does the AM62P support the two outputing(one for serializer, another for Encoder)from the DPI interface in the same time?

If support, which DATA line be used? and what the data type of two outputing? two bt.656? one bt.656, one RGB, or others?

Regards,

Hang

0 Krunal Bhargav34 over 1 year ago in reply to h p

TI__Mastermind 44735 points

Hi,

From DPI interface we can only output either RGB or YUV.

Regards,
Krunal

0 Yong Zhang over 1 year ago in reply to Krunal Bhargav34

TI__Genius 17451 points

Dear Hang.

we would like to close this ticket. Please let us know if you still have the question about this topic.

thanks a lot!

yong

0 Yong Zhang over 1 year ago in reply to Yong Zhang

TI__Genius 17451 points

Dear Hang.

close this ticket. please help submit new ticket in case there is new questions.

thanks a lot!

yong
