AM620-Q1: AM620-Q1 Unused interface termination

Shubham Vadnal

Part Number: AM620-Q1
Other Parts Discussed in Thread: AM625-Q1, AM625, AM623, AM625SIP

Hi TI Team,

We are doing the Custmize design with AM620-Q1 processor.

For our Application we are not using the following interface like JTAG , MCU Section- I2C) , EMU0 , EMU1 and GPMC0 section.

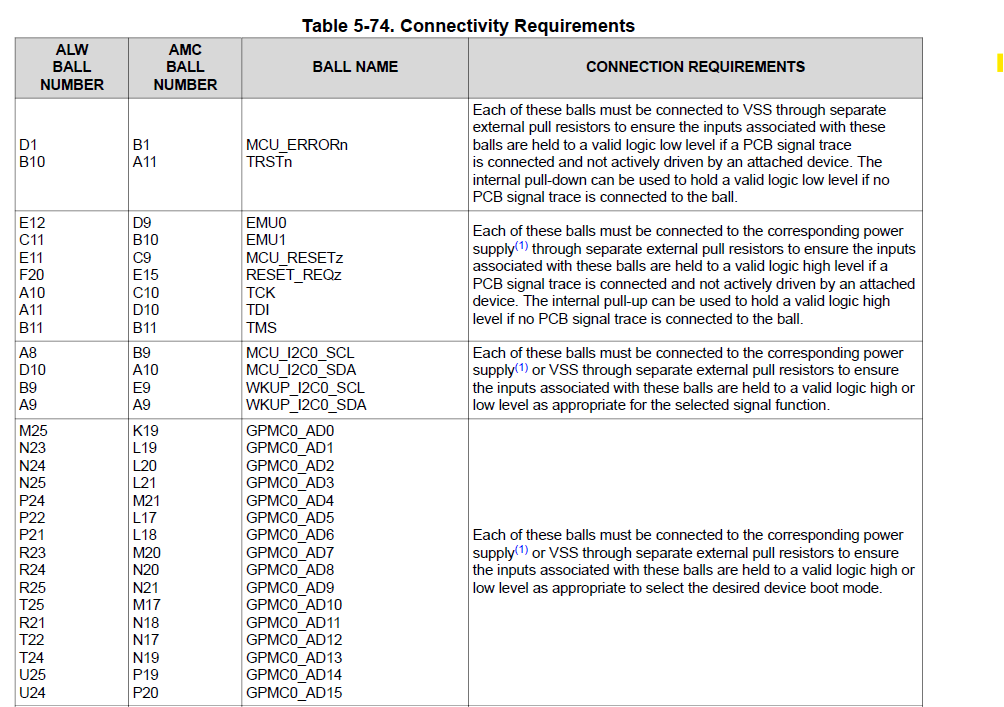

attached datasheet snap for the same.

Let us know , how we can terminate this all the signals?

Can we left unconnected this signals? or tell us the approprite termination way.

1 month ago

0 Kallikuppa Sreenivasa 1 month ago

TI__Guru**** 226215 points

Hello Shubham,

Thank you for the query.

Can you confirm if this is a initial board or updates to the boarfd

JTAG , EMU0 , EMU1

The recommendation is to provide TPs and pullups for the JTAG and EMU signals for initial boards for debug.

Regards,

Sreenivasa

+1 Kallikuppa Sreenivasa 1 month ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 226215 points

Hello Shubham,

MCU Section- I2C

The MCU_I2C0 is open drain output type I2C interface.

A pullup is recommended irrespective of the IO usage or configuration.

Add pullups even when the I2C interface is not used.

Regards,

Sreenivasa

+1 Kallikuppa Sreenivasa 1 month ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 226215 points

Hello Shubham,

The GPMC0 you showed above as part of the pin connectivity requirements are used for boot.

The recommendation is to provide provision for a pull for all the 16 bootmode inputs.

Regards,

Sreenivasa

+1 Shubham Vadnal 1 month ago in reply to Kallikuppa Sreenivasa

Prodigy 60 points

Hi Kallikuppa Sreenivasa ,

You mean is this custmization is initial board design ?

and

JTAG , EMU0 and EMU1 interface is not even using for initial phase or updates to the board.

So , what will be the pin configuration for this signals?

Thank you

0 Kallikuppa Sreenivasa 1 month ago in reply to Shubham Vadnal

TI__Guru**** 226215 points

Hello Shubham,

Thank you.

Shubham Vadnal said:
You mean is this custmization is initial board design ?

Are the boards that are being built the first set of protos (initial prototype for testing) or the board has already been built/tested and board being built is a production version.

Regards,

Sreenivasa

0 Kallikuppa Sreenivasa 1 month ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 226215 points

Hello Shubham,

For connecting the I2C, please follow the below FAQ:

[FAQ] AM625 / AM623 / AM620-Q1 / AM625-Q1 / AM625SIP Custom board hardware design – I2C interface

Regards,

Sreenivasa

0 Shubham Vadnal 1 month ago in reply to Kallikuppa Sreenivasa

Prodigy 60 points

Hi Kallikuppa Sreenivasa ,

Yes , boards that are being built the first set of protos (initial prototype for testing).

thank you.

+1 Kallikuppa Sreenivasa 1 month ago in reply to Shubham Vadnal

TI__Guru**** 226215 points

Hello Shubham,

Thank you

Shubham Vadnal said:
JTAG , EMU0 and EMU1 interface is not even using for initial phase or updates to the board.

So , what will be the pin configuration for this signals?

It is strongly recommended that you provide TP provision for JTAG interface signals and UART0 interface signals for initial boards

The bootmode configuration provision should also support configuring the debug bootmodes.

Regards,

Sreenivasa

0 Kallikuppa Sreenivasa 1 month ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 226215 points

Hello Shubham,

Please refer below FAQ for connection of open drain output type I2C interface when not used.

[FAQ] AM625 / AM623 / AM620-Q1 / AM625-Q1 / AM625SIP Custom board hardware design – I2C interface

Regards,

Sreenivasa

0 Kallikuppa Sreenivasa 1 month ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 226215 points

Hello Shubham,

FYI, we have a comprehensive checklist that can be referenced during custom board design.

https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1457736/faq-am625-am623-am620-q1-am62ax-am62px-am62d-q1-am62l-am64x-am243x-alv-am335x-design-recommendations-custom-board-hardware-design---schematics-review-checklists

Look for

Schematic Review Checklists for AM62x processor family (Recommended - Rev2)

PDF (The users guide has been updated and released recently)

https://www.ti.com/lit/pdf/sprado3

AM625, AM623, AM620-Q1, AM625-Q1, AM625SIP Processor Family Schematic Design Checklist and General Guidelines and Schematic Review Checklist (Rev. 2)

Excel

Custom board schematic design checklist and general guidelines (For use during custom board schematic design and for use along with the below custom board schematic review checklist for additional information or explanation details on the implementation to support the custom board schematic review)

AM625, AM623, AM620-Q1, AM625-Q1, AM625SIP_ Schematic_Design_Checklist_General_Guidelines_05302026_Rev2.xlsx

Custom board schematic review checklist with figures - Recommended to use after reading the above Custom board schematic design guidelines

AM625_AM623_AM620-Q1_AM625-Q1_AM625SIP_Schematic Review Checklist_05302026_Rev2.xlsx

Regards,

Sreenivasa
