AM3359: MDIO for Ethernet/IP

Hiroyasu Tazawa1

Guru 12350 points

Part Number: AM3359

Hi, Everyone

I have a question about ICEv2 board of AM335x.

ICev2 board connect both MDIO_DATA and PR1_MDIO_DATA.
(same as MDIO_CLK and PR1_MDIO_MDCLK)

My cusomer is planning Ethernet/IP for AM335x.

I think MDIO_DATA and MDIO_CLK is not needed for Ethernet/IP

This understanding is correct?

Bes Regards
Hiroyasu

over 8 years ago

0 Biser Gatchev-XID over 8 years ago

TI__Guru**** 393215 points

Hi,

If the Ethernet PHYs are connected to the PRU subsystem MII, then the PRU MDIO must be used to control the PHYs.

0 Hiroyasu Tazawa1 over 8 years ago in reply to Biser Gatchev-XID

Guru 12350 points

Hi, Biser

Thank you for your reply.

I do not understand.
You told me PRU_MDIO must be used.
then, MDIO_DATA and MDIO_CLK are needed ?

Best Regards
Hiroyasu

0 Biser Gatchev-XID over 8 years ago in reply to Hiroyasu Tazawa1

TI__Guru**** 393215 points

By PRU_MDIO I mean the signals pr1_mdio_data and pr1_mdio_mdclk

0 Hiroyasu Tazawa1 over 8 years ago in reply to Biser Gatchev-XID

Guru 12350 points

Hi, Biser

I'm sorry. I do not understand.
I asked MDIO_DATA and MDIO_CLK is needed ?

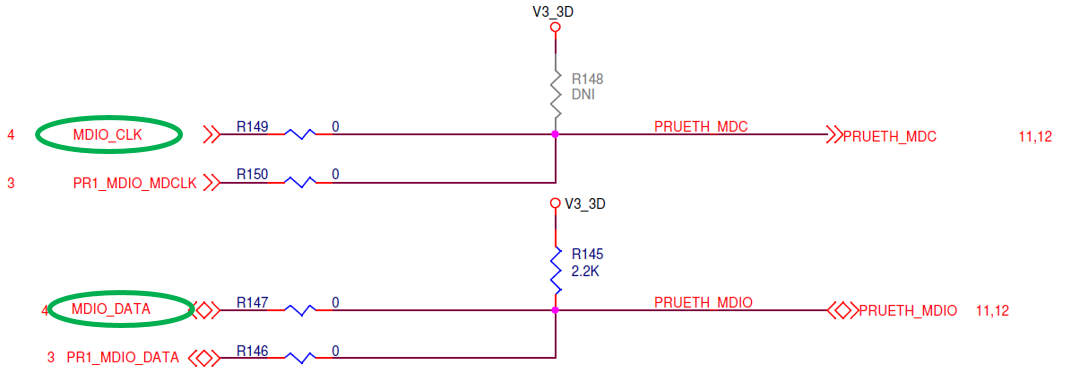

ICEv2 board is below:

PR1_MDIO_MDCLK and MDIO_CLK are connected.
and PR1_MDIO_DATA and MDIO_DATA are connected too.

Are MDIO_DATA and MDIO_CLK necessary for ISDK Ethernet/IP?
I think customer can remove MDIO_DATA and MDIO_CLK.
This understanding is correct ?

Best Regards
Hiroyasu

0 Biser Gatchev-XID over 8 years ago in reply to Hiroyasu Tazawa1

TI__Guru**** 393215 points

Yes, this is correct.

0 Hiroyasu Tazawa1 over 8 years ago in reply to Biser Gatchev-XID

Guru 12350 points

Hi, Biser

Thank you for your reply.
I got it.
Customer will remove MDIO_DATA and MDIO_CLK for Ethernet/IP of ISDK.

Best Regards
Hiroyasu
