TDA2EVM5777: TDA2XX NOR FLASH

kalaiventhan v

Expert 2350 points

Part Number: TDA2EVM5777

hi,

i need to know pin settings for NOR flashing in tda2xx board.

thanks

kalai

over 7 years ago

0 Rishabh Garg over 7 years ago

TI__Guru 55685 points

Hi,

Can you please refer to SBL user guide: processors.wiki.ti.com/.../TDA_SBL_UserGuide.pdf

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

i am tried but its not working.. its working in sd card this settings only here sw5 differ from datasheet (SW2:11100000 sw3:10000001 and sw5:00101000).

so pls give solution nor flash switch settings

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

The settings are 10101100 10000101 for SYSBOOT and 0100100000 for SW5.
Have you made the necessary board modifications as mentioned in section 6.1 of SBL user guide?

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

i am tried but its not working.. its working in sd card this settings only here sw5 differ from datasheet (SW2:11100000 sw3:10000001 and sw5:00101000).

so pls give solution nor flash switch settings

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

hi,

i done as per document but its not working.

thanks
kalaiventhan

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

Can you try nor_read_write app given here:PROCESSOR_SDK_VISION_03_04_00_00\ti_components\drivers\pdk_01_10_00_08\packages\ti\csl\example\gpmc\nor_read_write.
Also were you able to flash successfully. Can you share the output log of NOR flash writer.

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

hi,

i try using qnx software.its booted base on SD card.but its not boot using NOR flash

thanks

kalai

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

Do you have Processor SDK Vision?
If not can you download it from www.ti.com/.../PROCESSOR-SDK-TDAX and try as I have suggested above.
For qnx kindly start a new post in DRA forum: e2e.ti.com/.../1020

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

hi,

i tried with these PIN settings, its not working

thanks
kalai

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi Kalai,

Have you made necessary board modifications?
I can only help with Vision SDK.
For QnX support please post on DRA forum.

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

Hi Rishabh

what kind of board modification . i made switch setting correctly .

thanks
kalai

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

Board modifications are mentioned in section 6.1 of SBL user guide.

Regards,
Rishabh

0 Rishabh Garg over 7 years ago in reply to Rishabh Garg

TI__Guru 55685 points

Hi,

Is this issue resolved?

Regards,
Rishabh

0 Rishabh Garg over 7 years ago in reply to Rishabh Garg

TI__Guru 55685 points

Hi,

I haven't heard back from you, I'm assuming you were able to resolve your issue.
If not, just post a reply below (or create a new thread if the thread has locked due to time-out).

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

Hi,

It's not resolve .I am trying to resolve only.

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

Did you try to use Vision SDK for NOR boot?

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

hi rishabh,

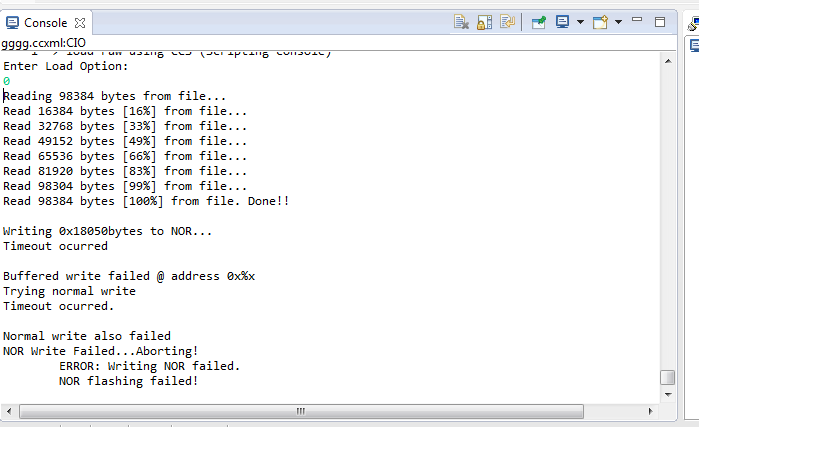

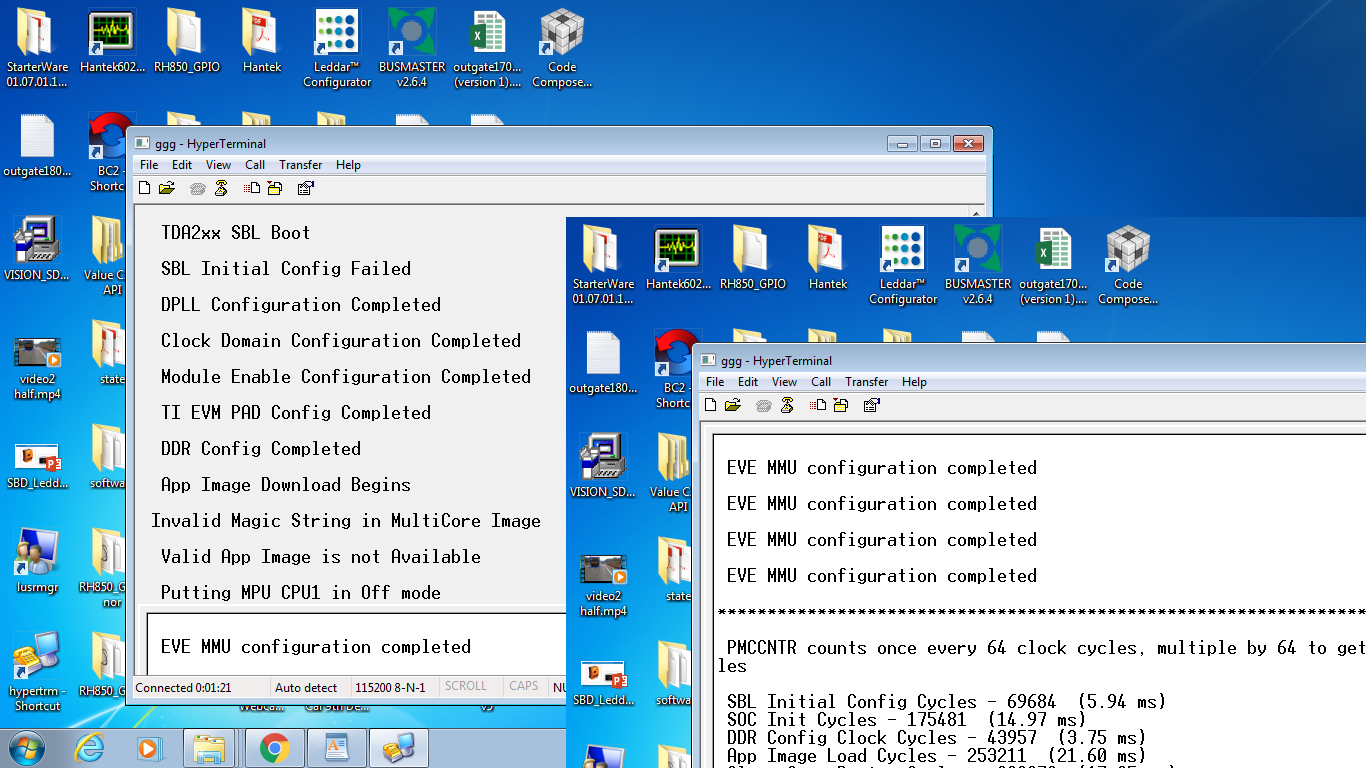

i tried with vision sdk ,there also NOR flash is not working i have attached that error screen.

thanks

kalaiventhan

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

hi rishabh,

i tried with vision sdk ,there also NOR flash is not working i have attached that error screen.

thanks

kalaiventhan

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

There is a nor_read_write application here: PROCESSOR_SDK_VISION_03_04_00_00\ti_components\drivers\pdk_01_10_00_08\packages\ti\csl\example\gpmc\nor_read_write.
Does that work for you?

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

HI,

i dont know how to check that application and also i dont have Pdk_01_10_00_08.

i have saterware path only

C:\VISION_SDK_02_12_00_00\ti_components\drivers\starterware_01_07_01_20\examples\nor\nor_read_write

but there is only .c and .h files .so please tell how to check this application

thanks
kalaiventhan

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

Can you refer to docs folder in starterware package on how to build and run starterware examples.
You can run this example using CCS.
This will check if all the switch settings, board modifications are done properly and board is in a good state.

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

hi,

i made switch settings properly. what kind of board modification we have to do?

thanks
kalaiventhan

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

I had already told you the modifications needed for address lines.
See chapter 6 of this document: processors.wiki.ti.com/.../TDA_SBL_UserGuide.pdf

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

HI,

i made board modification for NOR flash . one board is working another board is not working.

thanks
kalaiventhan

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

It will be an issue with board modifications most likely.
Can you check the HW.

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

hi,

1) i checked all connection are checked all are correct only.its not showing manufacture name also when i try nor flashing

2) nor working board have LAN issue .everytime its connecting and disconnecting

thanks
kalaiventhan

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

1. This doesn't look like SW issue at all. You need to check using oscilloscope.
2. Can you provide more details on this.

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

HI,

i am using two board.after modification one board is working NOR flash another board is not working .same procedure ,same switch setting i did but its not working

thanks
kalaiventhan.v

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

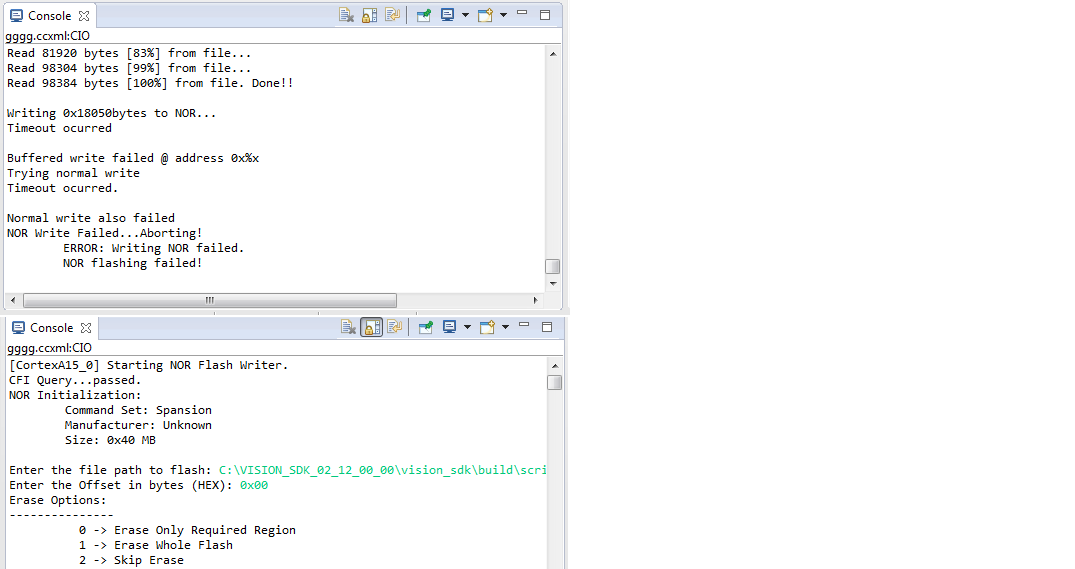

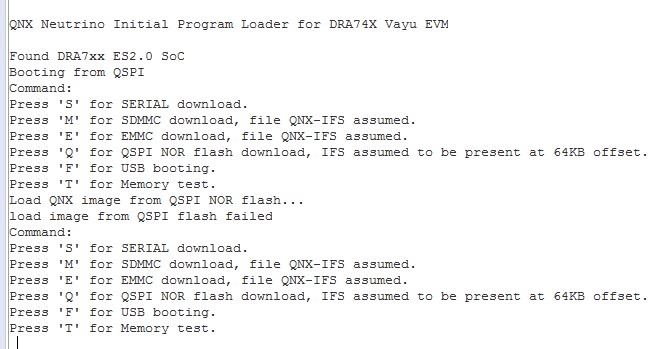

i have attached error screen

thanks

kalai

0 Rishabh Garg over 7 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi,

It is a HW issue. Did you check using oscilloscope?

Regards,
Rishabh

0 kalaiventhan v over 7 years ago in reply to Rishabh Garg

Expert 2350 points

hi,

what we have to check?

thanks
kalai

0 Yordan Kamenov over 7 years ago in reply to kalaiventhan v

TI__Mastermind 42515 points

Hi Kalai,

earlier in the thread you mentioned that you have one board working and one not working. This looks most likely as a hardware problem in the non working one (assuming you use same sw on both).
Can you check if all board modifications on the non working board are done correctly as described in SBL User guide.

Regards,
Yordan

0 kalaiventhan v over 6 years ago in reply to Yordan Kamenov

Expert 2350 points

hi,

i try to flash using nor .it was successfully flashed but i got message when execute valid appimage is not available

thanks

kalaiventhan

0 Rishabh Garg over 6 years ago in reply to kalaiventhan v

TI__Guru 55685 points

Hi Kalaiventhan,

I see you have created a new thread on this: e2e.ti.com/.../2702540
Let's take this discussion forward there and close this thread.

Regards,
Rishabh
