DM505: Pin Mux Tool

Bill Shaw
Intellectual 580 points
Part Number: DM505

Hi all,

I am looking for information on the DM505x parts.  My previous request went unanswered so I'm guessing I posted to the wrong forum?

The pin mux tool for the DM505 seems to be missing nearly 100 balls in the center of the array.  Is there another version available that has all the balls?  The only bersion I've found is DM50x_SR2.0_beta.

Thanks,

Bill

  • 0
    Intellectual 580 points

    More info....

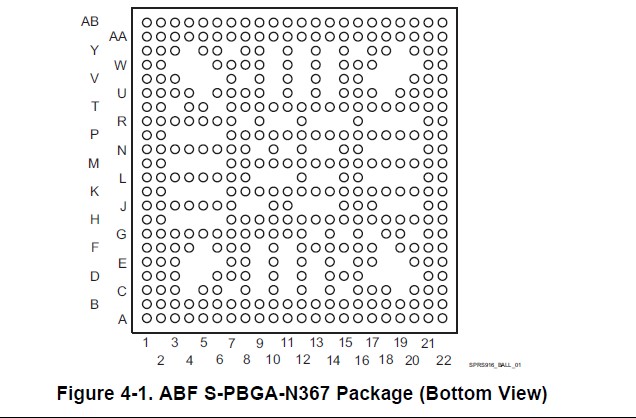

    The 505x data sheet shows the following pin configuration...

    but the pin mux tool shows a very different view with many fewer balls available (rotated & flipped to match the other one)...

    Does anyone have any idea what's going on here?  I've started building a spreadsheet manually to do my pin configuration,  but this is very time consuming and I'd bet error prone too.

    Thanks,

    Bill

  • 0 in reply to Bill Shaw
    Intellectual 580 points
    After I posted I had a BFO (Brilliant Flash of the Obvious) - is this because the pin mux tool does not manage the single function (non-muxed) pins?
  • 0 in reply to Bill Shaw
    Intellectual 580 points
    Here I go, talking to myself again....

    No, that's not entirely the case. The pin mux tool lets me select the DDR1 pinsfunctions, which are single-use pins. I'm still confused.
