TDA3: IBIS model simulation circuit

user3486358

Prodigy 130 points

Part Number: TDA3
Other Parts Discussed in Thread: DS90UB953-Q1

Hi ,

I downloaded TDA3.ibs from the web to perform SI analysis of CSI input of TDA3.

Waveform of about 800 mVpp was observed with the differential waveform.

But, measured waveform was observed about 400mVpp.

I think TDA3 ibs model dosen't include the termination resistor of CSI input.

Is a termination circuit explicitly necessary?

Best regards,

over 7 years ago

0 user3486358 over 7 years ago

Prodigy 130 points

Hi ,

Please let me know the current status regarding this issue.

Best regards,

0 Kevin S over 7 years ago in reply to user3486358

TI__Mastermind 40510 points

Hi,

My understanding is that the CSI IBIS models are separate models for the -P and -N signals; thus, the differential resistor between the -P and -N inputs is not included in the model, and the resistance needs to be added externally.

Best regards,
Kevin

0 user3486358 over 7 years ago in reply to Kevin S

Prodigy 130 points

Hi Kevin,

Please tell me where to insert external resistor in SI analysis.
Or, Could you provide a ibis model included terminal resistance like related question(DS90UB953-Q1: IBIS model simulation circuit)?

Best regards,

0 user3486358 over 7 years ago in reply to Kevin S

Prodigy 130 points

Hi Kevin,

Please let me know the current status regarding this issue.

Best regards,

0 Kevin S over 7 years ago in reply to user3486358

TI__Mastermind 40510 points

Hi,

Per my understanding , the CSI input termination resistance should be located in the model as close as possible to the RX input buffers.

Best regards,
Kevin

0 user3486358 over 6 years ago in reply to Kevin S

Prodigy 130 points

Hi Kevin,

Thank you for your reply.
In addition please tell me below.

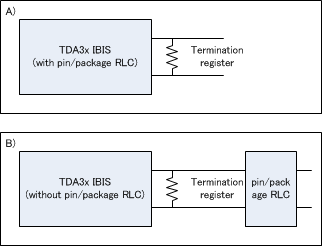

Which means A or B that the CSI input termination resistance is located in the model as close as possible to the RX input buffers?

Best regards,

0 Kevin S over 6 years ago in reply to user3486358

TI__Mastermind 40510 points

Hi,

B would more closely resemble the hardware since the termination resistance is a part of the IO buffer. Thus, we would recommend B if your simulation tool allows this model.

Best regards,
Kevin

0 user3486358 over 6 years ago in reply to Kevin S

Prodigy 130 points

Hi Kevin,

Thanks for your support.

Best Regards,
