TDA4VM: Using NOR Flash to store the primary and secondary bootloader

Hi Karan,

I have already gone through this and using devices OSPI and QSPI . In this example they have used SD card and i can use UART xmodem and ymodem to transfer the files.

Question --> no matter what i use here for transferring the above mentioned file, i need to reach u-boot prompt somehow right ? I assume you are using here SD card ?

How can i use uniflash to load the uboot with UART . The document is created using the instructions mentioned , do you suggest adding something here ?How can i use uniflash to load the uboot with uart on board.docxon board?

Regards

Manish

Hi Manish,

Manish Ahlawat said:

no matter what i use here for transferring the above mentioned file, i need to reach u-boot prompt somehow right ? I assume you are using here SD card ?

Not necessarily, you can also use the uniflash tool to do the same. Just flash to the correct addresses and you should be good to go.

I'm assuming you have a familiarity with flashing using uniflash. If not, I have a quick reference - http://downloads.ti.com/jacinto7/esd/processor-sdk-rtos-jacinto7/latest/exports/docs/mcusw/mcal_drv/docs/drv_docs/demo_xip_profile_top.html#demo_xip_profile_flash

The above is just to give you an idea on commands to flash. The UART SBL still needs to be flashed, so you need to run -

./dslite.sh –mode processors -c /dev/ttyUSB1 -f (Path to Uniflash Install Directory)/processors/FlashWriter/j721e_evm/uart_j721e_evm_flash_programmer_release.tiimage -i 0

But after that you can flash anything. Please let me know if you see issues, I can reproduce your setup here and give more pointed answers.

Regarsd,

Karan

Hi Karan,

./dslite.sh –mode processors -c /dev/ttyUSB1 -f (Path to Uniflash Install Directory)/processors/FlashWriter/j721e_evm/uart_j721e_evm_flash_programmer_release.tiimage -i 0 - In this command the -i is small or capital as small i doesn't work ?

On Linux Laptop - Terminal hangs when i run the command, please see the attachment.

Regards
Manish

Hi Karan,

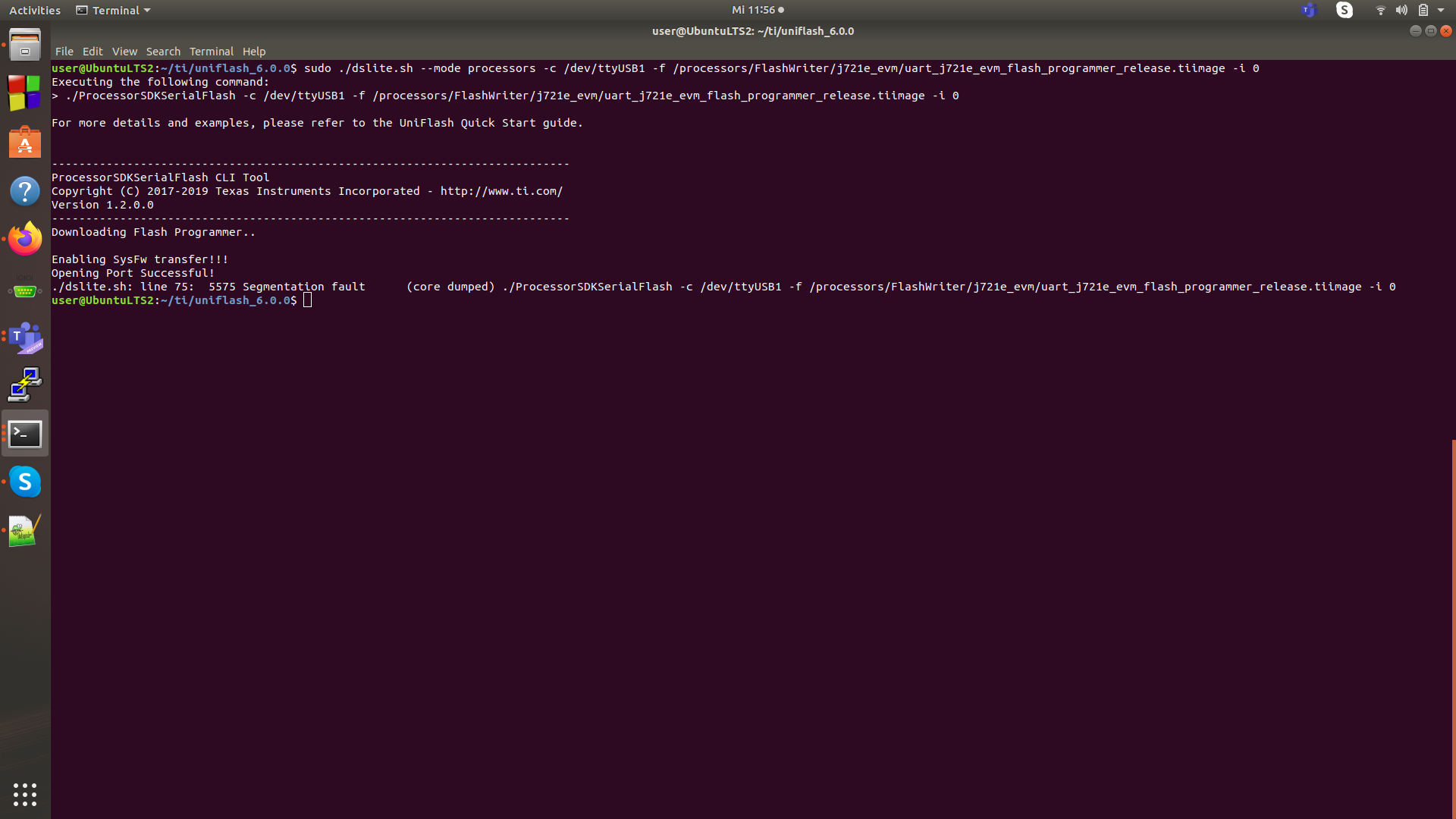

That was taken care but now segmentation error. Kindly see the attachment.

Regards

Manish

Hi Karan,

That was taken care but now segmentation error. Kindly see the attachment.

Regards

Manish

Manish,

Are you in the UART boot mode while flashing? Please refer to the link I sent before - http://downloads.ti.com/jacinto7/esd/processor-sdk-rtos-jacinto7/latest/exports/docs/mcusw/mcal_drv/docs/drv_docs/demo_xip_profile_top.html#demo_xip_profile_flash

Also please let me try, I've always used the uniflash 5.3. I believe you are on 6.0 (please confirm)

Regards,

Karan

yes i am using the version 6 and yes i am in UART mode at the moment and i see the ccc printed on my terminal when i connect. I am connected to MCU Domain UART port.

Hi Karan,

So it worked.

Now I would like to use UniFlash to flash the u-boot files needed by primary bootloader and secondary : https://software-dl.ti.com/jacinto7/esd/processor-sdk-linux-jacinto7/latest/exports/docs/linux/Foundational_Components_U-Boot.html#ospi-qspi

The addresses mentioned in the link above for tiboot3.bin (0), tispl ( 80000) and so on in flash layout are ok? can i use these addresses directly to flash using uniflash with the command mentioned in :

dslite.sh --mode processors -c <COM_Port> -f <Path_to_the_file_to_be_transfered> -d <Device_Type> -i <Image_Type> -e <erase_length> -o <Offset>

Regards
Manish

Hi Manish,

Yes you can use the same offsets.

Please note that you can follow the http://downloads.ti.com/jacinto7/esd/processor-sdk-rtos-jacinto7/latest/exports/docs/mcusw/mcal_drv/docs/drv_docs/demo_xip_profile_top.html#demo_xip_profile_flash page for this too.

#same as before (this needs to be done everytime you start to flash
sudo ./dslite.sh --mode processors -c /dev/ttyUSB1 -f /home/karan/ti/uniflash_6.0.0/processors/FlashWriter/j721e_evm/uart_j721e_evm_flash_programmer_release.tiimage -i 0

#start flashing your binaries (this can be done for all the binaries)
sudo ./dslite.sh --mode processors -c /dev/ttyUSB1 -f <Absolute path to the first binary> -d 3 -o <offset in HEX>
sudo ./dslite.sh --mode processors -c /dev/ttyUSB1 -f <Absolute path to the second binary> -d 3 -o <offset in HEX>
...
and so on

Regards,

Karan

Hi Karan,

I understood what you mean but that is the case when i restart or disconnect with the HW. When i restarted my computer i got this error while transferring (See Attachment)

Regards

Manish

Manish,

I remember you said that this stage passed? Are you stuck here again? What command did you run and what changed between now and the successful run?

Regards,

Karan

I connected to main UART and i can see the logs and it enters into u-boot prompt -->

Please also change the MCU UART to main UART in line Power off the board and change the bootmode to OSPI. Connect to second instance of UART and Power on the board. You should see the logs on the MCU uart console in the document

http://downloads.ti.com/jacinto7/esd/processor-sdk-rtos-jacinto7/latest/exports/docs/mcusw/mcal_drv/docs/drv_docs/demo_xip_profile_top.html#demo_xip_profile_flash

Hi Karan,

Thanks a lot for support and yes we can close this Thread. Attaching the log from the u-boot, hope it looks fine to you ?

user@UbuntuLTS2:~$ picocom -b 115200 /dev/ttyUSB0
picocom v2.2

port is        : /dev/ttyUSB0
flowcontrol    : none
baudrate is    : 115200
parity is      : none
databits are   : 8
stopbits are   : 1
escape is      : C-a
local echo is  : no
noinit is      : no
noreset is     : no
nolock is      : no
send_cmd is    : sz -vv
receive_cmd is : rz -vv -E
imap is        :
omap is        :
emap is        : crcrlf,delbs,

Type [C-a] [C-h] to see available commands

Terminal ready

U-Boot SPL 2019.01-g350f3927b8 (Feb 17 2020 - 09:46:23 +0000)
SYSFW ABI: 2.9 (firmware rev 0x0013 '19.12.1-v2019.12a (Terrific Lla')
Trying to boot from SPI
Loading Environment from MMC... spl: unsupported mmc boot device.
sdhci@4f80000 - probe failed: -19
spl: unsupported mmc boot device.
sdhci@4fb0000 - probe failed: -19
*** Warning - No MMC card found, using default environment

Loading rproc fw image from device 3 not supported!
Loading rproc fw image from device 3 not supported!
Starting ATF on ARM64 core...

NOTICE:  BL31: v2.2(release):ti2019.05-rc1
NOTICE:  BL31: Built : 09:32:00, Feb 17 2020
I/TC:
I/TC: OP-TEE version: ti2019.05-rc1-dev (gcc version 8.3.0 (GNU Toolchain for the A-profile Architecture 8.3-2019.03 (arm-rel-8.36))) #1 Mon Feb 17 09:40:16 UTC 2020 aarch64
I/TC: Initialized

U-Boot SPL 2019.01-g350f3927b8 (Feb 17 2020 - 09:48:06 +0000)
Detected: J7X-BASE-CPB rev E3
Detected: J7X-VSC8514-ETH rev E2
Trying to boot from SPI


U-Boot 2019.01-g350f3927b8 (Feb 17 2020 - 09:48:06 +0000)

SoC:   J721E PG 1.0
Model: Texas Instruments K3 J721E SoC
Board: J721EX-PM2-SOM rev E7
DRAM:  4 GiB
Flash: 0 Bytes
MMC:   sdhci@4fb0000 - probe failed: -123
sdhci@4f80000: 0
Loading Environment from MMC... OK
In:    serial@2800000
Out:   serial@2800000
Err:   serial@2800000
Detected: J7X-BASE-CPB rev E3
Detected: J7X-VSC8514-ETH rev E2
Net:
Warning: ethernet@046000000 using MAC address from ROM
eth0: ethernet@046000000
Hit any key to stop autoboot:  0
no mmc device at slot 1
SD/MMC found on device 1

Hi Manish,

Yes these look fine.

Please click on "verify answer" on the answer that solved your issue to close it.

Regards,

Karan

ok closed the thread. thank you and have a nice day.
