AM3352: Where could I find out USB eye diagrams test report for TI AM335x EVM?

Daniel Cheng1

Part Number: AM3352

Hi Expert,

Is there any document for the High-Speed Host and High-Speed Device eye diagrams from the TI AM335x General Purpose EVM?

Thanks

Daniel

over 4 years ago

0 PaulM over 4 years ago

TI__Mastermind 28385 points

Daniel

I'll check, but I do not believe that one is available.

--Paul

0 Daniel Cheng1 over 4 years ago in reply to PaulM

Mastermind 7265 points

Hi Paul

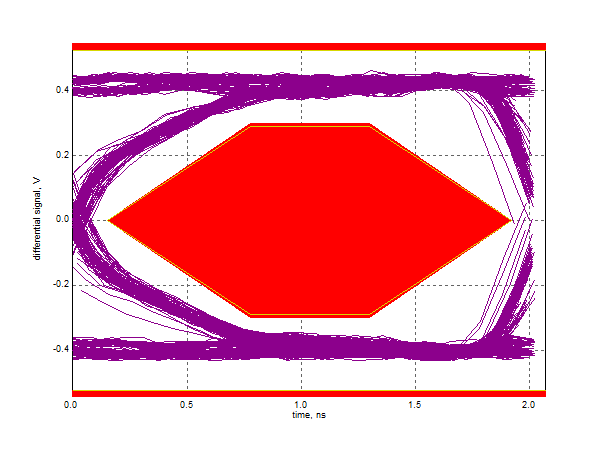

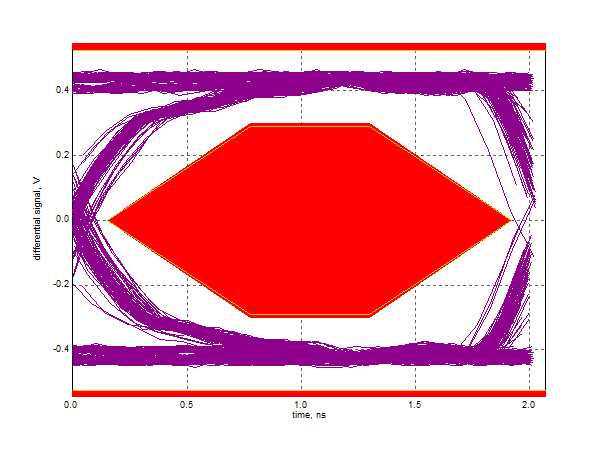

Below are the High-Speed Host and High-Speed Device eye diagrams from the TI AM335x General Purpose EVM.

Is the test report pass or fail?

Are there usb eye diagrams for usb 1.1?

Thanks

Daniel

0 PaulM over 4 years ago in reply to Daniel Cheng1

TI__Mastermind 28385 points

Daniel

Resolution is not ideal, but the second diagram looks close but appears not to violate the eye on the right.

Please remember that the EVM is for functional evaluation and not an example of a production ready design.

I'll continue to looking for test diagrams and will update you with what I find. Please note that it may take a little while as our guru is currently not available

--Paul
