Compressed and Extended Spring detection with LDC

ttd
Mastermind 8340 points



Dear Technical Support Team,



Following calculation tool shows how to calculate L for Spring.

It doesn't include wire diameter. It doesn't affect L calculation, does it?

http://www.ti.com/jp/lit/zip/slyc137

Best Regards,

y.i

  • 0
    TI__Genius 13650 points
    Hi Y.I,
    the calculation is an approximated model, but it is typically accurate enough for inductive sensing applications. Note that the purpose of the equation above is to find out if a certain spring can be used, and to approximate the % inductance change. More accurate models to varying degrees of complexity and accuracy are available online.

    There are several terms that the above equation neglects (wire thickness, oscillation frequency, length/diameter ratio), but the effect is typically very small for most springs compared to changes in diameter, number of turns, or length.
  • 0 in reply to Ben Kasemsadeh
    Mastermind 8340 points

    Hi,

    Thank you for your reply.

    >More accurate models to varying degrees of complexity and accuracy are available online.

    ⇒Does it mean WEBENCH Coil Designer?

        It seems that it doesn't includes spring on Select Coil Type.

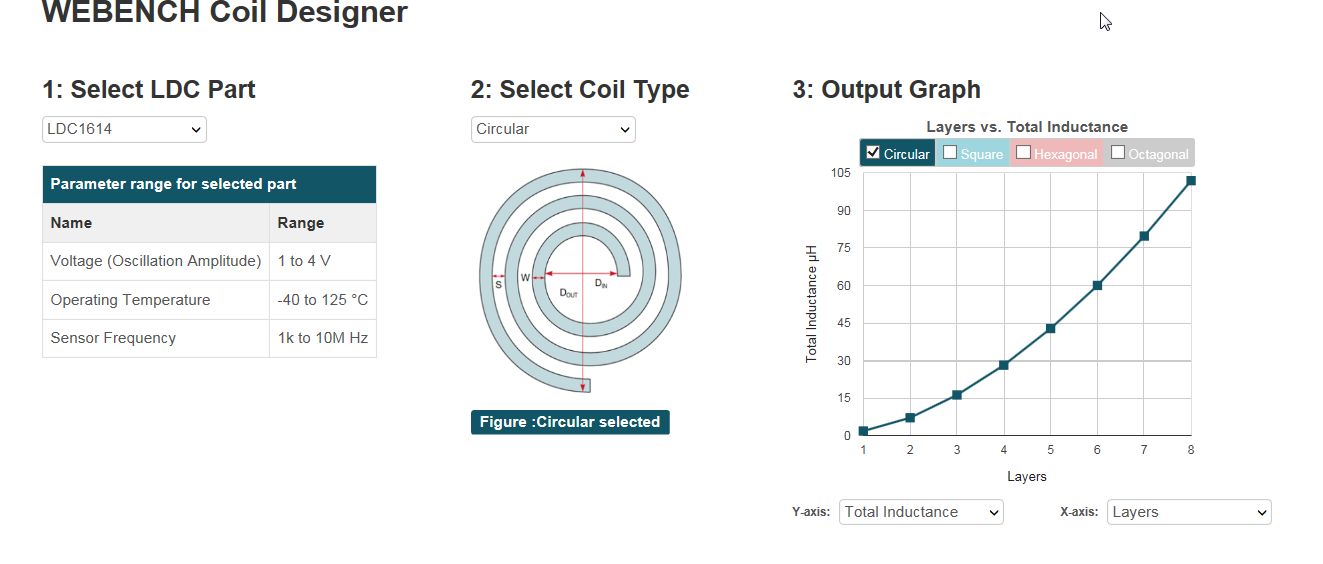

        Can I use Circular instead of Spring like following?

        But at first , I'd like to use a spring calculation on excell.

    Best Regards,

    y.i

  • 0 in reply to ttd
    TI__Genius 13650 points
    Hi Y.I,
    Webench does not currently support springs.
    Our calculator spreadsheet has a tab on springs with the equation above: www.ti.com/.../slyc137
