Hi ,

I have trouble while performing flash operations. Please let me know what has to be done.

Thanks

SharonError during flashing ports.docx

over 7 years ago

0 Kyle Cousino over 7 years ago

TI__Mastermind 24955 points

Sharon,

Please ensure that you have jumpers across both SOP0 and SOP2. This is the required configuration of the SOP pins when flashing an application binary to the device. Once the device is flashed, remove SOP2 and keep SOP0 on the board.

Regards,
Kyle

0 Sharon Naveena Rajan over 7 years ago in reply to Kyle Cousino

Intellectual 540 points

Hi Kyle,

Yes, I have used jumpers across SOP0 and SOP2. Im getting an error message saying "Image loading failed , not able to connect to the serial port"

0 Kyle Cousino over 7 years ago in reply to Sharon Naveena Rajan

TI__Mastermind 24955 points

Sharon,

Please make you close any other applications that may be trying to access the COM ports for the IWR1642 at the same time that Uniflash is trying to program the device.

Regards,
Kyle

0 Sharon Naveena Rajan over 7 years ago in reply to Kyle Cousino

Intellectual 540 points

Hi Kyle,

All the other applications were closed before performing flash operation, the error displayed is - [ERROR] Cortex_R4_0. I have attached the error message, please go through and let me know what has to be done.

Thank you

Sharon1440.Error during flashing ports.docx

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Hello Kyle,

Can you please help me performing the flash operation for IWR1642BOOST EVM and to successfully run the people counting demo.

Thanks and Regards,

Sharon

0 Kyle Cousino over 7 years ago in reply to Sharon Naveena Rajan

TI__Mastermind 24955 points

Sharon,

I have referred your request to our people counting expert who can assist you in your requests related to the people counting demo.

Regards,
Kyle

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Thank You Kyle.

Regards,

Sharon

0 Justin Curewitz over 7 years ago in reply to Sharon Naveena Rajan

TI__Mastermind 28055 points

Hi Sharon,

Please see the People Counting Quickstart guide for details.

Regards,

Justin

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Hi Justin,

I have problem performing the flash operation. The COM to COM Port 4 is not getting flashed.

0 Justin Curewitz over 7 years ago in reply to Sharon Naveena Rajan

TI__Mastermind 28055 points

Hi Sharon,

Please make sure you have:

Jumpers on SOP0 and SOP2
Power Cycle the Device
Ensure the "UART" COM port is selected in Uniflash.

Regards,

Justin

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Hello Justin,

Please find the attached file.

Thanks

Error during flashing ports.docx

0 Justin Curewitz over 7 years ago in reply to Sharon Naveena Rajan

TI__Mastermind 28055 points

Hi Sharon,

Remove the space after COM4. Is your jumper configuration correct?

Regards,
Justin

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Hi Justin,

I was able to flash it now. I got the message "Program load completed successfully". Please let me know what has to be done next.

Thanks

0 Justin Curewitz over 7 years ago in reply to Sharon Naveena Rajan

TI__Mastermind 28055 points

Hi Sharon,

Please remove the jumper on SOP2 and follow the instructions in the quickstart guide linked above.

Regards,
Justin

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Hi Justin,

I removed the SOP2 Jumper. Now I am importing the lab project, I downloaded the CSS from Resource Explorer, but the files are not getting downloaded. It shows only till 88%, is there a problem in CCS.

Thanks

0 Justin Curewitz over 7 years ago in reply to Sharon Naveena Rajan

TI__Mastermind 28055 points

Hi Sharon,

You need to download the Industrial Toolbox. CCS is not required to run the precompiled version of People Counting.

Once the Industrial Toolbox is downloaded, you will be able to access the labs section - it sounds like you already have this if you have Flashed the EVM with the Software.

If your EVM is flashed with the People Counting Software, you just need to run the Matlab GUI to initialize the sensor and view the output.

Regards,
Justin

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Hi Justin,

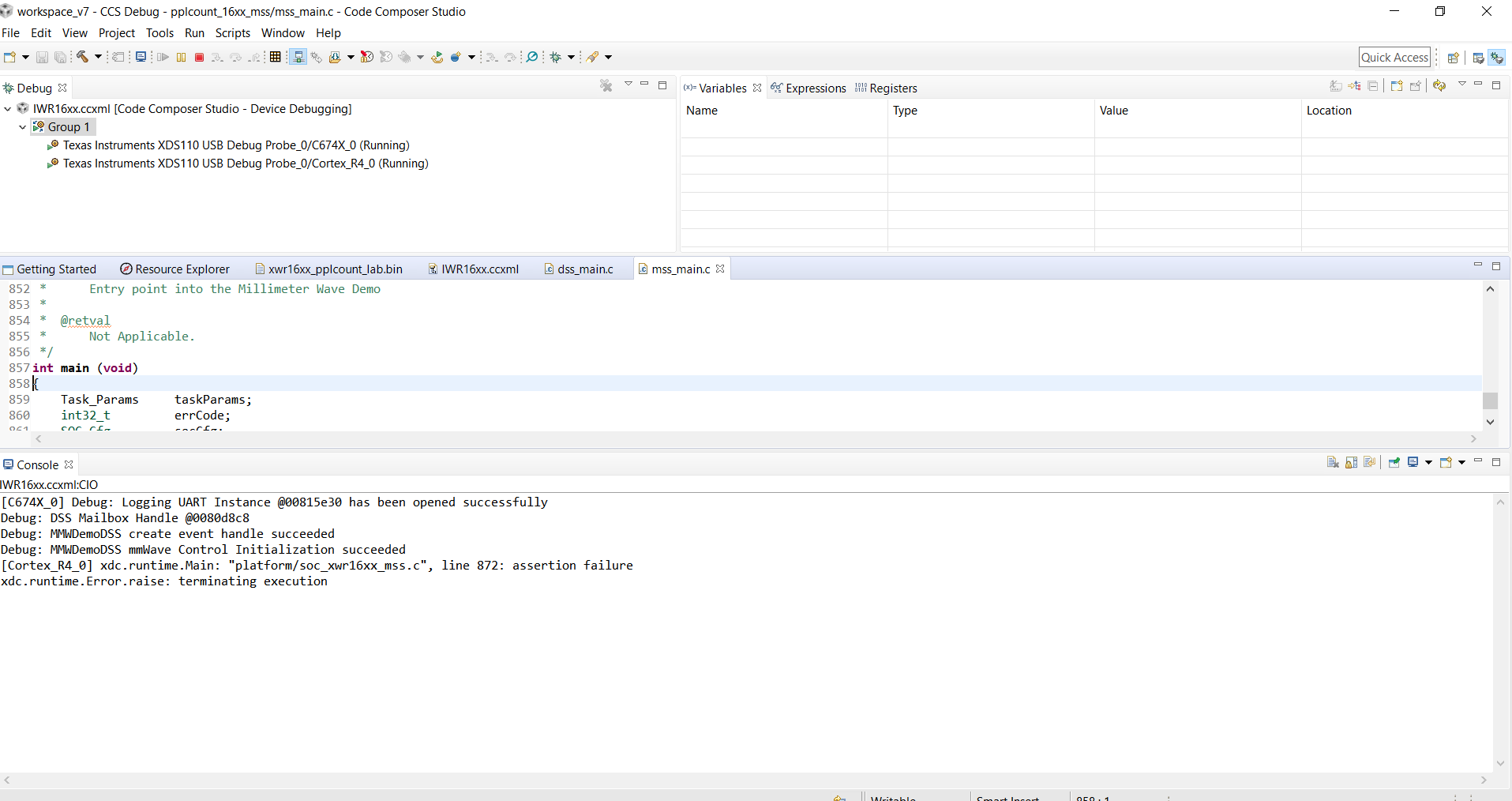

I was able to perform all the steps, but at last I received a message saying "terminating execution". PFA and let me know what has to be done further.

Thanks and Regards,

Sharon

0 Justin Curewitz over 7 years ago in reply to Sharon Naveena Rajan

TI__Mastermind 28055 points

Hi Sharon,

You do not need to run the demo with CCS. The binary you flashed is a standalone executable. Instead of using CCS, simply Powercycle the board and run the Matlab GUI.

Regards,
Justin

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Hi Justin,

Alright. I followed the instructions from the guide, After flashing the ports , I was able to view the GUI. is that all the demo is? or Should I perform any customization to perform the people counting demo? I tried flashing the ports again but not able to do so, since I followed the steps from the guide and flashed the EVM with xwr16xx_ccsdebug.bin image.

Thanks and Regards,

Sharon

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Hello Justin,

PFA. is this the final step for people counting demo?

Thanks

0 Justin Curewitz over 7 years ago in reply to Sharon Naveena Rajan

TI__Mastermind 28055 points

Hi Sharon,

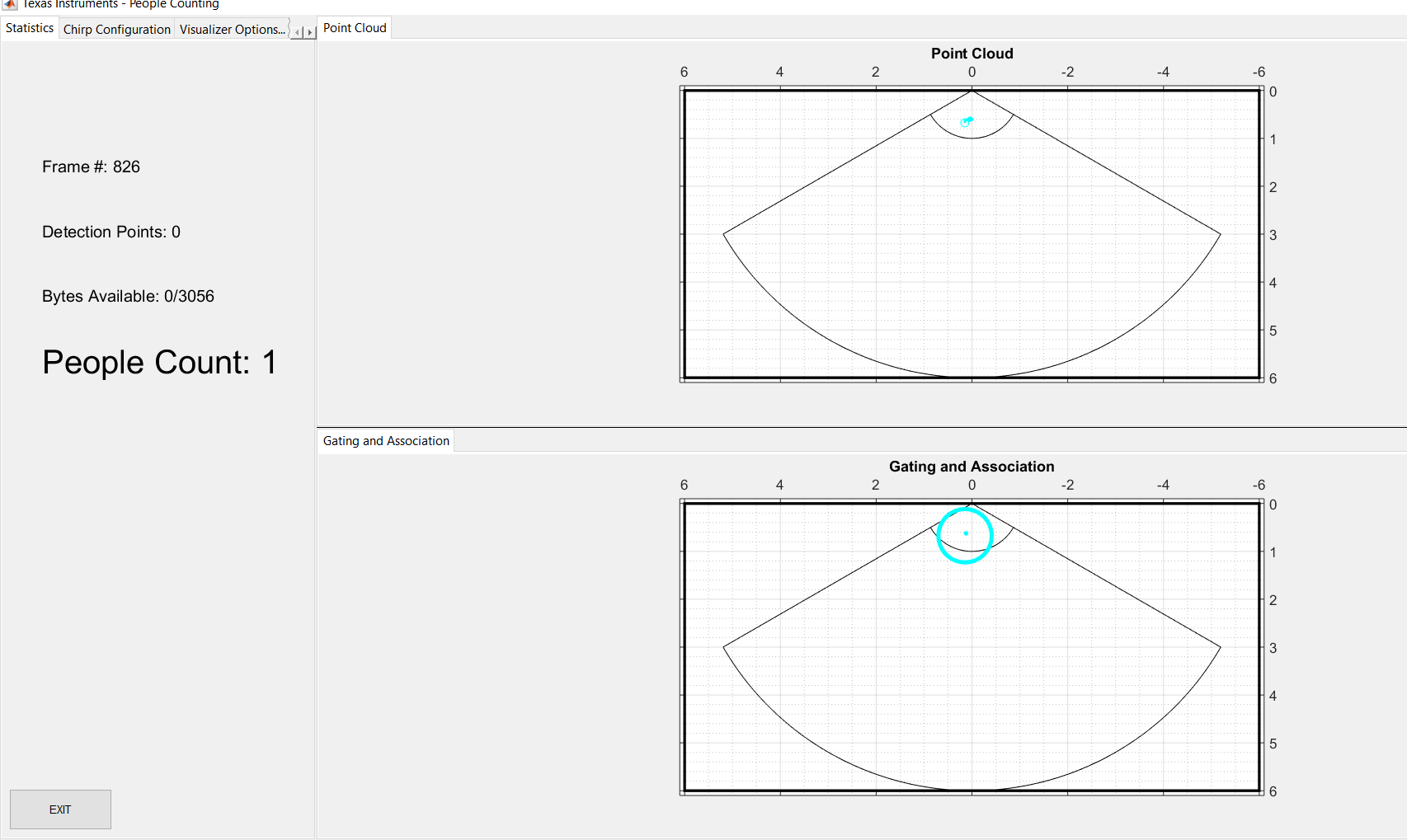

The attached picture is the correct output.

Regards,
Justin

0 Sharon Naveena Rajan over 7 years ago

Intellectual 540 points

Thank You Justin. I will contact you if in case I need any further help. Your help is much appreciated.
