PSPICE-FOR-TI: Adding ISOM8110 model to Pspice for TI

Roger Longstreet

Part Number: PSPICE-FOR-TI
Other Parts Discussed in Thread: ISOM8110

Tool/software:

TI experts - I am looking for assistance adding the ISOM8110 pspice model into Pspice for TI. I have downloaded the model from the product page. Any help would be much appreciated! Thanks.

over 1 year ago

0 Andrew J over 1 year ago

TI__Mastermind 28415 points

Hello Roger,

I am happy to see that you are using our ISOM8110 model. Conveniently, we are putting together an FAQ to address this question. Please allow me a day to finish the post and you can be the first to try the tutorial.

Best,
Andrew

0 Andrew J over 1 year ago in reply to Andrew J

TI__Mastermind 28415 points

Hi Roger,

Here is the FAQ. Please give it a try an let me know if you have any issues.

(+) [FAQ] PSPICE-FOR-TI: Adding a Library to PSPICE - Isolation forum - Isolation - TI E2E support forums

0 Roger Longstreet over 1 year ago in reply to Andrew J

Prodigy 31 points

Awesome! Thank you, sir.

0 Roger Longstreet over 1 year ago in reply to Roger Longstreet

Prodigy 31 points

Hello Andrew,

I am receiving a WARNING(ORCAP-2445): Instance U2: Schematic1, Page1, not found in the configured libraries. U2 is the ISOM8110. Can you point me in the right direction?

Thanks!

0 Aaditya V. over 1 year ago in reply to Roger Longstreet

TI__Genius 17255 points

Hello,

Thank you for your question.

Please give us an additional 24 hours to answer your questions.

Regards,
Aaditya Vittal

0 Andrew J over 1 year ago in reply to Aaditya V.

TI__Mastermind 28415 points

Hello Roger,

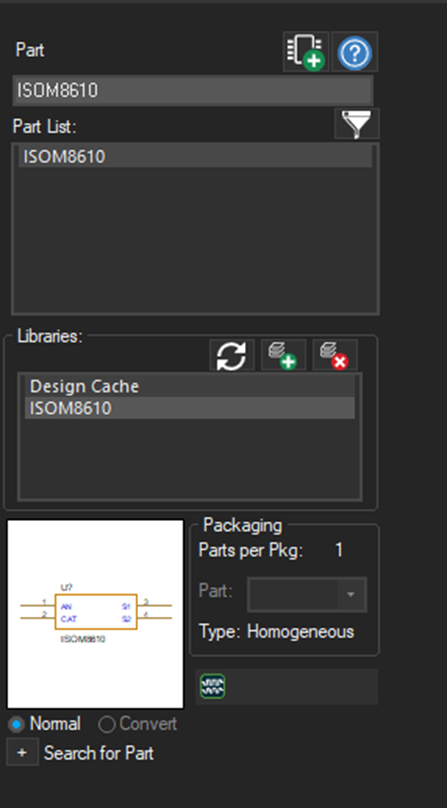

The library file and symbol should show up on the libraries list as shown in step 5. Are you seeing the part show up in the library dialogue?
