CC2530: Enddevice gets join but unable to receive its Rx.

Ambar Jain

Intellectual 620 points

Part Number: CC2530
Other Parts Discussed in Thread: Z-STACK, CC2531EM-IOT-HOME-GATEWAY-RD

Hi,

I have following device with us

1) CC2530

2) ZigBee enable Switch (On/ Off),

3) ZigBee enable Dimmer.

I am using Z tool for configuration.

My End Device gets join with my coordinator with when I query for UTIL_GET_DEVICE_INFO it will reply

<RX>07:12:32.88 COM32 UTIL_GET_DEVICE_INFO_RESPONSE (0x6700)
Status: SUCCESS (0x0)
IEEEAddr: 0x00124B000FF381CC
ShortAddress: 0x0000
DeviceType: COORDINATOR, ROUTER, END_DEVICE (0x7)
DeviceState: DEV_ZB_COORD (0x9)
NumAssocDevices: 0x00
AssocDevicesList

like there is no endnode connected .

what should I do for error ?

over 7 years ago

0 YiKai Chen over 7 years ago

Guru 735685 points

I suggest you to Ubiqua Protocol Analyzer to check if your device actually joins Zigbee network.

0 Ambar Jain over 7 years ago

Intellectual 620 points

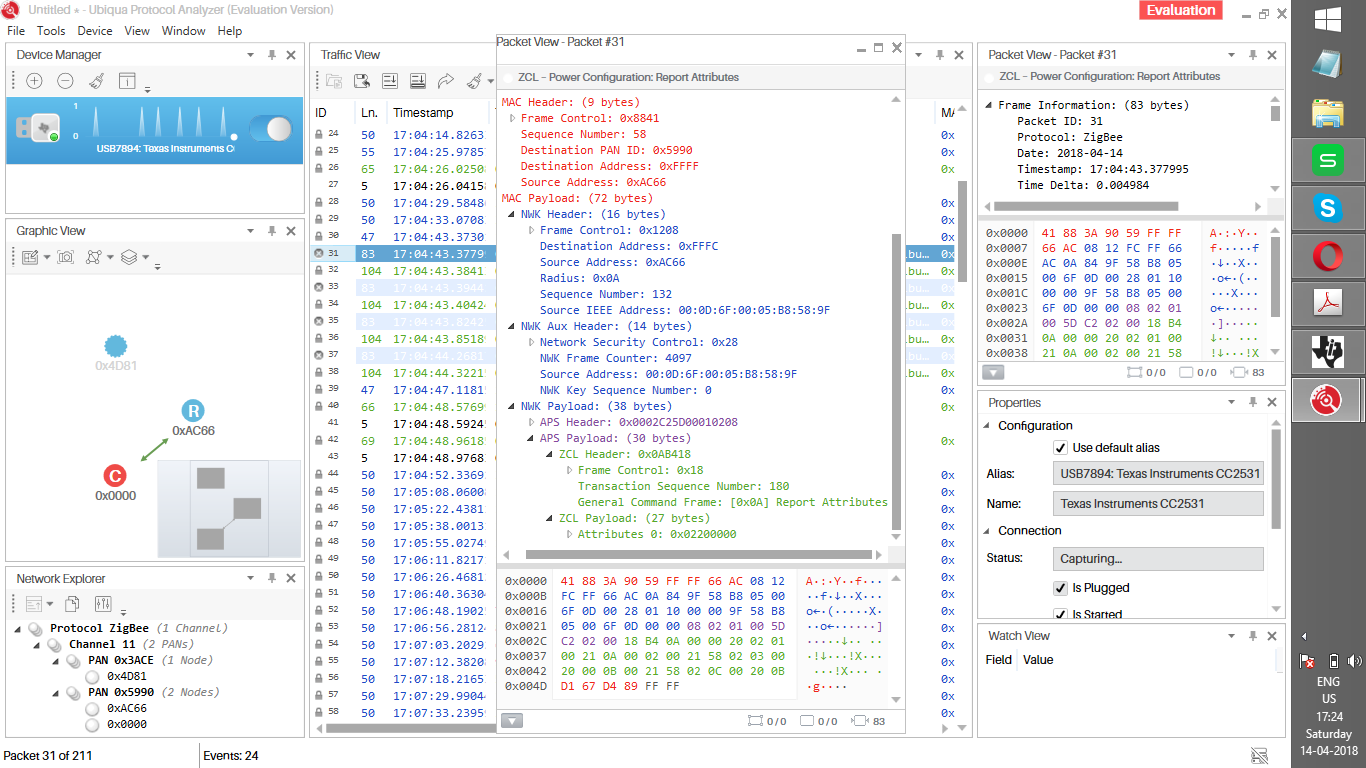

Yes I have verified over Packet sniffer.

I got association and its short address.

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

If you use sniffer to watch your end device for a while, I believe it leaves network. Otherwise, association number on coordinator won’t be 0.

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

could you please share process from the beginning that should I use to setup as coordinator for HA profile.
I am not sure that my configuration is correct

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

If you want to use ZTool to setup Zigbee HA profile network, you can refer to sunmaysky.blogspot.tw/.../setup-zigbee-ha-coordinator-with-ti.html

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

can you share .hex file

0 Ambar Jain over 7 years ago in reply to Ambar Jain

Intellectual 620 points

with the help of this coordinator_light.zip script i am unable to join

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

It’s prebuilt ZNP hex file in Z-Stack ZAP folder.

0 Ryan Brown1 over 7 years ago in reply to Ambar Jain

TI__Guru**** 217737 points

Hi Ambar,

Please share your sniffer log if you continue to have issues. Be sure to build your ZED according to the specifications in YK's blog.

Regards,
Ryan

0 Ambar Jain over 7 years ago in reply to Ryan Brown1

Intellectual 620 points

4774.asd.psd COM32_3.rtf

Hi ,

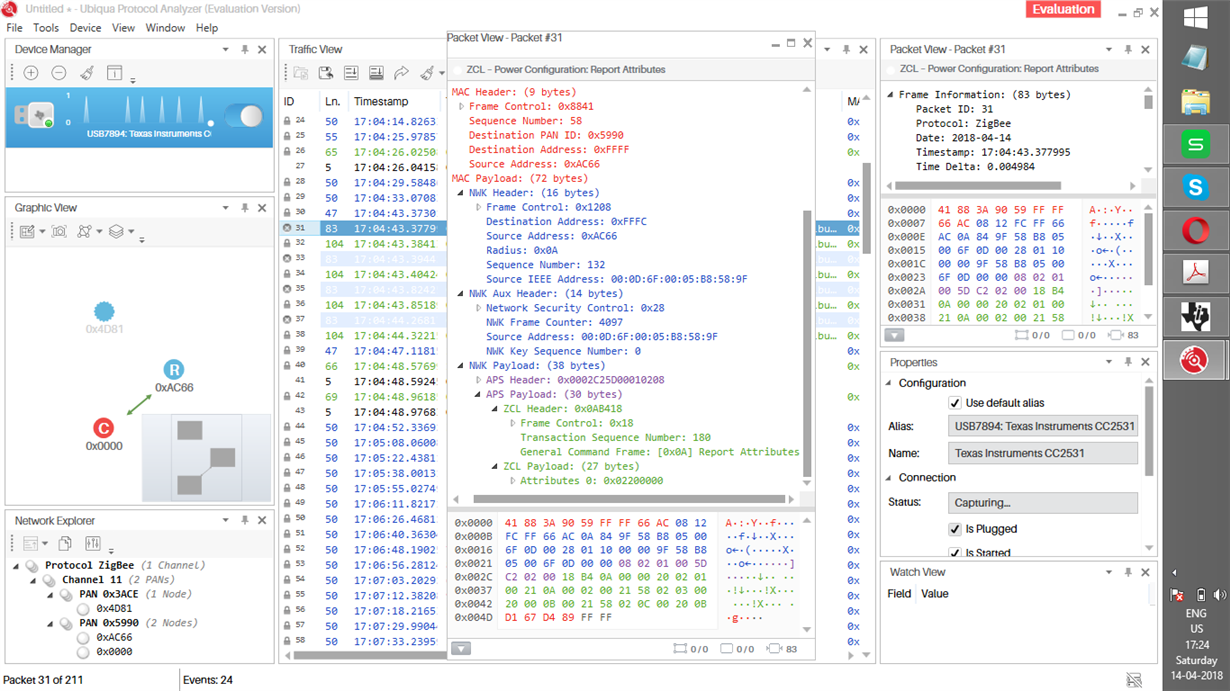

Here I have attached packet sniffer logs and .rtf file for your reference that showing what i am sending .

But unfortunately I am not getting Rx. when I operate switch .

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

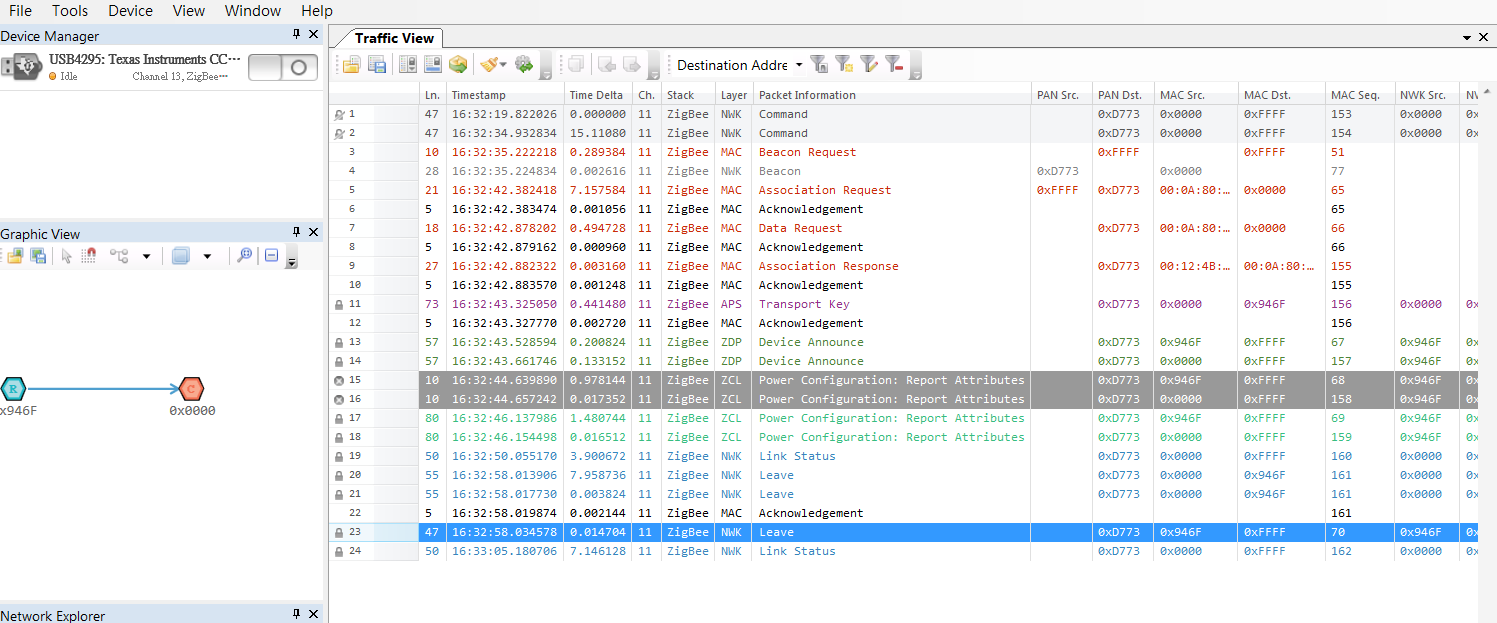

As I guessed, your device leaves the network.

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

Is my procedure ok?

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

Coordinator looks fine. What's your device? Do you design it?

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

No. Its normal HA profile Switch ( On/ Off )

It is working with another USB coordinator .

we are facing issue with CC2530.
I feel I am doing something wrong in configuration of CC2530 .

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

Can you give me the link of manufacturer of take of picture to show me the switch?

0 Ambar Jain over 7 years ago in reply to Ambar Jain

Intellectual 620 points

It is Telkonet ecoswitch .

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

Do you use ZNP from Z-Stack 3.0.1 or you use ZStack Home?

0 Ambar Jain over 7 years ago in reply to Ambar Jain

Intellectual 620 points

Using Z Stack 3.0.1

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

Since you want to join a Zigbee HA device into Zigbee 3.0 network, you have to set BDB_DEFAULT_TC_REQUIRE_KEY_EXCHANGE to FALSE.

0 Ambar Jain over 7 years ago in reply to Ambar Jain

Intellectual 620 points

It is already false.

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

If you try Ztool with Z-Stack Home ZNP, can it work?

0 Ambar Jain over 7 years ago in reply to Ambar Jain

Intellectual 620 points

Yes..It is working with Home

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

It means you don’t set BDB_DEFAULT_TC_REQUIRE_KEY_EXCHANGE to FALSE correctly.

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

Hi.

Thanks for reply.

Now I am using Z stack Home.

But here I am unable to remove my Endnode and reset to my coordinator .

Could you please suggest the procedure .

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

You can send MGMT leave request from ZTool to remove device.

You can use the following MT command to reset coordinator.

10:36:58.53 COM1 SYS_OSAL_NV_WRITE (0x2109) --> Write startup option to clear NV when reset
Id: 0x0003
Offset: 0x00
Len: 0x01
Value: . (0x03)

10:36:58.55 COM1 SYS_OSAL_NV_WRITE_SRSP (0x6109)
Status: SUCCESS (0x0)

10:37:06.11 COM1 SYS_RESET (0x4100) --> Do reset to clear NV
Type: 0x00 (HARD RESET) (0x0)

10:37:08.18 COM1 SYS_RESET_RESPONSE (0x4180)
Reason: 0x02
TransportRev: 0x02
Product: 0x00
MajorRel: 0x02
MinorRel: 0x07
HwRev: 0x00

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

let me try

0 Ambar Jain over 7 years ago in reply to Ambar Jain

Intellectual 620 points

I am just verifying this one.
can you please let me know how to set Power configuartion ?

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

What do you mean set Power configuartion ?

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

Actually I unable to display this configuration on my Coordinator when my end point device power cycle.

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

I couldn’t understand your question. Can you elaborate?

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

See, My Switch is connected in the network. Suppose Power of Switch goes down. Sudden power comes up then my switch has sent a broadcast msg for Power description . It is receiving over Ubiqua but I am not receiving at Coordinator.

0 Ambar Jain over 7 years ago in reply to Ambar Jain

Intellectual 620 points

See, My Switch is connected in the network. Suppose Power of Switch goes down. Sudden power comes up then my switch has sent a broadcast msg for Power description report. It is receiving over Ubiqua but I am not receiving at Coordinator.
Is there anything needs to be set for this one ?

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

I suppose you should use unicast instead of broadcast.

0 Ambar Jain over 7 years ago in reply to Ambar Jain

Intellectual 620 points

Apart from this, for reset your command is working .
But still I am unable to remove my endnode from the network with the help of MGMT_LEAVE command

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

Do you set rejoin flag to false when you send MGMT leave request to device?

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

You should set rejoin flag to false.

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

Hi,

I am unable to set rejoin to False .

Could you please guide me the process how to set it.

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

Can you show me how you set it?

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

Details are:-
I am using command is ZDO_MGMT_LEAVE_REQ
DST_Addr - 0x0000 ( My coordinator address. )
Device Addr - 0xD6F0005B8589F ( My enddevice IEEE addresss )
Remove Children_Rejoin - 0x2

02 is for ( 0000 0010 ) bit 0 for rejoin and bit 1 for remove children

am I right ?

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

Just set Children_Rejoin=0 to test again. If it still doesn't work, please attach your sniffer log.

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

Hi Sir,

One Question...Is there any tool for Z stack Home for Linux System?

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

Can you show me how you send mgmt leave request from ZTool?

What do you mean “is there any tool for Z stack Home for Linux System?“

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

I have used these two type for leave the network

<TX>12:13:33.36 COM15 ZDO_MGMT_LEAVE_REQ (0x2534)
DstAddr: 0x0000
DeviceAddress: 0x000D6F0005B8589F
RemoveChildren_Rejoin: 0x03

<RX>12:13:33.37 COM15 ZDO_MGMT_LEAVE_REQ_SRSP (0x6534)
Status: SUCCESS (0x0)

<TX>12:13:51.78 COM15 UTIL_GET_DEVICE_INFO (0x2700)

<RX>12:13:51.79 COM15 UTIL_GET_DEVICE_INFO_RESPONSE (0x6700)
Status: SUCCESS (0x0)
IEEEAddr: 0x00124B000FF381CC
ShortAddress: 0x0000
DeviceType: COORDINATOR, ROUTER, END_DEVICE (0x7)
DeviceState: DEV_ZB_COORD (0x9)
NumAssocDevices: 0x01
AssocDevicesList: 0x972A

<TX>12:14:08.08 COM15 ZDO_MGMT_LEAVE_REQ (0x2534)
DstAddr: 0x0000
DeviceAddress: 0x000D6F0005B8589F
RemoveChildren_Rejoin: 0x02

<RX>12:14:08.09 COM15 ZDO_MGMT_LEAVE_REQ_SRSP (0x6534)
Status: SUCCESS (0x0)

<TX>12:14:19.74 COM15 UTIL_GET_DEVICE_INFO (0x2700)

<RX>12:14:19.75 COM15 UTIL_GET_DEVICE_INFO_RESPONSE (0x6700)
Status: SUCCESS (0x0)
IEEEAddr: 0x00124B000FF381CC
ShortAddress: 0x0000
DeviceType: COORDINATOR, ROUTER, END_DEVICE (0x7)
DeviceState: DEV_ZB_COORD (0x9)
NumAssocDevices: 0x01
AssocDevicesList: 0x972A

But unfortunately with these two method I am unable to Leave the end nodes .

in both case it is showing in Get info .

My another question is :

How can I get all broadcast message which is in this network .

This time I am unable to get some Rx. which is available in sniffer but not showing in Z tool what we can do for ?

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

In your two types, one of RemoveChildren_Rejoin is 0x03 and another is 0x02. You should set RemoveChildren_Rejoin to 0x0. You cannot get all of broadcast data on Ztool since it is filtered by Z-Stack. Can you elaborate why you want to do so?

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

Hi,

1) This one is also not working

<TX>12:36:49.56 COM15 ZDO_MGMT_LEAVE_REQ (0x2534)
DstAddr: 0x0000
DeviceAddress: 0x000D6F0005B8589F
RemoveChildren_Rejoin: 0x00

<RX>12:36:49.58 COM15 ZDO_MGMT_LEAVE_REQ_SRSP (0x6534)
Status: SUCCESS (0x0)

<TX>12:36:58.74 COM15 UTIL_GET_DEVICE_INFO (0x2700)

<RX>12:36:58.75 COM15 UTIL_GET_DEVICE_INFO_RESPONSE (0x6700)
Status: SUCCESS (0x0)
IEEEAddr: 0x00124B000FF381CC
ShortAddress: 0x0000
DeviceType: COORDINATOR, ROUTER, END_DEVICE (0x7)
DeviceState: DEV_ZB_COORD (0x9)
NumAssocDevices: 0x01
AssocDevicesList: 0x972A

2) My Switch ( Endnode ) generate some information on different cluster or endpoints .
This is verified with Teegesis USB stick .

But here I am not able to get that data.

I have attached telegesis USB data;

X:B635,0000,00,00,0013,0C:<NUL>5¶p@8ã<NUL>€<LF>
<NUL><SO><CR><LF>
<CR><LF>
RX:B635,C25D,01,03,0001,3E:<CAN><NUL><LF>
<NUL><NUL> <STX><EOT><NUL>B<LF>
2.05.10.00<BEL><NUL>B<SYN>Telkonet:EcoSwitch:1-0<FF>
<NUL> <DC4><HT> <NUL>ðp@8ã<NUL>€<LF>
<NUL><CR><LF>
<CR><LF>
RX:B635,C25D,01,03,0001,23:<CAN><NUL><LF>
<SOH><NUL>!#<SOH><STX><NUL>!,<SOH><ACK><NUL>!y<NUL><BS><NUL>!5¶<LF>
<NUL> <SOH><ETX><NUL> <SOH><ENQ><NUL> ÿ<CR><LF>

Etc etc like that.

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

I suggest you to use sniffer to check both your issues.

0 Ambar Jain over 7 years ago in reply to Ambar Jain

Intellectual 620 points

I am still chcking over sniffer but not getting solution

0 YiKai Chen over 7 years ago in reply to Ambar Jain

Guru 735685 points

I couldn't understand your description. If you have sniffer log, you can attach it.

0 Ambar Jain over 7 years ago in reply to YiKai Chen

Intellectual 620 points

Dear YiKai Chen,
I have solved these all issues....Thanks for your support!

Zigbee & Thread

Zigbee & Thread forum

CC2530: Enddevice gets join but unable to receive its Rx.
