CC2564: CC256x QFN EM Comm port time out issue

Kum Hoo Lee

Part Number: CC2564

Hi,

I have some problem on getting the CC256x QFN EM to work with the CC256x Bluetooth HW Eval Tool (BHET). Sending the BTS always result in Com Port timed out!

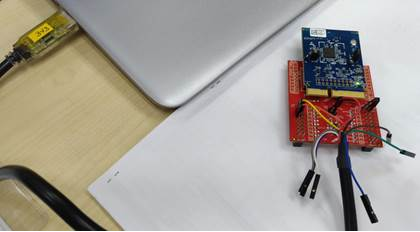

The CC256x is connected to the laptop running the BHET via a 3V3 USB-UART cable. The CC256x is mounted on the TI adapter board.

Only 3V3, GND, 3V3_TX and 3V3_RX are connected.

Do you have any idea how to get it to work?

FYI. The CC256x module was tested on another MSP-EXP430F5438 without any problem. I had set the SP Sleep mode to “Disable” still Com port timed out

Hope to hear from you soon.

Thanks and best regards,

over 6 years ago

0 dale over 6 years ago

TI__Expert 6335 points

KH,

The BHET is no longer a supported tool, for loading BTS files we suggest the use of HCI Tester.

0 Kum Hoo Lee over 6 years ago in reply to dale

Expert 1855 points

Dear Dale,

I have installed the HCITester, how to check if the USB-UART COM port communication is working?

0 dale over 6 years ago in reply to Kum Hoo Lee

TI__Expert 6335 points

You can follow the steps in the User Guide to setting up and executing a BTS file starting in section 3 of the document.

0 Kum Hoo Lee over 6 years ago in reply to dale

Expert 1855 points

Dear Dale,

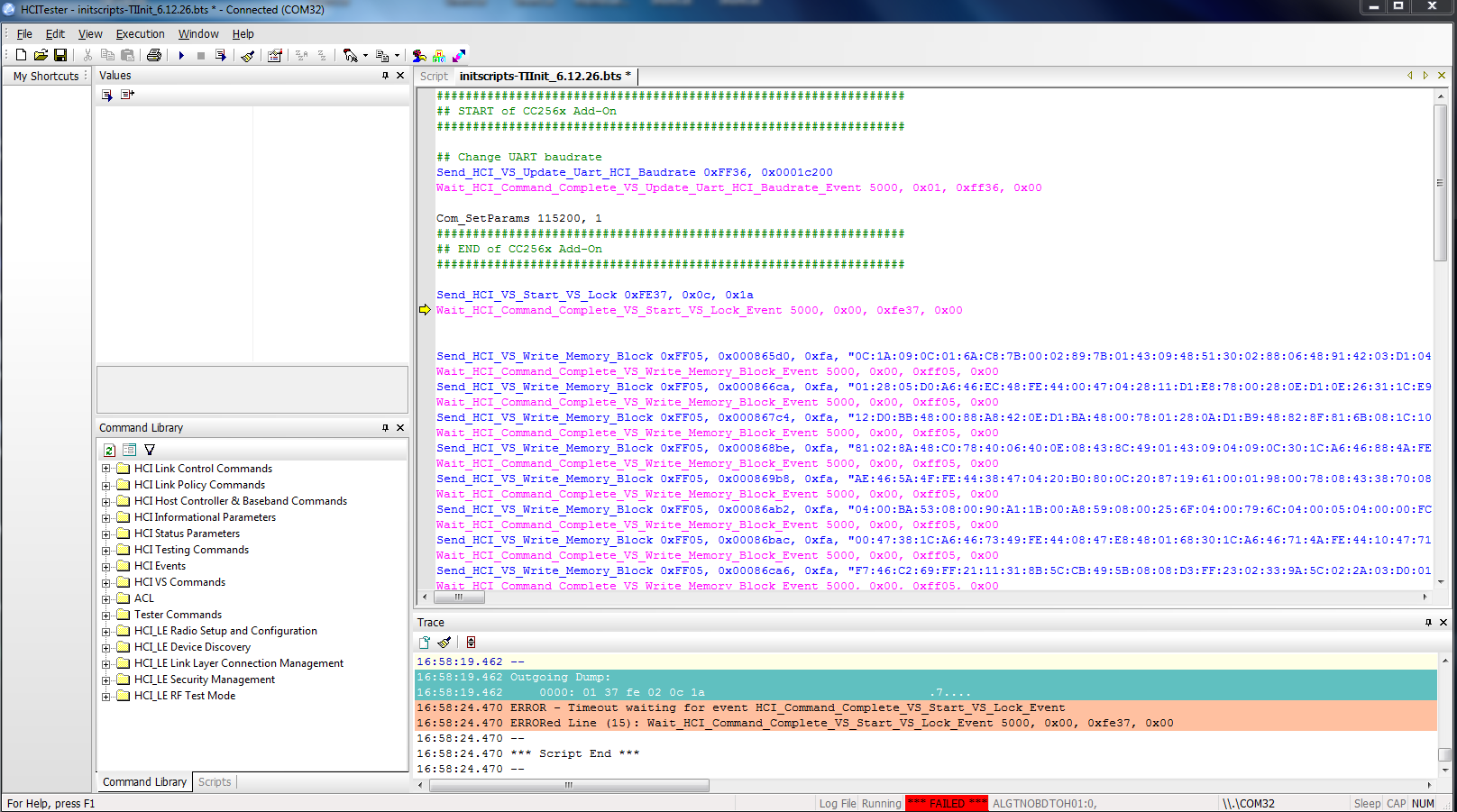

I still facing the comm issue while using HCI tester, please help and advise how to resolve this? Any root cause?

Hope to hear from you soon!

0 dale over 6 years ago in reply to Kum Hoo Lee

TI__Expert 6335 points

It looks like you are using the service packs for CC256xC, while the CC256x QFN EM is based off CC256xB. Is your evaluation board CC256xC QFN EM or CC256x QFN EM?

If it is not the CC256xC version, the correct service pack can be found here.

0 Kum Hoo Lee over 6 years ago in reply to dale

Expert 1855 points

Hi Dale,

My eval board is the CC256xC version

0 dale over 6 years ago in reply to Kum Hoo Lee

TI__Expert 6335 points

When you go to View/Options, what are the settings for the Port Connection?

0 Kum Hoo Lee over 6 years ago in reply to dale

Expert 1855 points

Hi Dale,

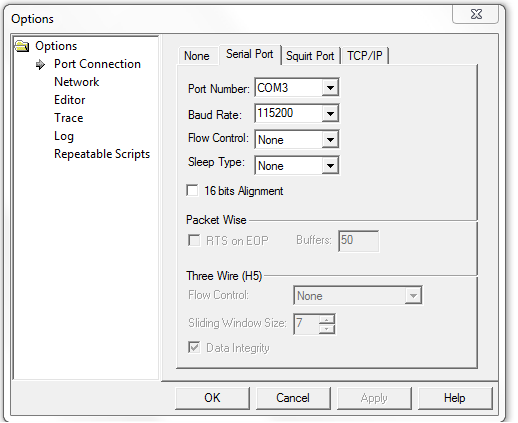

Please see the screenshot for the setting, I tried different COM port number (COM3, COM32 etc.), the result is the same.

0 Kum Hoo Lee over 6 years ago in reply to Kum Hoo Lee

Expert 1855 points

Dear Dale,

Can have your advise on this?

Thanks and best regards,
KH

0 dale over 6 years ago in reply to Kum Hoo Lee

TI__Expert 6335 points

Have you made sure to follow the correct device power up procedure?

processors.wiki.ti.com/.../CC256x_Testing_Guide

0 dale over 6 years ago in reply to dale

TI__Expert 6335 points

Have you been able to resolve the issue?
