TLV320AIC3109-Q1: about MIC schematic

Lawrence He
Expert 2470 points
Part Number: TLV320AIC3109-Q1

Hi, Support Team

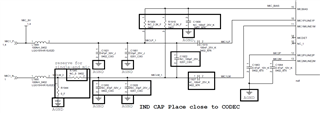

Could help review MIC schematic as below chart:

if any suggestion, Please advise me.

Thanks,

Best regards,

Lawrence

  • 0
    TI__Mastermind 23705 points

    Hi Lawrence,

    Everything looks fine except for the MICBIAS connection. Typically only the positive side of the microphone needs the MICBIAS while the negative side uses a resistor to GND to bias the negative side. Double check your microphone datasheet and refer to Figure 188 in the AIC3109 datasheet.

    Best regards,
    Jeff McPherson
