LMX2582: input and output clock

Hi Nandini,

Nandini Muralidharan said:

Output characteristics is for REFOUT (output pins) and input path (REFin) is for OSCinP/N - is this correct?

That is correct.

The typical voltage range is not specified given the outputs are push-pull and require a pull up.
The output power depends on the load.
https://e2e.ti.com/support/clock-timing-group/clock-and-timing/f/clock-timing-forum/1060098/lmx2582-why-will-inductor-pullup-increase-output-power

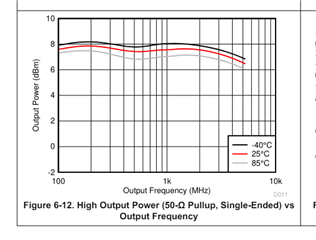

If we look at the output power vs frequency plot we are essentially at anywhere from 7-8dBM Single ended for a 50 Ohm Pull up

8dBm of RF power corresponds to approximate 1.58Vpp:

Please note you can achieve higher output power using an inductive pull up at the cost of impedance matching.

Regards,

Vicente

Hi Nandini,
Think of the output voltage swing as 1.58Vpp

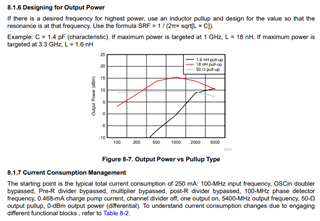

As mentioned output power (or voltage swing) can be increased using an inductive pull up.

Regards,

Vicente

Please note that the 1.58Vpp is single ended - not differential.

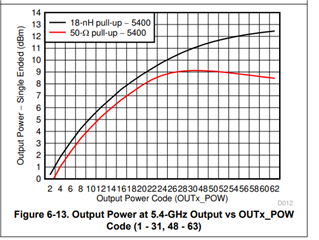

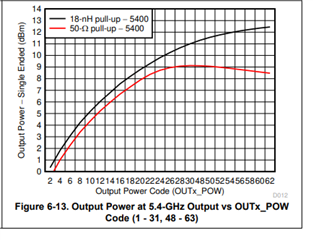

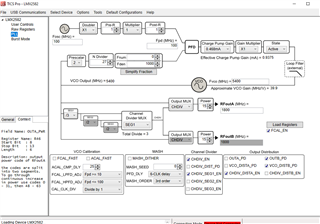

You can can adjust the output power via software as well by adjusting OUTx_PWR

Regards,

Vicente

Not a problem Nandini,
The differential output voltage is the the difference between two intrapair single ended signals that are usually inverted.
So in your case if you have a 1.58 Vpp single ended signal - differentially this is 2 * VOD = 2 * 1.58 = 3.16 Vpp
As mentioned, the output power is adjustable on LMX2582.

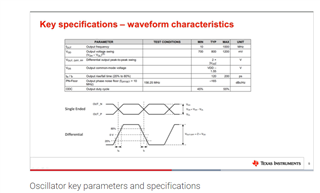

TI precision labs does a good job explaining the difference with some visuals.

www.ti.com/.../ti-precision-labs-introduction-to-clocks-and-timing.html

For example ^

Regards,

Vicente

Sorry Nandini,
The output buffers are open collectors, not push pull.
Sorry for the confusion - wanted to clarify that.

Regards,

Vicente
