LMK05318B-Q1: Regarding help in configuring clock frequency

Maharajan P

Part Number: LMK05318B-Q1

Tool/software:

Dear Team,

Out 7 of the above mentioned part supports 1Hz, And the issue is like I need 1Hz as LVCMOS output,
Can we generate 10MHZ from one pin, I mean 10 MHz from OUT7+ and 1Hz from OUT7- ,

Is this way possible to configure, IF yes kindly assist me with the procedure to configure it please

Note: I used TICS Software for Configuring

Thanks and regards,

Maharajan P

5 months ago

+1 Jennifer Bernal 4 months ago

TI__Genius 16495 points

Hi Maharajan,

It is not possible to generate 10 MHz and 1 Hz from OUT7 because OUT7 + and OUT7 - share the same channel divider.

Regards,

Jennifer

0 Maharajan P 4 months ago in reply to Jennifer Bernal

Prodigy 245 points

Hi Jennifer,
Thank you for the reply

Regards,
Maharajan P

0 Jennifer Bernal 4 months ago in reply to Maharajan P

TI__Genius 16495 points

Hi Maharajan ,

You're welcome. As this thread has been marked resolved, I will now close it.

Regards,

Jennifer

0 Maharajan P 4 months ago in reply to Jennifer Bernal

Prodigy 245 points

Hi Jennifer,
I have one more query,

please refer the attached image.

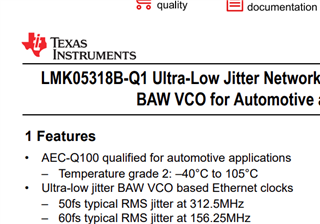

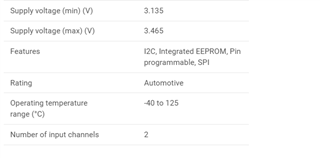

The attached images shows that the following part numbers temperature is given as -40 to 125° in the product page but in data sheet it is provided a s -40 to 105. Which one to be followed and what range will it really support

Please provide the clarification.

Thanks and regards,
Maharajan P

0 Jennifer Bernal 4 months ago in reply to Maharajan P

TI__Genius 16495 points

Hi Maharajan ,

I have responded here: https://e2e.ti.com/support/clock-timing-group/clock-and-timing/f/clock-timing-forum/1511219/lmk05318b-q1-regarding-the-actual-temperature-range .

Please make another thread for future questions. I will now close this one.

Thank you,

Jennifer
