LMX1214: SCH REVIEW

Vayne Li

Part Number: LMX1214

Tool/software:

Hi Teams,

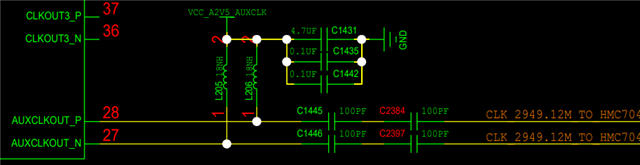

Can you help review the schematic diagram？Thank you

0 Noel Fung 30 days ago

Hi Vayne,

We suggest 50Ω resistor pull-up.

0 Vayne Li 25 days ago in reply to Noel Fung

Hi Noel,

thank you for your reply,

The image cannot be viewed,Can you send it again?

thank you

+1 Noel Fung 25 days ago in reply to Vayne Li

0 Vayne Li 25 days ago in reply to Noel Fung

Hi Noel,

thank you!

0 Vayne Li 19 days ago in reply to Vayne Li

Hi Noel,

My customer has a question, is the 50 ohm pull-up position added to the position of that inductor?

0 Vayne Li 19 days ago in reply to Noel Fung

Hi Noel,

My customer has a question, is the 50 ohm pull-up position added to the position of that inducto

0 Noel Fung 19 days ago in reply to Vayne Li

Hi Vayne,

AUXCLKOUT supports LVDS and CML.

With CML output, the pins have to be pull-ed up with 50Ω resistors, not inductors. Replace the inductors with 50Ω resistors.
