LM555: LM555 reset pulse generator

Ravikiran Deshpande

Part Number: LM555
Other Parts Discussed in Thread: TLC555, NE555, LMC555, SN74AHC123A

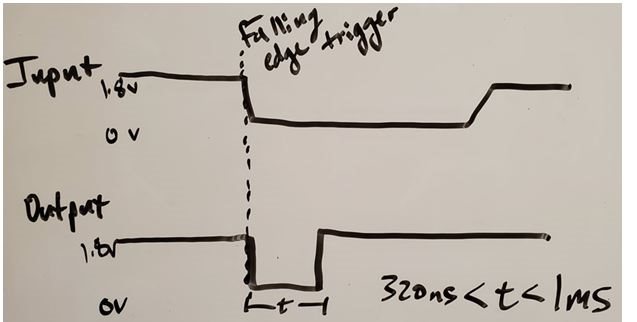

Looking to generate the a shorter output pulse based on the falling edge trigger .

Can I achieve this with the LM555 and an inverter gate ? how do I control the timing on the LM555.? Appreciate the guidance.

over 6 years ago

0 Ron Michallick over 6 years ago

TI__Guru**** 174826 points

Ravikiran,

What are the available supply voltages?

Is LM555 a lock, or can be NE555 or TLC555 or LMC555 be used?

0 Ravikiran Deshpande over 6 years ago in reply to Ron Michallick

TI__Prodigy 680 points

Ron,

3.3V is available , 2.5V could be made available. Any IC is fair for recommendation. Just the implementation is critical.

Would be great if you have a particular circuit implementation recommendation.

0 Ron Michallick over 6 years ago in reply to Ravikiran Deshpande

TI__Guru**** 174826 points

Ravikiran,

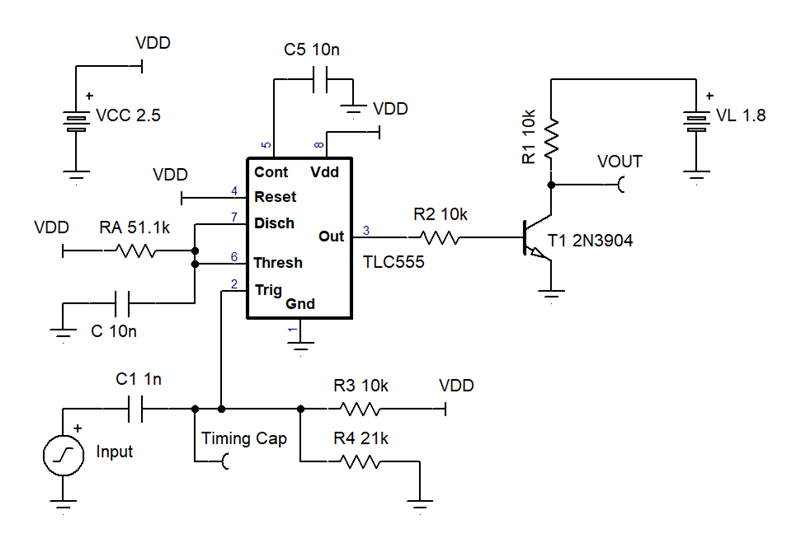

Here is a TLC555 solution. Output inverter can be replaced with a logic translator. The output stage may need to be modified based on the output load.

TLC555 L-L 560us.TSC

This could also be done with a SN74AHC123A , start a new thread with that part number if interested.

0 Ron Michallick over 6 years ago in reply to Ron Michallick

TI__Guru**** 174826 points

Ravikiran,

For a 3.3V supply just change R4 to 12.1k to get the same trigger low input.

0 Ron Michallick over 6 years ago in reply to Ron Michallick

TI__Guru**** 174826 points

Ravikiran,

There is also a 555 timer mono-stable FAQ here , https://e2e.ti.com/support/clock-and-timing/f/48/t/857914
