TCAN4550: Application issues of chips

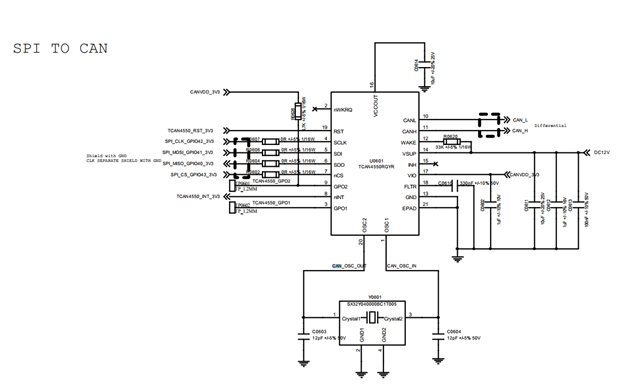

Testing TCAN4550 is normal for sending and receiving standard frames ten thousand times, but when testing extended frames, TCAN4550 is unable to receive extended frame data and can send extended frames. Is there anything else that needs to be configured for the driver?

tcan4x5x:

// SPDX-License-Identifier: GPL-2.0
// SPI to CAN driver for the Texas Instruments TCAN4x5x
// Copyright (C) 2018-19 Texas Instruments Incorporated - http://www.ti.com/

#include <linux/regmap.h>
#include <linux/spi/spi.h>

#include <linux/regulator/consumer.h>
#include <linux/gpio/consumer.h>
#include <linux/gpio.h>
#include <linux/of_platform.h>
#include <linux/of_gpio.h>

#include "m_can.h"

#define DEVICE_NAME "tcan4x5x"
#define TCAN4X5X_EXT_CLK_DEF 40000000

#define TCAN4X5X_DEV_ID0 0x00
#define TCAN4X5X_DEV_ID1 0x04
#define TCAN4X5X_REV 0x08
#define TCAN4X5X_STATUS 0x0C
#define TCAN4X5X_ERROR_STATUS 0x10
#define TCAN4X5X_CONTROL 0x14

#define TCAN4X5X_CONFIG 0x800
#define TCAN4X5X_TS_PRESCALE 0x804
#define TCAN4X5X_TEST_REG 0x808
#define TCAN4X5X_INT_FLAGS 0x820
#define TCAN4X5X_MCAN_INT_REG 0x824
#define TCAN4X5X_INT_EN 0x830

/* Interrupt bits */
#define TCAN4X5X_CANBUSTERMOPEN_INT_EN BIT(30)
#define TCAN4X5X_CANHCANL_INT_EN BIT(29)
#define TCAN4X5X_CANHBAT_INT_EN BIT(28)
#define TCAN4X5X_CANLGND_INT_EN BIT(27)
#define TCAN4X5X_CANBUSOPEN_INT_EN BIT(26)
#define TCAN4X5X_CANBUSGND_INT_EN BIT(25)
#define TCAN4X5X_CANBUSBAT_INT_EN BIT(24)
#define TCAN4X5X_UVSUP_INT_EN BIT(22)
#define TCAN4X5X_UVIO_INT_EN BIT(21)
#define TCAN4X5X_TSD_INT_EN BIT(19)
#define TCAN4X5X_ECCERR_INT_EN BIT(16)
#define TCAN4X5X_CANINT_INT_EN BIT(15)
#define TCAN4X5X_LWU_INT_EN BIT(14)
#define TCAN4X5X_CANSLNT_INT_EN BIT(10)
#define TCAN4X5X_CANDOM_INT_EN BIT(8)
#define TCAN4X5X_CANBUS_ERR_INT_EN BIT(5)
#define TCAN4X5X_BUS_FAULT BIT(4)
#define TCAN4X5X_MCAN_INT BIT(1)
#define TCAN4X5X_ENABLE_TCAN_INT \
    (TCAN4X5X_MCAN_INT | TCAN4X5X_BUS_FAULT | \
     TCAN4X5X_CANBUS_ERR_INT_EN | TCAN4X5X_CANINT_INT_EN)

/* MCAN Interrupt bits */
#define TCAN4X5X_MCAN_IR_ARA BIT(29)
#define TCAN4X5X_MCAN_IR_PED BIT(28)
#define TCAN4X5X_MCAN_IR_PEA BIT(27)
#define TCAN4X5X_MCAN_IR_WD BIT(26)
#define TCAN4X5X_MCAN_IR_BO BIT(25)
#define TCAN4X5X_MCAN_IR_EW BIT(24)
#define TCAN4X5X_MCAN_IR_EP BIT(23)
#define TCAN4X5X_MCAN_IR_ELO BIT(22)
#define TCAN4X5X_MCAN_IR_BEU BIT(21)
#define TCAN4X5X_MCAN_IR_BEC BIT(20)
#define TCAN4X5X_MCAN_IR_DRX BIT(19)
#define TCAN4X5X_MCAN_IR_TOO BIT(18)
#define TCAN4X5X_MCAN_IR_MRAF BIT(17)
#define TCAN4X5X_MCAN_IR_TSW BIT(16)
#define TCAN4X5X_MCAN_IR_TEFL BIT(15)
#define TCAN4X5X_MCAN_IR_TEFF BIT(14)
#define TCAN4X5X_MCAN_IR_TEFW BIT(13)
#define TCAN4X5X_MCAN_IR_TEFN BIT(12)
#define TCAN4X5X_MCAN_IR_TFE BIT(11)
#define TCAN4X5X_MCAN_IR_TCF BIT(10)
#define TCAN4X5X_MCAN_IR_TC BIT(9)
#define TCAN4X5X_MCAN_IR_HPM BIT(8)
#define TCAN4X5X_MCAN_IR_RF1L BIT(7)
#define TCAN4X5X_MCAN_IR_RF1F BIT(6)
#define TCAN4X5X_MCAN_IR_RF1W BIT(5)
#define TCAN4X5X_MCAN_IR_RF1N BIT(4)
#define TCAN4X5X_MCAN_IR_RF0L BIT(3)
#define TCAN4X5X_MCAN_IR_RF0F BIT(2)
#define TCAN4X5X_MCAN_IR_RF0W BIT(1)
#define TCAN4X5X_MCAN_IR_RF0N BIT(0)
#define TCAN4X5X_ENABLE_MCAN_INT \
    (TCAN4X5X_MCAN_IR_TC | TCAN4X5X_MCAN_IR_RF0N | \
     TCAN4X5X_MCAN_IR_RF1N | TCAN4X5X_MCAN_IR_RF0F | \
     TCAN4X5X_MCAN_IR_RF1F)

#define TCAN4X5X_MRAM_START 0x8000
#define TCAN4X5X_MCAN_OFFSET 0x1000
#define TCAN4X5X_MAX_REGISTER 0x8ffc

#define TCAN4X5X_CLEAR_ALL_INT 0xffffffff
#define TCAN4X5X_SET_ALL_INT 0xffffffff

#define TCAN4X5X_WRITE_CMD (0x61 << 24)
#define TCAN4X5X_READ_CMD (0x41 << 24)

#define TCAN4X5X_MODE_SEL_MASK (BIT(7) | BIT(6))
#define TCAN4X5X_MODE_SLEEP 0x00
#define TCAN4X5X_MODE_STANDBY BIT(6)
#define TCAN4X5X_MODE_NORMAL BIT(7)

#define TCAN4X5X_SW_RESET BIT(2)

#define TCAN4X5X_MCAN_CONFIGURED BIT(5)
#define TCAN4X5X_WATCHDOG_EN BIT(3)
#define TCAN4X5X_WD_60_MS_TIMER 0
#define TCAN4X5X_WD_600_MS_TIMER BIT(28)
#define TCAN4X5X_WD_3_S_TIMER BIT(29)
#define TCAN4X5X_WD_6_S_TIMER (BIT(28) | BIT(29))

struct tcan4x5x_priv {
    struct regmap *regmap;
    struct spi_device *spi;

    struct m_can_classdev *mcan_dev;

    //struct gpio_desc *reset_gpio;
    u32 reset_gpio;
    struct gpio_desc *device_wake_gpio;
    struct gpio_desc *device_state_gpio;
    struct regulator *power;

    /* Register based ip */
    int mram_start;
    int reg_offset;
};

static void tcan4x5x_check_wake(struct tcan4x5x_priv *priv)
{
    int wake_state = 0;

    if (priv->device_state_gpio)
        wake_state = gpiod_get_value(priv->device_state_gpio);

    if (priv->device_wake_gpio && wake_state) {
        gpiod_set_value(priv->device_wake_gpio, 0);
        usleep_range(5, 50);
        gpiod_set_value(priv->device_wake_gpio, 1);
    }
}

static int tcan4x5x_reset(struct tcan4x5x_priv *priv)
{
    int ret = 0;

    if (gpio_is_valid(priv->reset_gpio)) {
        //gpiod_set_value(priv->reset_gpio, 1);
        gpio_direction_output(priv->reset_gpio, 1);
        /* tpulse_width minimum 30us */
        usleep_range(30, 100);
        //gpiod_set_value(priv->reset_gpio, 0);
        gpio_direction_output(priv->reset_gpio, 0);
    } else {
        printk("lim %s %d\n",__func__,__LINE__);
        //ret = regmap_write(priv->regmap, TCAN4X5X_CONFIG,
        //           TCAN4X5X_SW_RESET);
        //if (ret)
        //    return ret;
    }

    usleep_range(700, 1000);

    return ret;
}

static int regmap_spi_gather_write(void *context, const void *reg,
                   size_t reg_len, const void *val,
                   size_t val_len)
{
    struct device *dev = context;
    struct spi_device *spi = to_spi_device(dev);
    struct spi_message m;
    u32 addr;
    struct spi_transfer t[2] = {
        { .tx_buf = &addr, .len = reg_len, .cs_change = 0,},
        { .tx_buf = val, .len = val_len, },
    };

    addr = TCAN4X5X_WRITE_CMD | (*((u16 *)reg) << 8) | val_len >> 2;

    spi_message_init(&m);
    spi_message_add_tail(&t[0], &m);
    spi_message_add_tail(&t[1], &m);

    return spi_sync(spi, &m);
}

static int tcan4x5x_regmap_write(void *context, const void *data, size_t count)
{
    u16 *reg = (u16 *)(data);
    const u32 *val = data + 4;

    return regmap_spi_gather_write(context, reg, 4, val, count - 4);
}

static int regmap_spi_async_write(void *context,
                  const void *reg, size_t reg_len,
                  const void *val, size_t val_len,
                  struct regmap_async *a)
{
    return -ENOTSUPP;
}

static struct regmap_async *regmap_spi_async_alloc(void)
{
    return NULL;
}

static int tcan4x5x_regmap_read(void *context,
                const void *reg, size_t reg_size,
                void *val, size_t val_size)
{
    struct device *dev = context;
    struct spi_device *spi = to_spi_device(dev);

    u32 addr = TCAN4X5X_READ_CMD | (*((u16 *)reg) << 8) | val_size >> 2;

    return spi_write_then_read(spi, &addr, reg_size, (u32 *)val, val_size);
}

static struct regmap_bus tcan4x5x_bus = {
    .write = tcan4x5x_regmap_write,
    .gather_write = regmap_spi_gather_write,
    .async_write = regmap_spi_async_write,
    .async_alloc = regmap_spi_async_alloc,
    .read = tcan4x5x_regmap_read,
    .read_flag_mask = 0x00,
    .reg_format_endian_default = REGMAP_ENDIAN_NATIVE,
    .val_format_endian_default = REGMAP_ENDIAN_NATIVE,
};

static u32 tcan4x5x_read_reg(struct m_can_classdev *cdev, int reg)
{
    struct tcan4x5x_priv *priv = cdev->device_data;
    u32 val;

    regmap_read(priv->regmap, priv->reg_offset + reg, &val);

    return val;
}

static u32 tcan4x5x_read_fifo(struct m_can_classdev *cdev, int addr_offset)
{
    struct tcan4x5x_priv *priv = cdev->device_data;
    u32 val;

    regmap_read(priv->regmap, priv->mram_start + addr_offset, &val);

    return val;
}

static int tcan4x5x_write_reg(struct m_can_classdev *cdev, int reg, int val)
{
    struct tcan4x5x_priv *priv = cdev->device_data;

    return regmap_write(priv->regmap, priv->reg_offset + reg, val);
}

static int tcan4x5x_write_fifo(struct m_can_classdev *cdev,
                   int addr_offset, int val)
{
    struct tcan4x5x_priv *priv = cdev->device_data;

    return regmap_write(priv->regmap, priv->mram_start + addr_offset, val);
}

static int tcan4x5x_power_enable(struct regulator *reg, int enable)
{
    //if (IS_ERR_OR_NULL(reg))
        return 0;

    //if (enable)
    //    return regulator_enable(reg);
    //else
    //    return regulator_disable(reg);
}

static int tcan4x5x_write_tcan_reg(struct m_can_classdev *cdev,
                   int reg, int val)
{
    struct tcan4x5x_priv *priv = cdev->device_data;

    return regmap_write(priv->regmap, reg, val);
}

static int tcan4x5x_clear_interrupts(struct m_can_classdev *cdev)
{
    int ret;
    //printk("4x5x lpz test\n");
    ret = tcan4x5x_write_tcan_reg(cdev, TCAN4X5X_STATUS,
                      TCAN4X5X_CLEAR_ALL_INT);
    if (ret)
        return ret;

    ret = tcan4x5x_write_tcan_reg(cdev, TCAN4X5X_MCAN_INT_REG,
                      TCAN4X5X_ENABLE_MCAN_INT);
    if (ret)
        return ret;

    ret = tcan4x5x_write_tcan_reg(cdev, TCAN4X5X_INT_FLAGS,
                      TCAN4X5X_CLEAR_ALL_INT);
    if (ret)
        return ret;

    ret = tcan4x5x_write_tcan_reg(cdev, TCAN4X5X_ERROR_STATUS,
                      TCAN4X5X_CLEAR_ALL_INT);
    if (ret)
        return ret;

    return ret;
}

static int tcan4x5x_init(struct m_can_classdev *cdev)
{
    struct tcan4x5x_priv *tcan4x5x = cdev->device_data;
    int ret;

    tcan4x5x_check_wake(tcan4x5x);

    ret = tcan4x5x_clear_interrupts(cdev);
    if (ret)
        return ret;

    ret = tcan4x5x_write_tcan_reg(cdev, TCAN4X5X_INT_EN,
                      TCAN4X5X_ENABLE_TCAN_INT);
    if (ret)
        return ret;

    /* Zero out the MCAN buffers */
    m_can_init_ram(cdev);

    ret = regmap_update_bits(tcan4x5x->regmap, TCAN4X5X_CONFIG,
                 TCAN4X5X_MODE_SEL_MASK, TCAN4X5X_MODE_NORMAL);
    if (ret)
        return ret;

    return ret;
}

static int tcan4x5x_parse_config(struct m_can_classdev *cdev)
{
    struct tcan4x5x_priv *tcan4x5x = cdev->device_data;
    int ret;

    tcan4x5x->device_wake_gpio = devm_gpiod_get(cdev->dev, "device-wake",
                            GPIOD_OUT_HIGH);
    if (IS_ERR(tcan4x5x->device_wake_gpio)) {
        dev_err(cdev->dev, "device-wake gpio not defined\n");
        //return -EINVAL;
    }

    //tcan4x5x->reset_gpio = devm_gpiod_get_optional(cdev->dev, "reset",
    //                           GPIOD_OUT_LOW);
    tcan4x5x->reset_gpio = of_get_named_gpio(cdev->dev->of_node, "tcan-reset", 0);
    if (tcan4x5x->reset_gpio < 0){
        //tcan4x5x->reset_gpio = NULL;
        printk("lim %s %d\n",__func__,__LINE__);
    }else{
        if (gpio_is_valid(tcan4x5x->reset_gpio)) {
            printk("lim %s %d\n",__func__,__LINE__);
            ret = gpio_request(tcan4x5x->reset_gpio, "tcanreset");
            if (ret) {
                printk(KERN_ERR "%s: lim reset gpio request failed", __func__);
            }else{
                printk("lim %s %d\n",__func__,__LINE__);
                gpio_direction_output(tcan4x5x->reset_gpio, 0);
            }
        }
    }

    ret = tcan4x5x_reset(tcan4x5x);
    if (ret)
        return ret;

    tcan4x5x->device_state_gpio = devm_gpiod_get_optional(cdev->dev,
                                  "device-state",
                                  GPIOD_IN);
    if (IS_ERR(tcan4x5x->device_state_gpio))
        tcan4x5x->device_state_gpio = NULL;

    tcan4x5x->power = devm_regulator_get_optional(cdev->dev,
                              "vsup");
    if (PTR_ERR(tcan4x5x->power) == -EPROBE_DEFER)
        return -EPROBE_DEFER;

    return 0;
}

static const struct regmap_config tcan4x5x_regmap = {
    .reg_bits = 32,
    .val_bits = 32,
    .cache_type = REGCACHE_NONE,
    .max_register = TCAN4X5X_MAX_REGISTER,
};

static struct m_can_ops tcan4x5x_ops = {
    .init = tcan4x5x_init,
    .read_reg = tcan4x5x_read_reg,
    .write_reg = tcan4x5x_write_reg,
    .write_fifo = tcan4x5x_write_fifo,
    .read_fifo = tcan4x5x_read_fifo,
    .clear_interrupts = tcan4x5x_clear_interrupts,
};

static int tcan4x5x_can_probe(struct spi_device *spi)
{
    struct tcan4x5x_priv *priv;
    struct m_can_classdev *mcan_class;
    int freq, ret;

    mcan_class = m_can_class_allocate_dev(&spi->dev);
    if (!mcan_class)
        return -ENOMEM;

    priv = devm_kzalloc(&spi->dev, sizeof(*priv), GFP_KERNEL);
    if (!priv)
        return -ENOMEM;

    mcan_class->device_data = priv;

    m_can_class_get_clocks(mcan_class);
    if (IS_ERR(mcan_class->cclk)) {
        dev_err(&spi->dev, "no CAN clock source defined\n");
        freq = TCAN4X5X_EXT_CLK_DEF;
    } else {
        freq = clk_get_rate(mcan_class->cclk);
    }

    /* Sanity check */
    if (freq < 20000000 || freq > TCAN4X5X_EXT_CLK_DEF)
        return -ERANGE;

    priv->reg_offset = TCAN4X5X_MCAN_OFFSET;
    priv->mram_start = TCAN4X5X_MRAM_START;
    priv->spi = spi;
    priv->mcan_dev = mcan_class;

    mcan_class->pm_clock_support = 0;
    mcan_class->can.clock.freq = freq;
    mcan_class->dev = &spi->dev;
    mcan_class->ops = &tcan4x5x_ops;
    mcan_class->is_peripheral = true;
    mcan_class->net->irq = spi->irq;

    spi_set_drvdata(spi, priv);

    ret = tcan4x5x_parse_config(mcan_class);
    if (ret)
        goto out_clk;

    /* Configure the SPI bus */
    spi->bits_per_word = 32;
    ret = spi_setup(spi);
    if (ret)
        goto out_clk;

    priv->regmap = devm_regmap_init(&spi->dev, &tcan4x5x_bus,
                    &spi->dev, &tcan4x5x_regmap);
    if (IS_ERR(priv->regmap)) {
        ret = PTR_ERR(priv->regmap);
        goto out_clk;
    }

    tcan4x5x_power_enable(priv->power, 1);

    ret = tcan4x5x_init(mcan_class);
    if (ret)
        goto out_power;

    ret = m_can_class_register(mcan_class);
    if (ret)
        goto out_power;

    netdev_info(mcan_class->net, "TCAN4X5X successfully initialized.\n");
    return 0;

out_power:
    tcan4x5x_power_enable(priv->power, 0);
out_clk:
    if (!IS_ERR(mcan_class->cclk)) {
        clk_disable_unprepare(mcan_class->cclk);
        clk_disable_unprepare(mcan_class->hclk);
    }

    dev_err(&spi->dev, "Probe failed, err=%d\n", ret);
    return ret;
}

static int tcan4x5x_can_remove(struct spi_device *spi)
{
    struct tcan4x5x_priv *priv = spi_get_drvdata(spi);

    m_can_class_unregister(priv->mcan_dev);

    tcan4x5x_power_enable(priv->power, 0);

    return 0;
}

static const struct of_device_id tcan4x5x_of_match[] = {
    { .compatible = "ti,tcan4x5x", },
    { }
};
MODULE_DEVICE_TABLE(of, tcan4x5x_of_match);

static const struct spi_device_id tcan4x5x_id_table[] = {
    {
        .name        = "tcan4x5x",
        .driver_data    = 0,
    },
    { }
};
MODULE_DEVICE_TABLE(spi, tcan4x5x_id_table);

static struct spi_driver tcan4x5x_can_driver = {
    .driver = {
        .name = DEVICE_NAME,
        .of_match_table = tcan4x5x_of_match,
        .pm = NULL,
    },
    .id_table = tcan4x5x_id_table,
    .probe = tcan4x5x_can_probe,
    .remove = tcan4x5x_can_remove,
};
module_spi_driver(tcan4x5x_can_driver);

MODULE_AUTHOR("Dan Murphy <dmurphy@ti.com>");
MODULE_DESCRIPTION("Texas Instruments TCAN4x5x CAN driver");
MODULE_LICENSE("GPL v2");

m_can.h:

/* SPDX-License-Identifier: GPL-2.0 */
/* CAN bus driver for Bosch M_CAN controller
 * Copyright (C) 2018 Texas Instruments Incorporated - http://www.ti.com/
 */

#ifndef _CAN_M_CAN_H_
#define _CAN_M_CAN_H_

#include <linux/can/core.h>
#include <linux/can/led.h>
#include <linux/completion.h>
#include <linux/device.h>
#include <linux/dma-mapping.h>
#include <linux/freezer.h>
#include <linux/slab.h>
#include <linux/uaccess.h>
#include <linux/clk.h>
#include <linux/delay.h>
#include <linux/interrupt.h>
#include <linux/io.h>
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/netdevice.h>
#include <linux/of.h>
#include <linux/of_device.h>
#include <linux/pm_runtime.h>
#include <linux/iopoll.h>
#include <linux/can/dev.h>
#include <linux/pinctrl/consumer.h>
#include <linux/mutex.h>

/* m_can lec values */
enum m_can_lec_type {
    LEC_NO_ERROR = 0,
    LEC_STUFF_ERROR,
    LEC_FORM_ERROR,
    LEC_ACK_ERROR,
    LEC_BIT1_ERROR,
    LEC_BIT0_ERROR,
    LEC_CRC_ERROR,
    LEC_UNUSED,
};

enum m_can_mram_cfg {
    MRAM_SIDF = 0,
    MRAM_XIDF,
    MRAM_RXF0,
    MRAM_RXF1,
    MRAM_RXB,
    MRAM_TXE,
    MRAM_TXB,
    MRAM_CFG_NUM,
};

/* address offset and element number for each FIFO/Buffer in the Message RAM */
struct mram_cfg {
    u16 off;
    u8  num;
};

struct m_can_classdev;
struct m_can_ops {
    /* Device specific call backs */
    int (*clear_interrupts)(struct m_can_classdev *cdev);
    u32 (*read_reg)(struct m_can_classdev *cdev, int reg);
    int (*write_reg)(struct m_can_classdev *cdev, int reg, int val);
    u32 (*read_fifo)(struct m_can_classdev *cdev, int addr_offset);
    int (*write_fifo)(struct m_can_classdev *cdev, int addr_offset,
              int val);
    int (*init)(struct m_can_classdev *cdev);
};

struct m_can_classdev {
    struct can_priv can;
    struct napi_struct napi;
    struct net_device *net;
    struct device *dev;
    struct clk *hclk;
    struct clk *cclk;

    struct workqueue_struct *tx_wq;
    struct work_struct tx_work;
    struct sk_buff *tx_skb;

    struct can_bittiming_const *bit_timing;
    struct can_bittiming_const *data_timing;

    struct m_can_ops *ops;

    struct mutex mcan_lock;

    void *device_data;

    int version;
    int freq;
    u32 irqstatus;

    int pm_clock_support;
    int is_peripheral;

    struct mram_cfg mcfg[MRAM_CFG_NUM];
};

struct m_can_classdev *m_can_class_allocate_dev(struct device *dev);
void m_can_class_free_dev(struct net_device *net);
int m_can_class_register(struct m_can_classdev *cdev);
void m_can_class_unregister(struct m_can_classdev *cdev);
int m_can_class_get_clocks(struct m_can_classdev *cdev);
void m_can_init_ram(struct m_can_classdev *priv);
void m_can_config_endisable(struct m_can_classdev *priv, bool enable);

int m_can_class_suspend(struct device *dev);
int m_can_class_resume(struct device *dev);
#endif    /* _CAN_M_H_ */

m_can.c:

// SPDX-License-Identifier: GPL-2.0
// CAN bus driver for Bosch M_CAN controller
// Copyright (C) 2014 Freescale Semiconductor, Inc.
//      Dong Aisheng <b29396@freescale.com>
// Copyright (C) 2018-19 Texas Instruments Incorporated - http://www.ti.com/

/* Bosch M_CAN user manual can be obtained from:
 * www.bosch-semiconductors.de/.../
 * mcan_users_manual_v302.pdf
 */

#include <linux/interrupt.h>
#include <linux/io.h>
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/netdevice.h>
#include <linux/of.h>
#include <linux/of_device.h>
#include <linux/platform_device.h>
#include <linux/pm_runtime.h>
#include <linux/iopoll.h>
#include <linux/can/dev.h>
#include <linux/pinctrl/consumer.h>

#include "m_can.h"

/* registers definition */
enum m_can_reg {
    M_CAN_CREL    = 0x0,
    M_CAN_ENDN    = 0x4,
    M_CAN_CUST    = 0x8,
    M_CAN_DBTP    = 0xc,
    M_CAN_TEST    = 0x10,
    M_CAN_RWD    = 0x14,
    M_CAN_CCCR    = 0x18,
    M_CAN_NBTP    = 0x1c,
    M_CAN_TSCC    = 0x20,
    M_CAN_TSCV    = 0x24,
    M_CAN_TOCC    = 0x28,
    M_CAN_TOCV    = 0x2c,
    M_CAN_ECR    = 0x40,
    M_CAN_PSR    = 0x44,
/* TDCR Register only available for version >=3.1.x */
    M_CAN_TDCR    = 0x48,
    M_CAN_IR    = 0x50,
    M_CAN_IE    = 0x54,
    M_CAN_ILS    = 0x58,
    M_CAN_ILE    = 0x5c,
    M_CAN_GFC    = 0x80,
    M_CAN_SIDFC    = 0x84,

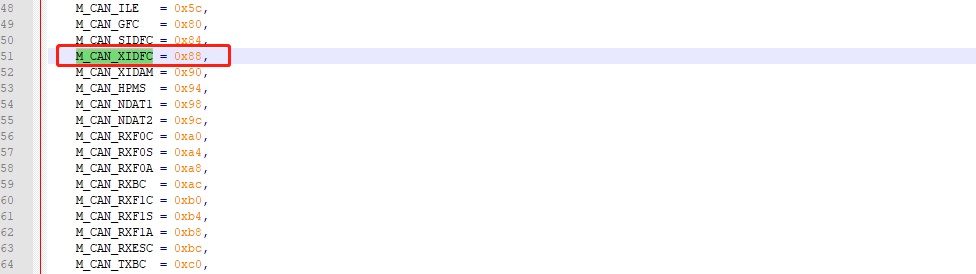

    M_CAN_XIDFC    = 0x88,
    M_CAN_XIDAM    = 0x90,
    M_CAN_HPMS    = 0x94,
    M_CAN_NDAT1    = 0x98,
    M_CAN_NDAT2    = 0x9c,
    M_CAN_RXF0C    = 0xa0,
    M_CAN_RXF0S    = 0xa4,
    M_CAN_RXF0A    = 0xa8,
    M_CAN_RXBC    = 0xac,
    M_CAN_RXF1C    = 0xb0,
    M_CAN_RXF1S    = 0xb4,
    M_CAN_RXF1A    = 0xb8,
    M_CAN_RXESC    = 0xbc,
    M_CAN_TXBC    = 0xc0,
    M_CAN_TXFQS    = 0xc4,
    M_CAN_TXESC    = 0xc8,
    M_CAN_TXBRP    = 0xcc,
    M_CAN_TXBAR    = 0xd0,
    M_CAN_TXBCR    = 0xd4,
    M_CAN_TXBTO    = 0xd8,
    M_CAN_TXBCF    = 0xdc,
    M_CAN_TXBTIE    = 0xe0,
    M_CAN_TXBCIE    = 0xe4,
    M_CAN_TXEFC    = 0xf0,
    M_CAN_TXEFS    = 0xf4,
    M_CAN_TXEFA    = 0xf8,
};

/* napi related */
#define M_CAN_NAPI_WEIGHT    64

/* message ram configuration data length */
#define MRAM_CFG_LEN    8

/* Core Release Register (CREL) */
#define CREL_REL_SHIFT        28
#define CREL_REL_MASK        (0xF << CREL_REL_SHIFT)
#define CREL_STEP_SHIFT        24
#define CREL_STEP_MASK        (0xF << CREL_STEP_SHIFT)
#define CREL_SUBSTEP_SHIFT    20
#define CREL_SUBSTEP_MASK    (0xF << CREL_SUBSTEP_SHIFT)

/* Data Bit Timing & Prescaler Register (DBTP) */
#define DBTP_TDC        BIT(23)
#define DBTP_DBRP_SHIFT        16
#define DBTP_DBRP_MASK        (0x1f << DBTP_DBRP_SHIFT)
#define DBTP_DTSEG1_SHIFT    8
#define DBTP_DTSEG1_MASK    (0x1f << DBTP_DTSEG1_SHIFT)
#define DBTP_DTSEG2_SHIFT    4
#define DBTP_DTSEG2_MASK    (0xf << DBTP_DTSEG2_SHIFT)
#define DBTP_DSJW_SHIFT        0
#define DBTP_DSJW_MASK        (0xf << DBTP_DSJW_SHIFT)

/* Transmitter Delay Compensation Register (TDCR) */
#define TDCR_TDCO_SHIFT        8
#define TDCR_TDCO_MASK        (0x7F << TDCR_TDCO_SHIFT)
#define TDCR_TDCF_SHIFT        0
#define TDCR_TDCF_MASK        (0x7F << TDCR_TDCF_SHIFT)

/* Test Register (TEST) */
#define TEST_LBCK        BIT(4)

/* CC Control Register(CCCR) */
#define CCCR_CMR_MASK        0x3
#define CCCR_CMR_SHIFT        10
#define CCCR_CMR_CANFD        0x1
#define CCCR_CMR_CANFD_BRS    0x2
#define CCCR_CMR_CAN        0x3
#define CCCR_CME_MASK        0x3
#define CCCR_CME_SHIFT        8
#define CCCR_CME_CAN        0
#define CCCR_CME_CANFD        0x1
#define CCCR_CME_CANFD_BRS    0x2
#define CCCR_TXP        BIT(14)
#define CCCR_TEST        BIT(7)
#define CCCR_DAR        BIT(6)
#define CCCR_MON        BIT(5)
#define CCCR_CSR        BIT(4)
#define CCCR_CSA        BIT(3)
#define CCCR_ASM        BIT(2)
#define CCCR_CCE        BIT(1)
#define CCCR_INIT        BIT(0)
#define CCCR_CANFD        0x10
/* for version >=3.1.x */
#define CCCR_EFBI        BIT(13)
#define CCCR_PXHD        BIT(12)
#define CCCR_BRSE        BIT(9)
#define CCCR_FDOE        BIT(8)
/* only for version >=3.2.x */
#define CCCR_NISO        BIT(15)

/* Nominal Bit Timing & Prescaler Register (NBTP) */
#define NBTP_NSJW_SHIFT        25
#define NBTP_NSJW_MASK        (0x7f << NBTP_NSJW_SHIFT)
#define NBTP_NBRP_SHIFT        16
#define NBTP_NBRP_MASK        (0x1ff << NBTP_NBRP_SHIFT)
#define NBTP_NTSEG1_SHIFT    8
#define NBTP_NTSEG1_MASK    (0xff << NBTP_NTSEG1_SHIFT)
#define NBTP_NTSEG2_SHIFT    0
#define NBTP_NTSEG2_MASK    (0x7f << NBTP_NTSEG2_SHIFT)

/* Error Counter Register(ECR) */
#define ECR_RP            BIT(15)
#define ECR_REC_SHIFT        8
#define ECR_REC_MASK        (0x7f << ECR_REC_SHIFT)
#define ECR_TEC_SHIFT        0
#define ECR_TEC_MASK        0xff

/* Protocol Status Register(PSR) */
#define PSR_BO        BIT(7)
#define PSR_EW        BIT(6)
#define PSR_EP        BIT(5)
#define PSR_LEC_MASK    0x7

/* Interrupt Register(IR) */
#define IR_ALL_INT    0xffffffff

/* Renamed bits for versions > 3.1.x */
#define IR_ARA        BIT(29)
#define IR_PED        BIT(28)
#define IR_PEA        BIT(27)

/* Bits for version 3.0.x */
#define IR_STE        BIT(31)
#define IR_FOE        BIT(30)
#define IR_ACKE        BIT(29)
#define IR_BE        BIT(28)
#define IR_CRCE        BIT(27)
#define IR_WDI        BIT(26)
#define IR_BO        BIT(25)
#define IR_EW        BIT(24)
#define IR_EP        BIT(23)
#define IR_ELO        BIT(22)
#define IR_BEU        BIT(21)
#define IR_BEC        BIT(20)
#define IR_DRX        BIT(19)
#define IR_TOO        BIT(18)
#define IR_MRAF        BIT(17)
#define IR_TSW        BIT(16)
#define IR_TEFL        BIT(15)
#define IR_TEFF        BIT(14)
#define IR_TEFW        BIT(13)
#define IR_TEFN        BIT(12)
#define IR_TFE        BIT(11)
#define IR_TCF        BIT(10)
#define IR_TC        BIT(9)
#define IR_HPM        BIT(8)
#define IR_RF1L        BIT(7)
#define IR_RF1F        BIT(6)
#define IR_RF1W        BIT(5)
#define IR_RF1N        BIT(4)
#define IR_RF0L        BIT(3)
#define IR_RF0F        BIT(2)
#define IR_RF0W        BIT(1)
#define IR_RF0N        BIT(0)
#define IR_ERR_STATE    (IR_BO | IR_EW | IR_EP)

/* Interrupts for version 3.0.x */
#define IR_ERR_LEC_30X    (IR_STE    | IR_FOE | IR_ACKE | IR_BE | IR_CRCE)
#define IR_ERR_BUS_30X    (IR_ERR_LEC_30X | IR_WDI | IR_ELO | IR_BEU | \
             IR_BEC | IR_TOO | IR_MRAF | IR_TSW | IR_TEFL | \
             IR_RF1L | IR_RF0L)
#define IR_ERR_ALL_30X    (IR_ERR_STATE | IR_ERR_BUS_30X)
/* Interrupts for version >= 3.1.x */
#define IR_ERR_LEC_31X    (IR_PED | IR_PEA)
#define IR_ERR_BUS_31X      (IR_ERR_LEC_31X | IR_WDI | IR_ELO | IR_BEU | \
             IR_BEC | IR_TOO | IR_MRAF | IR_TSW | IR_TEFL | \
             IR_RF1L | IR_RF0L)
#define IR_ERR_ALL_31X    (IR_ERR_STATE | IR_ERR_BUS_31X)

/* Interrupt Line Select (ILS) */
#define ILS_ALL_INT0    0x0
#define ILS_ALL_INT1    0xFFFFFFFF

/* Interrupt Line Enable (ILE) */
#define ILE_EINT1    BIT(1)
#define ILE_EINT0    BIT(0)

/* Rx FIFO 0/1 Configuration (RXF0C/RXF1C) */
#define RXFC_FWM_SHIFT    24
#define RXFC_FWM_MASK    (0x7f << RXFC_FWM_SHIFT)
#define RXFC_FS_SHIFT    16
#define RXFC_FS_MASK    (0x7f << RXFC_FS_SHIFT)

/* Rx FIFO 0/1 Status (RXF0S/RXF1S) */
#define RXFS_RFL    BIT(25)
#define RXFS_FF        BIT(24)
#define RXFS_FPI_SHIFT    16
#define RXFS_FPI_MASK    0x3f0000
#define RXFS_FGI_SHIFT    8
#define RXFS_FGI_MASK    0x3f00
#define RXFS_FFL_MASK    0x7f

/* Rx Buffer / FIFO Element Size Configuration (RXESC) */
#define M_CAN_RXESC_8BYTES    0x0
#define M_CAN_RXESC_64BYTES    0x777

/* Tx Buffer Configuration(TXBC) */
#define TXBC_NDTB_SHIFT        16
#define TXBC_NDTB_MASK        (0x3f << TXBC_NDTB_SHIFT)
#define TXBC_TFQS_SHIFT        24
#define TXBC_TFQS_MASK        (0x3f << TXBC_TFQS_SHIFT)

/* Tx FIFO/Queue Status (TXFQS) */
#define TXFQS_TFQF        BIT(21)
#define TXFQS_TFQPI_SHIFT    16
#define TXFQS_TFQPI_MASK    (0x1f << TXFQS_TFQPI_SHIFT)
#define TXFQS_TFGI_SHIFT    8
#define TXFQS_TFGI_MASK        (0x1f << TXFQS_TFGI_SHIFT)
#define TXFQS_TFFL_SHIFT    0
#define TXFQS_TFFL_MASK        (0x3f << TXFQS_TFFL_SHIFT)

/* Tx Buffer Element Size Configuration(TXESC) */
#define TXESC_TBDS_8BYTES    0x0
#define TXESC_TBDS_64BYTES    0x7

/* Tx Event FIFO Configuration (TXEFC) */
#define TXEFC_EFS_SHIFT        16
#define TXEFC_EFS_MASK        (0x3f << TXEFC_EFS_SHIFT)

/* Tx Event FIFO Status (TXEFS) */
#define TXEFS_TEFL        BIT(25)
#define TXEFS_EFF        BIT(24)
#define TXEFS_EFGI_SHIFT    8
#define    TXEFS_EFGI_MASK        (0x1f << TXEFS_EFGI_SHIFT)
#define TXEFS_EFFL_SHIFT    0
#define TXEFS_EFFL_MASK        (0x3f << TXEFS_EFFL_SHIFT)

/* Tx Event FIFO Acknowledge (TXEFA) */
#define TXEFA_EFAI_SHIFT    0
#define TXEFA_EFAI_MASK        (0x1f << TXEFA_EFAI_SHIFT)

/* Message RAM Configuration (in bytes) */
#define SIDF_ELEMENT_SIZE    4
#define XIDF_ELEMENT_SIZE    8
#define RXF0_ELEMENT_SIZE    72
#define RXF1_ELEMENT_SIZE    72
#define RXB_ELEMENT_SIZE    72
#define TXE_ELEMENT_SIZE    8
#define TXB_ELEMENT_SIZE    72

/* Message RAM Elements */
#define M_CAN_FIFO_ID        0x0
#define M_CAN_FIFO_DLC        0x4
#define M_CAN_FIFO_DATA(n)    (0x8 + ((n) << 2))

/* Rx Buffer Element */
/* R0 */
#define RX_BUF_ESI        BIT(31)
#define RX_BUF_XTD        BIT(30)
#define RX_BUF_RTR        BIT(29)
/* R1 */
#define RX_BUF_ANMF        BIT(31)
#define RX_BUF_FDF        BIT(21)
#define RX_BUF_BRS        BIT(20)

/* Tx Buffer Element */
/* T0 */
#define TX_BUF_ESI        BIT(31)
#define TX_BUF_XTD        BIT(30)
#define TX_BUF_RTR        BIT(29)
/* T1 */
#define TX_BUF_EFC        BIT(23)
#define TX_BUF_FDF        BIT(21)
#define TX_BUF_BRS        BIT(20)
#define TX_BUF_MM_SHIFT        24
#define TX_BUF_MM_MASK        (0xff << TX_BUF_MM_SHIFT)

/* Tx event FIFO Element */
/* E1 */
#define TX_EVENT_MM_SHIFT    TX_BUF_MM_SHIFT
#define TX_EVENT_MM_MASK    (0xff << TX_EVENT_MM_SHIFT)

static inline u32 m_can_read(struct m_can_classdev *cdev, enum m_can_reg reg)
{
    return cdev->ops->read_reg(cdev, reg);
}

static inline void m_can_write(struct m_can_classdev *cdev, enum m_can_reg reg,
                   u32 val)
{
    cdev->ops->write_reg(cdev, reg, val);
}

static u32 m_can_fifo_read(struct m_can_classdev *cdev,
               u32 fgi, unsigned int offset)
{
    u32 addr_offset = cdev->mcfg[MRAM_RXF0].off + fgi * RXF0_ELEMENT_SIZE +
              offset;

    return cdev->ops->read_fifo(cdev, addr_offset);
}

static void m_can_fifo_write(struct m_can_classdev *cdev,
                 u32 fpi, unsigned int offset, u32 val)
{
    u32 addr_offset = cdev->mcfg[MRAM_TXB].off + fpi * TXB_ELEMENT_SIZE +
              offset;

    cdev->ops->write_fifo(cdev, addr_offset, val);
}

static inline void m_can_fifo_write_no_off(struct m_can_classdev *cdev,
                       u32 fpi, u32 val)
{
    cdev->ops->write_fifo(cdev, fpi, val);
}

static u32 m_can_txe_fifo_read(struct m_can_classdev *cdev, u32 fgi, u32 offset)
{
    u32 addr_offset = cdev->mcfg[MRAM_TXE].off + fgi * TXE_ELEMENT_SIZE +
              offset;

    return cdev->ops->read_fifo(cdev, addr_offset);
}

static inline bool m_can_tx_fifo_full(struct m_can_classdev *cdev)
{
        return !!(m_can_read(cdev, M_CAN_TXFQS) & TXFQS_TFQF);
}

void m_can_config_endisable(struct m_can_classdev *cdev, bool enable)
{
    u32 cccr = m_can_read(cdev, M_CAN_CCCR);
    u32 timeout = 10;
    u32 val = 0;
    //int tmp, tmpp = 0x0808 - 0x1000;

    /* Clear the Clock stop request if it was set */
    if (cccr & CCCR_CSR)
        cccr &= ~CCCR_CSR;

    if (enable) {                // not
        /* Clear the Clock stop request if it was set */
        if (cccr & CCCR_CSR){
            cccr &= ~CCCR_CSR;
            //TCAN4550_DBG("%s(%d) cccr &= ~CCCR_CSR : 0x%X\n", __func__, __LINE__, cccr);
        }
#if 0
        /* test */
        m_can_write(cdev, M_CAN_CCCR, 0x18);
        pr_info("############### write M_CAN_CCCR 0x18, read 0x%X.\n", m_can_read(cdev, M_CAN_CCCR));

        tmp = m_can_read(cdev, M_CAN_IR);
        pr_info("############### read M_CAN_IR  0x%X.\n", tmp);
        m_can_write(cdev, M_CAN_IR, tmp | 0x55);
        pr_info("############### write M_CAN_IR & 0x55, read 0x%X.\n", m_can_read(cdev, M_CAN_IR));

        pr_info("|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||\n");

        m_can_write(cdev, tmpp, 0xDBD5);
        pr_info("############### write 0x0808 0xDBD5, read 0x%X.\n", m_can_read(cdev, M_CAN_CCCR));

        tmp = m_can_read(cdev, tmpp);
        pr_info("############### read 0x0808  0x%X.\n", tmp);

        udelay(10);
#endif
        /* enable m_can configuration */
        m_can_write(cdev, M_CAN_CCCR, cccr | CCCR_INIT);
        udelay(5);
        /* CCCR.CCE can only be set/reset while CCCR.INIT = '1' */
        m_can_write(cdev, M_CAN_CCCR, cccr | CCCR_INIT | CCCR_CCE);
    } else {
        m_can_write(cdev, M_CAN_CCCR, cccr & ~(CCCR_INIT | CCCR_CCE));
    }

    /* there's a delay for module initialization */
    if (enable)
        val = CCCR_INIT | CCCR_CCE;

    while ((m_can_read(cdev, M_CAN_CCCR) & (CCCR_INIT | CCCR_CCE)) != val) {
        if (timeout == 0) {
            netdev_warn(cdev->net, "Failed to init module\n");
            return;
        }
        timeout--;
        udelay(1);
    }
}

static inline void m_can_enable_all_interrupts(struct m_can_classdev *cdev)
{
    /* Only interrupt line 0 is used in this driver */
    m_can_write(cdev, M_CAN_ILE, ILE_EINT0);
}

static inline void m_can_disable_all_interrupts(struct m_can_classdev *cdev)
{
    m_can_write(cdev, M_CAN_ILE, 0x0);
}

static void m_can_clean(struct net_device *net)
{
    struct m_can_classdev *cdev = netdev_priv(net);

    if (cdev->tx_skb) {
        int putidx = 0;

        net->stats.tx_errors++;
        if (cdev->version > 30)
            putidx = ((m_can_read(cdev, M_CAN_TXFQS) &
                   TXFQS_TFQPI_MASK) >> TXFQS_TFQPI_SHIFT);

        can_free_echo_skb(cdev->net, putidx);
        cdev->tx_skb = NULL;
    }
}

static void m_can_read_fifo(struct net_device *dev, u32 rxfs)
{
    struct net_device_stats *stats = &dev->stats;
    struct m_can_classdev *cdev = netdev_priv(dev);
    struct canfd_frame *cf;
    struct sk_buff *skb;
    u32 id, fgi, dlc;
    int i;

    /* calculate the fifo get index for where to read data */
    fgi = (rxfs & RXFS_FGI_MASK) >> RXFS_FGI_SHIFT;
    dlc = m_can_fifo_read(cdev, fgi, M_CAN_FIFO_DLC);
    if (dlc & RX_BUF_FDF)
        skb = alloc_canfd_skb(dev, &cf);
    else
        skb = alloc_can_skb(dev, (struct can_frame **)&cf);
    if (!skb) {
        stats->rx_dropped++;
        return;
    }

    if (dlc & RX_BUF_FDF)
        cf->len = can_dlc2len((dlc >> 16) & 0x0F);
    else
        cf->len = get_can_dlc((dlc >> 16) & 0x0F);

    id = m_can_fifo_read(cdev, fgi, M_CAN_FIFO_ID);
    if (id & RX_BUF_XTD)
        cf->can_id = (id & CAN_EFF_MASK) | CAN_EFF_FLAG;
    else
        cf->can_id = (id >> 18) & CAN_SFF_MASK;

    if (id & RX_BUF_ESI) {
        cf->flags |= CANFD_ESI;
        netdev_dbg(dev, "ESI Error\n");
    }

    if (!(dlc & RX_BUF_FDF) && (id & RX_BUF_RTR)) {
        cf->can_id |= CAN_RTR_FLAG;
    } else {
        if (dlc & RX_BUF_BRS)
            cf->flags |= CANFD_BRS;

        for (i = 0; i < cf->len; i += 4)
            *(u32 *)(cf->data + i) =
                m_can_fifo_read(cdev, fgi,
                        M_CAN_FIFO_DATA(i / 4));
    }

    /* acknowledge rx fifo 0 */
    m_can_write(cdev, M_CAN_RXF0A, fgi);

    stats->rx_packets++;
    stats->rx_bytes += cf->len;

    netif_receive_skb(skb);
}

static int m_can_do_rx_poll(struct net_device *dev, int quota)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    u32 pkts = 0;
    u32 rxfs, num;

    rxfs = m_can_read(cdev, M_CAN_RXF0S);
    if (!(rxfs & RXFS_FFL_MASK)) {
        netdev_dbg(dev, "no messages in fifo0\n");
        return 0;
    }

    while (rxfs & RXFS_FFL_MASK) {
        if (rxfs & RXFS_RFL)
            netdev_warn(dev, "Rx FIFO 0 Message Lost\n");

        //TCAN4550_DBG("^^^^^^ %s(%d) called. read fifo, rxfs : 0x%X\n", __func__, __LINE__, rxfs);
        m_can_read_fifo(dev, rxfs);

        //quota--;
        pkts++;
        rxfs = m_can_read(cdev, M_CAN_RXF0S);
    }

    if (pkts)
        can_led_event(dev, CAN_LED_EVENT_RX);

    return pkts;
}

static int m_can_handle_lost_msg(struct net_device *dev)
{
    struct net_device_stats *stats = &dev->stats;
    struct sk_buff *skb;
    struct can_frame *frame;

    netdev_err(dev, "msg lost in rxf0\n");

    stats->rx_errors++;
    stats->rx_over_errors++;

    skb = alloc_can_err_skb(dev, &frame);
    if (unlikely(!skb))
        return 0;

    frame->can_id |= CAN_ERR_CRTL;
    frame->data[1] = CAN_ERR_CRTL_RX_OVERFLOW;

    netif_receive_skb(skb);

    return 1;
}

static int m_can_handle_lec_err(struct net_device *dev,
                enum m_can_lec_type lec_type)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    struct net_device_stats *stats = &dev->stats;
    struct can_frame *cf;
    struct sk_buff *skb;

    cdev->can.can_stats.bus_error++;
    stats->rx_errors++;

    /* propagate the error condition to the CAN stack */
    skb = alloc_can_err_skb(dev, &cf);
    if (unlikely(!skb))
        return 0;

    /* check for 'last error code' which tells us the
     * type of the last error to occur on the CAN bus
     */
    cf->can_id |= CAN_ERR_PROT | CAN_ERR_BUSERROR;

    switch (lec_type) {
    case LEC_STUFF_ERROR:
        netdev_dbg(dev, "stuff error\n");
        cf->data[2] |= CAN_ERR_PROT_STUFF;
        break;
    case LEC_FORM_ERROR:
        netdev_dbg(dev, "form error\n");
        cf->data[2] |= CAN_ERR_PROT_FORM;
        break;
    case LEC_ACK_ERROR:
        netdev_dbg(dev, "ack error\n");
        cf->data[3] = CAN_ERR_PROT_LOC_ACK;
        break;
    case LEC_BIT1_ERROR:
        netdev_dbg(dev, "bit1 error\n");
        cf->data[2] |= CAN_ERR_PROT_BIT1;
        break;
    case LEC_BIT0_ERROR:
        netdev_dbg(dev, "bit0 error\n");
        cf->data[2] |= CAN_ERR_PROT_BIT0;
        break;
    case LEC_CRC_ERROR:
        netdev_dbg(dev, "CRC error\n");
        cf->data[3] = CAN_ERR_PROT_LOC_CRC_SEQ;
        break;
    default:
        break;
    }

    stats->rx_packets++;
    stats->rx_bytes += cf->can_dlc;
    netif_receive_skb(skb);

    return 1;
}

static int __m_can_get_berr_counter(const struct net_device *dev,
                    struct can_berr_counter *bec)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    unsigned int ecr;

    ecr = m_can_read(cdev, M_CAN_ECR);
    bec->rxerr = (ecr & ECR_REC_MASK) >> ECR_REC_SHIFT;
    bec->txerr = (ecr & ECR_TEC_MASK) >> ECR_TEC_SHIFT;

    return 0;
}

static int m_can_clk_start(struct m_can_classdev *cdev)
{
    int err;

    if (cdev->pm_clock_support == 0)
        return 0;

    err = pm_runtime_get_sync(cdev->dev);
    if (err < 0) {
        pm_runtime_put_noidle(cdev->dev);
        return err;
    }

    return 0;
}

static void m_can_clk_stop(struct m_can_classdev *cdev)
{
    if (cdev->pm_clock_support)
        pm_runtime_put_sync(cdev->dev);
}

static int m_can_get_berr_counter(const struct net_device *dev,
                  struct can_berr_counter *bec)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    int err;

    err = m_can_clk_start(cdev);
    if (err)
        return err;

    __m_can_get_berr_counter(dev, bec);

    m_can_clk_stop(cdev);

    return 0;
}

static int m_can_handle_state_change(struct net_device *dev,
                     enum can_state new_state)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    struct net_device_stats *stats = &dev->stats;
    struct can_frame *cf;
    struct sk_buff *skb;
    struct can_berr_counter bec;
    unsigned int ecr;

    switch (new_state) {
    case CAN_STATE_ERROR_WARNING:
        /* error warning state */
        cdev->can.can_stats.error_warning++;
        cdev->can.state = CAN_STATE_ERROR_WARNING;
        break;
    case CAN_STATE_ERROR_PASSIVE:
        /* error passive state */
        cdev->can.can_stats.error_passive++;
        cdev->can.state = CAN_STATE_ERROR_PASSIVE;
        break;
    case CAN_STATE_BUS_OFF:
        /* bus-off state */
        cdev->can.state = CAN_STATE_BUS_OFF;
        m_can_disable_all_interrupts(cdev);
        cdev->can.can_stats.bus_off++;
        can_bus_off(dev);
        break;
    default:
        break;
    }

    /* propagate the error condition to the CAN stack */
    skb = alloc_can_err_skb(dev, &cf);
    if (unlikely(!skb))
        return 0;

    __m_can_get_berr_counter(dev, &bec);

    switch (new_state) {
    case CAN_STATE_ERROR_WARNING:
        /* error warning state */
        cf->can_id |= CAN_ERR_CRTL;
        cf->data[1] = (bec.txerr > bec.rxerr) ?
            CAN_ERR_CRTL_TX_WARNING :
            CAN_ERR_CRTL_RX_WARNING;
        cf->data[6] = bec.txerr;
        cf->data[7] = bec.rxerr;
        break;
    case CAN_STATE_ERROR_PASSIVE:
        /* error passive state */
        cf->can_id |= CAN_ERR_CRTL;
        ecr = m_can_read(cdev, M_CAN_ECR);
        if (ecr & ECR_RP)
            cf->data[1] |= CAN_ERR_CRTL_RX_PASSIVE;
        if (bec.txerr > 127)
            cf->data[1] |= CAN_ERR_CRTL_TX_PASSIVE;
        cf->data[6] = bec.txerr;
        cf->data[7] = bec.rxerr;
        break;
    case CAN_STATE_BUS_OFF:
        /* bus-off state */
        cf->can_id |= CAN_ERR_BUSOFF;
        break;
    default:
        break;
    }

    stats->rx_packets++;
    stats->rx_bytes += cf->can_dlc;
    netif_receive_skb(skb);

    return 1;
}

static int m_can_handle_state_errors(struct net_device *dev, u32 psr)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    int work_done = 0;

    if (psr & PSR_EW && cdev->can.state != CAN_STATE_ERROR_WARNING) {
        netdev_dbg(dev, "entered error warning state\n");
        work_done += m_can_handle_state_change(dev,
                               CAN_STATE_ERROR_WARNING);
    }

    if (psr & PSR_EP && cdev->can.state != CAN_STATE_ERROR_PASSIVE) {
        netdev_dbg(dev, "entered error passive state\n");
        work_done += m_can_handle_state_change(dev,
                               CAN_STATE_ERROR_PASSIVE);
    }

    if (psr & PSR_BO && cdev->can.state != CAN_STATE_BUS_OFF) {
        netdev_dbg(dev, "entered error bus off state\n");
        work_done += m_can_handle_state_change(dev,
                               CAN_STATE_BUS_OFF);
    }

    return work_done;
}

static void m_can_handle_other_err(struct net_device *dev, u32 irqstatus)
{
    if (irqstatus & IR_WDI)
        netdev_err(dev, "Message RAM Watchdog event due to missing READY\n");
    if (irqstatus & IR_ELO)
        netdev_err(dev, "Error Logging Overflow\n");
    if (irqstatus & IR_BEU)
        netdev_err(dev, "Bit Error Uncorrected\n");
    if (irqstatus & IR_BEC)
        netdev_err(dev, "Bit Error Corrected\n");
    if (irqstatus & IR_TOO)
        netdev_err(dev, "Timeout reached\n");
    if (irqstatus & IR_MRAF)
        netdev_err(dev, "Message RAM access failure occurred\n");
}

static inline bool is_lec_err(u32 psr)
{
    psr &= LEC_UNUSED;

    return psr && (psr != LEC_UNUSED);
}

static inline bool m_can_is_protocol_err(u32 irqstatus)
{
    //TCAN4550_DBG("%s(%d) called.\n", __func__, __LINE__);
    return irqstatus & IR_ERR_LEC_31X;
}

static int m_can_handle_protocol_error(struct net_device *dev, u32 irqstatus)
{
    struct net_device_stats *stats = &dev->stats;
    struct m_can_classdev *cdev = netdev_priv(dev);
    struct can_frame *cf;
    struct sk_buff *skb;

    //TCAN4550_DBG("%s(%d) called.\n", __func__, __LINE__);

    /* propagate the error condition to the CAN stack */
    skb = alloc_can_err_skb(dev, &cf);

    /* update tx error stats since there is protocol error */
    stats->tx_errors++;

    /* update arbitration lost status */
    if (cdev->version >= 31 && (irqstatus & IR_PEA)) {
        netdev_dbg(dev, "Protocol error in Arbitration fail\n");
        cdev->can.can_stats.arbitration_lost++;
        if (skb) {
            cf->can_id |= CAN_ERR_LOSTARB;
            cf->data[0] |= CAN_ERR_LOSTARB_UNSPEC;
        }
    }

    if (unlikely(!skb)) {
        netdev_dbg(dev, "allocation of skb failed\n");
        return 0;
    }
    netif_receive_skb(skb);

    return 1;
}

static int m_can_handle_bus_errors(struct net_device *dev, u32 irqstatus,
                   u32 psr)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    int work_done = 0;

    if (irqstatus & IR_RF0L)
        work_done += m_can_handle_lost_msg(dev);

    /* handle lec errors on the bus */
    if ((cdev->can.ctrlmode & CAN_CTRLMODE_BERR_REPORTING) &&
        is_lec_err(psr))
        work_done += m_can_handle_lec_err(dev, psr & LEC_UNUSED);

    /* handle protocol errors in arbitration phase */
    if ((cdev->can.ctrlmode & CAN_CTRLMODE_BERR_REPORTING) &&
        m_can_is_protocol_err(irqstatus)){
        //TCAN4550_DBG("%s(%d) called.\n", __func__, __LINE__);
        work_done += m_can_handle_protocol_error(dev, irqstatus);
    }

    //TCAN4550_DBG("%s(%d) called.\n", __func__, __LINE__);

    /* other unproccessed error interrupts */
    m_can_handle_other_err(dev, irqstatus);

    return work_done;
}

static int m_can_rx_handler(struct net_device *dev, int quota)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    int work_done = 0;
    u32 irqstatus, psr;

    irqstatus = cdev->irqstatus | m_can_read(cdev, M_CAN_IR);
    if (!irqstatus)
        goto end;

    /* Errata workaround for issue "Needless activation of MRAF irq"
     * During frame reception while the MCAN is in Error Passive state
     * and the Receive Error Counter has the value MCAN_ECR.REC = 127,
     * it may happen that MCAN_IR.MRAF is set although there was no
     * Message RAM access failure.
     * If MCAN_IR.MRAF is enabled, an interrupt to the Host CPU is generated
     * The Message RAM Access Failure interrupt routine needs to check
     * whether MCAN_ECR.RP = ’1’ and MCAN_ECR.REC = 127.
     * In this case, reset MCAN_IR.MRAF. No further action is required.
     */
    if (cdev->version <= 31 && irqstatus & IR_MRAF &&
        m_can_read(cdev, M_CAN_ECR) & ECR_RP) {
        struct can_berr_counter bec;

        __m_can_get_berr_counter(dev, &bec);
        if (bec.rxerr == 127) {
            m_can_write(cdev, M_CAN_IR, IR_MRAF);
            irqstatus &= ~IR_MRAF;
        }
    }

    psr = m_can_read(cdev, M_CAN_PSR);

    if (irqstatus & IR_ERR_STATE)
        work_done += m_can_handle_state_errors(dev, psr);

    if (irqstatus & IR_ERR_BUS_30X)
        work_done += m_can_handle_bus_errors(dev, irqstatus, psr);

    if (irqstatus & IR_RF0N)
        work_done += m_can_do_rx_poll(dev, (quota - work_done));
end:
    return work_done;
}

static int m_can_rx_peripheral(struct net_device *dev)
{
    struct m_can_classdev *cdev = netdev_priv(dev);

    m_can_rx_handler(dev, M_CAN_NAPI_WEIGHT);

    m_can_enable_all_interrupts(cdev);

    return 0;
}

static int m_can_poll(struct napi_struct *napi, int quota)
{
    struct net_device *dev = napi->dev;
    struct m_can_classdev *cdev = netdev_priv(dev);
    int work_done;

    work_done = m_can_rx_handler(dev, quota);
    if (work_done < quota) {
        napi_complete_done(napi, work_done);
        m_can_enable_all_interrupts(cdev);
    }

    return work_done;
}

static void m_can_echo_tx_event(struct net_device *dev)
{
    u32 txe_count = 0;
    u32 m_can_txefs;
    u32 fgi = 0;
    int i = 0;
    unsigned int msg_mark;

    struct m_can_classdev *cdev = netdev_priv(dev);
    struct net_device_stats *stats = &dev->stats;

    /* read tx event fifo status */
    m_can_txefs = m_can_read(cdev, M_CAN_TXEFS);

    /* Get Tx Event fifo element count */
    txe_count = (m_can_txefs & TXEFS_EFFL_MASK)
            >> TXEFS_EFFL_SHIFT;

    /* Get and process all sent elements */
    for (i = 0; i < txe_count; i++) {
        /* retrieve get index */
        fgi = (m_can_read(cdev, M_CAN_TXEFS) & TXEFS_EFGI_MASK)
            >> TXEFS_EFGI_SHIFT;

        /* get message marker */
        msg_mark = (m_can_txe_fifo_read(cdev, fgi, 4) &
                TX_EVENT_MM_MASK) >> TX_EVENT_MM_SHIFT;

        /* ack txe element */
        m_can_write(cdev, M_CAN_TXEFA, (TXEFA_EFAI_MASK &
                        (fgi << TXEFA_EFAI_SHIFT)));

        /* update stats */
        stats->tx_bytes += can_get_echo_skb(dev, msg_mark);
        stats->tx_packets++;
    }
}

static irqreturn_t m_can_isr(int irq, void *dev_id)
{
    struct net_device *dev = (struct net_device *)dev_id;
    struct m_can_classdev *cdev = netdev_priv(dev);
    struct net_device_stats *stats = &dev->stats;
    u32 ir;

    //TCAN4550_DBG("%s(%d) called.\n", __func__, __LINE__);

    mutex_lock(&cdev->mcan_lock);

    ir = m_can_read(cdev, M_CAN_IR);
    if (!ir){
        pr_info("%s(%d) called.\n", __func__, __LINE__);
        mutex_unlock(&cdev->mcan_lock);
        return IRQ_NONE;
    }
    /* ACK all irqs */
    if (ir & IR_ALL_INT)
        m_can_write(cdev, M_CAN_IR, ir);

    if (cdev->ops->clear_interrupts)
        cdev->ops->clear_interrupts(cdev);

    /* schedule NAPI in case of
     * - rx IRQ
     * - state change IRQ
     * - bus error IRQ and bus error reporting
     */
    if ((ir & IR_RF0N) || (ir & IR_ERR_ALL_30X)) {
        cdev->irqstatus = ir;
        m_can_disable_all_interrupts(cdev);
        if (!cdev->is_peripheral)
            napi_schedule(&cdev->napi);
        else
            m_can_rx_peripheral(dev);
    }

    if (cdev->version == 30) {
        if (ir & IR_TC) {
            /* Transmission Complete Interrupt*/
            stats->tx_bytes += can_get_echo_skb(dev, 0);
            stats->tx_packets++;
            //TCAN4550_DBG("%s(%d) called.\n", __func__, __LINE__);
            //can_led_event(dev, CAN_LED_EVENT_TX);
            netif_wake_queue(dev);
        }
    } else  {
        if (ir & IR_TEFN) {
            /* New TX FIFO Element arrived */
            m_can_echo_tx_event(dev);
            can_led_event(dev, CAN_LED_EVENT_TX);
            if (netif_queue_stopped(dev) &&
                !m_can_tx_fifo_full(cdev))
                netif_wake_queue(dev);
        }
    }

    //TCAN4550_DBG("%s(%d) called.\n", __func__, __LINE__);

    mutex_unlock(&cdev->mcan_lock);
    return IRQ_HANDLED;
}

static const struct can_bittiming_const m_can_bittiming_const_30X = {
    .name = KBUILD_MODNAME,
    .tseg1_min = 2,        /* Time segment 1 = prop_seg + phase_seg1 */
    .tseg1_max = 64,
    .tseg2_min = 1,        /* Time segment 2 = phase_seg2 */
    .tseg2_max = 16,
    .sjw_max = 16,
    .brp_min = 1,
    .brp_max = 1024,
    .brp_inc = 1,
};

static const struct can_bittiming_const m_can_data_bittiming_const_30X = {
    .name = KBUILD_MODNAME,
    .tseg1_min = 2,        /* Time segment 1 = prop_seg + phase_seg1 */
    .tseg1_max = 16,
    .tseg2_min = 1,        /* Time segment 2 = phase_seg2 */
    .tseg2_max = 8,
    .sjw_max = 4,
    .brp_min = 1,
    .brp_max = 32,
    .brp_inc = 1,
};

static const struct can_bittiming_const m_can_bittiming_const_31X = {
    .name = KBUILD_MODNAME,
    .tseg1_min = 2,        /* Time segment 1 = prop_seg + phase_seg1 */
    .tseg1_max = 256,
    .tseg2_min = 1,        /* Time segment 2 = phase_seg2 */
    .tseg2_max = 128,
    .sjw_max = 128,
    .brp_min = 1,
    .brp_max = 512,
    .brp_inc = 1,
};

static const struct can_bittiming_const m_can_data_bittiming_const_31X = {
    .name = KBUILD_MODNAME,
    .tseg1_min = 1,        /* Time segment 1 = prop_seg + phase_seg1 */
    .tseg1_max = 32,
    .tseg2_min = 1,        /* Time segment 2 = phase_seg2 */
    .tseg2_max = 16,
    .sjw_max = 16,
    .brp_min = 1,
    .brp_max = 32,
    .brp_inc = 1,
};

static int m_can_set_bittiming(struct net_device *dev)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    const struct can_bittiming *bt = &cdev->can.bittiming;
    const struct can_bittiming *dbt = &cdev->can.data_bittiming;
    u16 brp, sjw, tseg1, tseg2;
    u32 reg_btp;

    brp = bt->brp - 1;
    sjw = bt->sjw - 1;
    tseg1 = bt->prop_seg + bt->phase_seg1 - 1;
    tseg2 = bt->phase_seg2 - 1;
    reg_btp = (brp << NBTP_NBRP_SHIFT) | (sjw << NBTP_NSJW_SHIFT) |
        (tseg1 << NBTP_NTSEG1_SHIFT) | (tseg2 << NBTP_NTSEG2_SHIFT);
    m_can_write(cdev, M_CAN_NBTP, reg_btp);

    if (cdev->can.ctrlmode & CAN_CTRLMODE_FD) {
        reg_btp = 0;
        brp = dbt->brp - 1;
        sjw = dbt->sjw - 1;
        tseg1 = dbt->prop_seg + dbt->phase_seg1 - 1;
        tseg2 = dbt->phase_seg2 - 1;

        /* TDC is only needed for bitrates beyond 2.5 MBit/s.
         * This is mentioned in the "Bit Time Requirements for CAN FD"
         * paper presented at the International CAN Conference 2013
         */
        if (dbt->bitrate > 2500000) {
            u32 tdco, ssp;

            /* Use the same value of secondary sampling point
             * as the data sampling point
             */
            ssp = dbt->sample_point;

            /* Equation based on Bosch's M_CAN User Manual's
             * Transmitter Delay Compensation Section
             */
            tdco = (cdev->can.clock.freq / 1000) *
                   ssp / dbt->bitrate;

            /* Max valid TDCO value is 127 */
            if (tdco > 127) {
                netdev_warn(dev, "TDCO value of %u is beyond maximum. Using maximum possible value\n",
                        tdco);
                tdco = 127;
            }

            reg_btp |= DBTP_TDC;
            m_can_write(cdev, M_CAN_TDCR,
                    tdco << TDCR_TDCO_SHIFT);
        }

        reg_btp |= (brp << DBTP_DBRP_SHIFT) |
               (sjw << DBTP_DSJW_SHIFT) |
               (tseg1 << DBTP_DTSEG1_SHIFT) |
               (tseg2 << DBTP_DTSEG2_SHIFT);

        m_can_write(cdev, M_CAN_DBTP, reg_btp);
    }

    return 0;
}

/* Configure M_CAN chip:
 * - set rx buffer/fifo element size
 * - configure rx fifo
 * - accept non-matching frame into fifo 0
 * - configure tx buffer
 *        - >= v3.1.x: TX FIFO is used
 * - configure mode
 * - setup bittiming
 */
static void m_can_chip_config(struct net_device *dev)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    u32 cccr, test;

    m_can_config_endisable(cdev, true);

    /* RX Buffer/FIFO Element Size 64 bytes data field */
    m_can_write(cdev, M_CAN_RXESC, M_CAN_RXESC_64BYTES);

    /* Accept Non-matching Frames Into FIFO 0 */
    m_can_write(cdev, M_CAN_GFC, 0x0);

    if (cdev->version == 30) {
        //TCAN4550_DBG("$$$$$$ read M_CAN_SIDFC 0x%X\n", m_can_read(cdev, M_CAN_SIDFC));
        //TCAN4550_DBG("$$$$$$ write M_CAN_SIDFC 0x%X\n", (1 << TXBC_NDTB_SHIFT) |
        //        cdev->mcfg[MRAM_SIDF].off);
        m_can_write(cdev, M_CAN_SIDFC, (1 << TXBC_NDTB_SHIFT) |
                cdev->mcfg[MRAM_SIDF].off);
    }

    /* XID */
    if (cdev->version == 30) {
        //TCAN4550_DBG("$$$$$$ read M_CAN_XIDFC 0x%X\n", m_can_read(cdev, M_CAN_XIDFC));
        //TCAN4550_DBG("$$$$$$ write M_CAN_XIDFC 0x%X\n", (1 << TXBC_NDTB_SHIFT) |
        //        cdev->mcfg[MRAM_XIDF].off);
        m_can_write(cdev, M_CAN_XIDFC, (1 << TXBC_NDTB_SHIFT) |
                cdev->mcfg[MRAM_XIDF].off);
    }

    /* Tx buffer */
    if (cdev->version == 30) {
        /* only support one Tx Buffer currently */
        m_can_write(cdev, M_CAN_TXBC, (1 << TXBC_NDTB_SHIFT) |
                cdev->mcfg[MRAM_TXB].off);
    } else {
        /* TX FIFO is used for newer IP Core versions */
        m_can_write(cdev, M_CAN_TXBC,
                (cdev->mcfg[MRAM_TXB].num << TXBC_TFQS_SHIFT) |
                (cdev->mcfg[MRAM_TXB].off));
    }

    /* support 64 bytes payload */
    m_can_write(cdev, M_CAN_TXESC, TXESC_TBDS_64BYTES);

    /* TX Event FIFO */
    if (cdev->version == 30) {
        m_can_write(cdev, M_CAN_TXEFC, (1 << TXEFC_EFS_SHIFT) |
                cdev->mcfg[MRAM_TXE].off);
    } else {
        /* Full TX Event FIFO is used */
        m_can_write(cdev, M_CAN_TXEFC,
                ((cdev->mcfg[MRAM_TXE].num << TXEFC_EFS_SHIFT)
                 & TXEFC_EFS_MASK) |
                cdev->mcfg[MRAM_TXE].off);
    }

    /* rx fifo configuration, blocking mode, fifo size 1 */
    m_can_write(cdev, M_CAN_RXF0C,
            (cdev->mcfg[MRAM_RXF0].num << RXFC_FS_SHIFT) |
             cdev->mcfg[MRAM_RXF0].off);

    m_can_write(cdev, M_CAN_RXF1C,
            (cdev->mcfg[MRAM_RXF1].num << RXFC_FS_SHIFT) |
             cdev->mcfg[MRAM_RXF1].off);

    cccr = m_can_read(cdev, M_CAN_CCCR);
    test = m_can_read(cdev, M_CAN_TEST);
    test &= ~TEST_LBCK;
    if (cdev->version == 30) {
    /* Version 3.0.x */

        cccr &= ~(CCCR_TEST | CCCR_MON |
            (CCCR_CMR_MASK << CCCR_CMR_SHIFT) |
            (CCCR_CME_MASK << CCCR_CME_SHIFT));

        if (cdev->can.ctrlmode & CAN_CTRLMODE_FD)
            cccr |= CCCR_CME_CANFD_BRS << CCCR_CME_SHIFT;

    } else {
    /* Version 3.1.x or 3.2.x */
        cccr &= ~(CCCR_TEST | CCCR_MON | CCCR_BRSE | CCCR_FDOE |
              CCCR_NISO);

        /* Only 3.2.x has NISO Bit implemented */
        if (cdev->can.ctrlmode & CAN_CTRLMODE_FD_NON_ISO)
            cccr |= CCCR_NISO;

        if (cdev->can.ctrlmode & CAN_CTRLMODE_FD)
            cccr |= (CCCR_BRSE | CCCR_FDOE);
    }

    /* Loopback Mode */
    if (cdev->can.ctrlmode & CAN_CTRLMODE_LOOPBACK) {
        cccr |= CCCR_TEST | CCCR_MON;
        test |= TEST_LBCK;
    }

    /* Enable Monitoring (all versions) */
    if (cdev->can.ctrlmode & CAN_CTRLMODE_LISTENONLY)
        cccr |= CCCR_MON;

    /* Disable Auto Retransmission (all versions) */
    if (cdev->can.ctrlmode & CAN_CTRLMODE_ONE_SHOT)
        cccr |= CCCR_DAR;

    //TCAN4550_DBG("####### %s(%d) called." , __func__, __LINE__);

    /* Write config */
    m_can_write(cdev, M_CAN_CCCR, cccr);
    m_can_write(cdev, M_CAN_TEST, test);

    /* Enable interrupts */
    m_can_write(cdev, M_CAN_IR, IR_ALL_INT);
    if (!(cdev->can.ctrlmode & CAN_CTRLMODE_BERR_REPORTING))
        if (cdev->version == 30)
            m_can_write(cdev, M_CAN_IE, IR_ALL_INT &
                    ~(IR_ERR_LEC_30X));
        else
            m_can_write(cdev, M_CAN_IE, IR_ALL_INT &
                    ~(IR_ERR_LEC_31X));
    else
        m_can_write(cdev, M_CAN_IE, IR_ALL_INT);

    /* route all interrupts to INT0 */
    m_can_write(cdev, M_CAN_ILS, ILS_ALL_INT0);

    /* set bittiming params */
    m_can_set_bittiming(dev);

    m_can_config_endisable(cdev, false);

    if (cdev->ops->init)
        cdev->ops->init(cdev);
}

static void m_can_start(struct net_device *dev)
{
    struct m_can_classdev *cdev = netdev_priv(dev);

    /* basic m_can configuration */
    m_can_chip_config(dev);

    cdev->can.state = CAN_STATE_ERROR_ACTIVE;

    m_can_enable_all_interrupts(cdev);
}

static int m_can_set_mode(struct net_device *dev, enum can_mode mode)
{
    switch (mode) {
    case CAN_MODE_START:
        m_can_clean(dev);
        m_can_start(dev);
        netif_wake_queue(dev);
        break;
    default:
        return -EOPNOTSUPP;
    }

    return 0;
}

/* Checks core release number of M_CAN
 * returns 0 if an unsupported device is detected
 * else it returns the release and step coded as:
 * return value = 10 * <release> + 1 * <step>
 */
static int m_can_check_core_release(struct m_can_classdev *cdev)
{
    u32 crel_reg;
    u8 rel;
    u8 step;
    int res;

    /* Read Core Release Version and split into version number
     * Example: Version 3.2.1 => rel = 3; step = 2; substep = 1;
     */
    //crel_reg = m_can_read(cdev, M_CAN_CREL);
    crel_reg = m_can_read(cdev, (M_CAN_ENDN) - 0x1000);
    //crel_reg *= 2;
    //TCAN4550_DBG("\n%s(%d) crel_reg : 0x%X.\n", __func__, __LINE__, crel_reg);
    rel = (u8)((crel_reg & CREL_REL_MASK) >> CREL_REL_SHIFT);
    step = (u8)((crel_reg & CREL_STEP_MASK) >> CREL_STEP_SHIFT);

    if (rel == 3) {
        /* M_CAN v3.x.y: create return value */
        res = 30 + step;
    } else {
        /* Unsupported M_CAN version */
        res = 0;
    }

    return res;
}

/* Selectable Non ISO support only in version 3.2.x
 * This function checks if the bit is writable.
 */
static bool m_can_niso_supported(struct m_can_classdev *cdev)
{
    u32 cccr_reg, cccr_poll = 0;
    int niso_timeout = -ETIMEDOUT;
    int i;

    m_can_config_endisable(cdev, true);
    cccr_reg = m_can_read(cdev, M_CAN_CCCR);
    cccr_reg |= CCCR_NISO;
    m_can_write(cdev, M_CAN_CCCR, cccr_reg);

    for (i = 0; i <= 10; i++) {
        cccr_poll = m_can_read(cdev, M_CAN_CCCR);
        if (cccr_poll == cccr_reg) {
            niso_timeout = 0;
            break;
        }

        usleep_range(1, 5);
    }

    /* Clear NISO */
    cccr_reg &= ~(CCCR_NISO);
    m_can_write(cdev, M_CAN_CCCR, cccr_reg);

    m_can_config_endisable(cdev, false);

    /* return false if time out (-ETIMEDOUT), else return true */
    return !niso_timeout;
}

static int m_can_dev_setup(struct m_can_classdev *m_can_dev)
{
    struct net_device *dev = m_can_dev->net;
    int m_can_version;

    m_can_version = m_can_check_core_release(m_can_dev);
    /* return if unsupported version */
    if (!m_can_version) {
        dev_err(m_can_dev->dev, "Unsupported version number: %2d",
            m_can_version);
        //return -EINVAL;
    }

    if (!m_can_dev->is_peripheral)
        netif_napi_add(dev, &m_can_dev->napi,
                   m_can_poll, M_CAN_NAPI_WEIGHT);

    /* Shared properties of all M_CAN versions */
    m_can_dev->version = m_can_version;
    m_can_dev->can.do_set_mode = m_can_set_mode;
    m_can_dev->can.do_get_berr_counter = m_can_get_berr_counter;

    /* Set M_CAN supported operations */
    m_can_dev->can.ctrlmode_supported = CAN_CTRLMODE_LOOPBACK |
                    CAN_CTRLMODE_LISTENONLY |
                    CAN_CTRLMODE_BERR_REPORTING |
                    CAN_CTRLMODE_FD |
                    CAN_CTRLMODE_ONE_SHOT;

    /* Set properties depending on M_CAN version */
    switch (m_can_dev->version) {
    case 30:
        /* CAN_CTRLMODE_FD_NON_ISO is fixed with M_CAN IP v3.0.x */
        can_set_static_ctrlmode(dev, CAN_CTRLMODE_FD_NON_ISO);
        m_can_dev->can.bittiming_const = m_can_dev->bit_timing ?
            m_can_dev->bit_timing : &m_can_bittiming_const_30X;

        m_can_dev->can.data_bittiming_const = m_can_dev->data_timing ?
                        m_can_dev->data_timing :
                        &m_can_data_bittiming_const_30X;
        break;
    case 31:
        /* CAN_CTRLMODE_FD_NON_ISO is fixed with M_CAN IP v3.1.x */
        can_set_static_ctrlmode(dev, CAN_CTRLMODE_FD_NON_ISO);
        m_can_dev->can.bittiming_const = m_can_dev->bit_timing ?
            m_can_dev->bit_timing : &m_can_bittiming_const_31X;

        m_can_dev->can.data_bittiming_const = m_can_dev->data_timing ?
                        m_can_dev->data_timing :
                        &m_can_data_bittiming_const_31X;
        break;
    case 32:
    case 33:
        /* Support both MCAN version v3.2.x and v3.3.0 */
        m_can_dev->can.bittiming_const = m_can_dev->bit_timing ?
            m_can_dev->bit_timing : &m_can_bittiming_const_31X;

        m_can_dev->can.data_bittiming_const = m_can_dev->data_timing ?
                        m_can_dev->data_timing :
                        &m_can_data_bittiming_const_31X;

        m_can_dev->can.ctrlmode_supported |=
                        (m_can_niso_supported(m_can_dev)
                        ? CAN_CTRLMODE_FD_NON_ISO
                        : 0);
        break;
    default:
        dev_err(m_can_dev->dev, "Unsupported version number: %2d",
            m_can_dev->version);
        return -EINVAL;
    }

    if (m_can_dev->ops->init)
        m_can_dev->ops->init(m_can_dev);

    return 0;
}

static void m_can_stop(struct net_device *dev)
{
    struct m_can_classdev *cdev = netdev_priv(dev);

    /* disable all interrupts */
    m_can_disable_all_interrupts(cdev);

    /* Set init mode to disengage from the network */
    m_can_config_endisable(cdev, true);

    /* set the state as STOPPED */
    cdev->can.state = CAN_STATE_STOPPED;
}

static int m_can_close(struct net_device *dev)
{
    struct m_can_classdev *cdev = netdev_priv(dev);

    netif_stop_queue(dev);

    if (!cdev->is_peripheral)
        napi_disable(&cdev->napi);

    m_can_stop(dev);
    m_can_clk_stop(cdev);
    free_irq(dev->irq, dev);

    if (cdev->is_peripheral) {
        cdev->tx_skb = NULL;
        destroy_workqueue(cdev->tx_wq);
        cdev->tx_wq = NULL;
    }

    close_candev(dev);
    can_led_event(dev, CAN_LED_EVENT_STOP);

    return 0;
}

static int m_can_next_echo_skb_occupied(struct net_device *dev, int putidx)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    /*get wrap around for loopback skb index */
    unsigned int wrap = cdev->can.echo_skb_max;
    int next_idx;

    /* calculate next index */
    next_idx = (++putidx >= wrap ? 0 : putidx);

    /* check if occupied */
    return !!cdev->can.echo_skb[next_idx];
}

static netdev_tx_t m_can_tx_handler(struct m_can_classdev *cdev)
{
    struct canfd_frame *cf = (struct canfd_frame *)cdev->tx_skb->data;
    struct net_device *dev = cdev->net;
    struct sk_buff *skb = cdev->tx_skb;
    u32 id, cccr, fdflags;
    int i;
    int putidx;

    //cdev->tx_skb = NULL;

    /* Generate ID field for TX buffer Element */
    /* Common to all supported M_CAN versions */
    if (cf->can_id & CAN_EFF_FLAG) {
        id = cf->can_id & CAN_EFF_MASK;
        id |= TX_BUF_XTD;
    } else {
        id = ((cf->can_id & CAN_SFF_MASK) << 18);
    }

    if (cf->can_id & CAN_RTR_FLAG)
        id |= TX_BUF_RTR;

    if (cdev->version == 30) {
        netif_stop_queue(dev);

        /* message ram configuration */
        m_can_fifo_write(cdev, 0, M_CAN_FIFO_ID, id);
        m_can_fifo_write(cdev, 0, M_CAN_FIFO_DLC,
                 can_len2dlc(cf->len) << 16);

        for (i = 0; i < cf->len; i += 4)
            m_can_fifo_write(cdev, 0,
                     M_CAN_FIFO_DATA(i / 4),
                     *(u32 *)(cf->data + i));

        can_put_echo_skb(skb, dev, 0);

        if (cdev->can.ctrlmode & CAN_CTRLMODE_FD) {
            cccr = m_can_read(cdev, M_CAN_CCCR);
            cccr &= ~(CCCR_CMR_MASK << CCCR_CMR_SHIFT);
            if (can_is_canfd_skb(skb)) {
                if (cf->flags & CANFD_BRS)
                    cccr |= CCCR_CMR_CANFD_BRS <<
                        CCCR_CMR_SHIFT;
                else
                    cccr |= CCCR_CMR_CANFD <<
                        CCCR_CMR_SHIFT;
            } else {
                cccr |= CCCR_CMR_CAN << CCCR_CMR_SHIFT;
            }
            m_can_write(cdev, M_CAN_CCCR, cccr);
        }
        m_can_write(cdev, M_CAN_TXBTIE, 0x1);
        m_can_write(cdev, M_CAN_TXBAR, 0x1);
        /* End of xmit function for version 3.0.x */

        //TCAN4550_DBG("%s(%d) called.\n", __func__, __LINE__);

        return NETDEV_TX_OK;
    } else {
        /* Transmit routine for version >= v3.1.x */

        /* Check if FIFO full */
        if (m_can_tx_fifo_full(cdev)) {
            /* This shouldn't happen */
            netif_stop_queue(dev);
            netdev_warn(dev,
                    "TX queue active although FIFO is full.");

            if (cdev->is_peripheral) {
                kfree_skb(skb);
                dev->stats.tx_dropped++;
                return NETDEV_TX_OK;
            } else {
                return NETDEV_TX_BUSY;
            }
        }

        /* get put index for frame */
        putidx = ((m_can_read(cdev, M_CAN_TXFQS) & TXFQS_TFQPI_MASK)
                  >> TXFQS_TFQPI_SHIFT);
        /* Write ID Field to FIFO Element */
        m_can_fifo_write(cdev, putidx, M_CAN_FIFO_ID, id);

        /* get CAN FD configuration of frame */
        fdflags = 0;
        if (can_is_canfd_skb(skb)) {
            fdflags |= TX_BUF_FDF;
            if (cf->flags & CANFD_BRS)
                fdflags |= TX_BUF_BRS;
        }

        /* Construct DLC Field. Also contains CAN-FD configuration
         * use put index of fifo as message marker
         * it is used in TX interrupt for
         * sending the correct echo frame
         */
        m_can_fifo_write(cdev, putidx, M_CAN_FIFO_DLC,
                 ((putidx << TX_BUF_MM_SHIFT) &
                  TX_BUF_MM_MASK) |
                 (can_len2dlc(cf->len) << 16) |
                 fdflags | TX_BUF_EFC);

        for (i = 0; i < cf->len; i += 4)
            m_can_fifo_write(cdev, putidx, M_CAN_FIFO_DATA(i / 4),
                     *(u32 *)(cf->data + i));

        /* Push loopback echo.
         * Will be looped back on TX interrupt based on message marker
         */
        can_put_echo_skb(skb, dev, putidx);

        /* Enable TX FIFO element to start transfer  */
        m_can_write(cdev, M_CAN_TXBAR, (1 << putidx));

        /* stop network queue if fifo full */
        if (m_can_tx_fifo_full(cdev) ||
            m_can_next_echo_skb_occupied(dev, putidx))
            netif_stop_queue(dev);
    }

    return NETDEV_TX_OK;
}

static void m_can_tx_work_queue(struct work_struct *ws)
{
    struct m_can_classdev *cdev = container_of(ws, struct m_can_classdev,
                        tx_work);

    m_can_tx_handler(cdev);
    cdev->tx_skb = NULL;
    //TCAN4550_DBG("####### %s(%d) called." , __func__, __LINE__);
}

static netdev_tx_t m_can_start_xmit(struct sk_buff *skb,
                    struct net_device *dev)
{
    struct m_can_classdev *cdev = netdev_priv(dev);

    if (can_dropped_invalid_skb(dev, skb))
        return NETDEV_TX_OK;

    if (cdev->is_peripheral) {
        if (cdev->tx_skb) {
            netdev_err(dev, "hard_xmit called while tx busy\n");
            return NETDEV_TX_BUSY;
        }

        if (cdev->can.state == CAN_STATE_BUS_OFF) {
            m_can_clean(dev);
        } else {
            /* Need to stop the queue to avoid numerous requests
             * from being sent.  Suggested improvement is to create
             * a queueing mechanism that will queue the skbs and
             * process them in order.
             */
            cdev->tx_skb = skb;
            //netif_stop_queue(cdev->net);
            queue_work(cdev->tx_wq, &cdev->tx_work);
        }
    } else {
        cdev->tx_skb = skb;
        return m_can_tx_handler(cdev);
    }

    return NETDEV_TX_OK;
}

static int m_can_open(struct net_device *dev)
{
    struct m_can_classdev *cdev = netdev_priv(dev);
    int err;

    err = m_can_clk_start(cdev);
    if (err)
        return err;

    /* open the can device */
    err = open_candev(dev);
    if (err) {
        netdev_err(dev, "failed to open can device\n");
        goto exit_disable_clks;
    }

    /* register interrupt handler */
    if (cdev->is_peripheral) {
        cdev->tx_skb = NULL;
        cdev->tx_wq = alloc_workqueue("mcan_wq",
                          WQ_FREEZABLE | WQ_MEM_RECLAIM, 0);
        if (!cdev->tx_wq) {
            err = -ENOMEM;
            goto out_wq_fail;
        }

        INIT_WORK(&cdev->tx_work, m_can_tx_work_queue);

        err = request_threaded_irq(dev->irq, NULL, m_can_isr,
                       IRQF_ONESHOT | IRQF_TRIGGER_FALLING,
                       dev->name, dev);
    } else {
        err = request_irq(dev->irq, m_can_isr, IRQF_SHARED, dev->name,
                  dev);
    }

    if (err < 0) {
        netdev_err(dev, "failed to request interrupt\n");
        goto exit_irq_fail;
    }

    mutex_init(&cdev->mcan_lock);
    /* start the m_can controller */
    m_can_start(dev);

    can_led_event(dev, CAN_LED_EVENT_OPEN);

    if (!cdev->is_peripheral)
        napi_enable(&cdev->napi);

    netif_start_queue(dev);

    return 0;

exit_irq_fail:
    if (cdev->is_peripheral)
        destroy_workqueue(cdev->tx_wq);
out_wq_fail:
    close_candev(dev);
exit_disable_clks:
    m_can_clk_stop(cdev);
    return err;
}

static const struct net_device_ops m_can_netdev_ops = {
    .ndo_open = m_can_open,
    .ndo_stop = m_can_close,
    .ndo_start_xmit = m_can_start_xmit,
    .ndo_change_mtu = can_change_mtu,
};

static int register_m_can_dev(struct net_device *dev)
{
    dev->flags |= IFF_ECHO;    /* we support local echo */
    dev->netdev_ops = &m_can_netdev_ops;

    return register_candev(dev);
}

static void m_can_of_parse_mram(struct m_can_classdev *cdev,
                const u32 *mram_config_vals)
{
    cdev->mcfg[MRAM_SIDF].off = mram_config_vals[0];
    cdev->mcfg[MRAM_SIDF].num = mram_config_vals[1];
    cdev->mcfg[MRAM_XIDF].off = cdev->mcfg[MRAM_SIDF].off +
            cdev->mcfg[MRAM_SIDF].num * SIDF_ELEMENT_SIZE;
    cdev->mcfg[MRAM_XIDF].num = mram_config_vals[2];
    cdev->mcfg[MRAM_RXF0].off = cdev->mcfg[MRAM_XIDF].off +
            cdev->mcfg[MRAM_XIDF].num * XIDF_ELEMENT_SIZE;
    cdev->mcfg[MRAM_RXF0].num = mram_config_vals[3] &
            (RXFC_FS_MASK >> RXFC_FS_SHIFT);
    cdev->mcfg[MRAM_RXF1].off = cdev->mcfg[MRAM_RXF0].off +
            cdev->mcfg[MRAM_RXF0].num * RXF0_ELEMENT_SIZE;
    cdev->mcfg[MRAM_RXF1].num = mram_config_vals[4] &
            (RXFC_FS_MASK >> RXFC_FS_SHIFT);
    cdev->mcfg[MRAM_RXB].off = cdev->mcfg[MRAM_RXF1].off +
            cdev->mcfg[MRAM_RXF1].num * RXF1_ELEMENT_SIZE;
    cdev->mcfg[MRAM_RXB].num = mram_config_vals[5];
    cdev->mcfg[MRAM_TXE].off = cdev->mcfg[MRAM_RXB].off +
            cdev->mcfg[MRAM_RXB].num * RXB_ELEMENT_SIZE;
    cdev->mcfg[MRAM_TXE].num = mram_config_vals[6];
    cdev->mcfg[MRAM_TXB].off = cdev->mcfg[MRAM_TXE].off +
            cdev->mcfg[MRAM_TXE].num * TXE_ELEMENT_SIZE;
    cdev->mcfg[MRAM_TXB].num = mram_config_vals[7] &
            (TXBC_NDTB_MASK >> TXBC_NDTB_SHIFT);

    dev_dbg(cdev->dev,
        "sidf 0x%x %d xidf 0x%x %d rxf0 0x%x %d rxf1 0x%x %d rxb 0x%x %d txe 0x%x %d txb 0x%x %d\n",
        cdev->mcfg[MRAM_SIDF].off, cdev->mcfg[MRAM_SIDF].num,
        cdev->mcfg[MRAM_XIDF].off, cdev->mcfg[MRAM_XIDF].num,
        cdev->mcfg[MRAM_RXF0].off, cdev->mcfg[MRAM_RXF0].num,
        cdev->mcfg[MRAM_RXF1].off, cdev->mcfg[MRAM_RXF1].num,
        cdev->mcfg[MRAM_RXB].off, cdev->mcfg[MRAM_RXB].num,
        cdev->mcfg[MRAM_TXE].off, cdev->mcfg[MRAM_TXE].num,
        cdev->mcfg[MRAM_TXB].off, cdev->mcfg[MRAM_TXB].num);
}

void m_can_init_ram(struct m_can_classdev *cdev)
{
    int end, i, start;

    /* initialize the entire Message RAM in use to avoid possible
     * ECC/parity checksum errors when reading an uninitialized buffer
     */
    start = cdev->mcfg[MRAM_SIDF].off;
    end = cdev->mcfg[MRAM_TXB].off +
        cdev->mcfg[MRAM_TXB].num * TXB_ELEMENT_SIZE;

    for (i = start; i < end; i += 4)
        m_can_fifo_write_no_off(cdev, i, 0x0);
}
EXPORT_SYMBOL_GPL(m_can_init_ram);

int m_can_class_get_clocks(struct m_can_classdev *m_can_dev)
{
    int ret = 0;

    m_can_dev->hclk = devm_clk_get(m_can_dev->dev, "hclk");
    m_can_dev->cclk = devm_clk_get(m_can_dev->dev, "cclk");

    if (IS_ERR(m_can_dev->cclk)) {
        dev_err(m_can_dev->dev, "no clock found\n");
        ret = -ENODEV;
    }

    return ret;
}
EXPORT_SYMBOL_GPL(m_can_class_get_clocks);

struct m_can_classdev *m_can_class_allocate_dev(struct device *dev)
{
    struct m_can_classdev *class_dev = NULL;
    u32 mram_config_vals[MRAM_CFG_LEN];
    struct net_device *net_dev;
    u32 tx_fifo_size;
    int ret;

    ret = fwnode_property_read_u32_array(dev_fwnode(dev),
                         "bosch,mram-cfg",
                         mram_config_vals,
                         sizeof(mram_config_vals) / 4);
    if (ret) {
        dev_err(dev, "Could not get Message RAM configuration.");
        goto out;
    }

    /* Get TX FIFO size
     * Defines the total amount of echo buffers for loopback
     */
    tx_fifo_size = mram_config_vals[7];

    /* allocate the m_can device */
    net_dev = alloc_candev(sizeof(*class_dev), tx_fifo_size);
    if (!net_dev) {
        dev_err(dev, "Failed to allocate CAN device");
        goto out;
    }

    class_dev = netdev_priv(net_dev);
    if (!class_dev) {
        dev_err(dev, "Failed to init netdev cdevate");
        goto out;
    }

    class_dev->net = net_dev;
    class_dev->dev = dev;
    SET_NETDEV_DEV(net_dev, dev);

    m_can_of_parse_mram(class_dev, mram_config_vals);
out:
    return class_dev;
}
EXPORT_SYMBOL_GPL(m_can_class_allocate_dev);

void m_can_class_free_dev(struct net_device *net)
{
    free_candev(net);
}
EXPORT_SYMBOL_GPL(m_can_class_free_dev);

int m_can_class_register(struct m_can_classdev *m_can_dev)
{
    int ret;

    if (m_can_dev->pm_clock_support) {
        pm_runtime_enable(m_can_dev->dev);
        ret = m_can_clk_start(m_can_dev);
        if (ret)
            goto pm_runtime_fail;
    }

    ret = m_can_dev_setup(m_can_dev);
    if (ret)
        goto clk_disable;

    ret = register_m_can_dev(m_can_dev->net);
    if (ret) {
        dev_err(m_can_dev->dev, "registering %s failed (err=%d)\n",
            m_can_dev->net->name, ret);
        goto clk_disable;
    }

    devm_can_led_init(m_can_dev->net);

    of_can_transceiver(m_can_dev->net);

    dev_info(m_can_dev->dev, "%s device registered (irq=%d, version=%d)\n",
         KBUILD_MODNAME, m_can_dev->net->irq, m_can_dev->version);

    /* Probe finished
     * Stop clocks. They will be reactivated once the M_CAN device is opened
     */
clk_disable:
    m_can_clk_stop(m_can_dev);
pm_runtime_fail:
    if (ret) {
        if (m_can_dev->pm_clock_support)
            pm_runtime_disable(m_can_dev->dev);
        free_candev(m_can_dev->net);
    }

    return ret;
}
EXPORT_SYMBOL_GPL(m_can_class_register);

int m_can_class_suspend(struct device *dev)
{
    struct net_device *ndev = dev_get_drvdata(dev);
    struct m_can_classdev *cdev = netdev_priv(ndev);

    if (netif_running(ndev)) {
        netif_stop_queue(ndev);
        netif_device_detach(ndev);
        m_can_stop(ndev);
        m_can_clk_stop(cdev);
    }

    pinctrl_pm_select_sleep_state(dev);

    cdev->can.state = CAN_STATE_SLEEPING;

    return 0;
}
EXPORT_SYMBOL_GPL(m_can_class_suspend);

int m_can_class_resume(struct device *dev)
{
    struct net_device *ndev = dev_get_drvdata(dev);
    struct m_can_classdev *cdev = netdev_priv(ndev);

    pinctrl_pm_select_default_state(dev);

    cdev->can.state = CAN_STATE_ERROR_ACTIVE;

    if (netif_running(ndev)) {
        int ret;

        ret = m_can_clk_start(cdev);
        if (ret)
            return ret;

        m_can_init_ram(cdev);
        m_can_start(ndev);
        netif_device_attach(ndev);
        netif_start_queue(ndev);
    }

    return 0;
}
EXPORT_SYMBOL_GPL(m_can_class_resume);

void m_can_class_unregister(struct m_can_classdev *m_can_dev)
{
    unregister_candev(m_can_dev->net);

    m_can_clk_stop(m_can_dev);

    free_candev(m_can_dev->net);
}
EXPORT_SYMBOL_GPL(m_can_class_unregister);

MODULE_AUTHOR("Dong Aisheng <b29396@freescale.com>");
MODULE_AUTHOR("Dan Murphy <dmurphy@ti.com>");
MODULE_LICENSE("GPL v2");
MODULE_DESCRIPTION("CAN bus driver for Bosch M_CAN controller");
