SN65DSI84: SN65DSI84: Display Panel

Yasar Maheen Seenath

Prodigy 190 points

Part Number: SN65DSI84

Tool/software:

Hello Team,

Can I use following display panel to validate the Dual LVDS output of SN65DSI84

Model: G133HAN01.1

fortec-integrated.de/en/products/tft-components/tft-displays/detail/auo/g133han011/

OR Do you have any suggestions to validate the Dual LVDS out?

Below are the SOC's Display interface specification

4-lane MIPI DSI
 D-PHY v1.2: 2.1 Gbps/lane on four lanes per port, up to 8.4 Gbps/port
 DisplayPort v1.4 at 5.4 Gbps/lane, 21.6 Gbps/port with support for MST
Up to a maximum of 5 MP; example configurations:
2x 1920 × 1080 + 1x 1280 × 720

8 months ago

0 Vishesh Pithadiya 8 months ago

TI__Mastermind 40190 points

Hi,

One concern I have is that the panel only has one LVDS inputs, but if you plan to use the SN65DSI84EVM to validate the system, there will be two LVDS ports out. One odd and one even. If you are validating your own system implementation, then make sure the pinout matches the panel.

The key spec if the LVDS clock speed, and the LVDS/ DSI timings. This panel is within the device spec.

0 Yasar Maheen Seenath 8 months ago in reply to Vishesh Pithadiya

Prodigy 190 points

Hi Vishesh,

The panel has two inputs (odd input and even inputs). I am attaching the datasheet FYR. Please re-confirm.

So basically, SN65DSI84 can configure as either Dual ports LVDS or Single port. right?

If so, what will be the default configuration SN65DSI84 comes with?

SN65DSI84 comes pre-configured as either Dual or single mode?

Do we need to program SN65DSI84 separately?

0 Yasar Maheen Seenath 8 months ago in reply to Yasar Maheen Seenath

Prodigy 190 points

5775.G133HAN01V1 final spec ver 1.0_20190513.pdf.pdf

Attaching the datasheet

0 Vishesh Pithadiya 8 months ago in reply to Yasar Maheen Seenath

TI__Mastermind 40190 points

Hi,

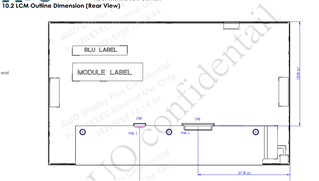

I've already had a look at the datasheet from the product page provided earlier. In the mechanical drawing there is only one port for LVDS where the odd and even signal will be combined to one bus.

The DSI84 has no default configuration, as the I2C is cleared on power-off and the I2C is the configuration.

0 Yasar Maheen Seenath 8 months ago in reply to Vishesh Pithadiya

Prodigy 190 points

Hello Vishesh

Can we have a call to discuss on this.

I am not clear about one LVDS port supporting both odd and even pixels.

0 Vishesh Pithadiya 8 months ago in reply to Yasar Maheen Seenath

TI__Mastermind 40190 points

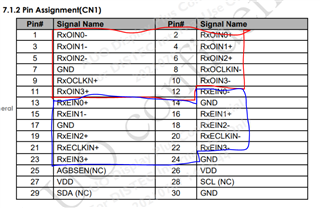

Please see the pinout of the LVDS connector.

0 Vishesh Pithadiya 8 months ago in reply to Vishesh Pithadiya

TI__Mastermind 40190 points

It may be best to use another panel

0 Yasar Maheen Seenath 7 months ago in reply to Vishesh Pithadiya

Prodigy 190 points

Hello Vishesh,

Yes, we are using our own system implementation (schematic is attached for your reference).

SN65DSI84 WITH LVDS DISPLAY PANEL.pdf
Kindly confirm, whether with this implementation, can I use the attached Display panel to validate the Dual LVDS ports from SN65DSI84?
below is the link to panel datasheet.
www.fortec-integrated.de/.../

0 Vishesh Pithadiya 7 months ago in reply to Yasar Maheen Seenath

TI__Mastermind 40190 points

Yes, this pinout will work with the LVDS panel.
