CCS/TMS320F28379D: CLB .. Sysconfig .. GTKwave

Diana Kalel

Part Number: TMS320F28379D
Other Parts Discussed in Thread: SYSCONFIG

Tool/software: Code Composer Studio

Hello,

I'm using the sysconfig GUI to configure a CLB ...

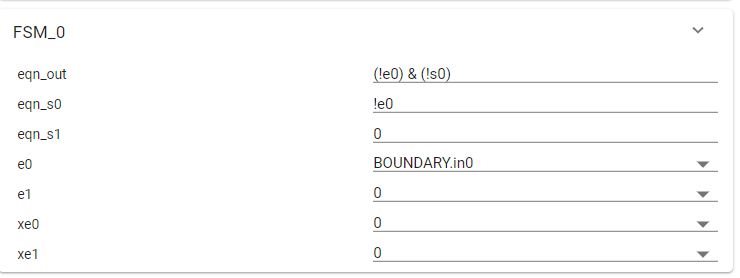

As shown in the screenshots, the simulated signals of the outputs (s0 and output) of FSM0 are always zero ... Although the definition of their equations of the GTKwave i scorrect...

over 5 years ago

0 Nima Eskandari over 5 years ago

TI__Guru 52010 points

Can you take check the actual FSM OUT signal on the scope to see if it functions? I want to make sure this is a simulation issue.

0 Nima Eskandari over 5 years ago in reply to Nima Eskandari

TI__Guru 52010 points

Can you check the glbl_en signals and glb_rst_n?

0 Diana Kalel over 5 years ago in reply to Nima Eskandari

Prodigy 130 points

Hi,

The proleme was in the reset_duration in the simulation parameters. As it as too long we weren't able to visualize any signal.

thank you
